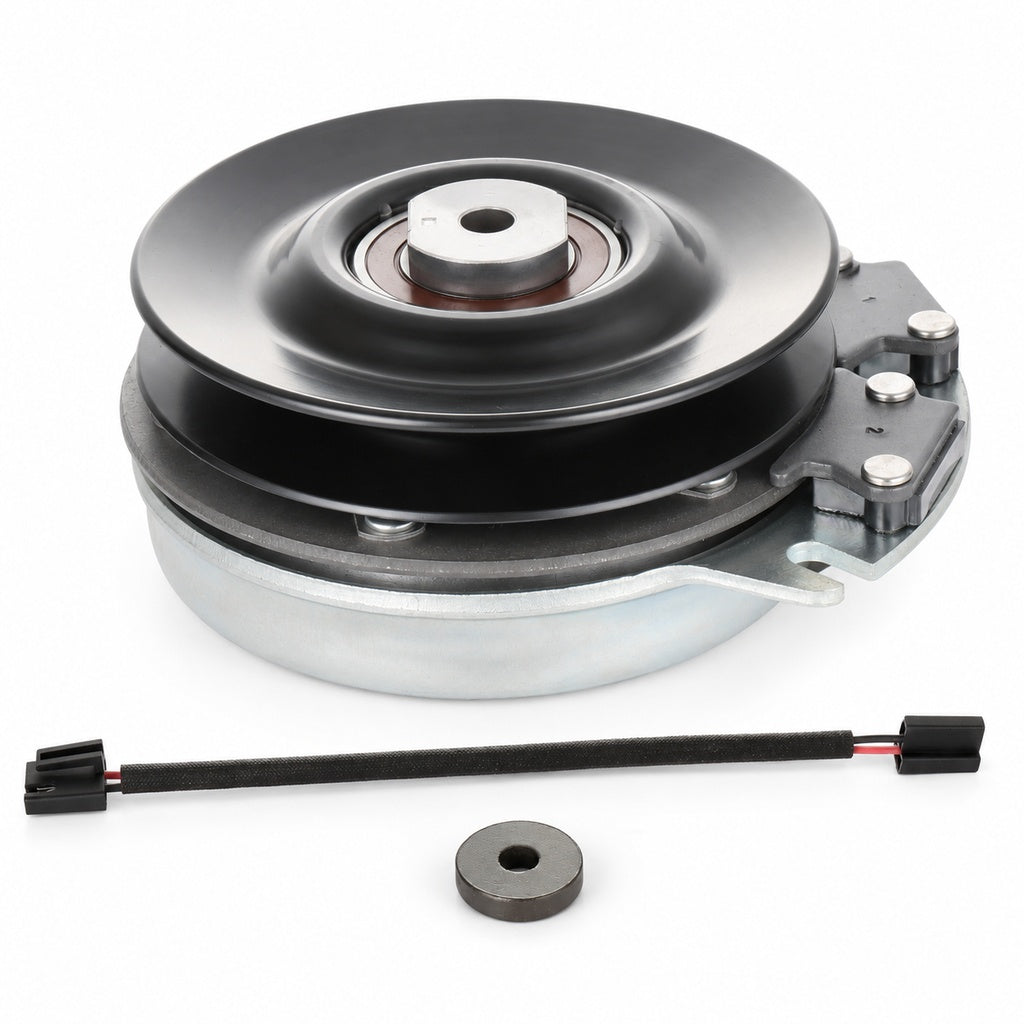

500067 PTO Clutch Replacement for Dixie Chopper Iron Eagle, Magnum | Replaces Warner 5218-250

Overview

This Dixie Chopper 500067 PTO clutch replacement is an aftermarket electric PTO clutch for select Dixie Chopper Iron Eagle and Magnum mower applications using the 500067 / Warner 5218-250 clutch path.

This clutch replaces Dixie Chopper 500067, Warner 5218-250, Warner 5218-116A, and legacy Warner 5218-116. It also cross-references Xtreme X0262 and Stens 255-149X when matched to the same 1-inch bore, 6-inch pulley, CCW rotation, wiring, and mounting setup.

Built with a 1-inch crankshaft bore, 6-inch pulley diameter, and CCW rotation, this clutch is designed to restore reliable mower deck blade engagement on supported Dixie Chopper Iron Eagle and Magnum applications.

Fitment note: This is the Dixie Chopper 500067 clutch path. Do not confuse it with the Dixie Chopper 500012 PTO clutch, Dixie Chopper 500144 PTO clutch, or Dixie Chopper 500056 PTO clutch. Those use different bore sizes, pulley sizes, rotation directions, or clutch architectures.

Key Features

• Aftermarket electric PTO clutch replacement for select Dixie Chopper Iron Eagle and Magnum applications
• Crankshaft Bore: 1"
• Pulley Diameter: 6"
• Rotation: CCW from pulley side
• Overall Height: approximately 3-1/8"
• Belt Width: 1/2" or 5/8" belt compatibility on supported applications
• Voltage: 12V DC
• Connector Style: pigtail / connector style as shown in product photos
• Encapsulated electromagnetic coil for reliable blade engagement
• Heavy-duty bearing design for mower deck operating conditions
• Fully assembled and ready to install after fitment verification

Compatible Brands & Models

This PTO clutch fits select Dixie Chopper Iron Eagle and Dixie Chopper Magnum mower applications using the 500067 / Warner 5218-250 specification. Fitment depends on original clutch number, model year, deck size, engine configuration, crankshaft bore, pulley diameter, rotation, connector style, and anti-rotation setup.

Dixie Chopper Iron Eagle Applications

• Iron Eagle 2044: select 44" deck applications with 20HP Kohler engine, commonly 2008
• Iron Eagle 2350: select 50" deck applications with 23HP Kohler engine, commonly 2008-2010
• Iron Eagle 2560: select 60" deck applications with 25HP Kohler engine, commonly 2008-2009

Dixie Chopper Magnum Applications

• Magnum 2344: select 44" deck applications, commonly 2009-2011

Fitment note: Model names alone are not enough to confirm compatibility. Always match the original clutch number first, then compare the 1-inch bore, 6-inch pulley, CCW rotation, connector style, belt width, anti-rotation setup, and product photos.

Replaces OEM Part Numbers

• Dixie Chopper: 500067
• Warner: 5218-250, 5218-116A, 5218-116

Cross-Reference Aftermarket Numbers

• Xtreme: X0262
• Stens: 255-149X

What’s Included

• Complete electric PTO clutch assembly
• Factory-balanced 6" pulley
• Pre-installed bearing assembly
• Encapsulated electromagnetic coil
• Pigtail / connector style as shown in product photos

Why Buy From PTO Direct USA?

• Fast USA shipping
• fitment guarantee
• 1-year warranty
• Fitment-first product support
• Clear product images for easier clutch identification
• Trusted replacement supplier for homeowners, repair shops, and mower service professionals

FAQ

Does this PTO clutch replace Dixie Chopper 500067?

Yes. This clutch replaces Dixie Chopper 500067 on compatible Iron Eagle and Magnum applications using the same 1-inch bore, 6-inch pulley, CCW rotation, and connector style.

Does this replace Warner 5218-250?

Yes. Warner 5218-250 is one of the primary Warner replacement numbers for this Dixie Chopper 500067 clutch path.

Does this replace Warner 5218-116A?

Yes. This clutch also replaces Warner 5218-116A and legacy Warner 5218-116 when used on compatible Dixie Chopper applications.

Is this the same as Ariens / Gravely 09068200?

Ariens / Gravely 09068200 and Dixie Chopper 500067 are often grouped together in broad aftermarket catalogs because they share similar 1-inch bore, 6-inch pulley, and CCW rotation specs. PTO Direct USA keeps them on separate fitment pages so buyers can verify the correct wiring, connector, and anti-rotation setup for their mower. If you are shopping by Ariens or Gravely number, use the 09068200 PTO clutch replacement page.

Is this the same as Dixie Chopper 500012?

No. Dixie Chopper 500012 uses a 1-1/8 inch bore and larger 7-inch class pulley. It is not interchangeable with this 1-inch bore 500067 clutch.

Is this the same as Dixie Chopper 500056?

No. Dixie Chopper 500056 uses a 1-1/8 inch bore, larger pulley, and CW rotation. This 500067 clutch uses a 1-inch bore and CCW rotation.

Is this the same as Dixie Chopper 500144?

No. Dixie Chopper 500144 is an Ogura GT1A-EH01-style clutch path with a 1-1/8 inch bore and 6-inch class pulley. This 500067 clutch uses a separate Warner-style 1-inch bore path.

What bore size does this clutch use?

This clutch uses a 1-inch crankshaft bore. Confirm your crankshaft size before ordering.

What pulley diameter does this clutch use?

This clutch uses a 6-inch pulley diameter. Pulley size matters for belt speed, deck torque, belt tension, and bearing life.

What rotation does this clutch use?

This clutch uses counter-clockwise rotation, commonly written as CCW. Match rotation before installing a replacement.

Can PTO Direct USA help me confirm Dixie Chopper fitment?

Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, original clutch number, and clear photos of the old clutch. Include photos of the pulley, bore, wiring connector, and anti-rotation bracket area.

Need help checking crankshaft size? Read the PTO clutch bore size guide.

Need help with rotation? Read the PTO clutch rotation guide.

If your old clutch will not come off the crankshaft, read the PTO clutch stuck on crankshaft guide before prying or hammering.

Need a different Dixie Chopper clutch? Browse the Dixie Chopper PTO clutch collection or the full electric PTO clutch catalog.
