500056 PTO Clutch Replacement for Dixie Chopper Classic, Xcaliber | Replaces Warner 5218-254

Overview

This Dixie Chopper 500056 PTO clutch replacement is an aftermarket electric PTO clutch for select Dixie Chopper Classic and Xcaliber mower applications using the 500056 / Warner 5218-254 clutch path.

This clutch replaces Dixie Chopper 500056, Warner 5218-254, and legacy Warner 5218-159. It also cross-references Stens 255-781, Xtreme X0451, and Rotary 14353 when matched to the same 1-1/8 inch bore, clockwise rotation, pulley geometry, wiring, and mounting setup.

Built with a 1-1/8 inch crankshaft bore, 7-3/8 inch pulley diameter, and CW rotation, this clutch is designed to restore reliable mower deck blade engagement on supported Dixie Chopper Classic and Xcaliber applications.

Fitment note: This is the Dixie Chopper 500056 CW rotation clutch path. If your mower calls for Dixie Chopper 500012 or Dixie Chopper 500144, use that clutch path instead. Those clutches use CCW rotation and different pulley geometry.

Key Features

• Aftermarket electric PTO clutch replacement for select Dixie Chopper Classic and Xcaliber applications
• Crankshaft Bore: 1.125" / 1-1/8"
• Pulley Diameter: 7-3/8" / 7.375"
• Rotation: CW from pulley side
• Belt Width: 1/2" or 5/8" belt compatibility on supported applications
• Voltage: 12V DC
• Connector Style: pigtail / connector style as shown in product photos
• Encapsulated electromagnetic coil for reliable blade engagement
• Heavy-duty bearing design for commercial mower deck operating conditions
• Fully assembled and ready to install after fitment verification

Compatible Brands & Models

This PTO clutch fits select Dixie Chopper Classic and Dixie Chopper Xcaliber mower applications using the 500056 / Warner 5218-254 specification. Fitment depends on original clutch number, model year, deck size, engine configuration, crankshaft bore, pulley diameter, rotation, connector style, and anti-rotation setup.

Dixie Chopper Classic Applications

• Classic 2550: select 2008-2011 applications
• Classic 2750 / 2750HP: select 2008-2014 applications
• Classic 2760: select 60" deck applications
• Classic 2960EFI: verify original clutch number before ordering
• Classic 3360HP: select 60" deck applications
• Classic 3372HP: select 72" deck applications

Dixie Chopper Xcaliber Applications

• Xcaliber 3366 / 3366SS: select 66" deck applications
• Xcaliber 3374: select 74" deck applications
• Xcaliber 3066LP: select LP 66" deck applications
• Xcaliber 3074LP: select LP 74" deck applications

Fitment note: Model names alone are not enough to confirm compatibility. Always match the original clutch number first, then compare the 1-1/8 inch bore, 7-3/8 inch pulley, CW rotation, connector style, belt width, anti-rotation setup, and product photos.

Replaces OEM Part Numbers

• Dixie Chopper: 500056
• Warner: 5218-254, 5218-159

Additional Warner note: Warner 5218-145 is sometimes grouped near this clutch path, but may involve bracket or configuration differences. Verify your original clutch number and physical specs before using 5218-145 as a match.

Cross-Reference Aftermarket Numbers

• Stens: 255-781
• Xtreme: X0451
• Rotary: 14353

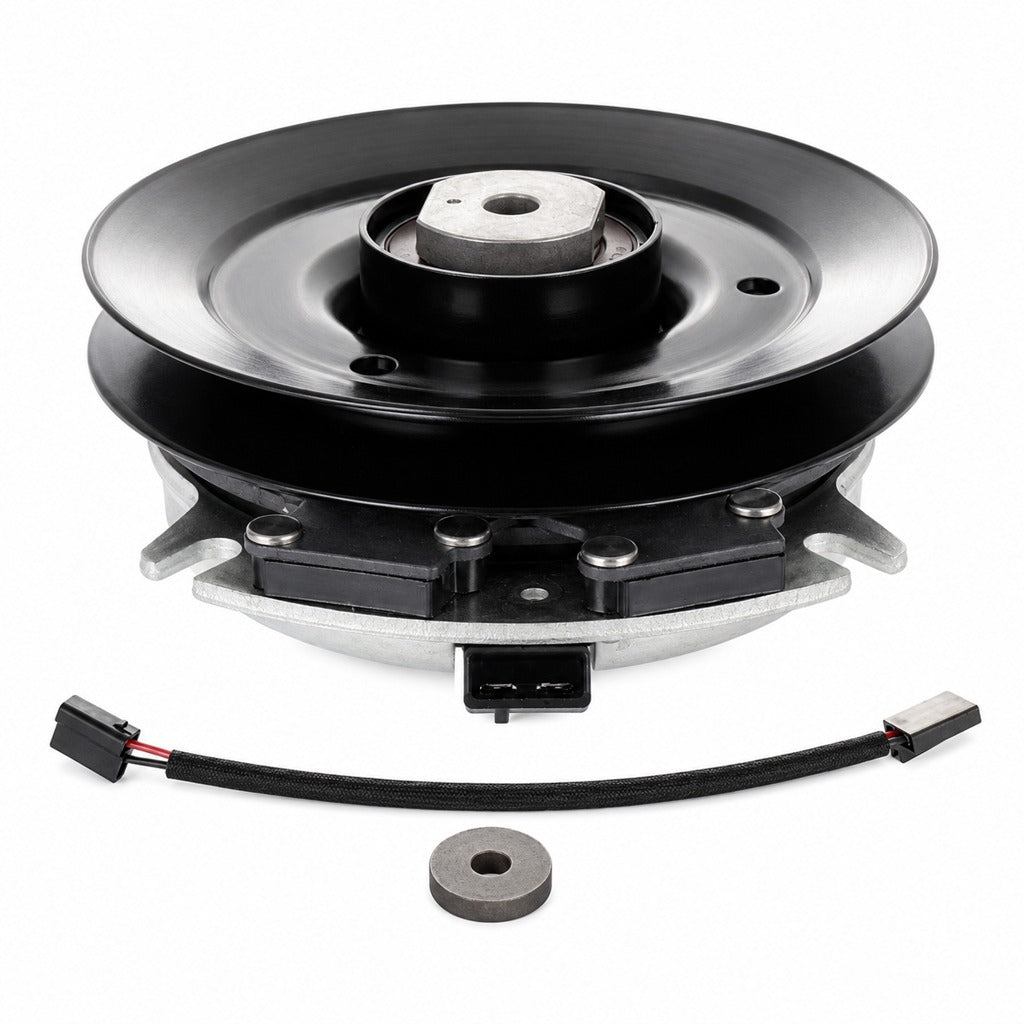

What’s Included

• Complete electric PTO clutch assembly
• Factory-balanced 7-3/8" pulley
• Pre-installed bearing assembly
• Encapsulated electromagnetic coil
• Pigtail / connector style as shown in product photos

Why Buy From PTO Direct USA?

• Fast USA shipping
• fitment guarantee
• 1-year warranty
• Fitment-first product support
• Clear product images for easier clutch identification
• Trusted replacement supplier for homeowners, repair shops, and mower service professionals

FAQ

Does this PTO clutch replace Dixie Chopper 500056?

Yes. This clutch replaces Dixie Chopper 500056 on compatible Dixie Chopper Classic and Xcaliber applications using the same 1-1/8 inch bore, 7-3/8 inch pulley, CW rotation, and connector style.

Does this replace Warner 5218-254?

Yes. Warner 5218-254 is the primary Warner path for this Dixie Chopper 500056 replacement.

Does this replace Warner 5218-159?

Yes. Warner 5218-159 is the legacy Warner path that is superseded by 5218-254 for this application.

Is this the same as Dixie Chopper 500012?

No. Dixie Chopper 500012 is a separate CCW clutch path with different pulley geometry. Do not use 500056 as a replacement for 500012.

Is this the same as Dixie Chopper 500144?

No. Dixie Chopper 500144 is a separate Ogura GT1A-EH01-style clutch path with a 6 inch class pulley and CCW rotation. This 500056 clutch uses CW rotation and a larger 7-3/8 inch pulley.

What bore size does this clutch use?

This clutch uses a 1-1/8 inch crankshaft bore. Confirm your crankshaft size before ordering.

What pulley diameter does this clutch use?

This clutch uses a 7-3/8 inch pulley diameter. Pulley size matters for belt speed, deck torque, belt tension, and bearing life.

What rotation does this clutch use?

This clutch uses clockwise rotation, commonly written as CW. This is the major fitment difference between 500056 and the CCW Dixie Chopper 500012 / 500144 paths.

Can I use this for Wright, Hustler, John Deere, Toro, or Lastec?

No. Those brands have separate clutch paths even when they share similar bore size and rotation. Use the correct product page for those applications instead of treating this Dixie Chopper 500056 clutch as universal.

Can PTO Direct USA help me confirm Dixie Chopper fitment?

Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, original clutch number, and clear photos of the old clutch. Include photos of the pulley, bore, wiring connector, and anti-rotation bracket area.

Need help checking crankshaft size? Read the PTO clutch bore size guide.

Need help with rotation? Read the PTO clutch rotation guide.

If your old clutch will not come off the crankshaft, read the PTO clutch stuck on crankshaft guide before prying or hammering.

Need a different Dixie Chopper clutch? Browse the Dixie Chopper PTO clutch collection or the full electric PTO clutch catalog.
