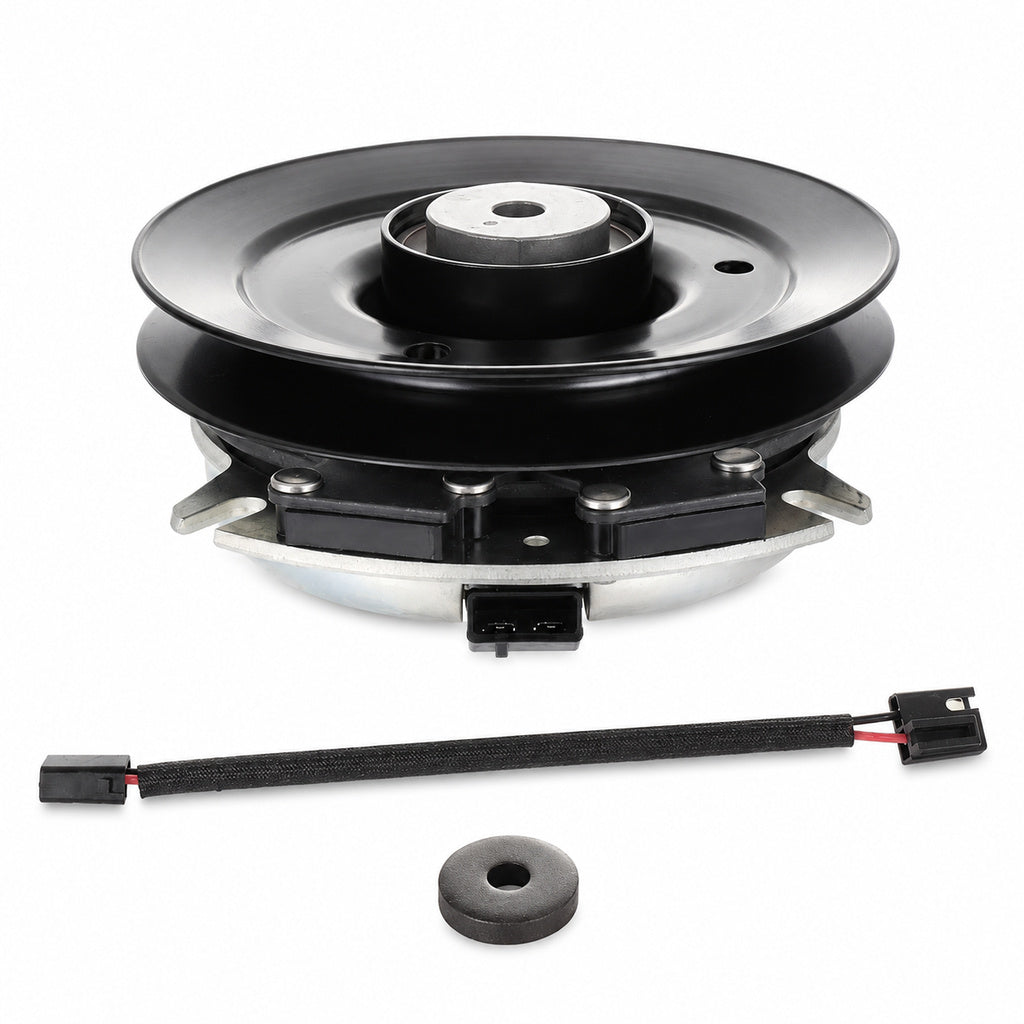

500012 PTO Clutch Replacement for Dixie Chopper Silver Eagle, Classic, Xcaliber | Replaces Warner 5218-253, X0459

Overview

This 500012 PTO clutch replacement is an aftermarket electric PTO clutch for select Dixie Chopper commercial zero-turn and run-behind mower applications, including Silver Eagle, Classic, Xcaliber, and Run Behind series machines.

This clutch replaces Dixie Chopper 500012 and cross-references Warner 5218-253, Warner 5218-107, Warner 5218-140, Warner 5218-210, Xtreme X0459, Stens 255-777, Rotary 12835, Oregon 33-156, and Prime Line 7-06283.

Built for commercial mower drivetrain loads, this clutch uses a 1-1/8 inch crankshaft bore, large 7-inch class pulley, and counter-clockwise rotation. Match your original clutch number, crankshaft size, pulley diameter, rotation, connector style, anti-rotation setup, and mower serial range before ordering.

Key Features

• Aftermarket electric PTO clutch replacement for listed Dixie Chopper commercial mower applications

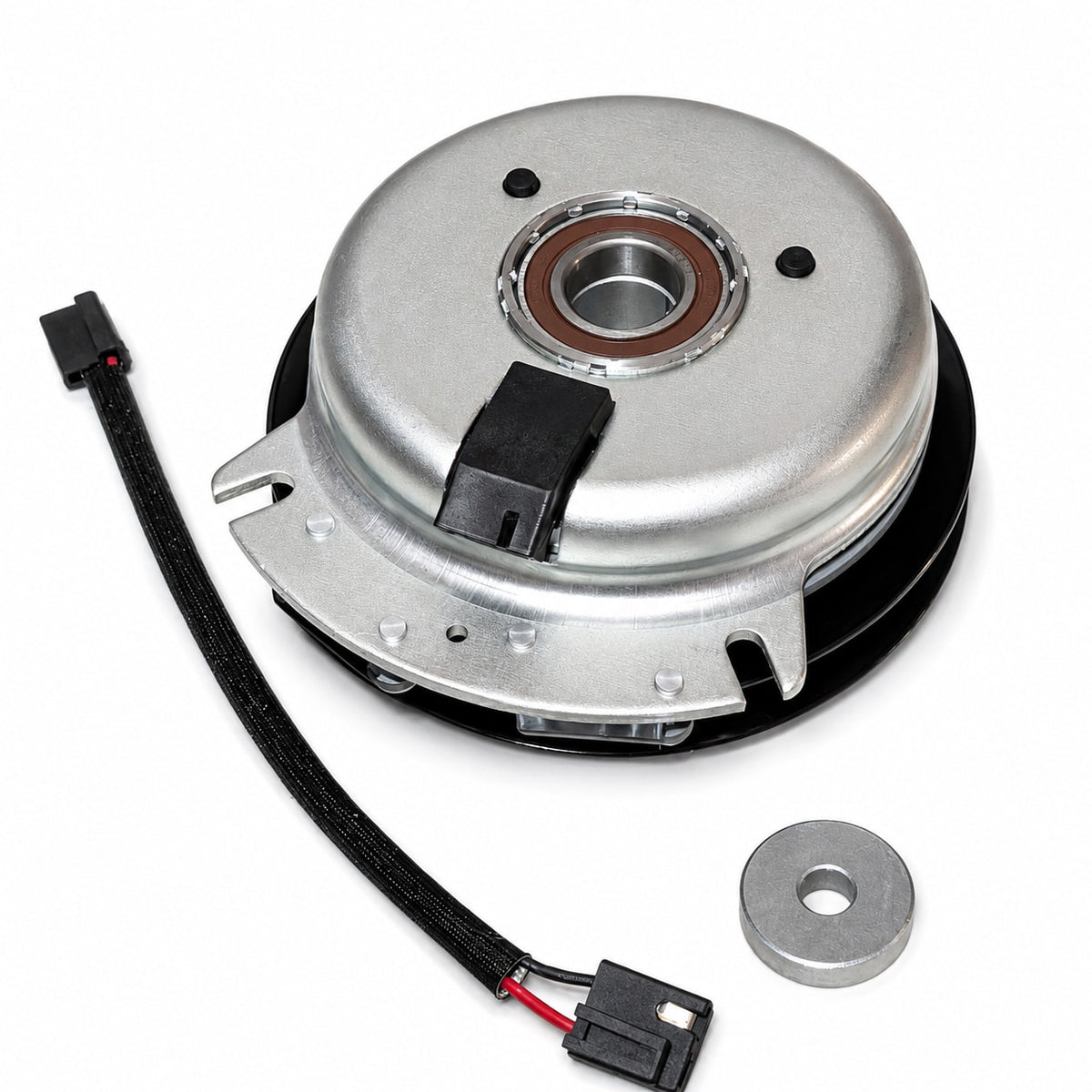

• Crankshaft Bore: 1-1/8" / 1.125"

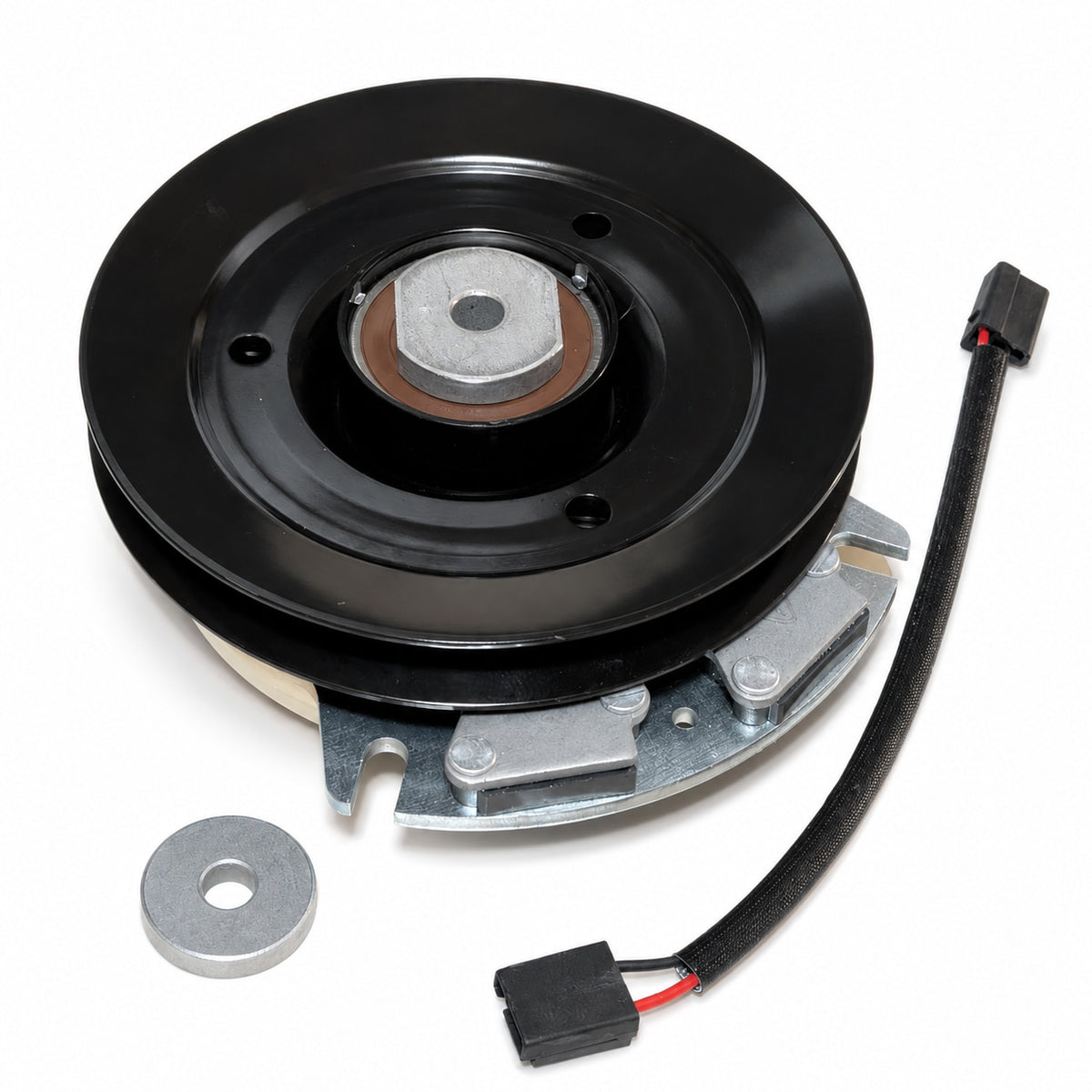

• Pulley Diameter: large 7" class pulley, commonly referenced around 7.25" effective pitch diameter
• Rotation: CCW from pulley side
• Voltage: 12V DC
• Belt Width: commonly used with 5/8" A/B section mower belts on supported applications
• Connector Style: connector / pigtail style as shown in product photos
• Integrated brake assembly for controlled blade stopping
• Fully assembled and ready to install after fitment verification

Compatible Brands & Models

This PTO clutch fits select Dixie Chopper mower applications that use the 500012 or Warner 5218-253 clutch path. Fitment depends on original clutch number, crankshaft bore, pulley diameter, rotation, wiring connection, anti-rotation setup, deck configuration, and serial range.

Dixie Chopper Silver Eagle Applications

• Silver Eagle LT1800-34
• Silver Eagle LT1800-44
• Silver Eagle LT2000-36
• Silver Eagle LT2000-44
• Silver Eagle LT2000-50
• Silver Eagle LT2000-50D
• Silver Eagle LT2200-34
• Silver Eagle LT2300-50D
• Silver Eagle LT2400-44D
• Silver Eagle LT2400-50D
• Silver Eagle LT2500-44D
• Silver Eagle LT2500-50D
• Silver Eagle LT2700-60D
• Silver Eagle SE2550
• Silver Eagle SE2734
• Silver Eagle SE2744
• Silver Eagle SE2750
• Silver Eagle SE2760

Dixie Chopper Run Behind Applications

• Run Behind RB2700-34
• Run Behind RB2700-44
• Run Behind RB2700-50

Additional Dixie Chopper Applications

• Dixie Chopper Classic Series: select 2015 applications, verify serial range and original clutch number
• Dixie Chopper Xcaliber Series: select 2015 applications, verify serial range and original clutch number

Fitment note: If your original clutch is marked Dixie Chopper 500012, Warner 5218-253, Warner 5218-107, Warner 5218-140, Warner 5218-210, Xtreme X0459, Stens 255-777, Rotary 12835, or Oregon 33-156, this is the correct replacement path. However, carefully match specs if relying on model information alone.

Replaces OEM Part Numbers

• Dixie Chopper: 500012

Cross-Reference Aftermarket Numbers

• Warner: 5218-253, 5218253
• Warner: 5218-107, 5218107
• Warner: 5218-140, 5218140
• Warner: 5218-210, 5218210
• Xtreme: X0459
• Stens: 255-777
• Rotary: 12835
• Oregon: 33-156
• Prime Line: 7-06283
• Sunbelt: B1XT0459

Do not confuse with: Dixie Chopper 500144 or other Ogura-based Dixie Chopper clutch paths. This 500012 listing is organized around the Warner 5218-253 clutch family. Match your original clutch number before ordering.

What’s Included

• Complete electric PTO clutch assembly
• Factory-balanced large-diameter pulley
• Pre-installed bearing assembly
• Encapsulated electromagnetic coil
• Integrated brake assembly
• Connector / pigtail style as shown in product photos

Why Buy From PTO Direct USA?

• Fast USA shipping
• fitment guarantee
• 1-year warranty
• Fitment-first product support
• Clear product images for easier clutch identification
• Trusted replacement supplier for homeowners, repair shops, and mower service professionals

FAQ

Does this PTO clutch replace Dixie Chopper 500012?

Yes, this clutch replaces Dixie Chopper 500012 on compatible mower applications. Confirm your original clutch number, 1-1/8 inch bore, pulley size, counter-clockwise rotation, connector style, and anti-rotation setup before ordering.

Is Warner 5218-253 the same fitment as Dixie Chopper 500012?

Warner 5218-253 is the Warner cross-reference associated with the Dixie Chopper 500012 clutch path.

Does this replace Warner 5218-107, 5218-140, or 5218-210?

Yes, those Warner numbers are commonly listed in the same replacement path as Dixie Chopper 500012 and Warner 5218-253. Match your original clutch number and physical specs before ordering.

Does this clutch fit Dixie Chopper Silver Eagle mowers?

Yes, this clutch is listed for select Dixie Chopper Silver Eagle applications, including several LT and SE models. Verify your model, serial range, and original clutch number before ordering.

Does this clutch fit Dixie Chopper Classic or Xcaliber mowers?

This clutch is listed for select Dixie Chopper Classic and Xcaliber applications, but serial range matters. Confirm your original clutch number before ordering.

What bore size does this clutch use?

This clutch uses a 1-1/8 inch bore, also written as 1.125". It will not fit a 1-inch crankshaft.

What rotation does this clutch use?

This clutch uses counter-clockwise rotation, commonly written as CCW. Match rotation to your original clutch before installing a replacement.

What pulley size does this clutch use?

This clutch uses a large 7-inch class pulley, commonly referenced around a 7.25 inch effective pitch diameter. Some references measure the outer flange differently, so compare your original clutch and product photos before ordering.

Is this the same as Dixie Chopper 500144?

No. Dixie Chopper 500144 is a different clutch path and should not be merged with this 500012 / Warner 5218-253 listing.

What should I check before installing a new PTO clutch?

Inspect the crankshaft, keyway, mounting bolt, anti-rotation bracket, deck belt, idlers, blade spindles, PTO switch, and wiring connector before installation. A damaged anti-rotation bracket or weak electrical connection can destroy a new clutch quickly.

What are common signs of a failing PTO clutch?

Common symptoms include mower blades not engaging, the PTO clutch clicking but the blades not spinning, slipping under load, intermittent blade engagement, a burning smell, or blades slowing down after the mower heats up. A worn coil can work cold, then weaken after 10 to 30 minutes of mowing.

Can PTO Direct USA help me confirm fitment?

Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, original clutch number, and clear photos of the old clutch. For the best fitment help, include photos of the clutch label or stamped number, wiring connector, pulley, anti-rotation bracket, and crankshaft area.
