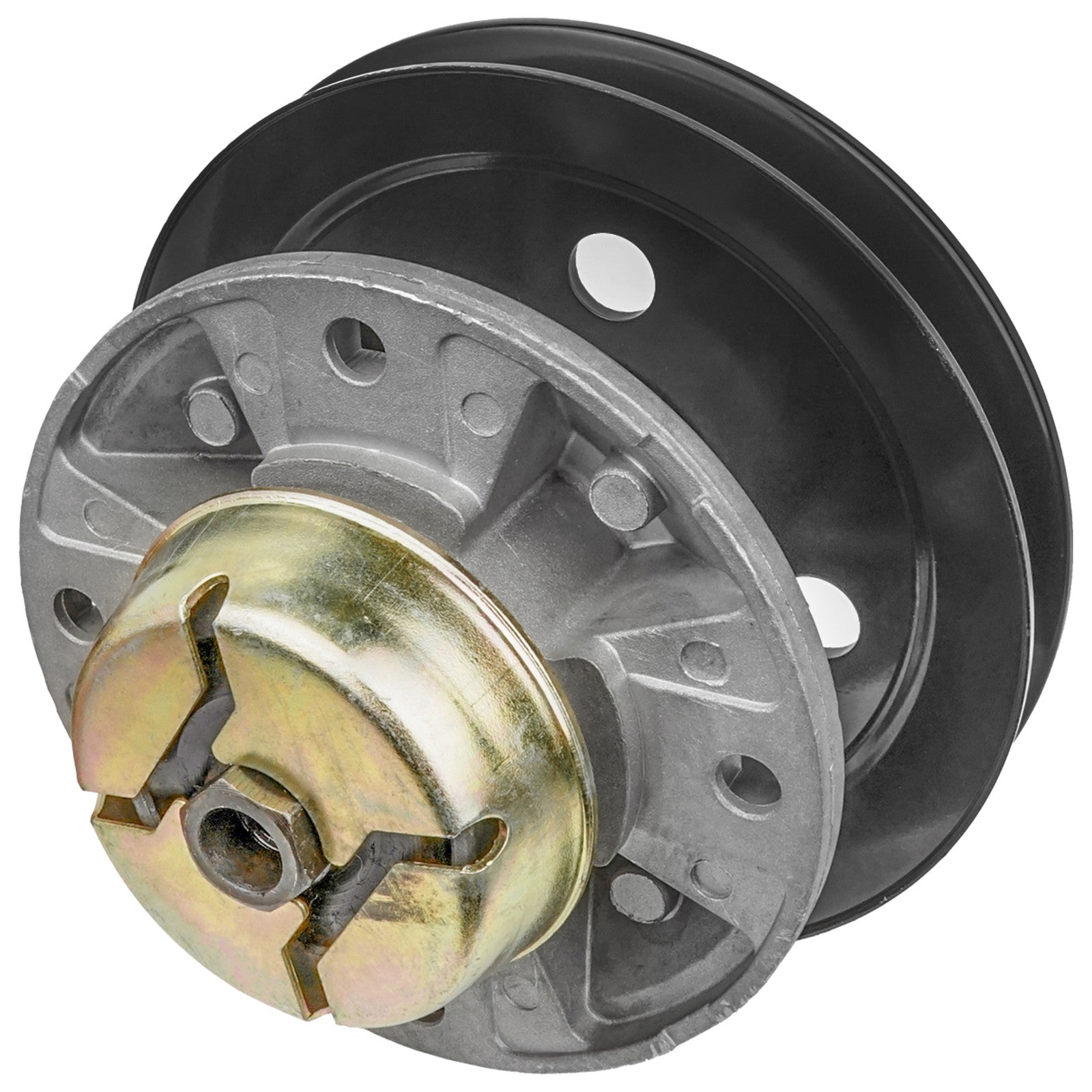

Spindle Assembly AM121342 / AM121229 for John Deere 48/54-Inch Deck

Overview

This aftermarket AM121342 / AM121229 spindle assembly is a replacement-style mower deck spindle assembly for select John Deere mower deck applications.

Match your original spindle number before ordering. An optional 48-inch spindle and mulching blade kit is available for select GT242, GT262, GT275, LX186, and LX188 deck applications.

Key Features

• Aftermarket replacement-style mower deck spindle assembly
• Product Type: Spindle Assembly
• Lead Spindle Number: AM121342
• Also Replaces: AM121229, AM115528, AM115720, AM116065
• Aftermarket Cross-References: Stens 285-109, Oregon 82-333
• Optional 48-inch spindle and mulching blade kit available for matching GT and LX deck applications
• Built around the spindle part-number path first to reduce fitment confusion

Compatible Brands & Model Series

This AM121342 / AM121229 spindle assembly is associated with select John Deere mower deck applications using the listed spindle replacement path.

Common base spindle model references include:

• John Deere F510
• John Deere F525
• John Deere F710
• John Deere F725
• John Deere F735 front mowers
• Select John Deere 48-inch and 54-inch mower decks where the original spindle number matches AM121342 or AM121229

Verify your part numbers before ordering.

Replaces OEM Part Numbers

• John Deere: AM121342, AM121229, AM115528, AM115720, AM116065
• Stens: 285-109
• Oregon: 82-333

Optional 48-Inch Kit Fitment

The optional 48-inch spindle and mulching blade kit is a separate deck repair path for select John Deere GT and LX models. Do not select this kit unless your mower model, deck size, and original part numbers match the kit path below.

Compatible optional kit model references include:

• John Deere GT242
• John Deere GT262
• John Deere GT275
• John Deere LX186
• John Deere LX188

Verify your part numbers before ordering.

Optional 48-Inch Kit Part Number Breakdown

The following part numbers apply to the optional 48-inch spindle and mulching blade kit. These parts are not included with the base spindle unless the optional kit is selected.

• Kit Spindle Numbers: AM121342, AM121229
• Kit Mulching Blade Numbers: M115495, M111522, M113517, M135589, M76466
• Kit Contents: 3 spindle assemblies with pulleys attached in the product image and 3 mulching blades
• Common Deck Reference: 48 inch

Base Spindle Specifications

• Spindle Numbers: AM121342, AM121229, AM115528, AM115720, AM116065
• Height Reference: 172 mm / 6.77 inches
• Application Note: Confirm spindle height, pulley setup, mounting pattern, blade mount, hardware, and belt routing before ordering

Optional 48-Inch Kit Blade Specifications

• Blade Numbers: M115495, M111522, M113517, M135589, M76466
• Blade Length: 16-1/2 inches
• Blade Width: 2.5 inches
• Blade Thickness: 0.203 inch
• Center Hole: 13/16 inch
• Blade Type: Mulching blade

What’s Included

• Base Spindle Option: aftermarket replacement-style spindle assembly for the AM121342 / AM121229 path
• Optional 48-Inch Kit: 3 spindle assemblies with pulleys attached in the product image and 3 mulching blades
• Use the selected product option and image to confirm exact quantity and contents before checkout

Common Symptoms / When to Replace

• Mower deck spindle is noisy, loose, seized, or wobbling
• Blade has excessive play at the spindle shaft
• Deck vibration increases during blade engagement
• Spindle housing, shaft, pulley, or bearing area is worn or damaged
• Original spindle number matches AM121342, AM121229, AM115528, AM115720, or AM116065

Quick Ship Fulfillment

This item may ship directly from one of our trusted U.S. distribution partners to help reduce transit time. Packaging, labeling, or warehouse origin may vary, but the part will match the replacement numbers, fitment notes, and specifications shown in this listing.

Why Buy From PTO Direct USA

• Fitment-first product organization by spindle part-number path
• Optional 48-inch GT / LX kit path separated from the base spindle fitment
• Clear John Deere AM121342 / AM121229 replacement path
• U.S.-focused fulfillment options for faster delivery when available

Need a Custom Package?

Need a different combination of parts? Email us the part type and part numbers you need, such as spindle assemblies, blades, belts, pulleys, reinforcement rings, bearings, or hardware. We can review the part-number path and quote a custom package when available.

FAQ

Is this an OEM John Deere spindle assembly?

No. This is an aftermarket replacement-style spindle assembly intended to replace the listed part-number path when the physical fitment details match.

What is the lead spindle number for this listing?

The lead spindle number is AM121342. This listing also references AM121229, AM115528, AM115720, and AM116065.

What is included with the base spindle option?

The base option includes an aftermarket replacement-style spindle assembly for the AM121342 / AM121229 spindle path.

What is included with the optional 48-inch kit?

The optional 48-inch kit includes 3 spindle assemblies with pulleys attached in the product image and 3 mulching blades.

Does the optional 48-inch kit fit GT242, GT262, GT275, LX186, and LX188?

The optional kit path is associated with select John Deere GT242, GT262, GT275, LX186, and LX188 48-inch deck applications. Match your original part numbers before ordering.

Is this the same as the X304 / X310 42-inch kit?

No. The X304 / X310 42-inch kit uses a different blade and deck application path. Do not combine that kit with this listing unless you create a separate option with its own fitment and part-number breakdown.

Can I order by mower model or deck size only?

No. Mower model and deck size alone are not enough. Match the original spindle number first, then confirm deck layout, pulley setup, blade type, mounting pattern, hardware, and belt routing before ordering.
