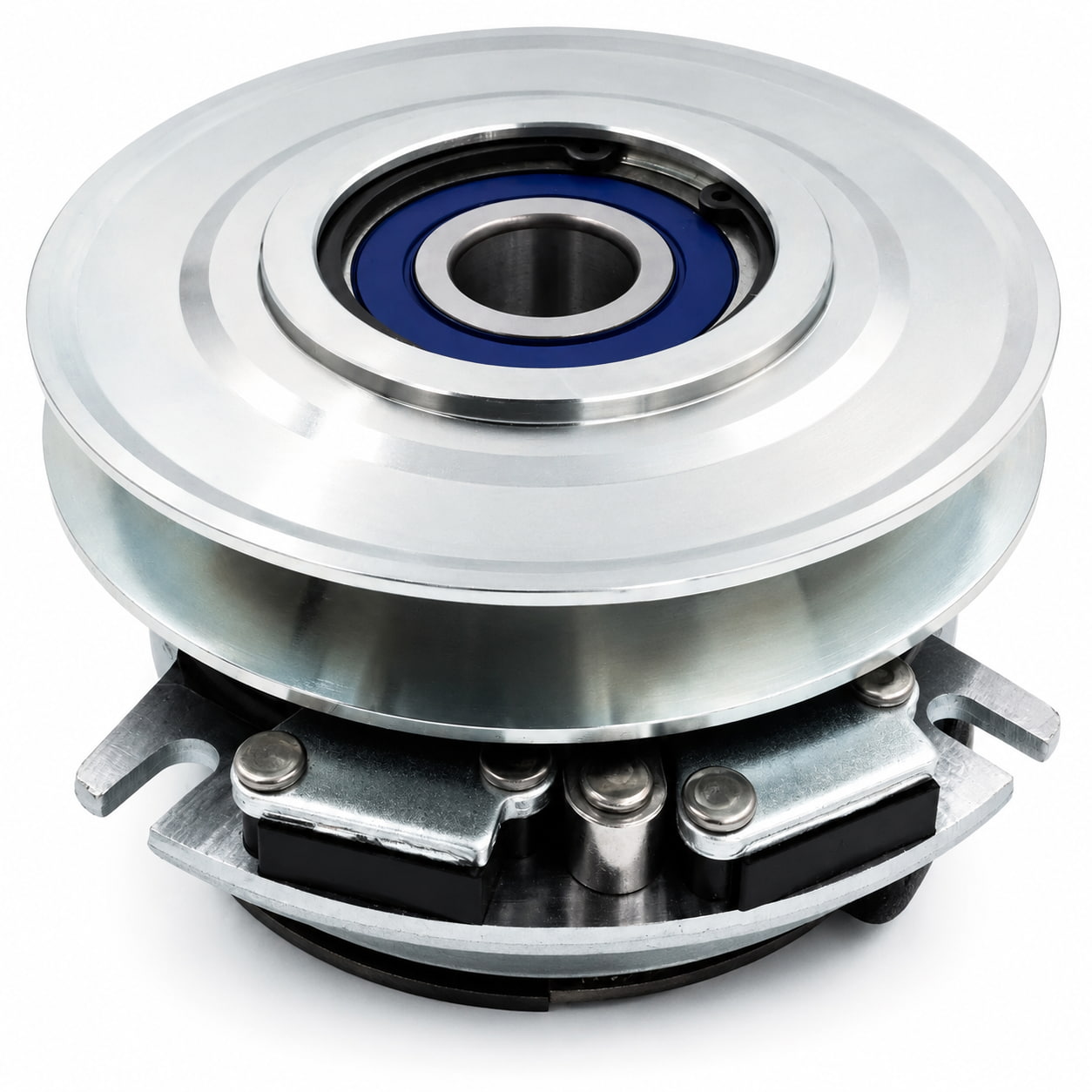

BIGBearing AUC11232 electric PTO clutch replacement for John Deere Quik-Trak 648R, 652R and 661R, replacing Warner 5218-384
  • BIGBearing AUC11232 electric PTO clutch replacement for John Deere Quik-Trak 648R, 652R and 661R, replacing Warner 5218-384
AUC11232 PTO Clutch for John Deere Quik-Trak 648R, 652R, 661R S/N 045001-Up | Warner 5218-384

AUC11232 PTO Clutch for John Deere Quik-Trak 648R, 652R, 661R S/N 045001-Up | Warner 5218-384

Check Price & Availability on eBay

eBay Ambassador link. PTO Direct USA may earn a commission from qualifying purchases. This item is sold and fulfilled by the seller on eBay. We offer this alternate purchasing option for products that are currently out of stock or unavailable through our distribution network. This helps customers locate the part they need without reaching an out-of-stock dead end.

Overview

This AUC11232 electric PTO clutch replacement is an aftermarket HD Switch BIGBearing PTO clutch for select John Deere Quik-Trak commercial mower applications using the AUC11232 / Warner 5218-384 clutch path.

The seller lists this clutch for select John Deere 648R, 652R, and 661R Quik-Trak applications in the 045001 and up serial-number range.

Important: This is a different clutch path from John Deere TCA23182 / Warner 5218-385, which is used on earlier applications. Do not choose between these clutches by mower model or appearance alone.

Key Features

  • Aftermarket HD Switch BIGBearing electric PTO clutch assembly
  • Primary OEM Replacement: John Deere AUC11232
  • Warner Cross-Reference: 5218-384
  • Clutch Type: Electric PTO clutch with integrated brake
  • Designed for select John Deere Quik-Trak commercial mower applications

Warner 5218-384 Reference Specifications

The following specifications are published for the Warner 5218-384 clutch that crosses to John Deere AUC11232. Use these as an additional fitment reference when comparing the replacement clutch to the original.

  • Voltage: 12 VDC
  • Rated Torque: 200 ft-lb
  • Crankshaft Bore: 1-1/8 inch / 1.125 inch
  • Pulley / Flange OD: 7.34 inch
  • Rotation: CW
  • Current Draw: 6.53 amps
  • Resistance: 1.84 ohms
  • Connection Type: Integral
  • Mounting: Reverse

Compatible Brands & Model Series

This aftermarket PTO clutch is seller-listed for select John Deere Quik-Trak commercial mower applications using the AUC11232 / 5218-384 replacement path.

  • John Deere 648R: seller-listed for serial number 045001 and up
  • John Deere 652R: seller-listed for serial number 045001 and up
  • John Deere 661R: seller-listed for serial number 045001 and up

Do not order by model number alone. Confirm the original clutch number and serial-number path before ordering.

Replaces OEM Part Numbers

  • John Deere: AUC11232

Aftermarket Cross-Reference Numbers

  • Warner: 5218-384

Important Fitment Check

AUC11232 / Warner 5218-384 and TCA23182 / Warner 5218-385 are separate PTO clutch paths. They are used on different serial-number applications of similar John Deere Quik-Trak mower families.

If your original clutch is marked AUC11232 or Warner 5218-384, this is the replacement path to investigate.

If your mower is in the earlier serial range and uses TCA23182 or Warner 5218-385, see the TCA23182 PTO clutch listing instead.

Common Symptoms of a Failing PTO Clutch

  • Blades will not engage when the PTO switch is activated
  • PTO clutch clicks but the deck belt does not spin
  • Blades engage cold and stop after the mower heats up
  • Intermittent blade engagement under load
  • Deck belt slips, squeals, or smokes during engagement
  • Burning smell or excessive heat near the PTO clutch
  • Grinding, bearing noise, or vibration from the clutch area
  • Clutch remains mechanically engaged when the PTO switch is off

Need Help Confirming Fitment?

Send PTO Direct USA your John Deere mower model number, serial number, deck size, and original PTO clutch number. If the clutch number is unreadable, include clear photos of the old clutch, pulley, connector, anti-rotation setup, and crankshaft area.

FAQ

What PTO clutch replaces John Deere AUC11232?

This aftermarket clutch is sold as a replacement for John Deere AUC11232. The confirmed Warner cross-reference for AUC11232 is Warner 5218-384.

What Warner clutch crosses to AUC11232?

Warner 5218-384 is the Warner clutch associated with the John Deere AUC11232 replacement path.

Does AUC11232 fit a John Deere 648R?

The seller lists this clutch for select John Deere 648R Quik-Trak applications in the 045001 and up serial-number range. Confirm the serial-number path and original clutch number before ordering.

Does AUC11232 fit a John Deere 652R?

The seller lists this clutch for select John Deere 652R Quik-Trak applications in the 045001 and up serial-number range.

Does AUC11232 fit a John Deere 661R?

The seller lists this clutch for select John Deere 661R Quik-Trak applications in the 045001 and up serial-number range.

Is AUC11232 the same clutch as TCA23182?

No. Treat these as separate replacement paths. AUC11232 crosses to Warner 5218-384, while TCA23182 crosses to Warner 5218-385. Verify the original clutch number and applicable serial range before ordering.

What bore size is associated with Warner 5218-384?

Warner specifies a 1-1/8 inch / 1.125-inch bore for the 5218-384 clutch.

What is the Warner 5218-384 torque rating?

Warner specifies a 200 ft-lb rated torque for the 5218-384 clutch.

Can I order this clutch based only on having a John Deere 648R?

No. John Deere 648R applications use more than one PTO clutch path. Match the original clutch number and serial-number application before ordering.

Getting ready to install your PTO clutch? Review the PTO Clutch Installation Guide for removal, fitment checks, mounting bolt torque guidance, wiring, and burnishing.

Have an earlier serial-number application? See the TCA23182 / Warner 5218-385 PTO clutch.

Need a different John Deere clutch? Browse the John Deere PTO clutch collection or the full electric PTO clutch catalog.
