917-05001 PTO Clutch for Cub Cadet GT1554, SLT1554

917-05001 PTO Clutch Replacement for Cub Cadet GT1554, SLT1554 | Replaces 917-1774C, Warner 5219-25

Standard Black Pulley

$169.95

917-05001 PTO Clutch Replacement for Cub Cadet GT1554, SLT1554 | Replaces 917-1774C, Warner 5219-25

$169.95

Overview

This 917-05001 electric PTO clutch is available in two aftermarket configurations for select Cub Cadet, MTD, Troy-Bilt, Craftsman, Bolens, Huskee, and White Outdoor mower applications.

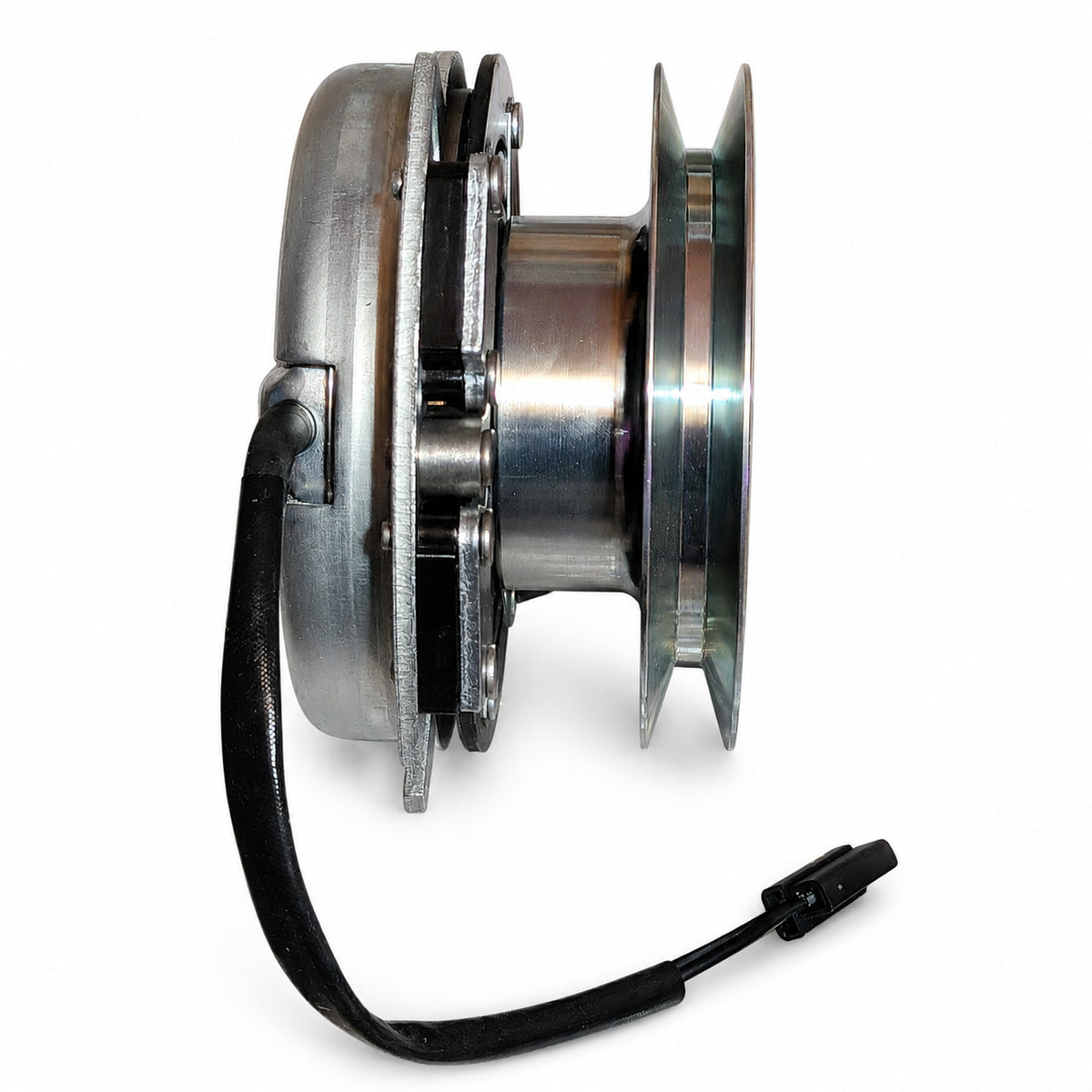

Choose the Standard Black Pulley replacement for dependable OEM-style performance, or upgrade to the HiTorque BIGBearing HD version with a solid-steel billet pulley, 130 ft-lb torque rating, and hardwired T-style plug on a wire lead.

Both variants follow the 917-05001 / 917-1774C / Warner 5219-25 fitment path and use a 1-inch crankshaft bore, 6-inch nominal pulley, 12V electrical system, and counter-clockwise rotation.

Important connector note: The Standard Black Pulley variant has a flat side-by-side at the clutch or an optional wire harness to extend to a T-plug connection. The HD Upgrade has only a T-plug hardwired on a lead.

Choose Your PTO Clutch Variant

Variant	Pulley & Bearing Design	Torque Rating	Connector
Standard Black Pulley	Standard replacement bearing and black pulley	125 ft-lb replacement class	Select the plug option that matches your mower
HD HiTorque BIGBearing Upgrade	Solid-steel billet pulley with BIGBearing design	130 ft-lbs	Hardwired T-style plug on a wire lead

Standard Black Pulley

Dependable aftermarket replacement for normal residential and heavy-duty lawn tractor use
Black pulley design
125 ft-lb replacement torque class
Available with the plug options shown in the variant selector
Choose the connector that matches your original clutch and mower harness

HD Upgrade

Upgraded HiTorque BIGBearing clutch construction
130 ft-lb torque rating
Solid-steel billet pulley
Designed for demanding mowing conditions and frequent PTO engagement
Hardwired T-style plug on a wire lead

Need the HD clutch specifications with a flat side-by-side plug? Contact us before ordering. Include a clear photo of your original connector if different than these so we can confirm the correct electrical configuration.

Shared Fitment Specifications

Clutch Type: Electric PTO clutch with integrated brake
Voltage: 12V DC
Crankshaft Bore: 1"
Pulley Diameter: 6.00" nominal
Belt Compatibility: 1/2" or 5/8" belt applications
Rotation: CCW (counter-clockwise)
Mounting: Standard 917-05001 / 5219-25 mounting path
Connector: Determined by the selected variant

Compare the crankshaft bore, pulley diameter, belt groove, pulley offset, anti-rotation bracket, wiring connector, and overall clutch height with the original assembly before installation.

Compatible Brands & Model Families

This clutch family is cataloged for select MTD-built mower applications using OEM number 917-05001, 917-1774C, or Warner number 5219-25.

Cub Cadet: GT 1054, GT 1554, GTX 1054, GTX 1554, LGT 1050, LGT 1054, LGTX 1050, LGTX 1054, LT 1024, RZT-54, SLT 1550, SLT 1554, SLTX 1050, and SLTX 1054
Troy-Bilt: Big Red, Big Red 54, GT-2246, GT-2554, GTX-2446, GTX-2654, and TB2654
MTD / Bolens / Huskee / White Outdoor: Select GT, GTX, LGT, LGTX, LT, RZT, SLT, and SLTX platforms
Craftsman: Select MTD-built lawn and garden tractors, including certain Craftsman Pro applications

Common Model-Number Applications

Cub Cadet GT 1554: 14AK13BK056, 14AK13BK256, 14AK13BK709, 14AK13CK010
Cub Cadet GT 1554 VT: 14VR13CK009, 14VR13CK010
Cub Cadet GTX 1054: 14AK94AK010, 14WK94AK010
Cub Cadet LGT1054 and SLTX1054: Select applications including 13AK92AK009, 13AK92AK010, 13AK92AK056, 13WK92AK009, 13WK92AK010, and 13WK92AK056
Cub Cadet SLTX1054 VT: 13VR92AK009, 13WR92AK009, 13WR92AK010
Cub Cadet SLT 1554: 13AK11BK710
Cub Cadet RZT-54 Kawasaki: 17WI2ACK056
Troy-Bilt Big Red 54: 14AQ81TK766
Troy-Bilt Big Red: 14AZ809K766
MTD Gold Garden Tractor: 14AK945K004

Fitment note: If your mower’s complete model number exactly matches one listed above, this PTO clutch is a confirmed fit for that application. Do not order by a broader series name such as GT, GTX, LGT, SLT, SLTX, RZT, Big Red, or Craftsman Pro alone, because other models within the same series may use a different clutch. If your exact model number is not listed, match the original clutch number or verify the part number in the model-specific OEM diagram before ordering.

Replaces OEM Part Numbers

MTD-Built OEM Numbers: 917-05001, 717-05001, 917-1774C, 717-1774C, 917-1774B, 717-1774B, 917-1774, 717-1774
Warner: 5219-25, 521925

Aftermarket Cross-Reference Numbers

Xtreme: X0065
Stens: 255-297, 255-297X
Oregon: 33-104
Prime Line: 7-06298
Rotary: 12424
Sunbelt: B1XT0065, B1EC52

Cross-reference numbers identify the same general replacement path, but connector construction and pulley appearance can vary by manufacturer. Select your variant according to the actual clutch and connector shown in the product photos.

What’s Included

One complete electric PTO clutch assembly in the selected configuration
6-inch nominal pulley
Pre-installed bearing assembly
12V electromagnetic coil
Integrated brake assembly
Connector or wire-lead configuration shown for the selected variant

Why Buy From PTO Direct USA?

Fast USA shipping
Fitment guarantee
1-year warranty
Standard and heavy-duty replacement choices
Fitment-first product support
Clear product and connector photos for easier identification
Trusted replacement supplier for homeowners, repair shops, and mower service professionals

FAQ

What is the difference between the Standard and HD variants?

The Standard Black Pulley version is a 125 ft-lb replacement-class clutch designed for dependable OEM-style operation. The HD Upgrade uses the HiTorque BIGBearing design, a solid-steel billet pulley, and a 130 ft-lb torque rating.

Which connector should I choose?

Choose the connector that matches your original clutch and mower-side wiring harness. Compare the plug shape, terminal arrangement, wire lead, and product photos before ordering. Do not select the clutch by mower series alone.

Can I get the HD BIGBearing clutch with a flat side-by-side plug?

The listed HD variant uses a hardwired T-style plug on a wire lead. If your mower requires a flat side-by-side plug with the same core clutch specifications, contact support@ptodirectusa.com with a photo of your original connector before ordering.

Does this PTO clutch replace 917-05001?

Yes. Both listed variants are aftermarket replacements for 917-05001 on compatible MTD-built mower applications.

Does this replace 917-1774C?

Yes. 917-1774C and 717-1774C are part of the same replacement path as 917-05001 and Warner 5219-25.

Is Warner 5219-25 the correct cross-reference?

Yes. Warner lists 5219-25 for OEM number 717-1774C. Warner specifies a 1-inch bore, 6-inch pulley, 12V operation, 125 ft-lb torque rating, and CCW rotation.

Does this fit Cub Cadet GT1554 or SLT1554?

It fits select Cub Cadet GT1554 and SLT1554 applications using the 917-05001 / 917-1774C clutch path. Confirm model number in this listing or look up the clutch part number in an OEM parts diagram before ordering.

Does this fit Cub Cadet LGT1050 or LGT1054?

It is cataloged for select LGT1050 and LGT1054 applications. These series span multiple years and clutch paths, so confirm that the model-specific parts diagram calls for 917-05001.

Can a bad deck belt look like PTO clutch failure?

Yes. A loose, stretched, glazed, damaged, or misrouted deck belt can cause slipping, slow blade speed, or failed engagement symptoms. Inspect the deck belt, idlers, spindles, belt tension, and pulley alignment before replacing the clutch.
