890-914C PTO Clutch Replacement for Land Pride Accu-Z ZT60 & ZT72 | Replaces 839-329C, X0513

Overview

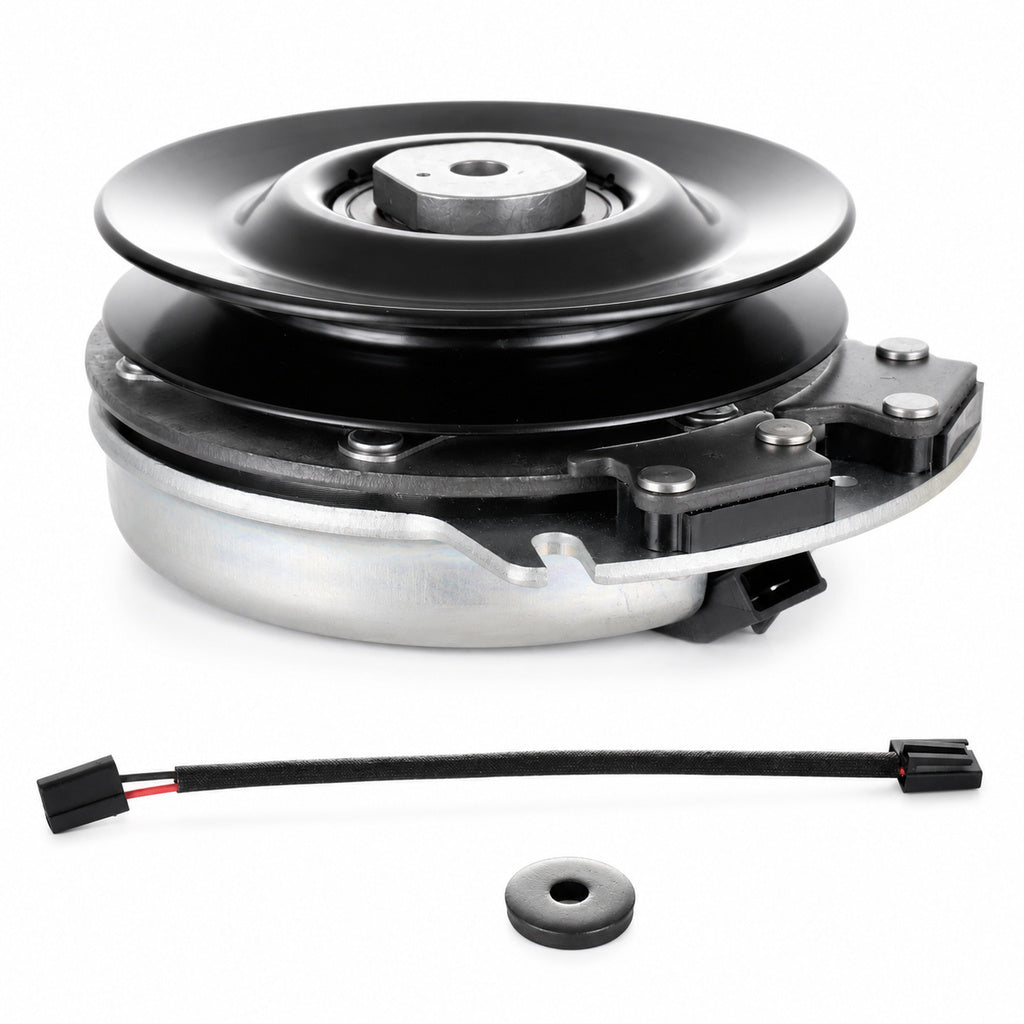

This 890-914C PTO clutch replacement is an aftermarket electric PTO clutch for select Land Pride Accu-Z commercial zero-turn mower applications, including ZT60, ZT72, ZT60i, and ZT72i models that use the 890-914C clutch path.

This clutch replaces Land Pride 890-914C and select earlier 839-329C applications, and cross-references Xtreme X0513 and Stens 255-647X.

Built with a 1-1/8 inch crankshaft bore, 6-1/4 inch pulley diameter, clockwise rotation, and compatibility with 1/2 inch or 5/8 inch belts, this clutch is designed to restore reliable mower deck blade engagement when matched to the correct Land Pride part number, mower model, serial range, connector, and physical dimensions.

Fitment warning: Land Pride Accu-Z clutch fitment can vary by mower serial number. If your original clutch or parts diagram specifies 890-914C, this is the correct replacement path. If ordering by mower model alone, confirm the serial number and clutch dimensions before purchase.

Key Features

• Aftermarket electric PTO clutch replacement for select Land Pride Accu-Z zero-turn mowers
• Crankshaft Bore: 1-1/8" / 1.125"
• Pulley Diameter: 6-1/4" / 6.25"
• Belt Width: accepts 1/2" or 5/8" belts
• Rotation: CW from pulley side
• Voltage: 12V DC
• Integrated blade brake clutch configuration
• Complete electric PTO clutch assembly
• Designed for commercial zero-turn mower deck engagement

Compatible Brands & Models

This PTO clutch fits select Land Pride Accu-Z mower applications using OEM part number 890-914C. Serial-number verification is recommended before ordering.

Land Pride Accu-Z Applications

• Land Pride Accu-Z ZT60
• Land Pride Accu-Z ZT72
• Land Pride Accu-Z ZT60i using the 890-914C clutch path
• Land Pride Accu-Z ZT72i using the 890-914C clutch path

Earlier Accu-Z Applications

• Land Pride Accu-Z Z52 applications where 839-329C supersedes to 890-914C
• Land Pride Accu-Z Z60 applications where 839-329C supersedes to 890-914C
• Land Pride Accu-Z Z72 applications where 839-329C supersedes to 890-914C

Serial-number note: Land Pride used multiple clutch configurations across the Accu-Z production range. Do not select a replacement from the mower model alone. Match the original 890-914C or superseded 839-329C part number along with the 1-1/8" bore, 6-1/4" pulley, clockwise rotation, connector, and anti-rotation setup.

Replaces OEM Part Numbers

• Land Pride: 890-914C, 890914C
• Land Pride: 839-329C, 839329C on applicable superseded applications

Cross-Reference Aftermarket Numbers

• Xtreme: X0513
• Stens: 255-647X, 255647X
• Stens / Xtreme: X0513-K

What’s Included

• Complete electric PTO clutch assembly
• 6-1/4" pulley assembly
• Pre-installed bearing assembly
• Electromagnetic coil
• Integrated blade brake assembly
• Clutch wiring lead and connector as shown in product photos

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment Guarantee
• 1-year warranty
• Fitment-first product support
• Clear product images for easier clutch identification
• Support for homeowners, repair shops, and commercial mower operators

FAQ

What does Land Pride 890-914C fit?

Land Pride 890-914C is used on select Accu-Z commercial zero-turn mower applications, including ZT60, ZT72, ZT60i, and ZT72i machines. Because clutch usage can change by serial range, confirm the original part number before ordering.

Does 890-914C replace Land Pride 839-329C?

Yes, Land Pride parts information identifies 839-329C as superseded by 890-914C on applicable earlier Accu-Z mower configurations. Serial-number restrictions can apply.

Is Xtreme X0513 a replacement for Land Pride 890-914C?

Yes. Xtreme X0513 is an aftermarket cross-reference for Land Pride 890-914C.

What bore size does the 890-914C PTO clutch use?

This replacement uses a 1-1/8 inch bore, also written as 1.125". Confirm your engine crankshaft diameter before ordering.

What pulley diameter does 890-914C use?

This clutch uses an approximately 6-1/4 inch pulley. Compare the pulley diameter and belt position with your original clutch before installation.

What rotation does this PTO clutch use?

This clutch uses clockwise rotation when viewed from the pulley side.

Does this clutch work with a 5/8 inch deck belt?

This clutch configuration is listed for applications using 1/2 inch or 5/8 inch belts. Always confirm belt alignment and pulley configuration against the original clutch.

Why is the mower serial number important?

Land Pride used different clutch and mounting configurations across Accu-Z production ranges. Two mowers with similar model names can require different PTO clutch parts. The original clutch number and mower serial number are the safest fitment checks.

What are common signs of a failing PTO clutch?

Common symptoms include mower blades not engaging, the clutch clicking without driving the blades, slipping under load, intermittent blade engagement, a burning smell, or blades slowing down after the mower heats up. An aging PTO clutch coil can work normally when cold, then weaken after 10 to 30 minutes of mowing.

What should I inspect before installing the replacement?

Check the deck belt, idler pulleys, blade spindles, wiring connector, PTO switch, battery voltage, anti-rotation bracket, and crankshaft condition before installing the new clutch.

Can PTO Direct USA help confirm Land Pride fitment?

Yes. Email support@ptodirectusa.com with your Land Pride mower model, serial number, original clutch number, and clear photos of the old clutch. Include photos of the clutch label, connector, pulley, anti-rotation bracket, and crankshaft area whenever possible.

Need installation help? Read the PTO clutch installation guide.

If the old clutch will not slide off the engine shaft, use our PTO clutch stuck on crankshaft guide before prying or hammering on the assembly.

Need another replacement? Browse the electric PTO clutch catalog.
