5215-13 PTO Clutch Replacement for Scag SSZ & Exmark Turf Tracer | Replaces 5215-99, 1-611223

Overview

This 5215-13 PTO clutch replacement is an aftermarket electric PTO clutch for select Scag SSZ, Exmark Turf Tracer, Exmark Turf Ranger, Snapper / Snapper Pro, and Ferris commercial mower applications using the Warner 5215-13 clutch path.

This clutch replaces Warner 5215-13 and the earlier Warner 5215-99, and cross-references select Exmark 1-603539 / 1-611223, Snapper 7029678, and Ferris 5021823 applications.

Built with a 1-inch crankshaft bore, 6-inch pulley diameter, 12V DC clutch/brake configuration, and clockwise rotation, this clutch is designed to restore reliable mower deck engagement when matched to the correct original clutch number and physical configuration.

Important keyway warning: The 5215-13 clutch sold on this page uses the external-key configuration shown in the product photos. It is physically different from the internal-key Scag 461074 / 48786 family. If your original clutch uses the internal-key configuration, see our Scag 461074 PTO clutch replacement instead.

Key Features

• Aftermarket electric PTO clutch replacement for the Warner 5215-13 clutch path
• Crankshaft Bore: 1"
• Pulley Diameter: 6"
• Rotation: CW
• Voltage: 12V DC
• Clutch Type: electric PTO clutch with mechanical brake
• Mounting: reverse mount configuration
• Warner Reference Wire Length: 10.75"

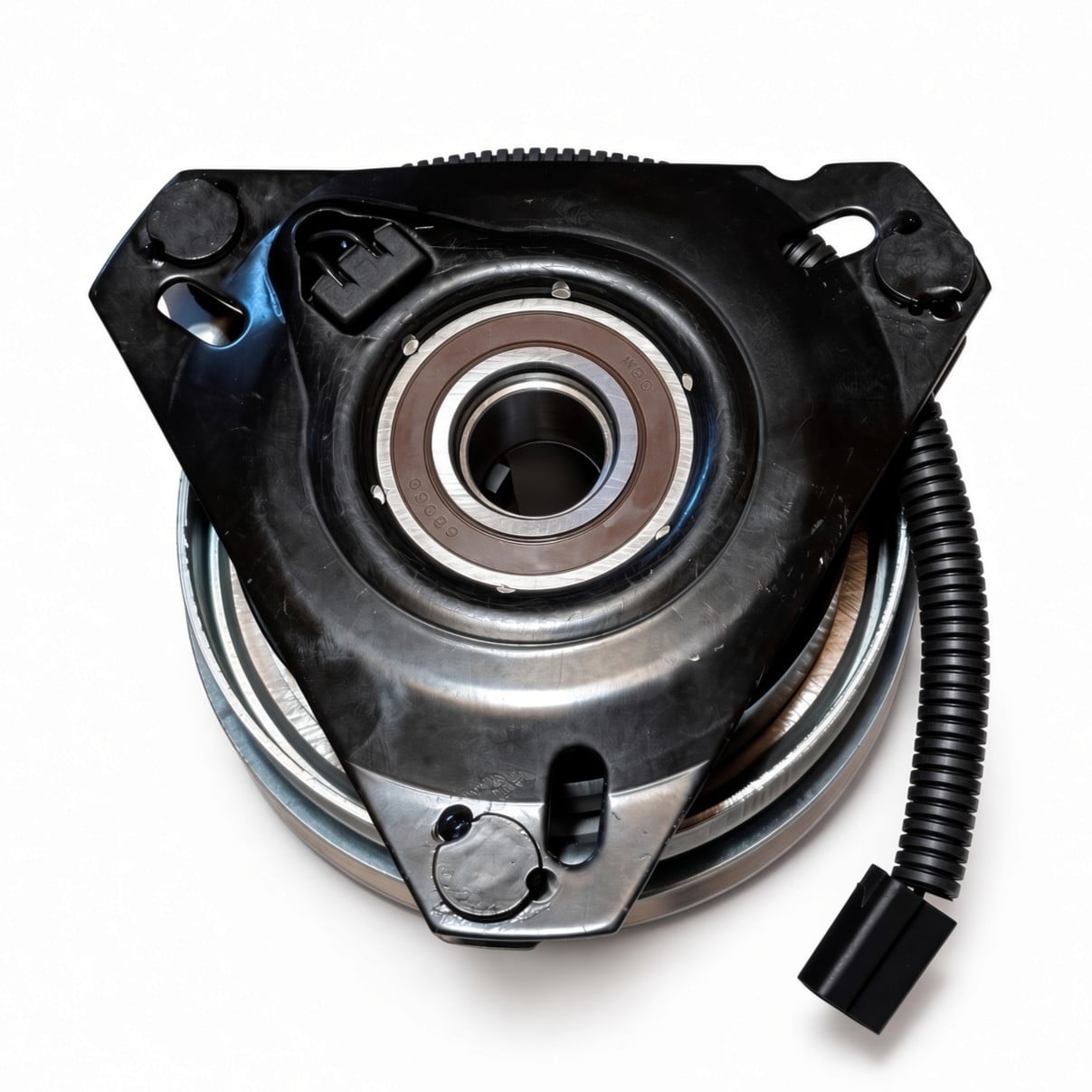

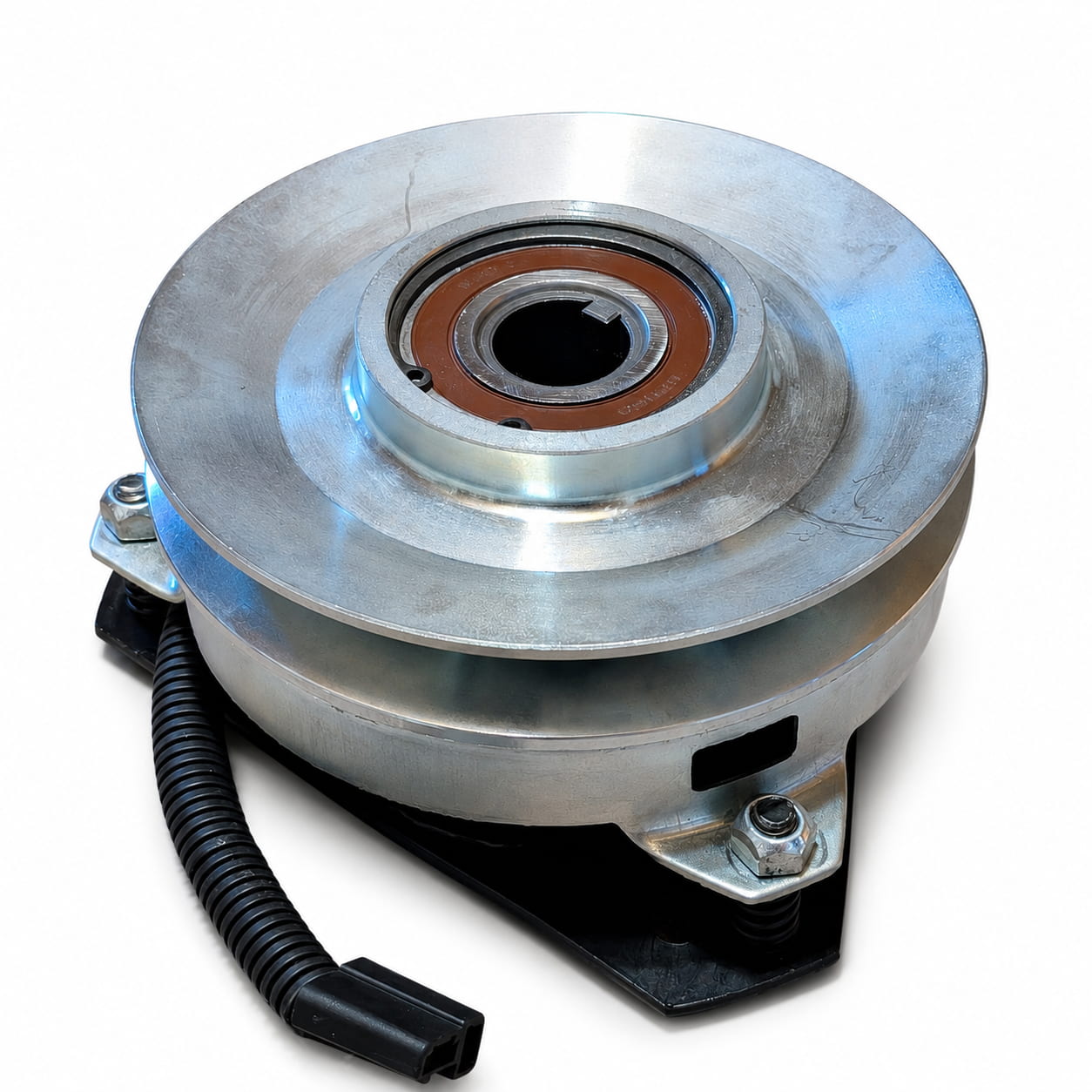

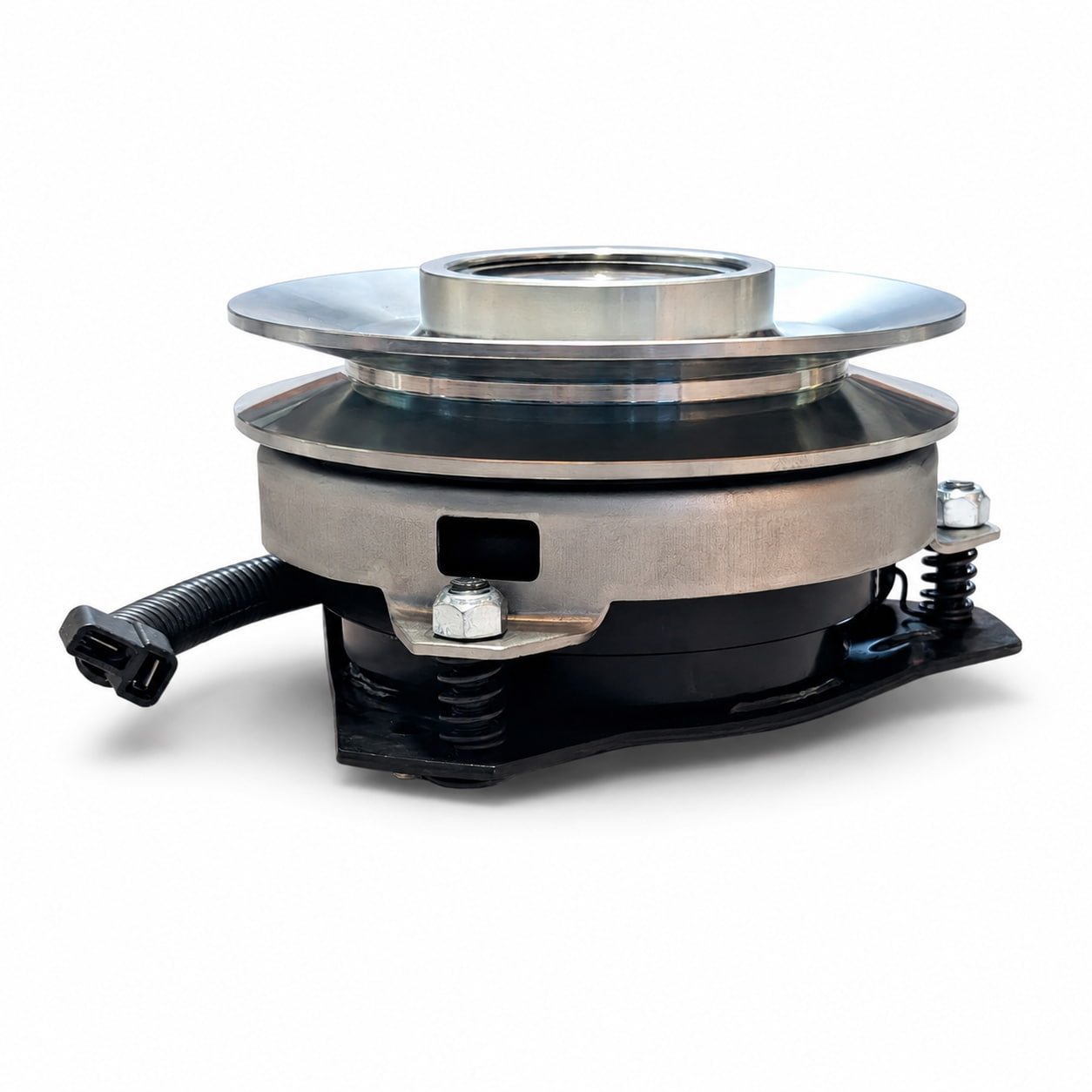

• Key Configuration: external-key design as shown in product photos
• Fully assembled and ready to install after fitment verification

Compatible Brands & Models

This PTO clutch fits select older commercial mower applications using the Warner 5215-13 clutch path. Because these mower families span multiple production ranges and clutch configurations, the original clutch number and physical design should be checked before ordering.

Scag SSZ Super Z Applications

Select Scag SSZ Super Z mower configurations use the Warner 5215-13 clutch configuration.

If your original Scag clutch is physically stamped 5215-13 and matches the external-key design, 1-inch bore, 6-inch pulley, clockwise rotation, mounting arrangement, and wiring shown on this page, use this replacement path.

Scag warning: Do not order from the SSZ model name alone. Other Scag SSZ machines use a physically different internal-key clutch configuration. If your original clutch uses an internal key, compare it with our 461074 Scag PTO clutch listing before ordering.

Exmark Turf Ranger Applications

• Exmark Turf Ranger 1800 / TR18KO: select early-production applications using the 1-603539 / 1-611223 clutch path

Exmark Turf Tracer Applications

• Exmark Turf Tracer 5-Speed: select early-production applications
• Exmark Turf Tracer Hydro: select applications using the 1-603539 / 1-611223 clutch path
• TTH-14K
• TTH-16BV
• TTH-18KC
• TTH-20KC
• TTH-22KC
• FMD-52
• FMD-60
• FMD523
• FMD603

Snapper / Snapper Pro Applications

• Snapper PRO736 Commercial Hydro Drive Series 4
• Snapper PRO748 Commercial Hydro Drive Series 4
• Snapper PRO752 Commercial Hydro Drive Series 4
• Select additional Snapper / Snapper Pro commercial mower applications using 7029678 / 7029678YP

Ferris Applications

Select older Ferris commercial mower applications using 5021823 and the Warner 5215-13 clutch path. Match the original clutch number and physical configuration before ordering by mower model alone.

Fitment note: Match the original clutch number, external-key arrangement, 1-inch bore, 6-inch pulley, clockwise rotation, mounting configuration, and wiring against the product photos before ordering.

Replaces OEM Part Numbers

• Exmark: 1-603539, 603539
• Exmark: 1-611223, 611223
• Ferris: 5021823
• Snapper / Snapper Pro: 7029678, 7029678YP

Cross-Reference Aftermarket Numbers

• Warner: 5215-13, 521513
• Warner: 5215-99, 521599

What’s Included

• Complete electric PTO clutch assembly
• 6" pulley
• Pre-installed bearing assembly
• Electromagnetic coil
• Mechanical brake assembly
• Wiring lead and connector as shown in product photos

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment Guarantee
• 1-year warranty
• Fitment-first product support
• Clear product images for easier clutch identification
• Support for commercial mower owners, repair shops, and service professionals

FAQ

What does Warner 5215-13 replace?

Warner 5215-13 replaces the earlier Warner 5215-99 clutch path and is used on select older commercial mower applications from Exmark, Scag, Snapper, and Ferris.

Does Warner 5215-13 fit a Scag SSZ Super Z?

Yes, select Scag SSZ Super Z mowers use the Warner 5215-13 clutch configuration. Do not order from the SSZ model name alone because Scag used multiple physically different PTO clutches across the SSZ family. If your original clutch is stamped 5215-13 and matches the external-key configuration and physical specs shown here, use this replacement path.

Is Warner 5215-13 the same as Scag 461074 or 48786?

No. The Warner 5215-13 sold on this page uses an external-key configuration. The Scag 461074 / 48786 family uses a different internal-key configuration and should not be treated as the same physical clutch path. If your original clutch uses the internal-key design, see the Scag 461074 PTO clutch replacement.

How can I tell 5215-13 from the Scag 461074 clutch?

Check the crankshaft key arrangement first. The 5215-13 replacement on this page uses the external-key configuration shown in the photos, while the separate Scag 461074 family uses an internal-key design. Also compare the mounting plate, wiring arrangement, pulley, and overall clutch geometry before ordering.

Does 5215-13 replace Exmark 1-603539?

Yes. Exmark 1-603539 is associated with the Warner 5215-13 clutch path on select older Exmark commercial mower applications.

Does 5215-13 replace Exmark 1-611223?

Yes, on applicable Exmark machines. The earlier 1-603539 clutch assembly was superseded into the 1-611223 service path. Confirm the original clutch configuration before ordering.

Does Warner 5215-13 fit Exmark Turf Tracer mowers?

Yes, select older Exmark Turf Tracer 5-Speed and Hydro applications use this clutch path. Model and serial information should be checked because Exmark used different PTO clutches across production ranges.

Does Warner 5215-13 fit Snapper PRO736, PRO748, and PRO752?

Yes. The Warner 5215-13 clutch path is documented for select Snapper PRO736, PRO748, and PRO752 Commercial Hydro Drive Series 4 applications.

Does this replace Snapper 7029678?

Yes. 7029678 / 7029678YP is part of the Snapper replacement path associated with Warner 5215-13 applications.

What key configuration does Warner 5215-13 use?

The replacement sold on this page uses the external-key configuration shown in the product photos. Compare the crankshaft and clutch bore arrangement before ordering.

What bore size does Warner 5215-13 use?

Warner 5215-13 uses a 1-inch crankshaft bore.

What pulley diameter does Warner 5215-13 use?

Warner 5215-13 uses a 6-inch pulley diameter.

What rotation does Warner 5215-13 use?

Warner 5215-13 uses clockwise rotation.

Is Warner 5215-130 the same as 5215-13?

No. 5215-130 and 5215-13 are separate Warner clutch numbers and should not be treated as the same replacement path.

What are common signs of a failing PTO clutch?

Common symptoms include mower blades not engaging, the clutch clicking without driving the blades, slipping under load, intermittent engagement, a burning smell, or blades slowing after the mower heats up. An aging clutch coil can work normally when cold and weaken after 10 to 30 minutes of mowing.

Can PTO Direct USA help confirm fitment?

Yes. Email support@ptodirectusa.com with your mower model, serial number, original clutch number, and clear photos of the old clutch. For this clutch family, include a clear photo of the bore and key arrangement, mounting plate, pulley, and wiring connection.

If your Scag uses the internal-key clutch configuration instead, compare it with our Scag 461074 PTO clutch replacement.

Need installation help? Read the PTO clutch installation guide.

If the old clutch will not slide off the engine shaft, use our PTO clutch stuck on crankshaft guide before hammering or prying on the assembly.

Need another replacement? Browse the electric PTO clutch catalog.
