070-1000-00 PTO Clutch for Bad Boy Outlaw, Lightning, Pup & CZT | Warner 5218-220, 6.3" Pulley

Overview

This Bad Boy PTO clutch 070-1000-00 replacement is available in a Standard Black-Pulley configuration and an HD Upgrade. Both versions are built for select heavy-duty Bad Boy commercial mower platforms using the larger 6.3-inch pulley, 1-1/8 inch crankshaft bore, and CCW rotation.

This clutch path is commonly associated with select Bad Boy Pup, Lightning, Outlaw, Outlaw Extreme, Outlaw XP, CZT, and legacy ZT mower applications.

This clutch also replaces Bobcat, Bunton, and Ryan 4164976 on supported applications using the same clutch specification. It is commonly cross-referenced with the Warner 5218-220 clutch family and is designed to restore smooth blade engagement, reliable deck-drive performance, and consistent mowing power when the original clutch is worn, slipping, overheating, or no longer engaging properly.

Connector selection warning: The Standard Black-Pulley version has a flat side-by-side connection at the clutch body. It can connect directly to a matching mower harness or use the included optional extension harness to reach a T-style mower plug. The HD Upgrade has a lead hardwired into the clutch body that terminates in a T-style plug. The HD version does not have a flat side-by-side connection.

Important Bad Boy fitment warning: This is the heavy-duty 070-1000-00 clutch path with a 6.3-inch pulley. Do not confuse it with the smaller 070-0056-00 clutch used on many newer Bad Boy ZT Elite, Maverick, Revolt SD, Raider, and Walk-Behind applications. Both clutch families may use a 1-1/8 inch bore and CCW rotation, but the pulley sizes are different. Installing the wrong pulley size can cause belt slip, heat buildup, poor blade speed, and premature clutch failure.

Key Features

• Direct replacement electric PTO clutch assembly for supported heavy-duty commercial mower applications
• Available Styles: Standard Black-Pulley or HD Upgrade
• Pulley Diameter: 6.3 inches
• Crankshaft Size: 1-1/8 inch
• Rotation: CCW, counter-clockwise from pulley side
• Voltage: 12V DC
• Standard Connector: flat side-by-side connection at clutch body with removable harness extending to a T-style plug
• HD Upgrade Connector: hardwired clutch lead terminating in a T-style plug only
• Built for smooth blade engagement and stable deck-drive operation
• HD Upgrade: Serviceable bearing design with a C-clip retaining ring for easier bearing removal and replacement
• Fully assembled and ready to install after fitment verification

Compatible With These Brands & Model Series

This PTO clutch fits select commercial mower platforms using the 070-1000-00 / Warner 5218-220 clutch specification. Fitment can vary by engine package, deck size, production year, wiring connector, and original clutch specification. Always confirm your original clutch number before ordering.

• Bad Boy Pup Series: select Pup 4800, 5000, 5200, 6000, and 7200 applications
• Bad Boy Lightning Series: select Lightning 5200, 6000, and 7200 applications
• Bad Boy Outlaw Series: select Outlaw 5400, 6100, and 7200 applications
• Bad Boy Outlaw Extreme / Outlaw XP: select supported applications
• Bad Boy CZT Commercial / CZT Elite: select supported applications
• Bad Boy legacy ZT Series: select older ZT applications using OEM number 070-1000-00
• Bobcat / Bunton: select ZT200 and ZT331 series mowers using OEM number 4164976
• Ryan: select turf equipment using OEM number 4164976

Fitment note: Do not order by mower series name alone. Bad Boy reused similar model names across multiple generations, and PTO clutch fitment can vary. Match the part number on your original clutch whenever possible. If that number is unavailable, use your mower’s complete model and serial information to confirm the correct clutch part number in the official Bad Boy parts diagram.

Replaces OEM Part Numbers

• Bad Boy: 070-1000-00
• Bad Boy: 70-1000-00
• Bobcat / Bunton / Ryan: 4164976
• Ariens: 00462500, 462500
• Gravely: 00462500, 462500
• Great Dane: 00462500
• Sears Craftsman: 00462500

Aftermarket Cross-Reference Numbers

• Warner: 5218-220, 5218220, 5218-114, 5218114
• Xtreme: X0244
• Stens: 255-775

What’s Included

Standard Black-Pulley Version

• Complete electric PTO clutch assembly
• Factory-balanced 6.3-inch black pulley
• Pre-installed bearing assembly
• Electromagnetic coil
• Flat side-by-side connection at the clutch body
• Removable extension harness terminating in a T-style plug

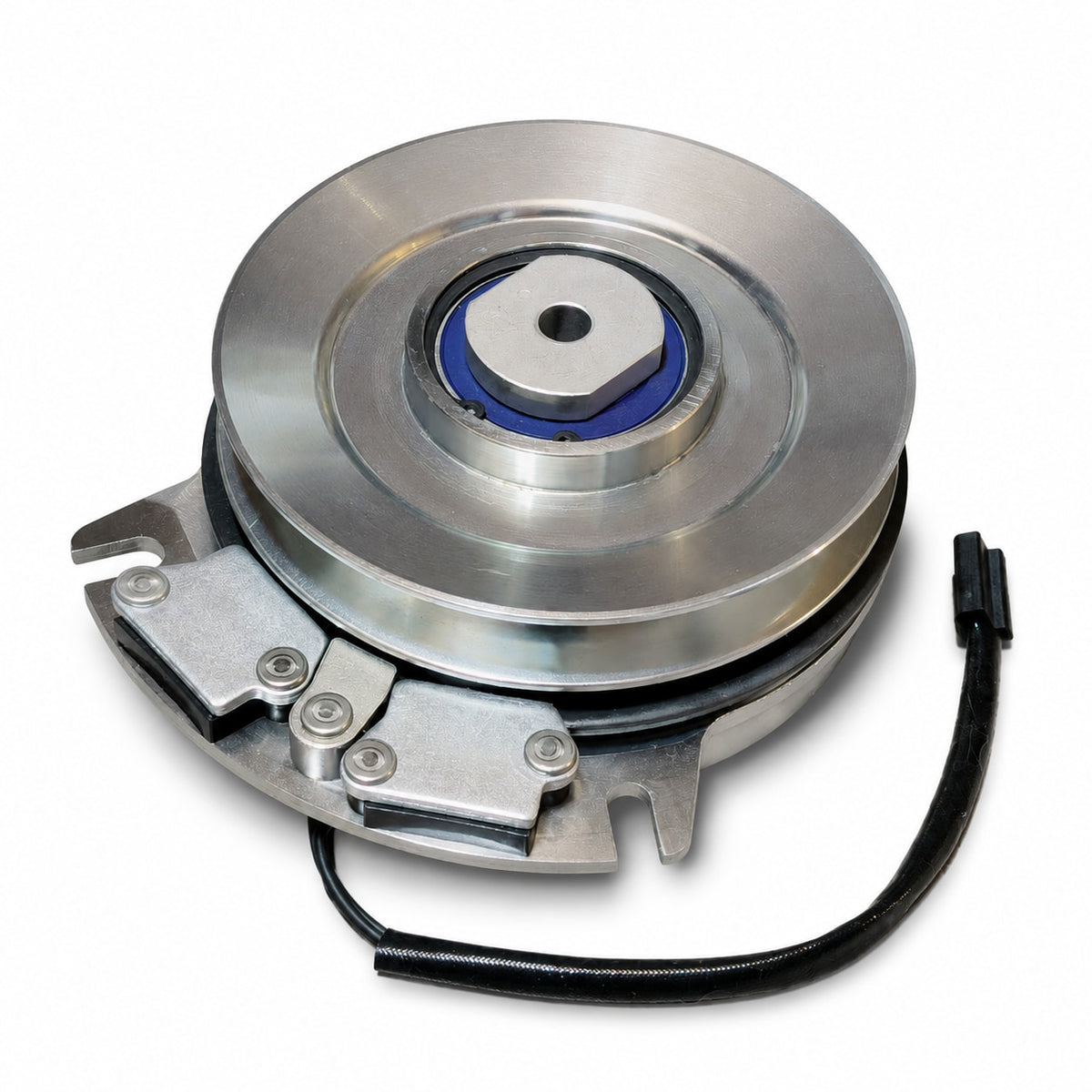

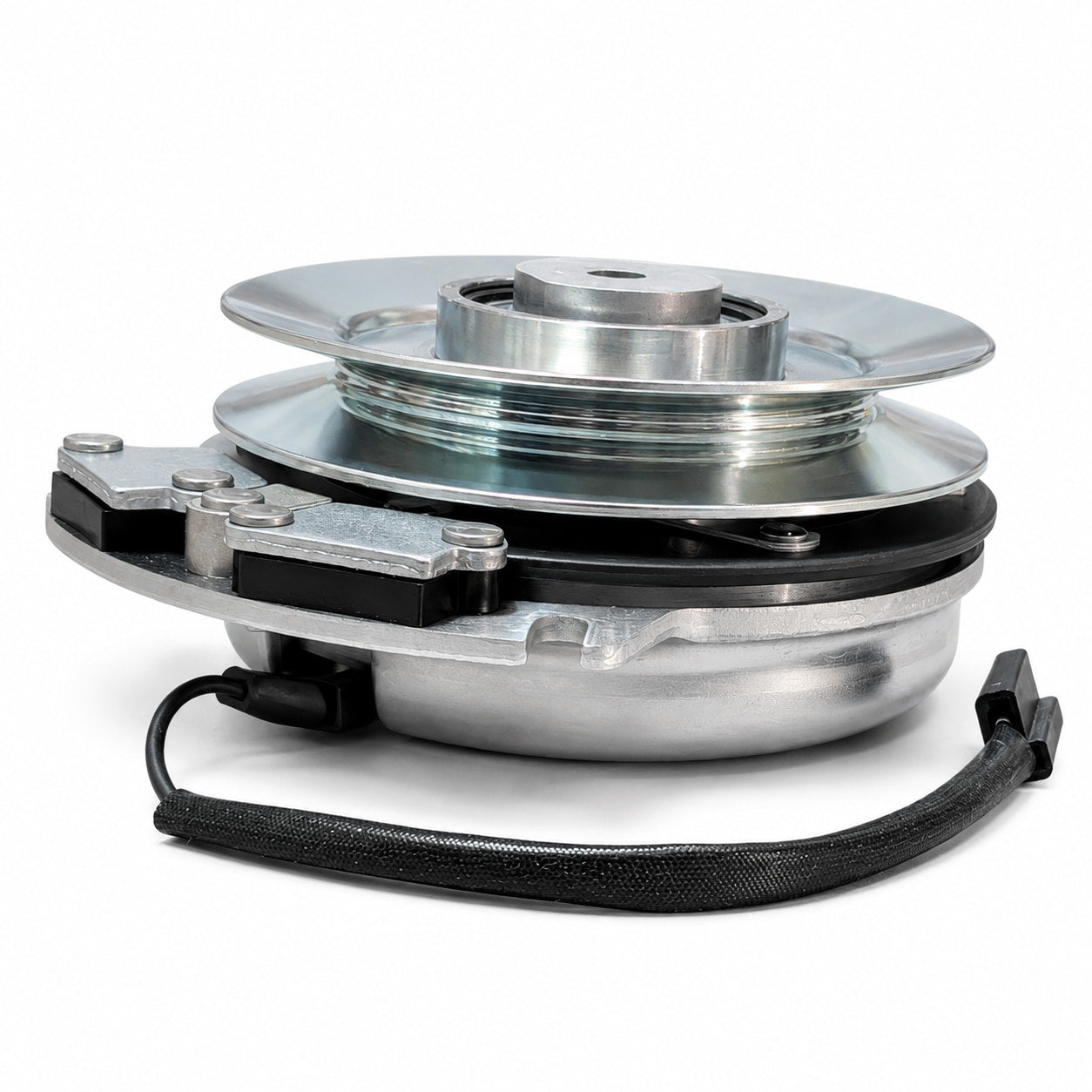

HD BIGBearing Upgrade

• Complete electric PTO clutch assembly
• Factory-balanced 6.3-inch silver pulley
• Pre-installed larger BIGBearing assembly
• Electromagnetic coil
• Hardwired clutch lead terminating in a T-style plug

Both include D-spacer bushing used to conveniently hold crankshaft steady while applying final torque. Ensure bushing is fully seated to flange cap and not riding up above the keyway.

Why Buy From PTO Direct USA?

• Fast USA shipping
• OEM-spec fitment guarantee

• Clear variant-specific product images for easier clutch identification
• Fitment-focused support for homeowners, repair shops, and commercial operators

Need Help Confirming Fitment?

If you are not sure whether this is the correct Bad Boy PTO clutch or which connector version to select, email support@ptodirectusa.com with your mower model number, year, deck size, original clutch number, and clear photos of the old clutch. For the best fitment help, include photos of the clutch label or stamped number, pulley, wiring connector, anti-rotation setup, crankshaft area, and mower model tag.

Need a different fitment? Browse the full electric PTO clutch catalog or the Bad Boy PTO clutch collection to compare available replacement options.

FAQ

Does this replace Bad Boy 070-1000-00?

Yes. Both available variants are built for the Bad Boy 070-1000-00 replacement path on supported applications using the 6.31-inch pulley, 1-1/8 inch bore, and CCW rotation. Select the electrical connector configuration that matches your mower.

What is the difference between the Standard and HD BIGBearing versions?

The Standard version has a black pulley and a flat side-by-side connection at the clutch body. It includes a removable extension harness that converts the connection to a T-style plug. The HD BIGBearing Upgrade has a silver pulley, larger bearing design, and a lead hardwired into the clutch body that terminates in a T-style plug.

Which version should I choose for a flat side-by-side connection?

Choose the Standard Black-Pulley version. It can plug directly into a matching flat side-by-side mower connection. The HD BIGBearing version does not have a flat side-by-side connector.

Can the Standard version connect to a T-style mower plug?

Yes. The Standard version includes a removable extension harness that connects at the clutch and extends to a T-style plug.

Can the HD BIGBearing version connect to a flat side-by-side mower plug?

No. The HD BIGBearing Upgrade has a T-style plug hardwired into the clutch lead and will not connect directly to a flat side-by-side mower harness.

Does this replace Bad Boy 70-1000-00?

Yes. 70-1000-00 is a common shortened version of the 070-1000-00 part number.

Does this replace Warner 5218-220?

Yes. Warner 5218-220 is the key Warner cross-reference for this clutch family. Confirm the 6.31-inch pulley, 1-1/8 inch bore, CCW rotation, anti-rotation setup, and connector style before ordering.

Does this replace Warner 5218-114?

Warner 5218-114 is commonly associated with this clutch family. Confirm your original clutch number and physical specifications before ordering.

Does this replace Bobcat, Bunton, or Ryan 4164976?

Yes. Bobcat, Bunton, and Ryan 4164976 is associated with this clutch path on supported applications. Confirm the model, physical clutch specifications, and connector style before ordering.

Does this fit Bad Boy Outlaw mowers?

This clutch is commonly associated with select Bad Boy Outlaw, Outlaw Extreme, and Outlaw XP applications using the 070-1000-00 / Warner 5218-220 clutch path. Confirm the original clutch number and physical specifications before ordering.

Does this fit Bad Boy Lightning or Pup mowers?

This clutch is commonly associated with select Bad Boy Lightning and Pup applications using the 070-1000-00 clutch path. Confirm the original clutch number, pulley diameter, bore size, rotation, and connector style before ordering.

Does this fit newer Bad Boy ZT Elite or Maverick mowers?

Usually no. Many newer Bad Boy ZT Elite and Maverick mowers use the smaller 070-0056-00 clutch path with a 5.94-inch pulley. This 070-1000-00 clutch uses a larger 6.31-inch pulley. Confirm your original clutch number before ordering.

What pulley diameter is this clutch?

Both variants use an approximately 6.3-inch pulley. Minor measurement differences can occur between OEM and multi-fit aftermarket pulley designs.

What bore size is this clutch?

Both variants use a 1-1/8 inch crankshaft bore.

What rotation is this clutch?

Both variants use CCW, or counter-clockwise rotation from the pulley side.
