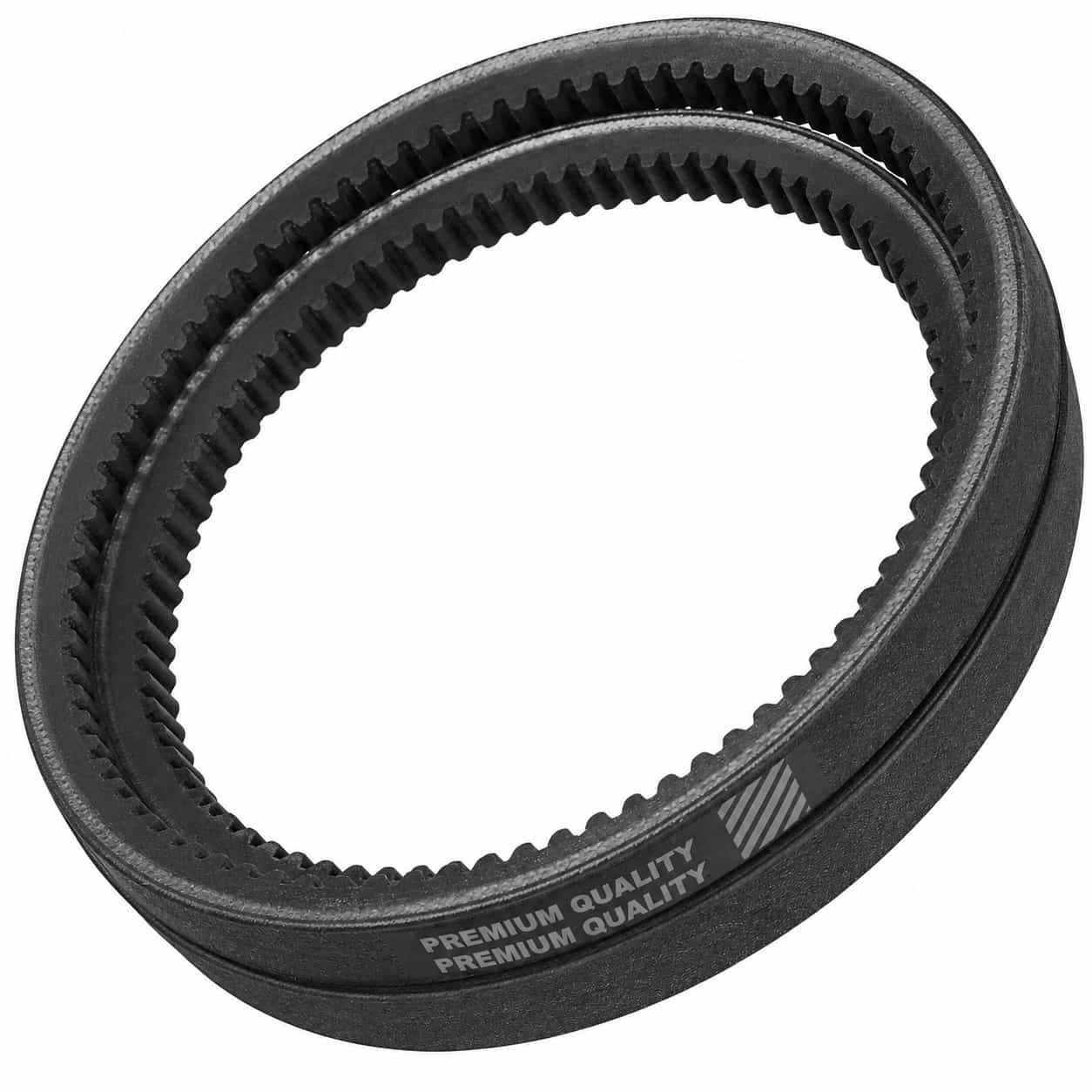

07200807 Right-Hand Deck Belt for Ariens Apex, Ariens Zenith & Gravely 60-Inch Mower Decks

Overview

This 07200807 right-hand deck aramid belt is built for select Ariens Apex, Ariens Zenith, Gravely ZT HD, and Gravely Pro-Turn 60-inch mower deck applications using the 07200807 belt path.

This listing is for the right-hand deck belt only. It is commonly associated with select 60-inch zero-turn mower decks where the original right-hand deck belt number matches 07200807. Match your original belt number first, then confirm belt position, deck size, mower model, serial range, and belt routing before ordering.

Important: Do not order by deck size alone. Some 60-inch mower decks may use different left-hand, right-hand, or deck-drive belt paths. Confirm that your mower specifically uses 07200807 for the right-hand deck belt location.

Key Features

• Replacement right-hand deck aramid belt for select 60-inch zero-turn mower decks
• Primary Part Number: 07200807
• Quantity Included: 1 right-hand deck belt
• Overall Length: 65.55 inches
• Width: 0.62 inch
• Thickness: 0.39 inch
• Material: Aramid
• Designed for mower deck systems using the listed OEM belt path
• Ships as one belt only

Compatible Brands & Model Series

This belt is intended for select Ariens and Gravely 60-inch mower deck applications using the 07200807 right-hand deck belt path.

Common supplier application paths include:

• Ariens Apex 60-inch: select 991151, 991157, and 991177 zero-turn mower applications
• Ariens Zenith 60-inch: select 991158, 991163, 991314, 991322, and 991323 zero-turn mower applications
• Gravely ZT HD 60: select 991156, 991166, and 991186 zero-turn mower applications
• Gravely Pro-Turn / Pro-Turn Z 60: select 991190, 991196, 991258, and 991284 applications
• Gravely Pro-Turn ZX 60: select 991234, 991246, 991264, and 991290 applications

Serial range note: Several Ariens Zenith and Gravely Pro-Turn / Pro-Turn ZX applications use serial-number breaks. Confirm your mower model, serial range, original belt number, belt position, and routing before ordering.

Fitment note: Model names and deck sizes are provided as fitment clues only. Always confirm your original belt number is 07200807 and verify that this is the correct right-hand deck belt for your mower.

Replaces OEM Deck Belt Numbers

• Ariens: 07200807
• Gravely: 07200807

No-Dash Search Aliases

• 07200807

Belt Specifications

• Part Type: right-hand deck aramid belt
• Primary Replacement Number: 07200807
• Overall Length: 65.55 inches / 1665 mm
• Width: 0.62 inch / 16 mm
• Thickness: 0.39 inch / 10 mm
• Material: Aramid
• Quantity Included: 1 replacement right-hand deck belt

Before Ordering

Before ordering this right-hand deck belt, confirm:

• Your original belt number matches 07200807
• Your mower uses this belt in the right-hand deck belt position
• Your mower deck uses the correct belt routing
• Your mower model, deck size, and serial range match the listed application path
• Your idler pulleys, spindle pulleys, belt guides, and tension spring are in good condition
• Your original belt length and width match the listed specifications

Do not install the belt until fitment is confirmed. Installed belts may not be eligible for return.

Common Symptoms of a Worn Right-Hand Deck Belt

• Deck belt slips under load
• Belt squeals when the blades are engaged
• Mower leaves uneven or uncut grass
• Belt jumps off the pulley system
• Visible cracking, glazing, or fraying
• Deck vibration or poor blade speed
• Burning rubber smell near the mower deck

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck
• Take a photo of the belt routing before removing the old belt
• Confirm this is the right-hand deck belt path before removing or installing the belt
• Inspect idler pulleys, spindle pulleys, belt keepers, and the tension spring before installing the new belt
• Make sure the belt is seated fully in each pulley groove
• After installation, test the mower at low speed and listen for belt tracking issues, squealing, or vibration

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this belt fits your mower, send us your mower model number, deck size, original belt number, serial number, belt position, and photos of your belt routing diagram, mower ID tag, and old belt before ordering.

FAQ

What does this right-hand deck belt replace?

This belt replaces 07200807 on select Ariens Apex, Ariens Zenith, Gravely ZT HD, Gravely Pro-Turn, Pro-Turn Z, and Pro-Turn ZX 60-inch mower deck applications.

What size is this belt?

This belt is listed at 65.55 inches overall length, 0.62 inch wide, and 0.39 inch thick. Always compare the belt size and routing to your original belt before ordering.

Is this the right-hand deck belt?

Yes. This listing is for the right-hand deck belt using part number 07200807. Confirm your mower does not require a different left-hand, center, or deck-drive belt before ordering.

Does this belt fit Ariens Apex or Zenith 60-inch models?

This belt is commonly listed for select Ariens Apex and Zenith 60-inch mower deck applications using the 07200807 right-hand deck belt path. Confirm your exact model number and serial range before ordering.

Does this belt fit Gravely ZT HD or Pro-Turn 60-inch models?

This belt is commonly listed for select Gravely ZT HD, Pro-Turn, Pro-Turn Z, and Pro-Turn ZX 60-inch mower deck applications using the 07200807 right-hand deck belt path. Confirm your model number, serial range, and belt routing before ordering.

Can I order this belt by deck size only?

No. Deck size is only a starting point. Match the original belt number, belt position, belt size, mower model, serial range, and belt routing before ordering.

Why does my deck belt keep coming off?

A deck belt may come off because of worn idler pulleys, bad spindle bearings, weak tension springs, bent belt guides, incorrect routing, or the wrong belt size. Inspect the full deck drive system before installing a new belt.
