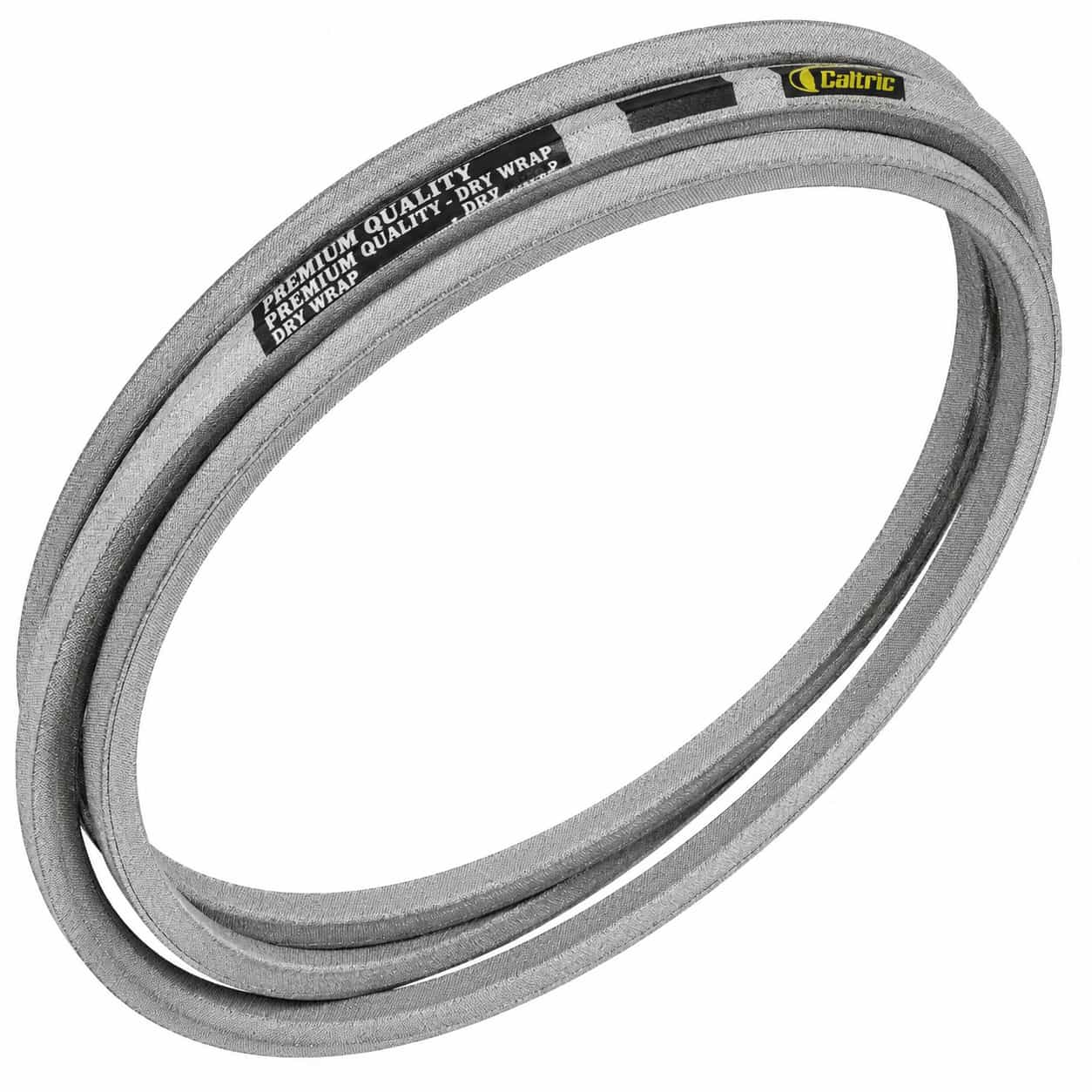

07200026 Deck Hex Belt for Gravely Pro-Master, ZT HD, Compact-Pro & Ariens Max-Zoom 52-Inch Mower Decks

Overview

This 07200026 deck hex belt replacement is built for select Gravely and Ariens 52-inch mower deck applications using the 07200026 / 7200026 belt path.

This belt is commonly associated with select Gravely Pro-Master, Gravely ZT HD, Gravely Compact-Pro, and Ariens Max-Zoom 52-inch mower decks. Match your original belt number first, then confirm belt type, belt width, belt length, mower model, deck size, serial range, and belt routing before ordering.

Important: This is a deck hex belt, not a standard single-sided V-belt. Do not order by deck size alone. The strongest confirmation is the original belt number from your mower, parts diagram, or belt routing decal.

Key Features

• Replacement deck hex belt for select 52-inch Gravely and Ariens mower deck applications
• Primary Part Number: 07200026
• Also Replaces: 7200026
• Quantity Included: 1 replacement deck hex belt
• Length: 122 inches
• Width: 5/8 inch
• Height: 0.66 inch / 17 mm
• Designed for mower deck drive systems using the listed OEM belt path
• Ships as one belt only

Compatible Brands & Model Series

This belt is intended for select Gravely and Ariens 52-inch mower deck applications using the 07200026 / 7200026 replacement belt path.

Common supplier application paths include:

• Gravely Pro-Master 52-inch: select PM 152 XDZ, PM 152M, PM 152M XDZ, and PM 44Z applications including 991011, 991017, 991018, 991024, 991028, 991030, 991031, and 991035 paths
• Gravely ZT HD 52-inch: select 991037, 991054, 991066, 991083, and 991089 applications using the listed serial ranges
• Gravely Compact-Pro 52-inch: select 991072 applications using the listed serial range
• Ariens Max-Zoom 52-inch: select 2452 HD, 2552, Max-Zoom HD 52, and Max-Zoom 52 applications including 991039, 991065, 991074, and 991086 paths

Serial range note: Several Gravely and Ariens applications use serial-number breaks, including 991083, 991089, and 991086 paths. Confirm your mower model, serial range, original belt number, and deck routing before ordering.

Fitment note: Model names and deck sizes are provided as fitment clues only. Always confirm your original belt number is 07200026 or 7200026, then verify belt type, belt size, deck size, serial range, and routing before ordering.

Replaces OEM Deck Belt Numbers

• Ariens: 07200026, 7200026
• Gravely: 07200026, 7200026

No-Dash Search Aliases

• 07200026
• 7200026

Belt Specifications

• Part Type: deck hex belt
• Primary Replacement Number: 07200026
• Common Cross-Reference Number: 7200026
• Length: 122 inches / 3099 mm
• Width: 5/8 inch
• Height: 0.66 inch / 17 mm
• Quantity Included: 1 replacement deck hex belt

Before Ordering

Before ordering this deck hex belt, confirm:

• Your original belt number matches 07200026 or 7200026
• Your mower deck uses a deck hex belt in this belt location
• Your mower deck uses the correct belt routing
• Your mower model, deck size, and serial range match the listed application path
• Your idler pulleys, spindle pulleys, belt guides, and tension spring are in good condition
• Your original belt length, width, and belt profile match the listed specifications

Do not install the belt until fitment is confirmed. Installed belts may not be eligible for return.

Common Symptoms of a Worn Deck Belt

• Deck belt slips under load
• Belt squeals when the blades are engaged
• Mower leaves uneven or uncut grass
• Belt jumps off the pulley system
• Visible cracking, glazing, or fraying
• Deck vibration or poor blade speed
• Burning rubber smell near the mower deck

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck
• Take a photo of the belt routing before removing the old belt
• Confirm the deck uses a hex belt in this position before installing
• Inspect idler pulleys, spindle pulleys, belt keepers, and the tension spring before installing the new belt
• Make sure the belt is seated fully in each pulley groove and follows the correct routed side of each pulley
• After installation, test the mower at low speed and listen for belt tracking issues, squealing, or vibration

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this belt fits your mower, send us your mower model number, deck size, original belt number, serial number, belt type, and photos of your belt routing diagram, mower ID tag, and old belt before ordering.

FAQ

What does this deck hex belt replace?

This belt replaces 07200026 and 7200026 on select Gravely and Ariens 52-inch mower deck applications using the same belt path.

What size is this belt?

This belt is listed at 122 inches long, 5/8 inch wide, and 0.66 inch high. Always compare the belt size, belt profile, and routing to your original belt before ordering.

Is this a deck hex belt?

Yes. This listing is for a deck hex belt. Confirm your mower uses a hex belt in this position before ordering.

Does this belt fit Gravely 52-inch mower decks?

This belt is commonly listed for select Gravely Pro-Master, ZT HD, and Compact-Pro 52-inch mower deck applications using the 07200026 / 7200026 belt path. Confirm your model number, serial range, and original belt number before ordering.

Does this belt fit Ariens Max-Zoom 52-inch mower decks?

This belt is commonly listed for select Ariens Max-Zoom 52-inch applications including 991039, 991065, 991074, and 991086 paths. Confirm your original belt number and serial range before ordering.

Can I order this belt by deck size only?

No. Deck size is only a starting point. Match the original belt number, belt type, belt size, mower model, serial range, and belt routing before ordering.

Why does my deck belt keep coming off?

A deck belt may come off because of worn idler pulleys, bad spindle bearings, weak tension springs, bent belt guides, incorrect routing, or the wrong belt size. Inspect the full deck drive system before installing a new belt.
