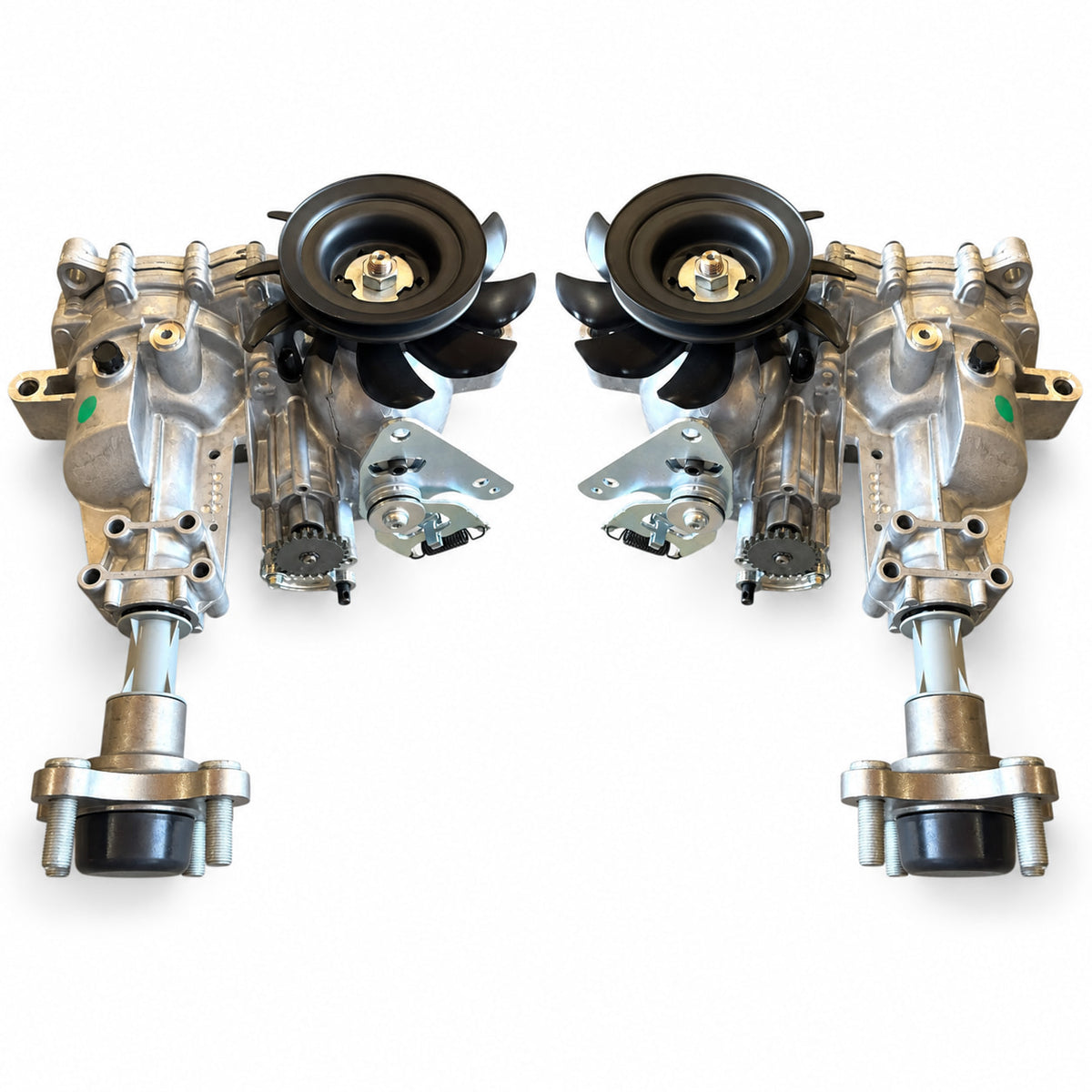

Hydro-Gear EZT Transaxles for Ariens & Gravely 05291800 / 05291900 — Left or Right
Overview
Restore the drive on select Ariens EDGE, IKON XD and Gravely ZT X zero-turn mowers with a new, genuine Hydro-Gear EZT hydrostatic transaxle. Choose 05291800 left or 05291900 right using the selector above.
Each option is one complete transmission assembly sold by Timberturf Power Equipment on eBay. The seller supplies these units prefilled with oil. For both sides, order one left unit and one right unit.
Choose the Correct Side
| Position | Ariens / Gravely OEM Number | Hydro-Gear Number |
|---|---|---|
| Left / LH | 05291800 | ZD-AUBB-2LDB-2PPX |
| Right / RH | 05291900 | ZD-DUBB-2LDC-3PPX |
Left and right are determined while seated on the mower, facing forward. Match the complete OEM number or Hydro-Gear identification code for the side being replaced.
Key Features & Details
- Manufacturer: Hydro-Gear
- Condition: new, genuine replacement assembly
- Transmission type: EZT integrated hydrostatic transaxle
- Wheel attachment: four-bolt hub configuration
- Options: left or right, sold individually
- Oil fill: prefilled, as specified by the seller
- Application: drive transmission for the Ariens and Gravely zero-turn mower configurations listed below
Compatible Mower Models
The model and serial ranges below are covered by OEM parts manuals listing 05291800 left and 05291900 right. Match the six-digit model number on your mower's identification tag, then check its serial number.
Ariens EDGE
| Model | Mower / Engine | Serial Range |
|---|---|---|
| 915245 | EDGE 42 Kohler |
000101 and up |
| 915253 | EDGE 42 Briggs & Stratton |
000101 and up |
| 915254 | EDGE 52 Kawasaki |
000101 and up |
Ariens IKON XD & Limited Edition
| Model | Mower / Engine | Serial Range |
|---|---|---|
| 915265 | IKON XD 42 Kohler |
000101 and up |
| 915266 | IKON XD 52 Kohler |
000101 and up |
| 915267 | IKON XD 52 Kawasaki |
000101 and up |
| 915268 | IKON XD 42 Kawasaki |
000101 and up |
| 915273 | IKON XD 60 Kawasaki |
000101 and up |
| 915277 | IKON XD 42 Kawasaki |
000101 and up |
| 915279 | IKON Limited Edition 52 Kawasaki |
000101 and up |
Gravely ZT X & Stealth
| Model | Mower / Engine | Serial Range |
|---|---|---|
| 915255 | ZT X 42 Kohler |
000101 and up |
| 915256 | ZT X 52 Kohler |
000101 and up |
| 915257 | ZT X 52 Kawasaki |
000101 and up |
| 915274 | ZT X 60 Kawasaki |
000101 and up |
| 915276 | ZT X 48 Kawasaki |
000101 and up |
| 915280 | ZT X Stealth 52 Kawasaki |
000101 and up |
Fitment check: A mower family name or deck size alone does not identify the transmission. Use the model and serial number together with the original transaxle label, especially if the drive system has previously been modified.
What's Included
- One new Hydro-Gear EZT transaxle for the selected side
- Assembled transmission with the components pictured in the selected eBay offer
- Oil prefill as specified by the seller
Review the selected offer's photos for the wheel hub, pulley, cooling fan and control hardware supplied with that unit.
Before Ordering & Installing
- Match the identification numbers. Confirm 05291800 / ZD-AUBB-2LDB-2PPX for the left side or 05291900 / ZD-DUBB-2LDC-3PPX for the right side.
- Compare the mounting and controls. Check the wheel hub, mounting points, control arm, brake linkage, bypass control, pulley and cooling fan against your original assembly.
- Follow the manufacturer's procedure. Use the mower and transmission instructions for installation, linkage adjustment, oil checks and purging before returning the mower to service.
Parts Help From PTO Direct USA
Text a Photo. Get Parts Help.
Text your mower's model and serial tag plus a clear photo of the Hydro-Gear identification label to 541-361-8778. We'll help match the OEM reference and the correct side.
Open the Parts DeskFitment support before and after purchase. Call or text 541-361-8778, or email support@ptodirectusa.com.
Buying Through Our Partner
Select your side above and click the buy button to view that transaxle on eBay. Timberturf Power Equipment handles payment, shipping, returns and order-related warranty service. Review the selected offer for current price, availability, delivery estimates and terms.
PTO Direct USA may earn a commission from qualifying purchases through links on this page, at no additional cost to you.
Need another transmission? Browse our lawn mower transaxles and hydrostatic transmissions.
