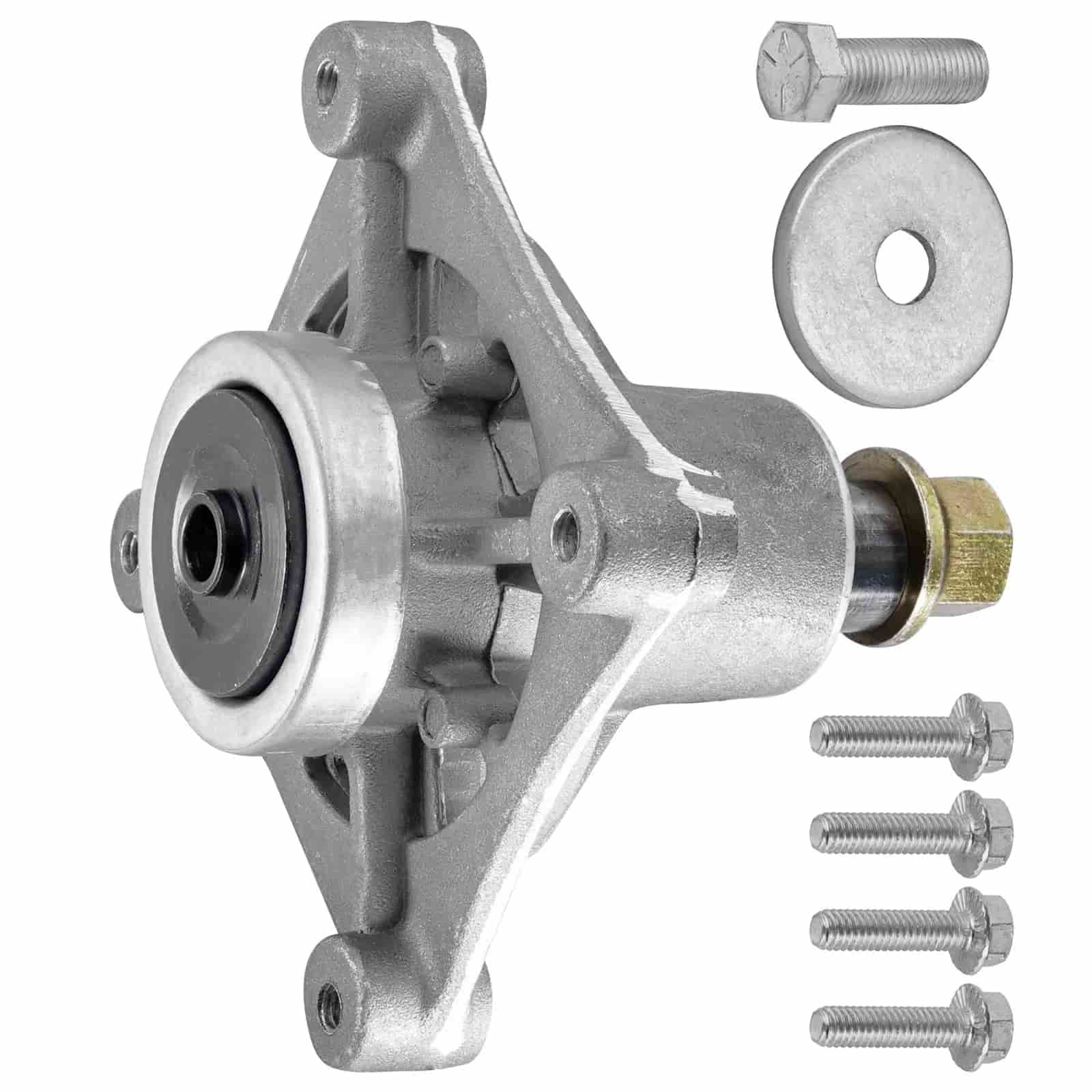

Spindle Assembly 604214 / 604214P for Hustler Raptor Dash XD Surfer Pro

Overview

This aftermarket 604214 / 604214P spindle assembly is a replacement-style mower deck spindle assembly for select Hustler Raptor, Raptor Limited, Raptor EX, Dash XD, and Surfer Pro mower deck applications.

This listing is built around the 604214 spindle path with optional pulley configurations by deck application. Match your original spindle number, pulley number, deck size, and belt routing before ordering.

Key Features

• Aftermarket replacement-style mower deck spindle assembly
• Product Type: Spindle Assembly / Spindle with Pulley
• Lead Spindle Numbers: 604214, 604214P
• Optional Raptor 52-Inch Pulley Number: 603988
• Optional Dash XD / Surfer Pro 48-Inch Pulley Number: 605443
• Built around the spindle and pulley part-number paths first to reduce fitment confusion

Available Options

Select the option that matches your original spindle and pulley setup.

• Spindle Only | 604214 / 604214P: includes 1 spindle assembly only.
• Spindle with 603988 Pulley | Raptor 52-Inch: includes 1 spindle assembly and 1 603988 pulley.
• 2 Spindles with 603988 Pulleys | Raptor 52-Inch: includes 2 spindle assemblies and 2 603988 pulleys.
• 2 Spindles with 605443 Pulleys | Dash XD / Surfer Pro 48-Inch: includes 2 spindle assemblies and 2 605443 pulleys.

Compatible Brands & Model Series

This 604214 / 604214P spindle assembly is associated with select Hustler mower deck applications using the listed spindle replacement path. Pulley fitment varies by deck family.

603988 pulley path - common 52-inch Raptor references include:

• Hustler Raptor 52-inch deck applications
• Hustler Raptor Limited 52-inch deck applications
• Hustler Raptor EX 52-inch deck applications
• 934513US HTRTRS052KOHKT735U
• 934794 HTRTRS052KOHKT735M
• 934802 HTRTLS052KOHKT735M
• 935759 HTRTRS052KOHKT735A
• 935817 HTRTRS052KOHKT735M
• 936492 HTRTLS052KAWFR691VA
• 936500 HTRTLS052KAWFR691VM
• 937755, 937763, 937771, 937813, 937854, 937862
• 938597, 938605, 938613, 939116EX, 939165, 939223

605443 pulley path - common 48-inch Dash XD / Surfer Pro references include:

• Hustler Dash XD 48-inch deck applications using the 604214 spindle and 605443 pulley path
• Hustler Surfer Pro 48-inch deck applications using the 604214 spindle and 605443 pulley path

Verify your part numbers before ordering.

Replaces OEM Part Numbers

• Hustler Spindle / Mandrel Numbers: 604214, 604214P
• Raptor 52-Inch Pulley Number: 603988
• Dash XD / Surfer Pro 48-Inch Pulley Number: 605443

Spindle Specifications

• Spindle Numbers: 604214, 604214P
• Length: 159.6 mm / 6.28 inches
• Outer Diameter: 163.5 mm / 6.43 inches
• Mounting Hole Distance: 135 mm / 5.31 inches
• Application Note: Confirm spindle length, outer diameter, mounting hole distance, pulley setup, blade mount, and belt routing before ordering

603988 Pulley Specifications

• Pulley Number: 603988
• Common Application Path: Hustler Raptor 52-inch deck
• Width: 21.6 mm / 0.85 inch
• Inner Diameter: 15.7 mm / 0.61 inch
• Outer Diameter: 122.5 mm / 4.82 inches
• Application Note: Confirm the 603988 pulley number and belt path before ordering

605443 Pulley Specifications

• Pulley Number: 605443
• Common Application Path: Hustler Dash XD / Surfer Pro 48-inch deck
• Application Note: Confirm the 605443 pulley number, deck size, pulley count, and belt path before ordering

Common Symptoms / When to Replace

• Mower deck spindle is noisy, loose, seized, or wobbling
• Blade has excessive play at the spindle shaft
• Deck vibration increases during blade engagement
• Pulley, spindle housing, shaft, or bearing area is worn or damaged
• Original spindle number matches 604214 or 604214P
• Original pulley number matches 603988 or 605443, depending on selected option

Quick Ship Fulfillment

This item may ship directly from one of our trusted U.S. distribution partners to help reduce transit time. Packaging, labeling, or warehouse origin may vary, but the part will match the replacement numbers, fitment notes, and specifications shown in this listing.

Why Buy From PTO Direct USA

• Fitment-first product organization by spindle and pulley part-number path
• Separate 603988 and 605443 pulley options to reduce fitment confusion
• Clear Hustler Raptor, Dash XD, and Surfer Pro replacement paths
• U.S.-focused fulfillment options for faster delivery when available

Need a Custom Package?

Need a different combination of parts? Email us the part type and part numbers you need, such as spindle assemblies, blades, belts, pulleys, reinforcement rings, bearings, or hardware. We can review the part-number path and quote a custom package when available.

FAQ

Is this an OEM Hustler spindle assembly?

No. This is an aftermarket replacement-style spindle assembly intended to replace the listed part-number path when the physical fitment details match.

What are the lead spindle numbers for this listing?

The lead spindle numbers are 604214 and 604214P.

Which pulley option do I need?

Match the pulley number on your original mower deck. Use the 603988 pulley path for matching Raptor 52-inch applications and the 605443 pulley path for matching Dash XD / Surfer Pro 48-inch applications.

Are 603988 and 605443 interchangeable?

No. Do not treat 603988 and 605443 as interchangeable pulleys. Match your original pulley number, deck size, and belt routing before ordering.

What is included with the spindle-only option?

The spindle-only option includes 1 aftermarket replacement-style spindle assembly replacing 604214 / 604214P.

What is included with the Raptor 52-inch options?

The Raptor 52-inch options include either 1 spindle with 1 603988 pulley or 2 spindles with 2 603988 pulleys, depending on the selected option.

What is included with the Dash XD / Surfer Pro 48-inch option?

The Dash XD / Surfer Pro 48-inch option includes 2 spindle assemblies with 2 605443 pulleys.

Can I order by mower model or deck size only?

No. Mower model and deck size alone are not enough. Match the original spindle number and pulley number first, then confirm spindle dimensions, mounting hole distance, blade mount, pulley setup, and belt routing before ordering.
