John Deere TCA15489 PTO Clutch | Xtreme X0360, Warner 5219-44
Overview

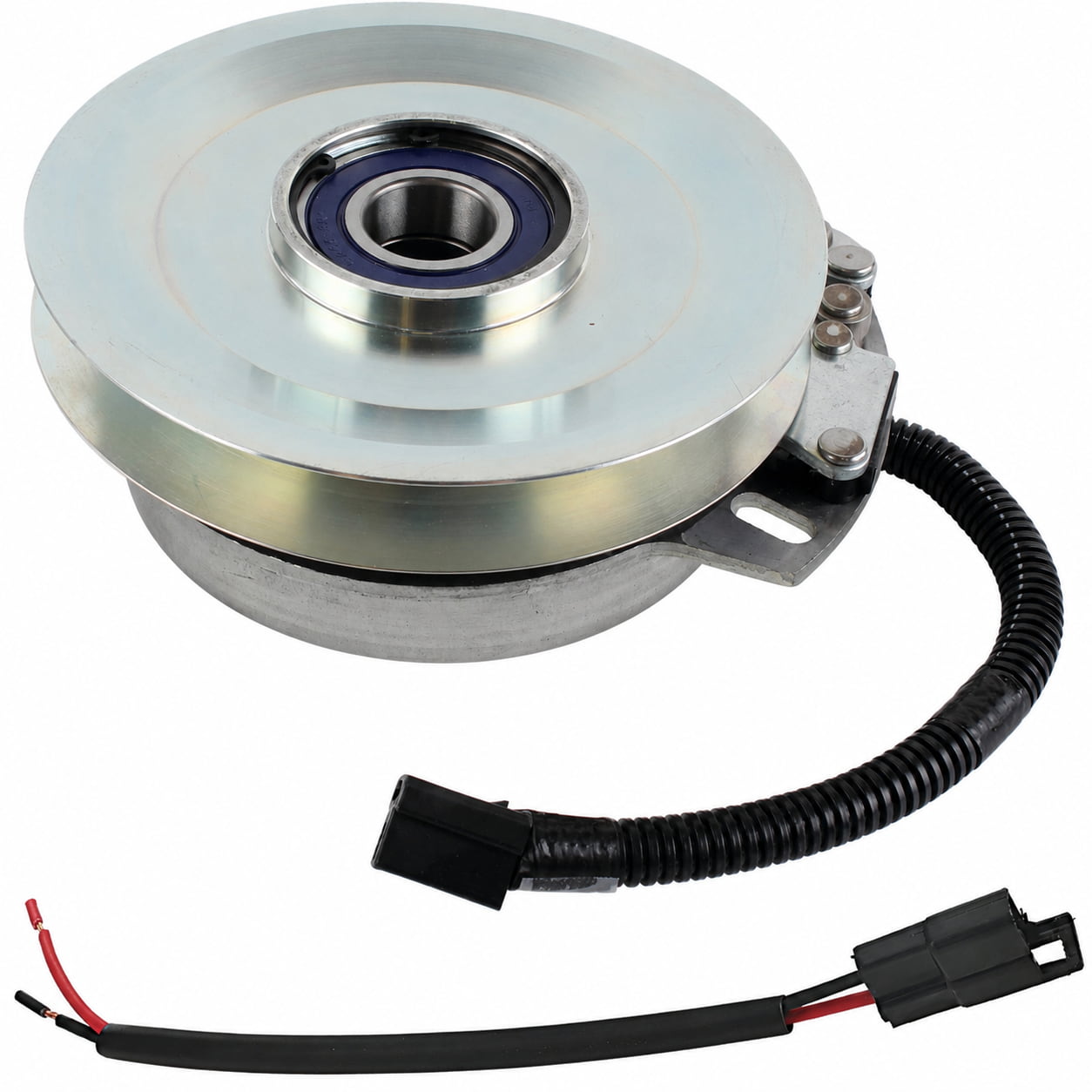

This page covers the Xtreme X0360 electric PTO clutch replacement for select John Deere Mini Frame ZTrak mowers using OEM part number TCA15489 or Warner number 5219-44.
The purchase button on this page links to a premium aftermarket Xtreme PTO clutch sold on eBay. It is not presented as a genuine John Deere OEM clutch.
The eBay listing specifically identifies the John Deere 717A beginning with serial number 030001. Xtreme also lists select 717, 717A, 717E, 727, and 727A applications. Match the original clutch number or official mower parts diagram before ordering.
Premium Xtreme Clutch Features
- Billet-machined pulley
- Replaceable pulley bearing
- High-performance bearing system
- Xtreme Cool Coil technology
- Stainless-steel straps and braking rivets
- Protected wire-lead system
- Heavy-duty electric PTO clutch with integrated brake
Specifications
- Xtreme Part Number: X0360
- Crankshaft Bore: 1-1/8 inch
- Pulley Diameter: 6.92 inches
- Rotation: Counterclockwise
- Belt Type: A/B belt
- Xtreme Torque Rating: 125 ft-lbs
- Clutch Type: Electric PTO clutch with brake
Replaces Part Numbers
- John Deere TCA15489
- Landoll TCA15489
- Lesco TCA15489
- Warner 5219-44
- Warner 521944
- Xtreme X0360
Compatible Model Paths
| Brand | Model | Fitment Note |
|---|---|---|
| John Deere | 717A Mini Frame ZTrak | The eBay listing specifically identifies serial number 030001 and above. |
| John Deere | 727A Mini Frame ZTrak | John Deere lists TCA15489 for compatible 727A applications. |
| John Deere | 717 Mini Frame ZTrak | Xtreme-listed application. Confirm OEM number TCA15489 before ordering. |
| John Deere | 717E Mini Frame ZTrak | Xtreme-listed application. Confirm OEM number TCA15489 before ordering. |
| John Deere | 727 Mini Frame ZTrak | Xtreme-listed application. Confirm OEM number TCA15489 before ordering. |
Important Fitment Check
John Deere Mini Frame ZTrak model names can include more than one production or clutch path. Confirm the complete mower model, serial range, and original part number before purchasing.
- Match OEM number TCA15489 or Warner 5219-44
- For a 717A, confirm the listing requirement of serial number 030001 and above
- Confirm the 1-1/8-inch crankshaft bore
- Confirm the approximately 6.92-inch pulley diameter
- Confirm counterclockwise rotation
- Confirm the A/B belt pulley profile
- Compare the wire lead and anti-rotation configuration
- Do not install or test-mount the clutch until fitment is confirmed
Common Symptoms of a Failing PTO Clutch
- Mower blades will not engage
- Clutch clicks but does not begin turning the deck belt
- Blades engage when cold but stop after warming up
- Clutch slips under mowing load
- Grinding, rattling, or bearing noise near the clutch
- Damaged wire lead or intermittent electrical connection
- Burning smell or excessive heat around the clutch
FAQ
What PTO clutch replaces John Deere TCA15489?
Xtreme X0360 is a premium aftermarket PTO clutch replacement for John Deere TCA15489.
What Warner clutch cross-references TCA15489?
The TCA15489 clutch path cross-references Warner 5219-44.
What PTO clutch fits John Deere 717A serial 030001 and above?
The linked Xtreme listing identifies X0360 as the replacement for compatible John Deere 717A mowers beginning with serial number 030001 and using OEM clutch TCA15489.
Does TCA15489 fit a John Deere 727A?
Yes, John Deere lists TCA15489 for compatible 727A applications. Confirm the mower identification information and official diagram before ordering.
Does this clutch fit every John Deere 717 or 727 mower?
No. Match the complete mower model, serial range, and original clutch number. Do not order using the 717 or 727 model name alone.
What size bore does Xtreme X0360 use?
The Xtreme X0360 uses a 1-1/8-inch crankshaft bore.
What size pulley does Xtreme X0360 use?
The Xtreme X0360 is specified with an approximately 6.92-inch pulley for an A/B belt.
Which direction does Xtreme X0360 rotate?
Xtreme specifies the X0360 clutch with counterclockwise rotation.
Need Help Confirming Fitment?
Use the PTO Clutch Fitment Help page before ordering. It explains which part numbers, mower details, measurements, and photos are needed to confirm the correct clutch path.
