Xtreme X0652 PTO Clutch for Ogura GT3-MC01 & Ferris 5023233

Overview

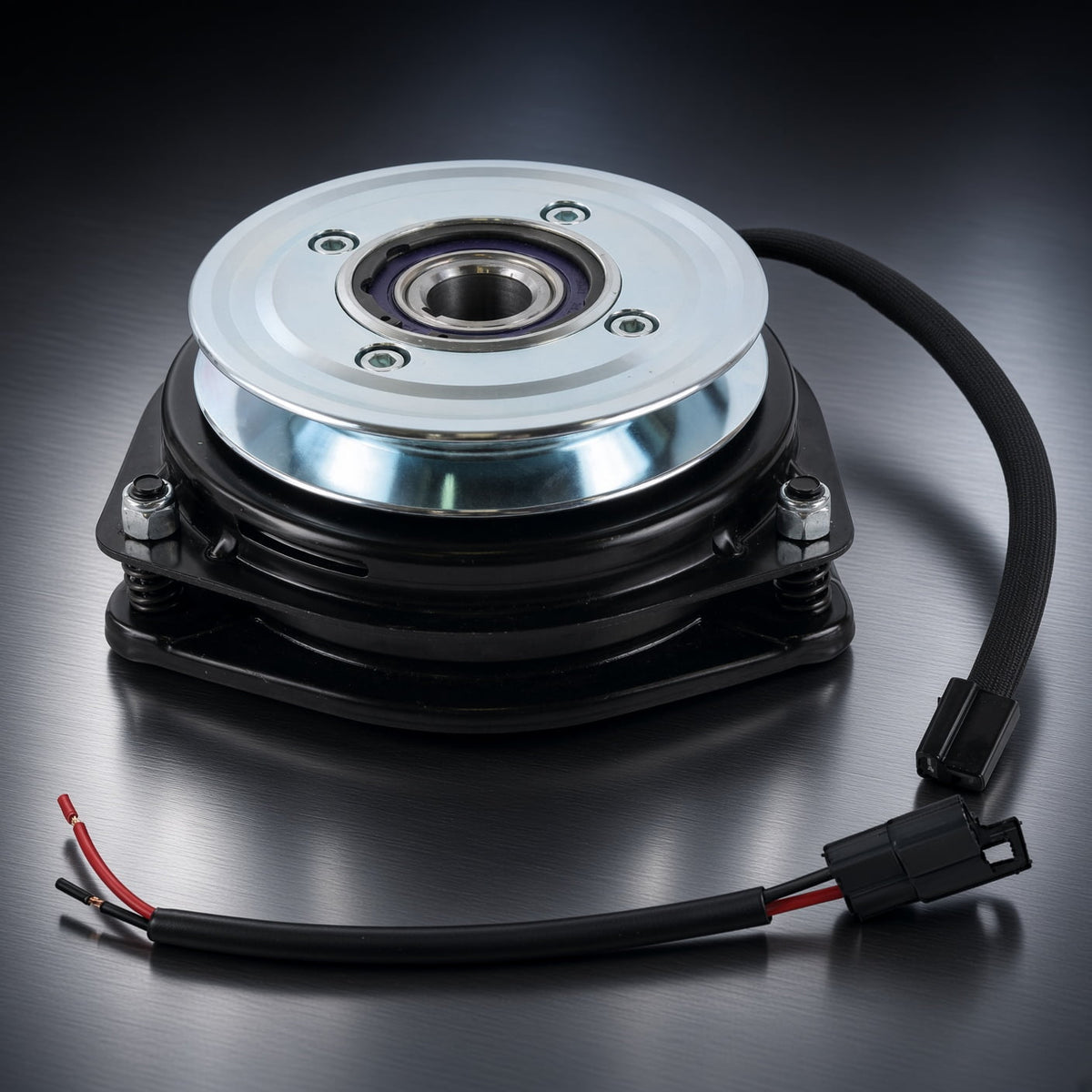

The Xtreme X0652 electric PTO clutch is an aftermarket replacement for select Ferris IS3000Z and IS3100Z commercial zero-turn mowers. Xtreme lists it for Ferris 5022891, 5023233, and 5023233SM, with Ogura cross-references including MA-GT3-MC01 and GT3-FE02.

This clutch combines a 1-1/8-inch crankshaft bore, counter-clockwise rotation, and 272 ft-lb torque rating with a machined pulley, Cool Coil technology, and a replaceable pulley bearing. It accepts 1/2-inch or 5/8-inch belts.

Start with the number on your original clutch or the parts diagram for your mower’s complete model and serial number. Then compare the pulley, electrical connection, and mounting arrangement with the replacement.

Xtreme Construction & Service Features

• Cool Coil technology: Xtreme’s coil technology is specified for this clutch.
• Precision-machined pulley: A machined belt-running surface for the specified belt profiles.
• Replaceable pulley bearing: A serviceable component that can be replaced separately when appropriate.
• High-temperature bearing grease: The listed bearing package uses grease intended for elevated operating temperatures.
• Stainless steel bands and rivets: Stainless hardware in the clutch assembly.
• Protected electrical connection: An integrated clutch-side harness described by Xtreme as watertight and impact resistant.
• Installation instructions included: Follow the supplied sheet for the clutch’s mounting and installation requirements.

Technical Specifications

• Brand: Xtreme Outdoor Power Equipment
• Manufacturer Part Number: X0652
• Clutch Type: electric PTO clutch

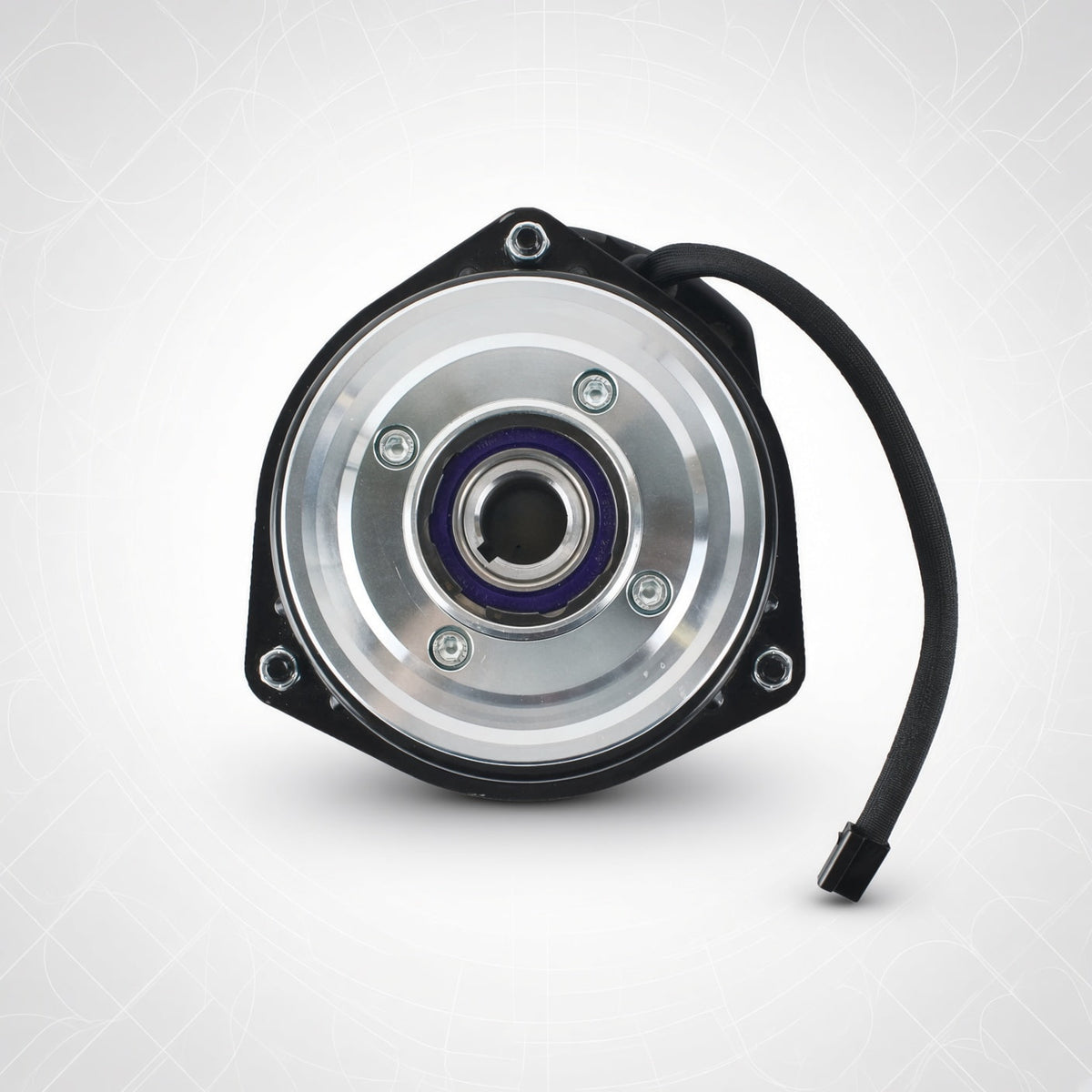

• Crankshaft Bore: 1-1/8 inch / 1.125 inches
• Pulley Diameter: 6-1/8 inches in the seller’s specification; Xtreme’s catalog lists 6.1 inches
• Rotation: CCW — counter-clockwise
• Belt Compatibility: 1/2-inch or 5/8-inch belt; A/B profile
• Published Torque Rating: 272 ft-lbs
• Pulley Bearing: replaceable
• Electrical Connection: integrated clutch-side wire harness
• Quantity: one clutch assembly

Compatible Ferris Model Series

Xtreme lists the following mower series for this replacement. Match the original clutch reference to 5022891, 5023233, or 5023233SM before selecting by model name.

• Ferris IS3000Z

  Select commercial zero-turn applications using the listed Ferris or Ogura clutch references.

• Ferris IS3100Z Series

  Select configurations using the listed clutch numbers. Confirm the engine, deck configuration, and serial-specific parts diagram.

Fitment note: Mowers within the same series can use different clutch assemblies. Confirm the replacement number, bore, pulley alignment, rotation, connector, and anti-rotation mounting arrangement.

Replacement Part Numbers & Cross References

Ferris OEM References

• 5022891
• 5023233
• 5023233SM

Ogura Clutch References

• MA-GT3-MC01 / MAGT3MC01
• GT3-FE02 / GT3FE02
• MA-GT3-FE02 / MAGT3FE02

Xtreme Replacement Number

• X0652

Looking up an Ogura GT3-MC01? Xtreme’s published cross-reference uses the full designation MA-GT3-MC01. Keep a photo of the complete clutch label and compare the installation details when selecting your replacement.

What’s Included

• One complete Xtreme X0652 electric PTO clutch assembly with pulley and bearings
• Integrated clutch-side electrical harness
• Installation instruction sheet

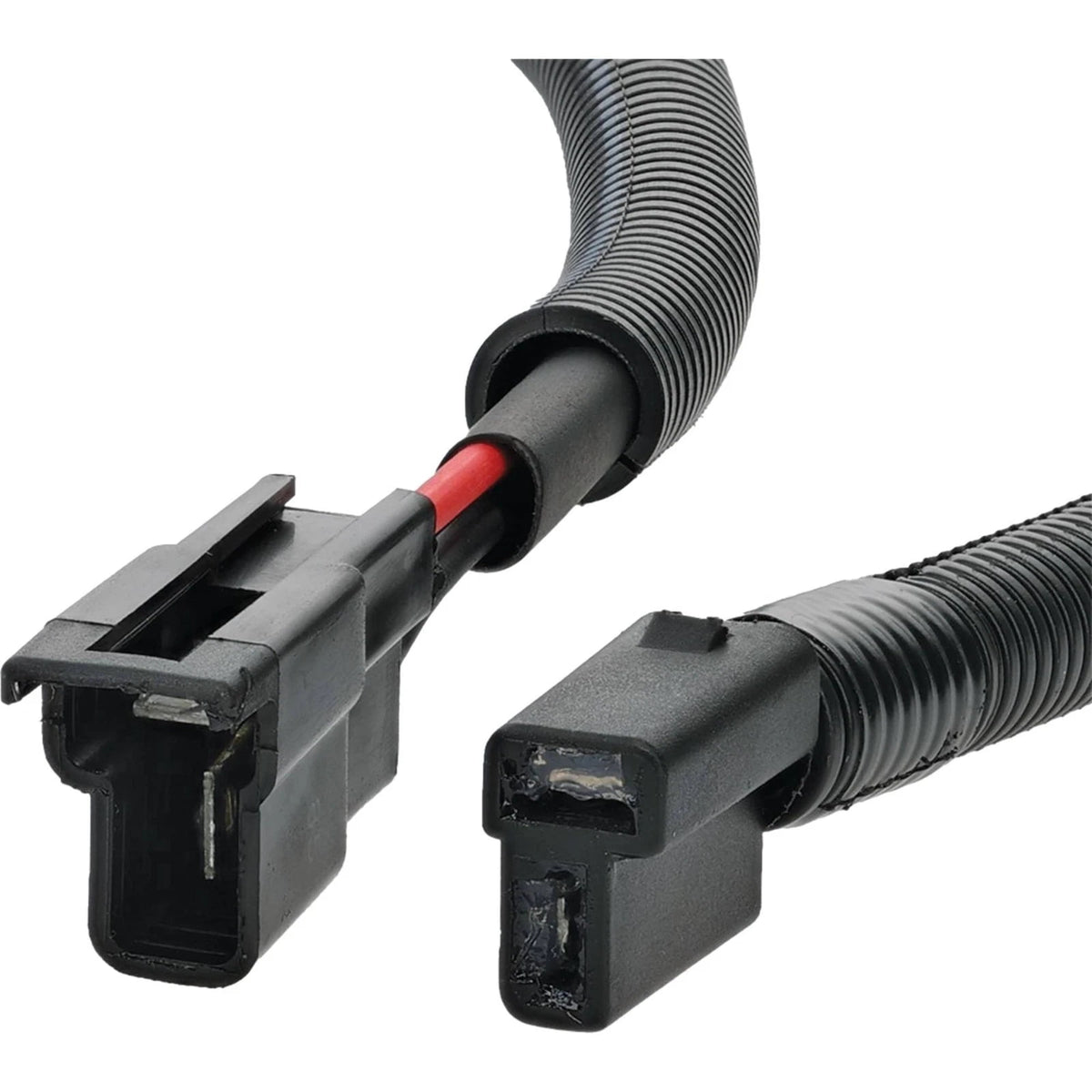

Mower-side wiring: Xtreme identifies XMC1003 as the separate mower-side harness for this listing. Inspect your existing connector and confirm whether that additional harness is needed.

Before Ordering & Installing

1. Match the clutch reference. Use the original label or the OEM parts diagram for your complete mower model and serial number.
2. Compare the mechanical fit. Check the 1-1/8-inch bore, pulley diameter, belt width, rotation, pulley offset, and installation clearance.
3. Check the electrical and mounting details. Compare the harness connection and anti-rotation attachment with your original assembly.
4. Follow the supplied instructions. Use the specified mounting hardware arrangement and installation procedure for the clutch and mower.

For additional preparation and fitment checks, read our PTO clutch installation guide.
