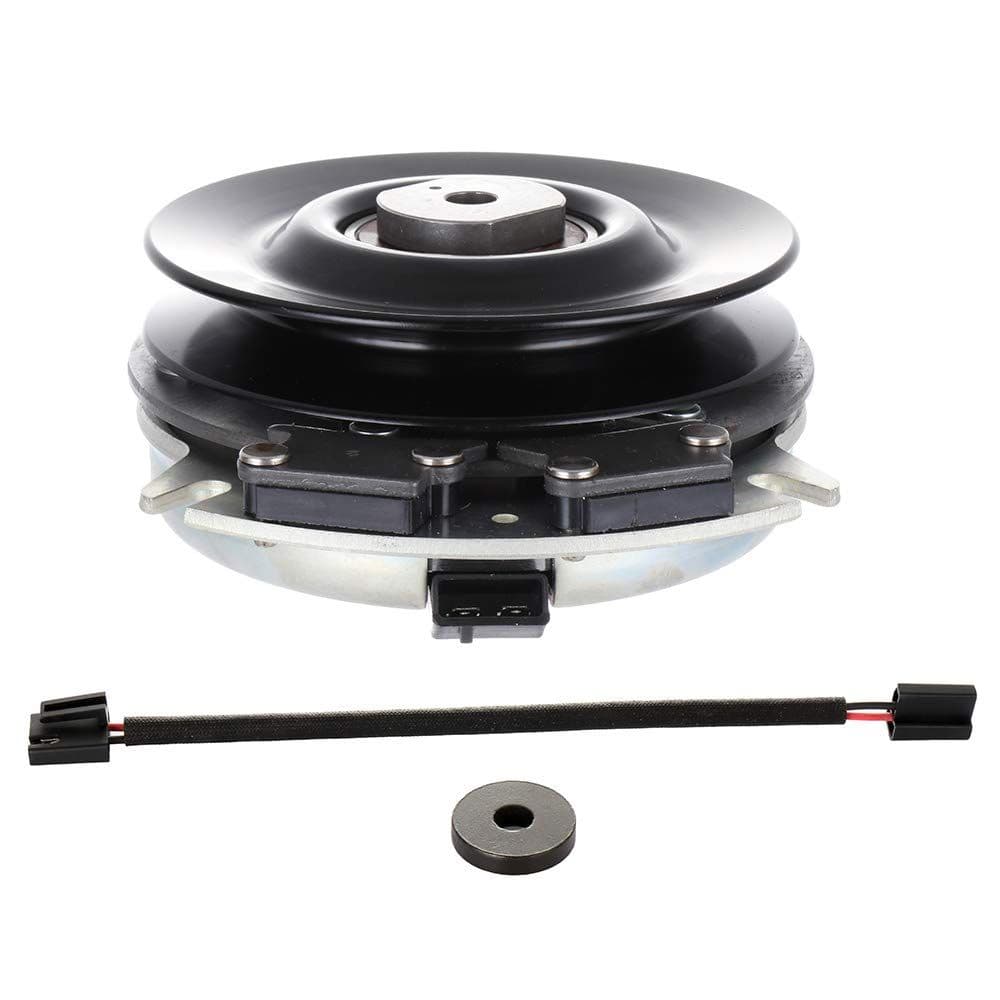

AUC11007 PTO Clutch Replacement for John Deere ZTrak | Replaces TCA20605, TCA21166, TCA22879

Overview

This aftermarket AUC11007 electric PTO clutch replacement is designed for select John Deere ZTrak commercial zero-turn mowers using the AUC11007 / TCA22879 / TCA21166 / TCA20605 heavy-duty clutch path.

This clutch is commonly associated with Warner 5228-38 and 5228-55 and the Xtreme X0807 replacement configuration. It features a 1-1/8-inch crankshaft bore, approximately 6.62-inch pulley, counter-clockwise rotation, and a heavy-duty commercial torque rating.

Important fitment warning: John Deere PTO clutch fitment can change by mower serial number, deck configuration, engine option, and original clutch number. Do not order by mower model alone. Confirm that the original clutch is marked AUC11007, TCA22879, TCA21166, or TCA20605 before ordering.

Key Features

• Aftermarket electric PTO clutch replacement
• Heavy-duty commercial ZTrak clutch configuration
• Replaces John Deere AUC11007, TCA22879, TCA21166, and TCA20605
• Crankshaft Bore: 1-1/8 inches / 1.125 inches
• Pulley Diameter: approximately 6.62 inches / 6-5/8 inches
• Rotation: Counter-clockwise | viewed from pulley side
• Belt Profile: A/B belt
• Supplier-Rated Torque: 250 ft-lbs
• Built for demanding commercial mower deck engagement
• Complete, assembled clutch unit ready for installation

Compatible John Deere Models

This clutch fits select John Deere ZTrak applications using the confirmed AUC11007 / TCA22879 / TCA21166 / TCA20605 clutch family.

• John Deere Z920A — select 60-inch deck applications with serial number 020001 and higher
• John Deere Z920M — select applications through serial number 030000
• John Deere Z925A — select later-serial and standard-deck applications
• John Deere Z925A EFI
• John Deere Z925M EFI — select applications through serial number 030000
• John Deere Z925M EFI Flex Fuel — select applications through serial number 030000
• John Deere Z930A — select applications with serial number 020001 and higher
• John Deere Z930M and Z930M EFI — select applications through serial number 030000
• John Deere Z930R — select applications through serial number 030000
• John Deere Z950A — select applications with serial number 020001 and higher
• John Deere Z950R
• John Deere Z955M EFI
• John Deere Z955R EFI
• John Deere Z960A — select applications with serial number 020001 and higher
• John Deere Z960M
• John Deere Z960R
• John Deere Z970A — select applications with serial number 020001 and higher
• John Deere Z970R

Z925A warning: Do not use this clutch solely because the mower is a Z925A. The late-serial Z925A with a 54-inch Mulch On Demand deck can use the separate TCA21167 / TCA20604 clutch path. Match the original clutch number and deck configuration.

Replaces OEM Part Numbers

• John Deere AUC11007
• John Deere TCA22879
• John Deere TCA21166
• John Deere TCA20605

Cross-Reference Numbers

• Warner 5228-38, 522838
• Warner 5228-55, 522855

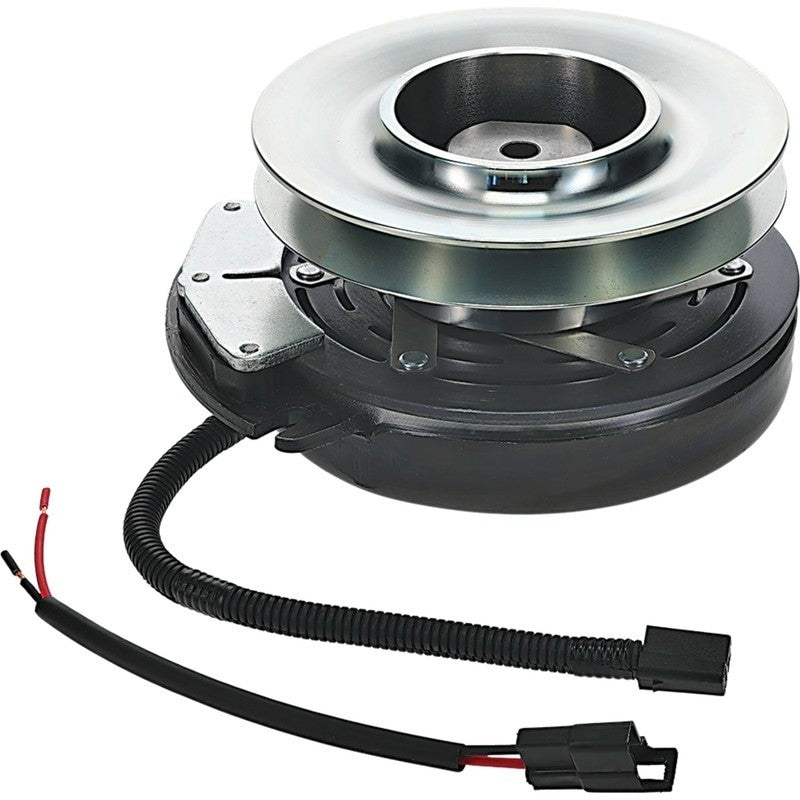

• Xtreme X0807

What’s Included

• Complete electric PTO clutch assembly
• Integrated belt pulley
• Electromagnetic clutch coil
• Pre-installed bearing assembly
• Electrical connector as shown in the product images

Common Symptoms of a Failing PTO Clutch

• Mower blades will not engage
• Clutch clicks but does not turn the deck belt
• Blades disengage after the clutch becomes hot
• Intermittent blade engagement
• Grinding, rattling, or bearing noise
• Burning smell or excessive clutch heat
• Damaged clutch wiring
• Visible pulley wobble or poor belt tracking

Why Buy From PTO Direct USA?

• Fitment-focused replacement part listings
• Fast USA shipping
• One-year warranty
• Clear replacement numbers and physical specifications
• Support for confirming PTO clutch fitment before ordering

FAQ

What does this PTO clutch replace?

This aftermarket clutch replaces John Deere AUC11007, TCA22879, TCA21166, and TCA20605. It also cross-references Warner 5228-38, Warner 5228-55, and Xtreme X0807.

Does this clutch fit a John Deere Z925A?

It fits select Z925A and Z925A EFI applications using the AUC11007 clutch family. It does not fit every Z925A. Late-serial machines with a 54-inch Mulch On Demand deck can use the separate TCA21167 clutch path.

Does this clutch fit a John Deere Z920A?

It fits select Z920A 60-inch deck applications with serial number 020001 and higher when the original clutch number matches this listing. Earlier machines and other deck configurations can use different clutch families.

Are AUC11007 and TCA21167 interchangeable?

No. They are different clutch paths used on different deck and production configurations. Match the original clutch number, pulley, connector, and anti-rotation setup.

What should I check before ordering?

Confirm the original clutch number, mower serial number, deck configuration, 1-1/8-inch crankshaft bore, pulley diameter and offset, electrical connector, belt alignment, and anti-rotation position.
