John Deere AM141833 PTO Clutch for Z665 | Xtreme X0336
Overview
The Xtreme X0336 electric PTO clutch is an aftermarket replacement for John Deere AM141833 and Warner 5219-132, listed by Xtreme for the John Deere Z665 EZTrak zero-turn mower.
Use the original clutch number and your mower identification tag to confirm the replacement. The specifications below describe the Xtreme assembly offered here.
Key Features & Specifications
- Brand: Xtreme Outdoor Power Equipment
- Manufacturer Part Number: X0336, as listed in the eBay offer
- Clutch Type: electric PTO clutch
- Crankshaft Bore: 1 inch / 1.000 inch
- Pulley Diameter: 6.31 inches
- Rotation: CW — clockwise
- Belt Compatibility: A/B belt profile
- Published Torque Rating: 125 ft-lbs

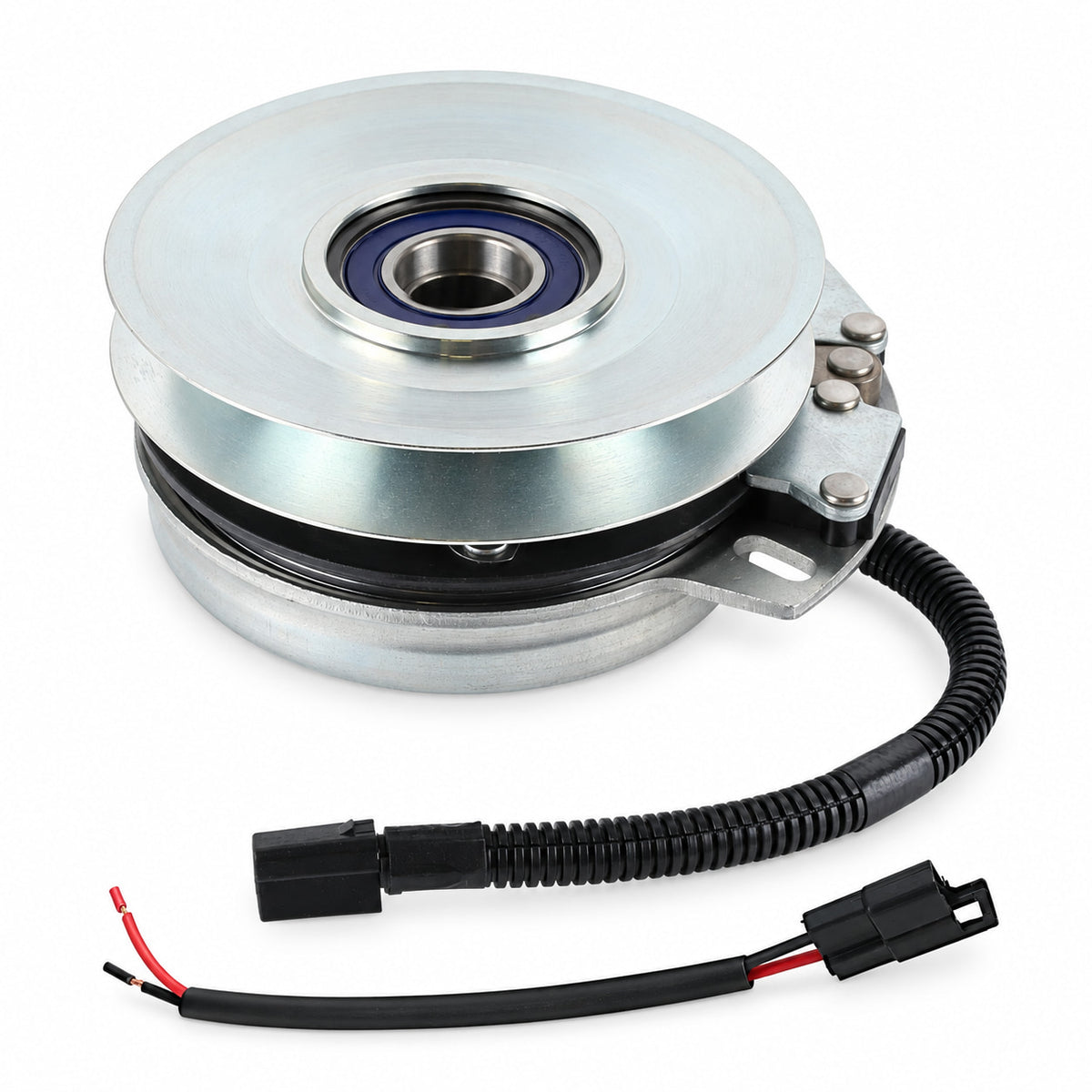

- Electrical Connection: wiring lead and connector as shown in the product photos
Xtreme Construction

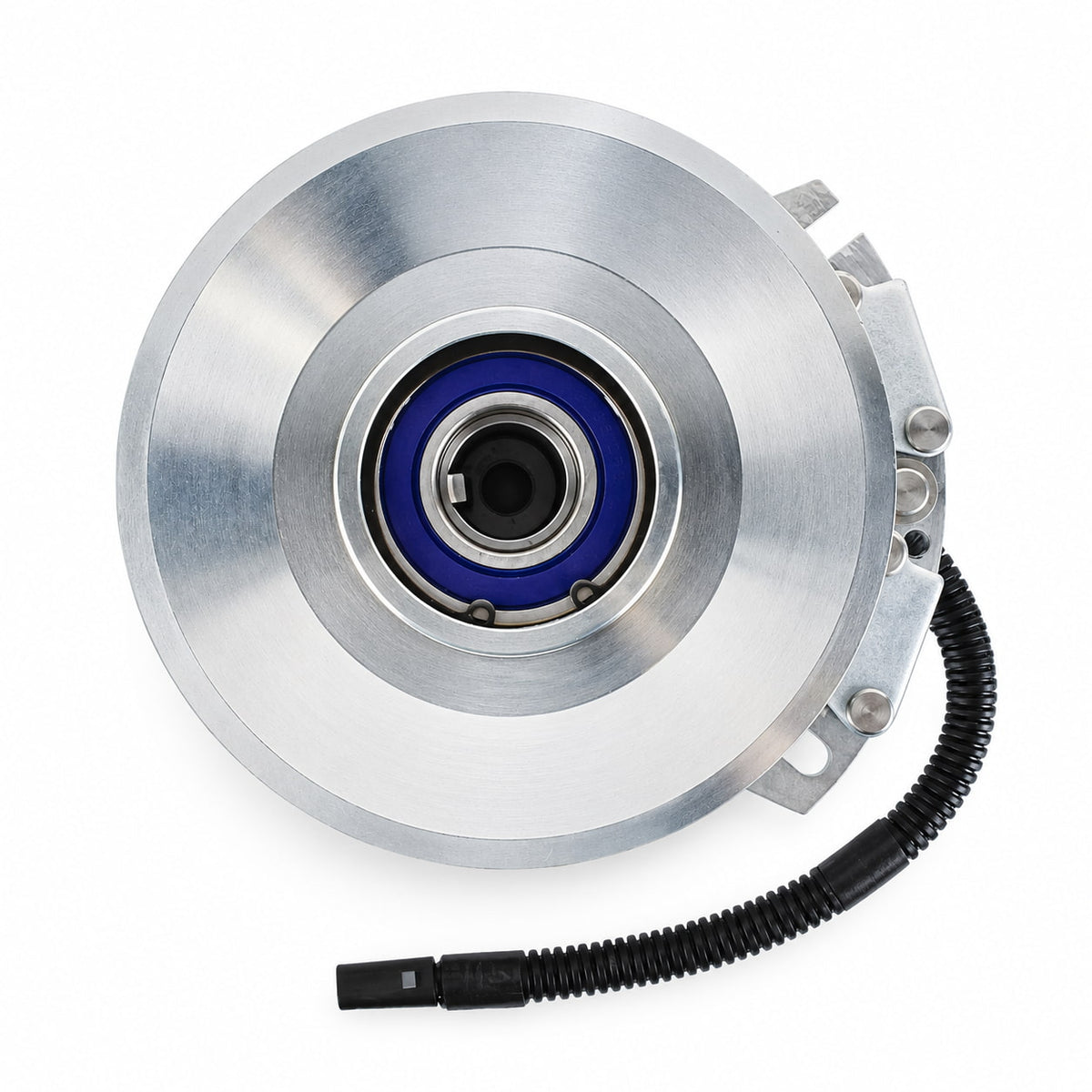

Xtreme’s design includes a machined pulley, Cool Coil technology, high-temperature bearings, a replaceable pulley bearing, and protected wiring. Compare the connector and mounting features with your original assembly before selecting the replacement.
Replacement Part Numbers & Cross References
- John Deere: AM141833
- Warner Electric: 5219-132
- Xtreme: X0336
Common number format: Warner 5219132 is the same reference written without the hyphen.
Compatible Model Reference
John Deere Z665 EZTrak
OEM clutch reference: AM141833
Warner reference: 5219-132
Application listed by Xtreme. Confirm the original clutch number or the OEM parts diagram for your mower’s complete product identification number before ordering.
This model reference does not establish compatibility with every EZTrak mower. An engine replacement or a previous modification may also change the crankshaft, wiring, or mounting arrangement.
Rotation & Installation Check
This replacement is specified for clockwise rotation. Match the original clutch reference and installed orientation along with the bore, pulley position, connector, and anti-rotation attachment. A similar appearance or matching bore alone does not confirm fitment.
What’s Included
- One Xtreme X0336 electric PTO clutch assembly
- Pulley and installed bearing assembly
- Clutch wiring connection shown in the offer’s product photos
Review the selected offer for any separately supplied adapter lead or mounting hardware.
Before Ordering & Installing
- Record your mower identification. Photograph the complete model and product identification number on the frame tag.
- Identify the original clutch. Read the label or use the matching OEM parts diagram to confirm its part number.
- Compare the physical configuration. Check the crankshaft, pulley diameter and alignment, belt profile, rotation, wiring, mounting points, and available clearance.
- Follow the installation instructions. Use the hardware arrangement and procedures specified by John Deere and Xtreme.
For preparation and inspection guidance, read our PTO clutch installation guide.
