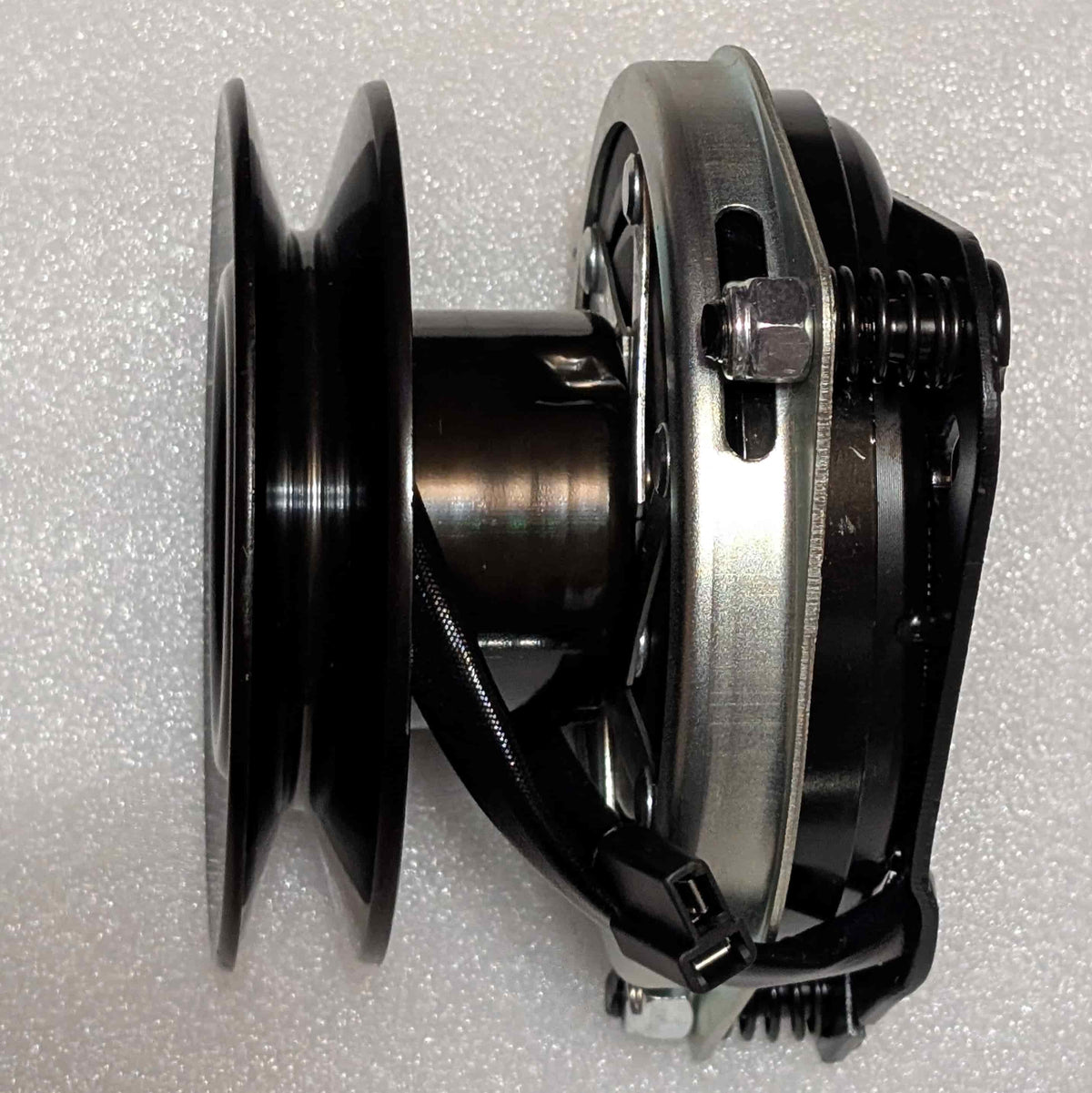

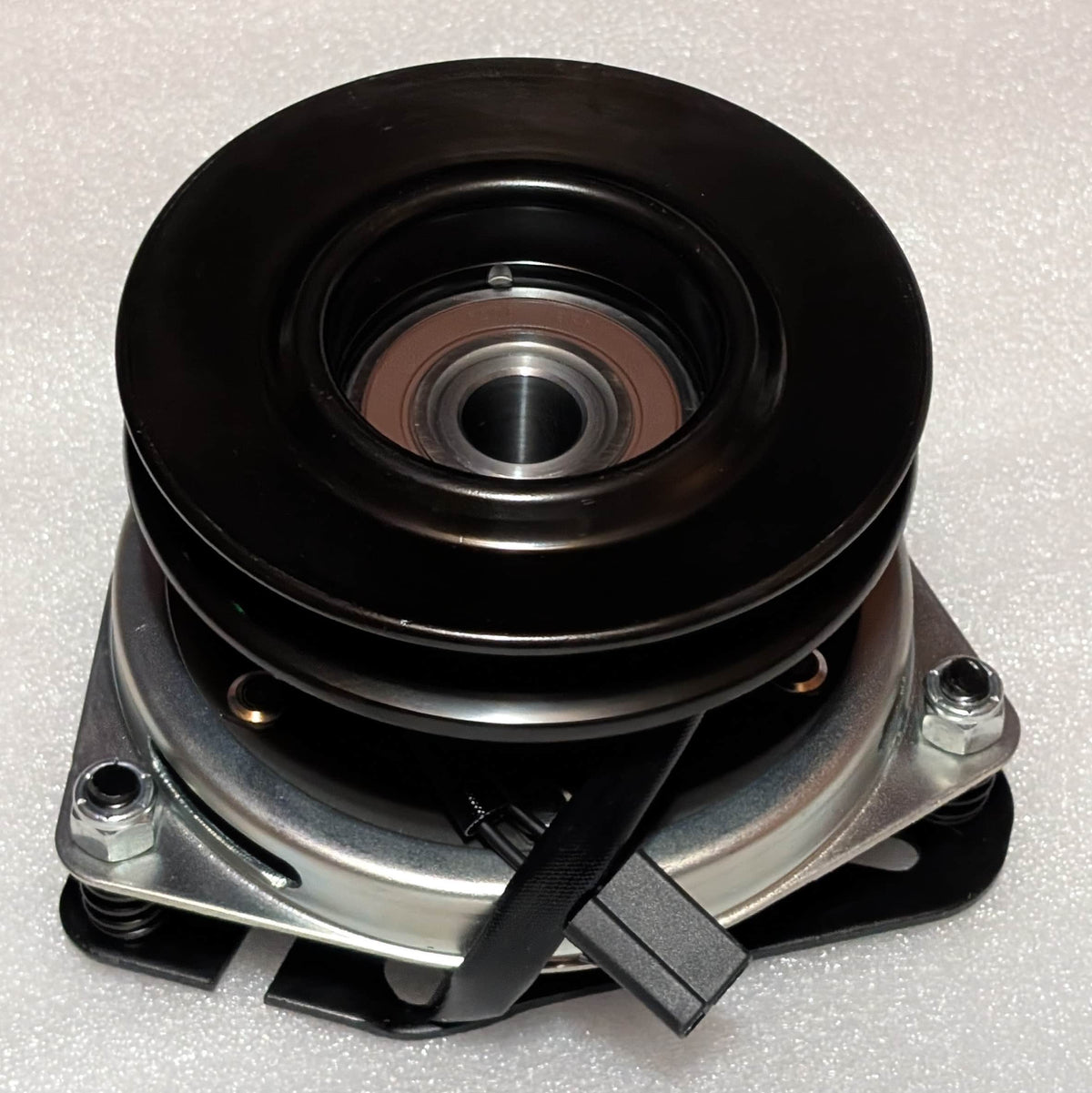

AM130328 / AM118970 / AM123285 PTO Clutch — John Deere, Sabre & Scotts | Ogura MA-GT-JD24

Overview

Get your mower back to cutting with this AM130328 PTO clutch replacement for select John Deere, Sabre and Scotts lawn and garden tractors. It replaces AM130328, AM118970 and AM123285 and cross-references Ogura MA-GT-JD24 / MAGTJD24.

Applications include John Deere GT275, GT262, GT242, 240, 245, 260, 265, 285 and 320, plus the Sabre and Scotts models listed below. The assembly features a 1-inch crankshaft bore, 5-5/16-inch pulley and counterclockwise rotation.

Original Clutch Marked Warner?

This listing covers the Ogura MA-GT-JD24 / MA-GT-JD24BF configuration. If your original clutch is marked Warner 5215-10, 5215-36, 5215-56 or 5215-114, see our Warner-style PTO clutch replacement for John Deere AM130328 applications.

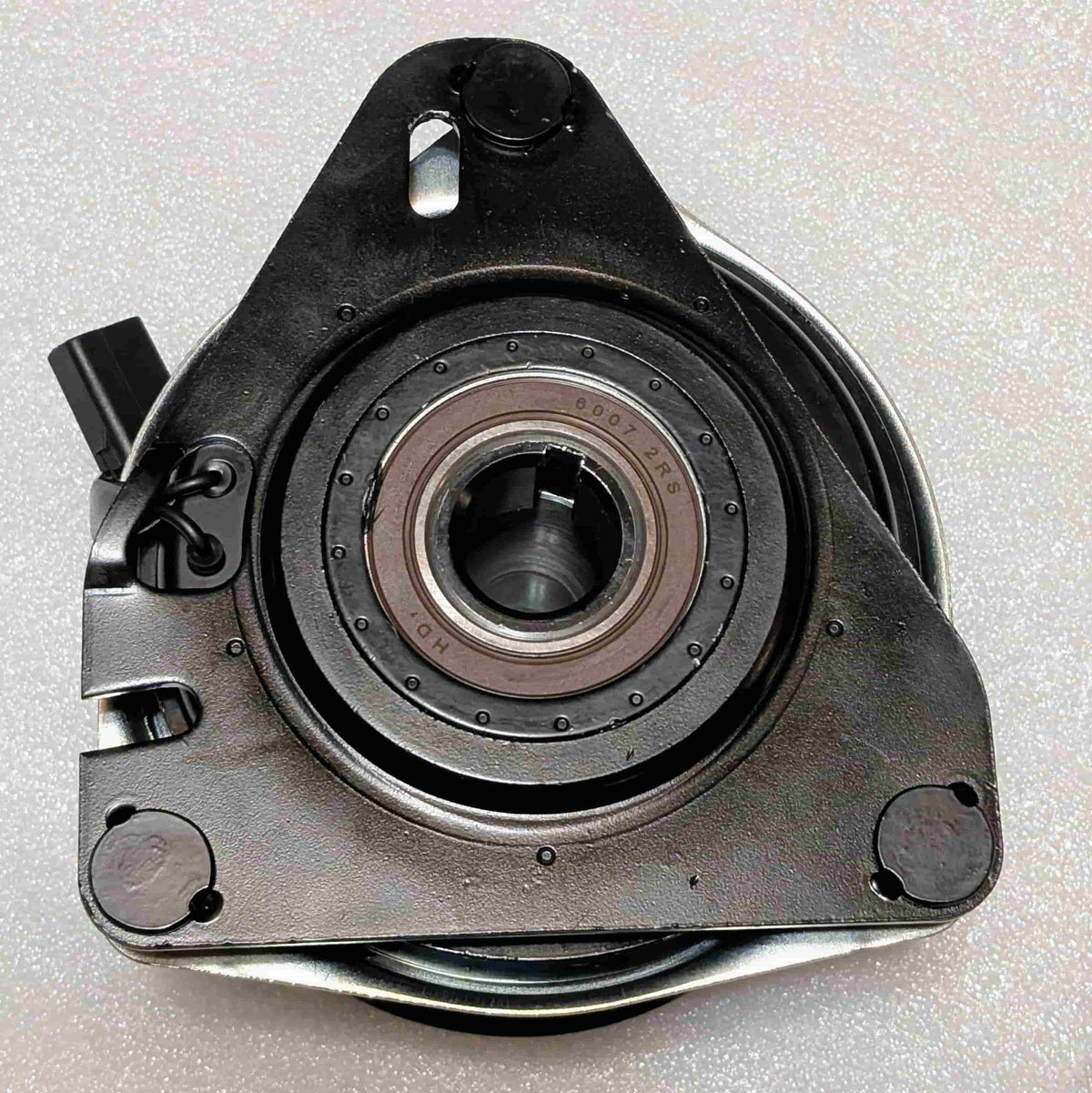

Compare the original clutch’s keyed bore and backing plate style.

Specifications

• Product Type: Aftermarket electric PTO clutch assembly
• Crankshaft Bore: 1 inch / 1.000 inch
• Pulley Diameter: 5-5/16 inches / approximately 5.32 inches
• Belt Width: 1/2 inch or 5/8 inch
• Rotation: Counterclockwise (CCW), viewed from the pulley side
• Electrical Connection: Wiring lead and connector shown in the product photos
• Brake: Integrated clutch brake assembly

Replaces John Deere OEM Part Numbers

• AM130328
• AM118970
• AM123285

Manufacturer & Aftermarket Cross-References

• Ogura: MA-GT-JD24, MAGTJD24, MA-GT-JD24BF, MAGTJD24BF
• Xtreme: X0410
• Stens: 255-829X

Compatible Brands & Models

Fits the following model applications equipped with the AM130328 / AM118970 / AM123285 clutch family. Match your original clutch number, connector and mounting arrangement; model and serial-number differences can affect fitment.

John Deere Lawn & Garden Tractors

• 240, 245, 260, 265 and 285
• 320
• GT242, GT262 and GT275
• G100

Sabre & Scotts Mower Platforms

• 1842GV and 1842HV
• 1848GV and 1848HV
• 1948GV and 1948HV
• 2148HV and 2348ST
• 2354 / 2354HV
• 2554HV and 2554ST
• L2554
• Scotts S2048, S2348 and S2554

What's Included

One complete electric PTO clutch assembly with the pulley, bearings, brake assembly and electrical connection shown in the product photos. Follow your mower's specified mounting hardware and anti-rotation arrangement during installation.

Why Buy From PTO Direct USA?

• Stocked inventory and fast USA shipping
• Product photos showing the clutch and connection
• Fitment guarantee
• Limited warranty coverage up to one year
• Fitment support before and after purchase

FAQ

Does this replace Ogura MA-GT-JD24 and MA-GT-JD24BF?

Yes. This aftermarket clutch is supplied as a replacement for both MA-GT-JD24 and MA-GT-JD24BF. Compare the original clutch’s electrical connector and mounting arrangement with the product photos.

Does this replace AM118970 and AM123285?

Yes. This assembly replaces AM118970, AM123285 and AM130328 in the listed applications.

Does it fit John Deere GT275, GT262, GT242 and 320?

Yes, for configurations using the listed clutch family. These models are included in the application references above.

Does it fit Scotts S2048, S2348 and S2554?

Yes, for configurations using the AM130328 / AM118970 / AM123285 clutch family and matching electrical connection.

What size crankshaft does it fit?

This clutch fits a 1-inch crankshaft and uses a 5-5/16-inch pulley. It is not a replacement for a 1-1/8-inch-bore clutch.

Can you help identify my clutch?

Yes. Email support@ptodirectusa.com or text photos to (541) 361-8778. Include your mower model and serial number, plus clear photos of the original clutch label, connector and mounting arrangement.

Need installation help? Read our PTO clutch installation guide.

Comparing John Deere clutch numbers? Use our John Deere PTO clutch cross-reference guide.

Need a different clutch? Browse the John Deere PTO clutch collection or the full electric PTO clutch catalog.
