AM125082 PTO Clutch for John Deere F510 & F525 | Replaces AM126710, Warner 5215-117

Overview

This AM125082 PTO clutch replacement is an aftermarket electric clutch for select John Deere F510 and F525 front mowers. It covers the AM125082 / AM126710 replacement application when the original clutch number and physical configuration match.

Built with a 1-1/8-inch crankshaft bore, a 5-3/8-inch pulley class and 12V operation, this clutch provides replacement mower deck engagement in a complete clutch and pulley assembly. The wiring lead and connector are supplied as shown in the product photos.

Check your F510 serial number: This listing focuses on serial numbers 110001 and up. Confirm the original clutch number, connector and mounting arrangement before ordering.

Key Features & Specifications

• Product Type: aftermarket electric PTO clutch and brake assembly

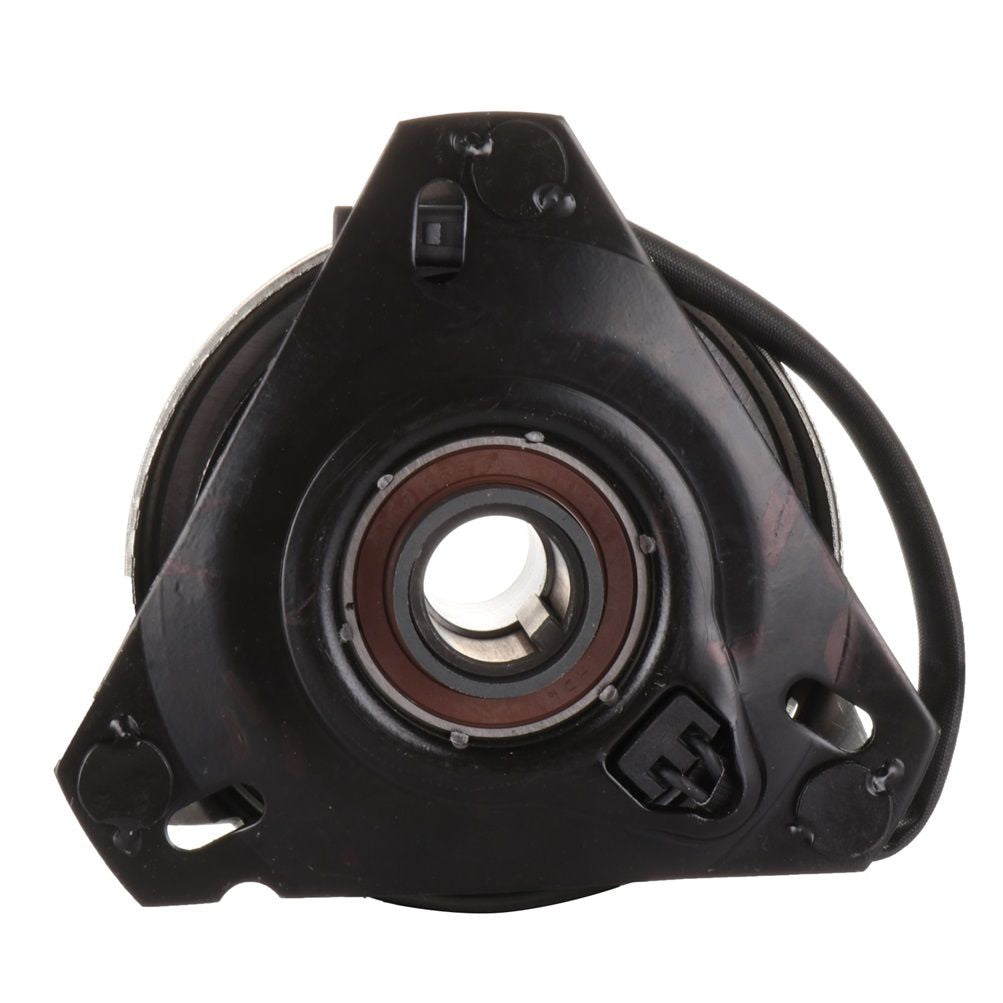

• Crankshaft Bore: 1-1/8 inch / 1.125 inches
• Pulley Diameter: 5-3/8-inch class, approximately 5.345 inches
• Voltage: 12V DC
• Rotation: counter-clockwise, viewed from the pulley side
• Belt Application: 1/2-inch belt on confirmed applications; match your original belt and pulley profile
• Electrical Connection: wiring lead and connector as pictured
• Pre-assembled clutch and pulley unit

Compatible John Deere Front Mowers

• John Deere F510: serial numbers 110001 and up, using the matching clutch application
• John Deere F525: select applications with a 1-1/8-inch crankshaft and matching original clutch number

These application references are supported by aftermarket manufacturer catalogs. Model name alone does not confirm fitment. Compare the original clutch label, shaft bore, pulley offset, electrical connector and anti-rotation mounting arrangement.

Earlier F510? For serial numbers through 110000, review our dedicated AM118625 PTO clutch listing. These numbers appear together in broader aftermarket replacement catalogs, but the factory application and serial range should still be checked.

Replaces OEM Part Numbers

John Deere: AM125082, AM126710, AM116654

These are replacement references for compatible applications. This is an aftermarket clutch, not a genuine John Deere assembly.

Cross-Reference Numbers

• Warner: 5215-117, 5215117
• Additional Warner service references: 5215-115, 5215115; 5215-91, 521591; 5215-5, 52155
• Xtreme: X0454
• Stens: 255-134

Related replacement references: AM106365, AM118625 and Warner 5215-27 appear in the broader aftermarket family. View the AM118625 application page for its model and serial-number guidance.

What’s Included

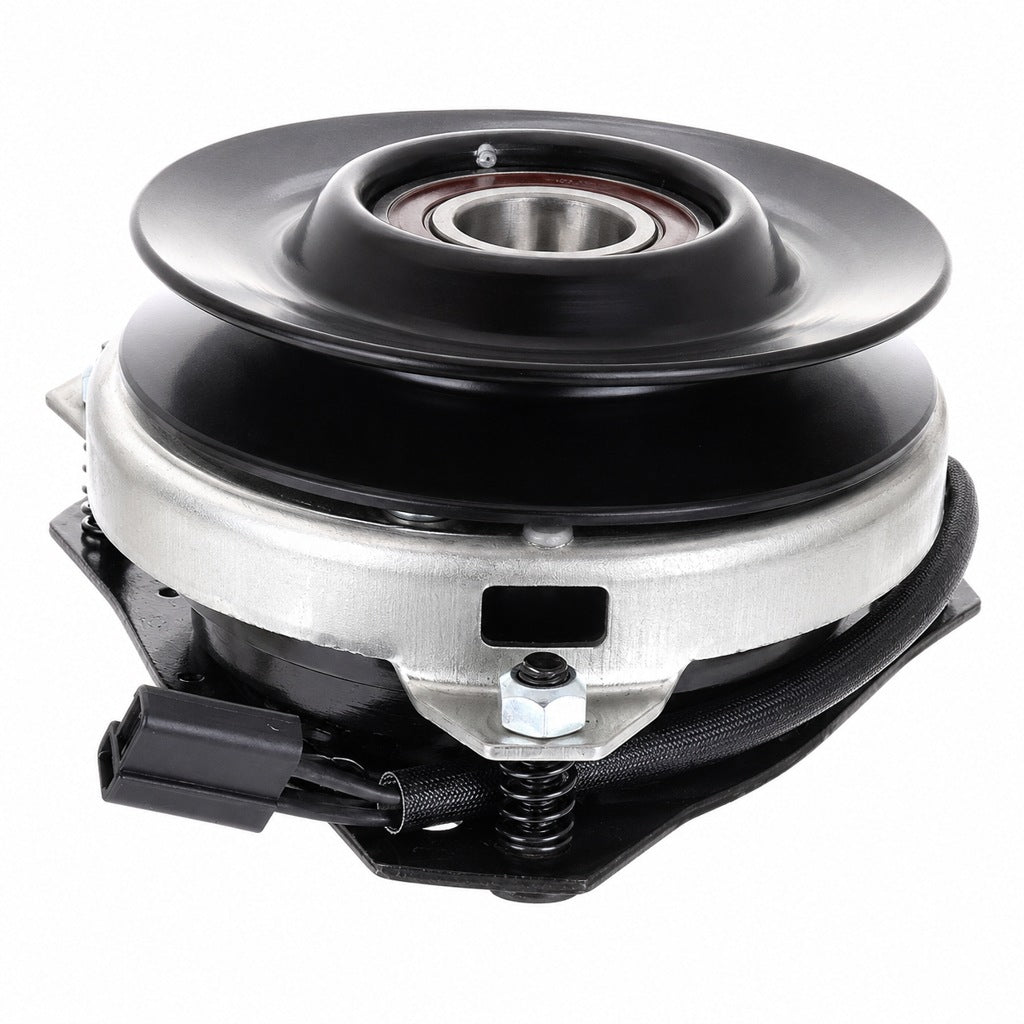

• One complete electric PTO clutch assembly with integrated pulley
• Pre-installed bearing assembly and electromagnetic coil
• Wiring lead and connector as shown in the product photos

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment guarantee
• 1-year limited warranty
• Fitment support before and after purchase

FAQ

Does this replace AM125082 and AM126710?

Yes, on compatible applications matching the listed dimensions, connector and mounting configuration. Check the original clutch number before ordering.

Will it fit a 1-inch crankshaft?

No. This clutch requires a 1-1/8-inch crankshaft. Measure the shaft if the engine has been replaced or the original clutch number is unreadable.

Does this fit every F510 or F525?

No. The F510 serial range and F525 crankshaft size matter. Verify the installed clutch and machine configuration, especially after an engine swap or previous repair.

Can you help identify my clutch?

Email support@ptodirectusa.com with your mower model, serial number and clear photos of the clutch label, connector, pulley and mounting arrangement.

Need installation help? Read our PTO clutch installation guide.
