AM119536 PTO Clutch Replacement for John Deere 240, 345, GT275 | Replaces AM115093, AM108601

Overview

This AM119536 PTO clutch replacement is an aftermarket electric PTO clutch for select John Deere, Sabre, and Scotts lawn tractor applications.

This clutch replaces John Deere AM119536, AM115093, AM108601, and AM103035, and cross-references Warner 5215-44, Warner 5215-29, Oregon 33-267, Stens 255-139, and Sunbelt B1XT0406.

Built with a 1-1/8 inch crankshaft bore, 5.31 inch pulley diameter, and counter-clockwise rotation, this clutch is designed to restore reliable mower deck blade engagement when matched to the correct model, original clutch number, crankshaft size, pulley size, rotation, connector style, and physical specs.

Important fitment warning: This clutch uses a 1-1/8 inch bore. Do not choose by mower model alone. Match your original clutch number and carefully confirm your crankshaft bore before ordering.

Key Features

• Aftermarket electric PTO clutch replacement for listed John Deere, Sabre, and Scotts applications

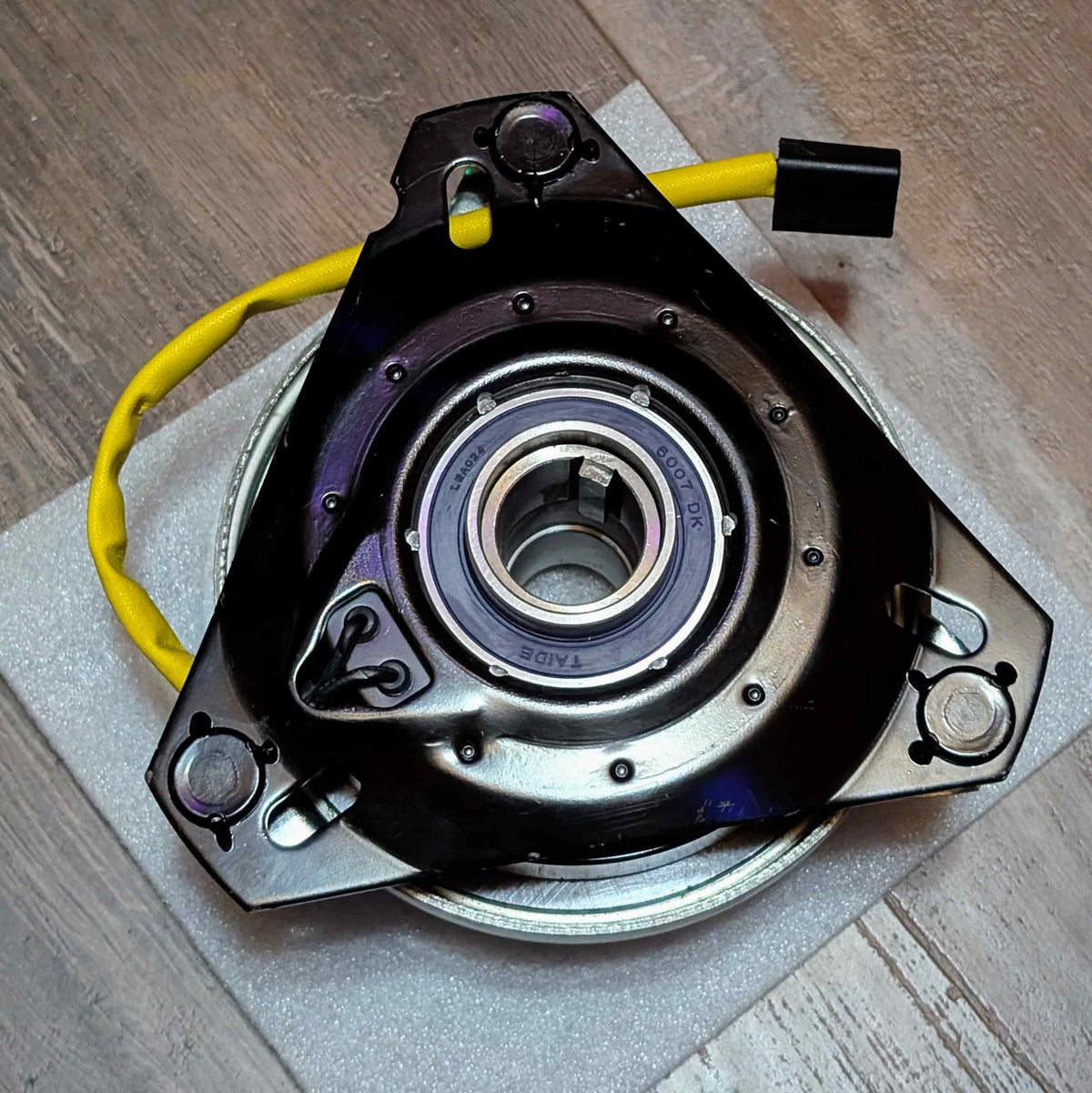

• Crankshaft Bore: 1-1/8" / 1.125"
• Pulley Diameter: 5.31"
• Rotation: CCW from pulley side
• Voltage: 12V DC
• Operating Speed: up to 3600 RPM
• Encapsulated electromagnetic coil for consistent engagement
• High-temperature bearing assembly
• Fully assembled and ready to install

Compatible Brands & Models

This PTO clutch fits select John Deere, Sabre, and Scotts lawn tractor applications that use the AM119536, AM115093, AM108601, AM103035, or Warner 5215-29 clutch path.

John Deere Applications

• John Deere 240
• John Deere 245
• John Deere 260
• John Deere 265
• John Deere 285
• John Deere 320
• John Deere 325
• John Deere 335
• John Deere 345
• John Deere GT242
• John Deere GT262
• John Deere GT275

Sabre Applications

• Sabre 2254HV
• Sabre 2554HV

Scotts Applications

• Scotts S2554

Fitment note: If your original clutch is marked AM119536, AM115093, AM108601, AM103035, Warner 5215-44, Warner 5215-29, Oregon 33-267, Stens 255-139, or B1XT0406, this is the correct replacement path. However, carefully match specs if relying on model information alone.

Replaces OEM Part Numbers

• John Deere: AM119536
• John Deere: AM115093
• John Deere: AM108601
• John Deere: AM103035

Cross-Reference Aftermarket Numbers

• Warner: 5215-44, 521544
• Warner: 5215-29, 521529
• Warner: 5215-11, 521511
• Warner: 5215-172, 5215172
• Oregon: 33-267
• Stens: 255-139, 255-139X
• Sunbelt: B1XT0406

What’s Included

• Complete electric PTO clutch assembly
• Factory-balanced 5.31" pulley
• Pre-installed bearing assembly
• Encapsulated electromagnetic coil
• Connector as shown in product photos

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment Guarantee
• 1-year warranty
• Fitment-first product support
• Clear product images for easier clutch identification
• Trusted replacement supplier for homeowners, repair shops, and mower service professionals

FAQ

Does AM119536 fit John Deere 240, 245, 260, 265, and 285 tractors?

Yes, this clutch is listed for select John Deere 240, 245, 260, 265, and 285 lawn tractor applications using the AM119536 clutch path. Confirm the original clutch number and 1-1/8 inch bore before ordering.

Does AM119536 fit John Deere 320, 325, 335, and 345 tractors?

Yes, this clutch is listed for select John Deere 320, 325, 335, and 345 lawn tractor applications. Match your original clutch number, crankshaft bore, pulley diameter, rotation, and connector style before ordering.

Does this clutch fit John Deere GT242, GT262, or GT275?

Yes, this clutch is listed for select John Deere GT242, GT262, and GT275 applications using the AM119536 / Warner 5215-29 replacement path.

Does this clutch fit Sabre or Scotts tractors?

Yes, this clutch is listed for select Sabre 2254HV, Sabre 2554HV, and Scotts S2554 applications. Confirm your original clutch number before ordering.

Is Warner 5215-29 the same fitment as AM119536?

Warner 5215-29 is the Warner cross-reference commonly associated with the AM119536 clutch path.

What bore size does AM119536 use?

This clutch uses a 1-1/8 inch bore, also written as 1.125". Confirm your crankshaft size before ordering.

What pulley diameter does this clutch use?

This clutch is commonly listed with a 5.31 inch pulley diameter. Confirm against your original clutch and product photos before ordering.

What rotation does this clutch use?

This clutch uses counter-clockwise rotation, commonly written as CCW. Match rotation to your original clutch before installing a replacement.

What are common signs of a failing PTO clutch?

Common symptoms include mower blades not engaging, the PTO clutch clicking but the blades not spinning, slipping under load, intermittent blade engagement, a burning smell, or blades slowing down after the mower heats up. A worn coil can work cold, then weaken after 10 to 30 minutes of mowing.

Can PTO Direct USA help me confirm fitment?

Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, original clutch number, and clear photos of the old clutch. For the best fitment help, include photos of the clutch label or stamped number, wiring connector, pulley, anti-rotation bracket, and crankshaft area.

Need help checking crankshaft size? Read the 1-inch vs 1-1/8 inch PTO clutch bore guide.

Need help with rotation? Read the PTO clutch rotation guide.

Need installation help? Read the PTO clutch installation guide.

Need a different John Deere clutch? Browse the John Deere PTO clutch collection or the full electric PTO clutch catalog.
