917-3403 PTO Clutch Replacement for Cub Cadet GT2186, GT2523, 1863 & 1864 | Replaces 717-3403, 917-04180
917-3403 PTO Clutch Replacement for Cub Cadet GT2186, GT2523, 1863 & 1864 | Replaces 717-3403, 917-04180
Overview
This aftermarket 917-3403 electric PTO clutch is a replacement for 717-3403, 717-3403P, 917-04180, 717-04180, and Warner 5218-6. It is commonly used on older Cub Cadet garden tractor and super garden tractor applications, including the GT2186, GT2523, 1863, 1864, 2086, 2176, 2186, 2206, and 2284 clutch paths.
This clutch is built for applications using a 1-1/8 inch crankshaft bore, 6.00-inch pulley, CCW rotation from pulley side, and A/B belt profile. Match your original clutch number first, then confirm bore size, pulley diameter, connector style, anti-rotation setup, and deck belt path before ordering.
Important: This is not the same as the 1-inch Cub Cadet clutch paths. Do not substitute this clutch for similar-looking 1-inch bore clutches unless the original part number and physical specs match.
Key Features
- Replacement electric PTO clutch for select Cub Cadet, MTD-built, Troy-Bilt, Craftsman, Bolens, Huskee, and White Outdoor applications
- Primary Cub Cadet / MTD Path: 917-3403
- Current Cub Cadet Replacement Path: 917-04180
- Replaces OEM Numbers: 717-3403, 717-3403P, 717-04180, 917-04180
- Warner Cross-Reference: 5218-6
- Crankshaft Bore: 1-1/8 inch
- Pulley Diameter: 6.00 inches
- Rotation: CCW from pulley side
- Belt Profile: A/B belt profile; commonly used with 1/2-inch or 5/8-inch belts
- Torque Rating: varies by aftermarket build; verify the supplied unit if torque rating is critical
- Fully assembled electric PTO clutch replacement
Compatible Brands & Model Series
This clutch is intended for applications using the 717-3403 / 717-3403P / 917-3403 / 917-04180 PTO clutch path. The safest way to confirm fitment is to match the part number stamped on your original clutch.
Confirmed Cub Cadet model paths include:
- Cub Cadet 1863
- Cub Cadet 1864
- Cub Cadet 2086
- Cub Cadet 2176
- Cub Cadet 2185
- Cub Cadet 2186
- Cub Cadet 2206
- Cub Cadet 2284: PTO clutch path for serial number 880,001 and above
- Cub Cadet 2518
- Cub Cadet GT2186: 44-inch and 48-inch garden tractor paths
- Cub Cadet GT2523: 54-inch garden tractor path
Common brand paths include:
- Cub Cadet / MTD: garden tractor and super garden tractor applications using 717-3403, 717-3403P, 917-3403, or 917-04180
- Troy-Bilt / Bolens / Huskee / White Outdoor: select MTD-built applications using the same clutch number path
- Sears Craftsman: select MTD-built applications using the same clutch number path
Fitment warning: Some online listings group this clutch with many brands and model numbers. Do not order by model name alone. Match your original clutch number and confirm the 1-1/8 inch bore, 6.00-inch pulley, CCW rotation, connector, and anti-rotation bracket before ordering.
Replaces OEM Part Numbers
- Cub Cadet / MTD: 917-04180, 717-04180, 917-3403, 717-3403, 717-3403P
- Bolens: 717-3403, 717-3403P, 917-3403
- Craftsman: 717-3403, 717-3403P, 917-3403
- Huskee: 717-3403, 717-3403P, 917-3403
- Troy-Bilt: 717-3403, 717-3403P, 917-04180, 917-3403
- White Outdoor: 717-3403, 717-3403P, 917-3403
Common no-dash searches: 91704180, 71704180, 9173403, 7173403, 7173403P, 52186
Aftermarket Cross-Reference Numbers
- Warner: 5218-6
- Xtreme: X0016
- STENS: 255-419X
- Oregon: 33-123
- Rotary: 12228
- Prime Line: 7-06038
- Sunbelt: B1XT0016
Cross-reference note: Similar Warner 5218-series clutches are not automatically interchangeable. This listing is built around the 5218-6 / 717-3403 / 917-3403 / 917-04180 path. Match bore size, pulley diameter, rotation, connector, and clutch stop setup before ordering.
Fitment Check
Before ordering, compare this clutch against your original unit. A correct PTO clutch match should confirm:
- Original clutch number matches 717-3403, 717-3403P, 917-3403, 717-04180, 917-04180, or Warner 5218-6
- Crankshaft bore is 1-1/8 inch
- Pulley diameter is 6.00 inches
- Rotation is CCW from pulley side
- Belt profile matches your mower deck drive system
- Connector style matches your mower wiring harness
- Clutch stop / anti-rotation bracket lines up correctly
Common Symptoms of a Failing PTO Clutch
- Mower blades will not engage
- Blades engage intermittently or shut off while mowing
- PTO clutch slips under load
- Burning smell near the clutch or deck belt
- Clicking sound from the clutch but no blade engagement
- Bearing noise, heat damage, or visible wear on the clutch assembly

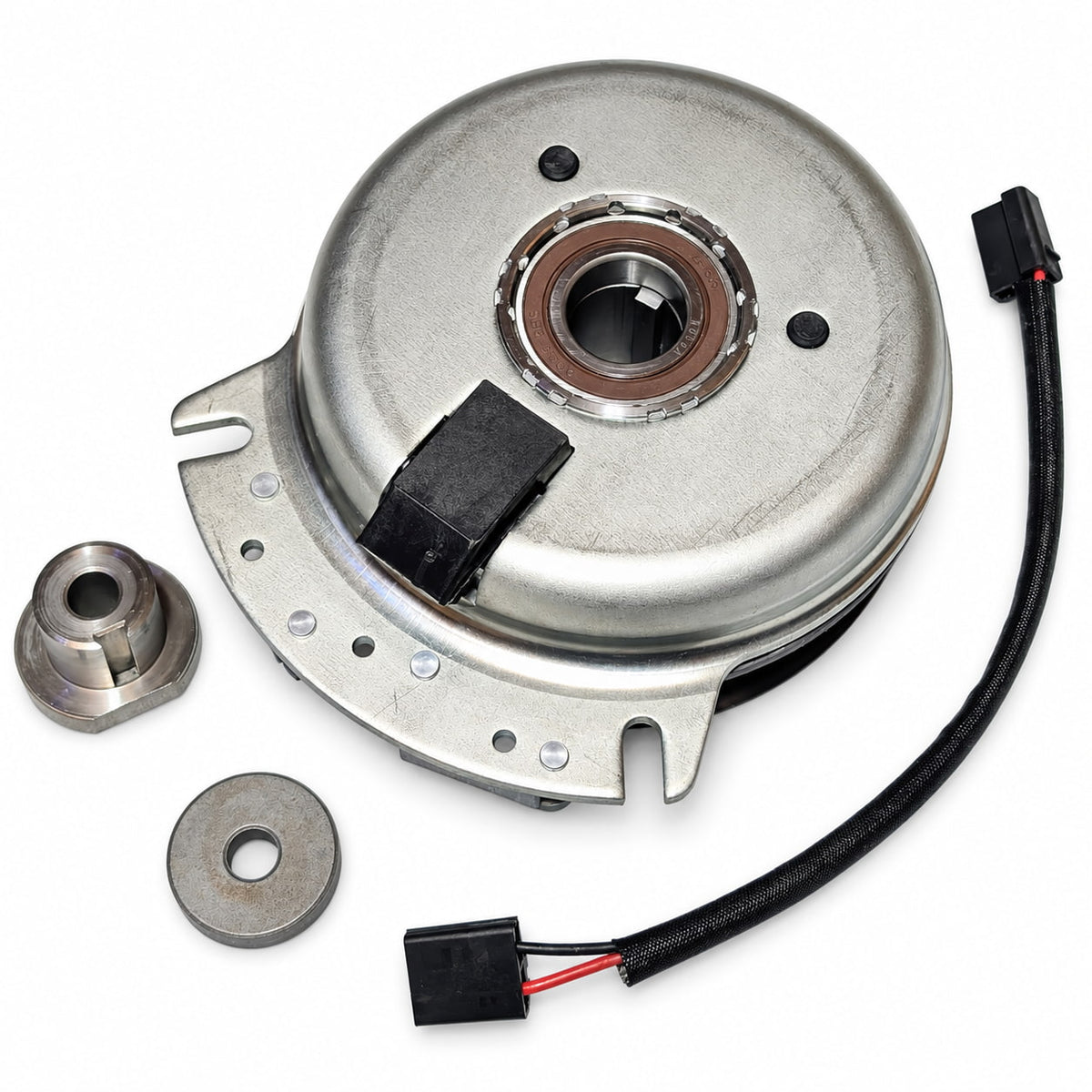

What’s Included
- Complete electric PTO clutch assembly
- Integrated 6.00-inch pulley
- Pre-installed bearing assembly
- Electromagnetic coil
- Integrated wiring lead / connector setup
Note: Mounting bolt, spacer, washer, clutch stop bracket, and anti-rotation hardware may not be included. Inspect and reuse your original OEM hardware where required.
Why Buy From PTO Direct USA?
- Fast USA shipping
- Fitment Guarantee
- 1-year warranty
- Premium product images for easy identification
- Trusted replacement supplier for homeowners, repair shops, and mowing professionals
Need Help Confirming Fitment?
Email support@ptodirectusa.com with your mower model number, serial number, original clutch number, and clear photos of the old clutch, connector plug, pulley, and anti-rotation bracket. We can help confirm whether this 917-3403 PTO clutch is the correct replacement.
FAQ
What does the Cub Cadet 917-3403 PTO clutch replace?
The 917-3403 PTO clutch is part of the same replacement path as 717-3403, 717-3403P, 717-04180, 917-04180, and Warner 5218-6. Always match the original clutch number before ordering.
What Cub Cadet models use the 917-3403 PTO clutch?
Confirmed Cub Cadet model paths include 1863, 1864, 2086, 2176, 2185, 2186, 2206, 2284, 2518, GT2186, and GT2523. Some models have serial-number paths, so match the original clutch number before ordering.
Is 917-3403 the same as 917-04180?
Yes, Cub Cadet lists 917-04180 as replacing 717-04180, 717-3403, 717-3403P, 917-3403, and Warner 5218-6. Confirm physical specs before ordering.
What bore size is this PTO clutch?
This clutch is for 1-1/8 inch crankshaft applications. Do not use it on a 1-inch crankshaft.
What pulley size is this clutch?
This clutch is commonly listed with a 6.00-inch pulley. Confirm pulley diameter and belt profile against your original clutch before ordering.
Is Warner 5218-6 a cross-reference for this clutch?
Yes. Warner 5218-6 is a key cross-reference for the 717-3403 / 917-3403 / 917-04180 clutch family.
What should I check before installing a new PTO clutch?
Inspect the deck belt, idler pulleys, spindle bearings, wiring connector, clutch stop bracket, crankshaft surface, and belt routing. A seized spindle, bad idler, or misrouted belt can damage a new clutch.
