Cub Cadet 917-05184 / 717-05184 PTO Clutch | Warner 5219-165
Overview

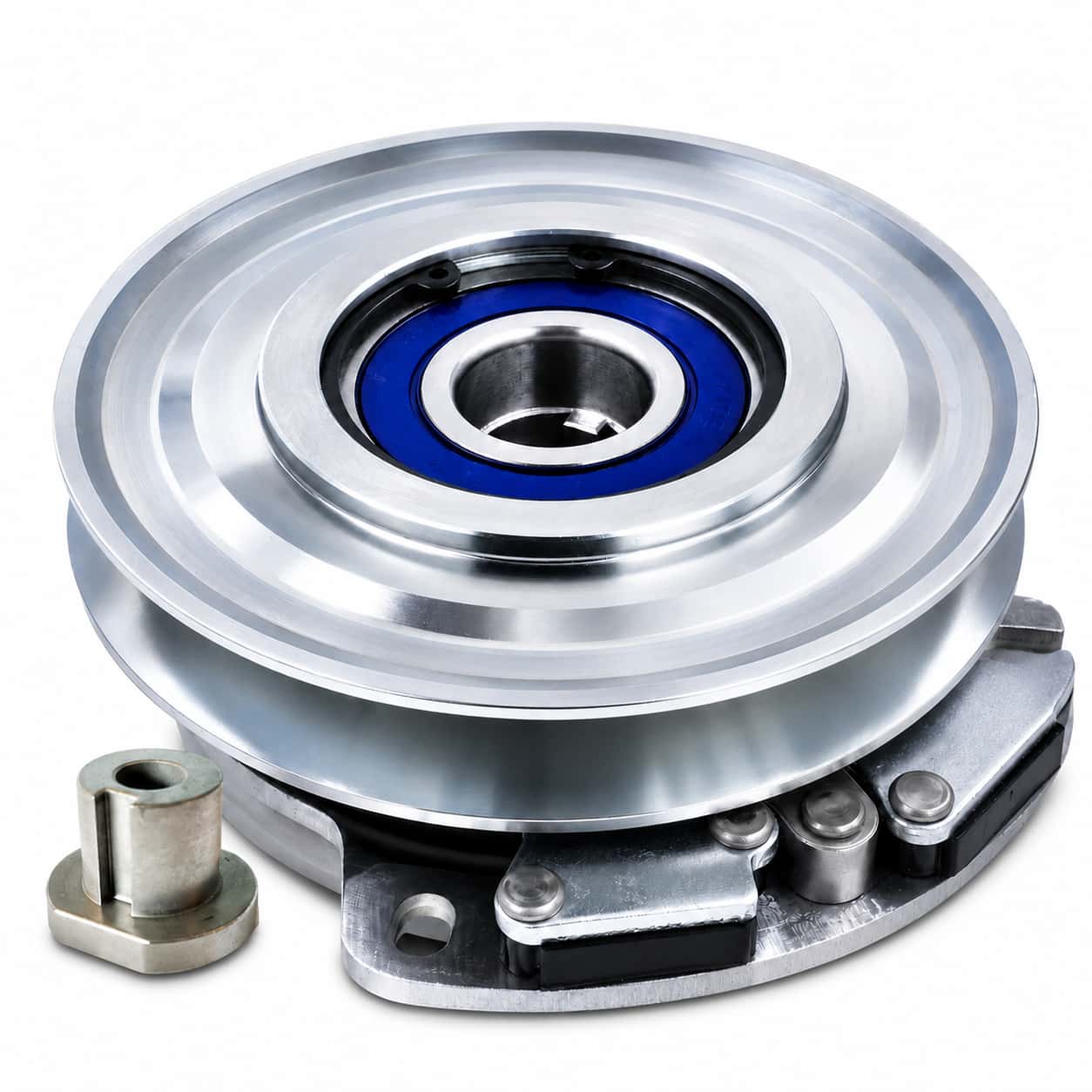

This page covers an HD Switch aftermarket replacement PTO clutch for select Cub Cadet Pro X, Pro Z, and Tank commercial mower applications using the 917-05184 / 717-05184 clutch-number path.
This clutch also cross-references the original Warner 5219-165 clutch. The original Warner path uses a 1-1/8-inch crankshaft bore, 7.34-inch pulley, and CCW rotation from the pulley side.
The purchase button on this page links to a third-party HD Switch aftermarket replacement sold on eBay. It is not presented as a genuine Cub Cadet or Warner OEM clutch.
Key Features
- Aftermarket replacement electric PTO clutch assembly
- Primary Cub Cadet Part Number: 917-05184
- Previous Cub Cadet Part Number: 717-05184
- Warner Cross-Reference: 5219-165
- Crankshaft Bore: 1-1/8 inch
- Pulley Diameter: 7.34 inches for the original Warner clutch path
- Rotation: CCW from pulley side
- Voltage: 12 VDC
- Original Warner Torque Rating: 125 ft-lbs
- Clutch Type: electric PTO clutch with integrated brake
- Connection Style: integral connector path
Compatible Brands & Model Series
This replacement fits select Cub Cadet commercial mower applications using the confirmed 917-05184 / 717-05184 PTO clutch path.
Cub Cadet Pro X 600
- Pro X 648: 53AI8CSF050
- Pro X 654: 53AI8CSA050
- Pro X 654 EFI: 53RL8CSA050
- Pro X 660: 53AI8CSU050
- Pro X 660 EFI: 53RL8CSU050
Cub Cadet Pro Z 500
- Pro Z 548-L: 53RIHJTK050
- Pro Z 554-L: 53RIHJTN050, 53TIHJTN050
- Pro Z 554-L EFI: 53RWHJTN050
- Pro Z 554-S: 53RIHJUN050, 53TIHJUN050
- Pro Z 560-L: 53LIHJTV050, 53TIHJTV050
- Pro Z 560-S: 53LIHJUV050, 53TIHJUV050
Cub Cadet Pro Z 700
- Pro Z 760-L EFI: 53RLHKTV050
Cub Cadet Tank Series
- Tank L48 KH: 53AN2RTB050, 53RN2RTB050
- Tank L54 KW: 53AI2RTC050, 53RI2RTC050
- Tank L60 KH: 53AN2RTD009, 53AN2RTD050, 53RN2RTD050
- Tank L60 KW: 53AI2RTD050, 53RI2RTD050, 53YI2RTD050
- Tank S60 KH: 53RN2RUD050
Model-family names are provided as routing clues only. Other Cub Cadet Pro X, Pro Z, and Tank configurations may use a different PTO clutch.
Replaces OEM Part Numbers
- Cub Cadet: 917-05184
- Cub Cadet: 717-05184
Aftermarket and Manufacturer Cross-References
- Warner: 5219-165
Original Warner 5219-165 Reference Specifications
The following specifications identify the original Warner clutch path and should be used as fitment references:
- Function: electric clutch and brake
- Crankshaft Bore: 1-1/8 inch
- Pulley Diameter: 7.34 inches
- Rotation: CCW from pulley side
- Voltage: 12 VDC
- Rated Torque: 125 ft-lbs
- Current Draw: 4.23 amps
- Resistance: 2.84 ohms
- Connection Type: integral
Before Ordering
If the original clutch is marked 917-05184, 717-05184, or Warner 5219-165, this is the matching replacement path. If the clutch number is unreadable, confirm the part number through the model-specific OEM parts diagram.
Common Symptoms of a Failing PTO Clutch
- Blades will not engage when the PTO control is activated
- The clutch clicks but the mower deck does not begin turning
- Blades engage when cold and stop after the clutch heats up
- Deck belt slips, squeals, or smokes during engagement
- Burning smell or excessive heat around the clutch
- Intermittent blade engagement under load
- Grinding, bearing noise, or visible clutch damage
FAQ
What does Cub Cadet 917-05184 replace?
Cub Cadet 917-05184 replaces the previous 717-05184 part number on compatible Cub Cadet commercial mower applications.
What Warner clutch cross-references Cub Cadet 717-05184?
The confirmed original Warner cross-reference is Warner 5219-165.
What are the main specifications for this clutch path?
The original Warner 5219-165 clutch path uses a 1-1/8-inch bore, 7.34-inch pulley, CCW rotation from the pulley side, and a 125 ft-lb rated torque.
Does this fit every Cub Cadet Tank L60?
No. Cub Cadet Tank L60 mowers can use different PTO clutches depending on the exact model and production configuration. Match the full mower model number and original clutch number before ordering.
Does this fit the 2011 Cub Cadet Tank L60-KH model 53AH8CTD050?
No. The 2011 53AH8CTD050 model uses the separate 02004878 / 02004878P PTO clutch path. Do not use this 917-05184 listing for that mower.
Is this the same clutch as Cub Cadet 917-04967?
No. 917-05184 and 917-04967 are separate PTO clutch paths. Match the number on the original clutch or the model-specific OEM diagram.
Is this the same replacement path as John Deere TCA19812 or TCA21168?
No. This page is limited to the confirmed Cub Cadet 917-05184 / 717-05184 / Warner 5219-165 path. Do not route a John Deere TCA-number application to this listing without verified physical and model-specific fitment.
Is the linked product a genuine Cub Cadet or Warner clutch?
No. The linked item is presented as an HD Switch aftermarket replacement. It is not presented as a genuine Cub Cadet or Warner OEM clutch.
Need Help Confirming Fitment?
Still not sure which PTO clutch fits your mower? Contact us for fitment help and send a clear picture of the mower identification tag or the original PTO clutch identification tag.
