71410006 PTO Clutch HD Upgrade for Wright Stander | Warner 5219-19
$182.95

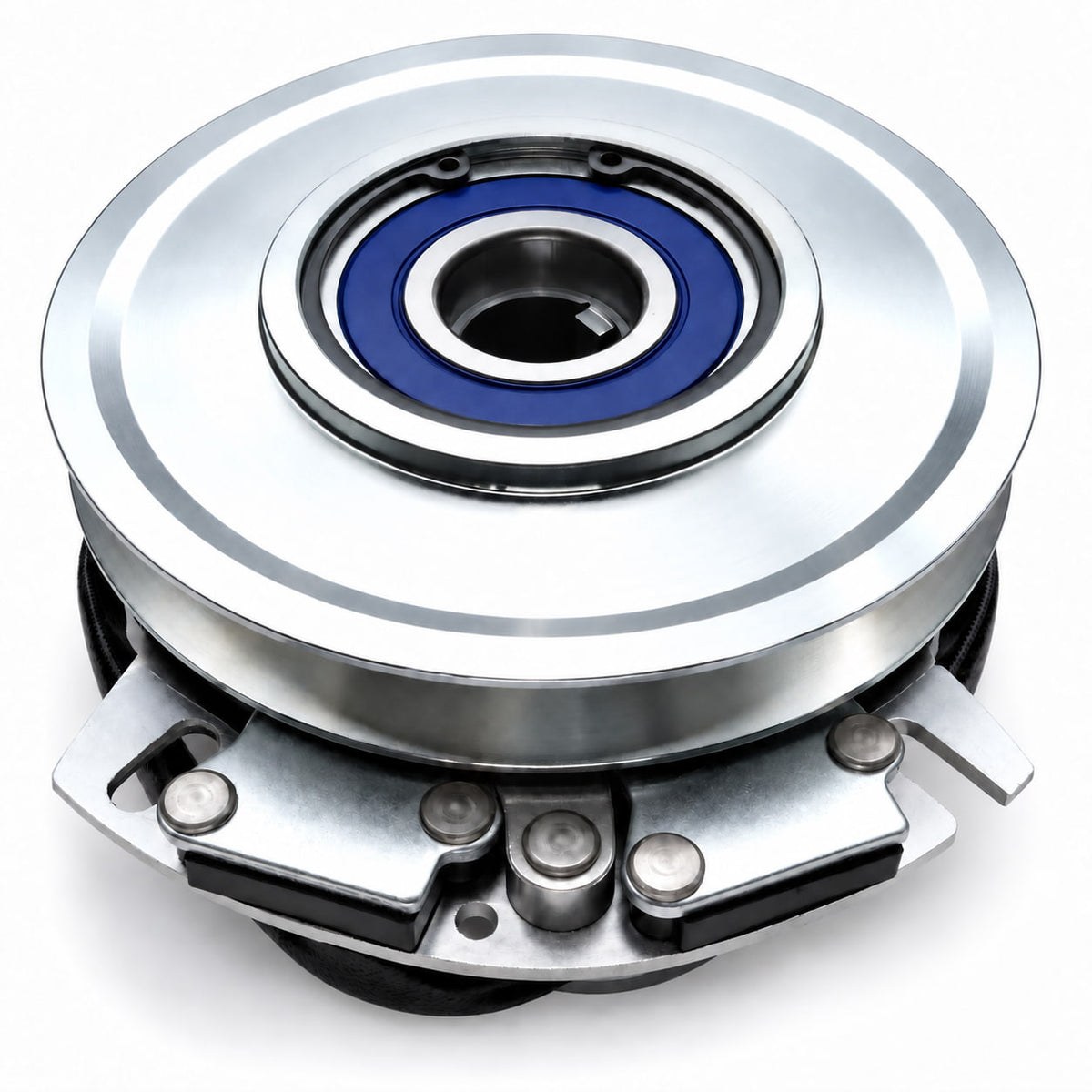

This 71410006 PTO clutch HD Upgrade is an electric PTO clutch for select Wright small-frame Stander and Velke walk-behind mowers using the 71410006 / Warner 5219-19 clutch path.
It replaces Wright 71410006 and cross-references Warner 5219-19. Do not order this clutch from the Stander name alone. Later Wright Standers use a different clutch.
Built with a 1-inch crankshaft bore, 6-inch pulley, CCW rotation from the pulley side, and a 12V clutch/brake configuration. Belt width is 1/2 inch or 5/8 inch. Warner rates this clutch path at 125 lb-ft.
Fitment support before and after purchase.
Key Features
- HD Upgrade electric PTO clutch for the Wright 71410006 / Warner 5219-19 path
- Crankshaft bore: 1"
- Pulley diameter: 6" outside diameter
- Rotation: CCW from the pulley side
- Voltage: 12V DC
- Clutch type: electric PTO clutch with mechanical brake
- Belt: 1/2" or 5/8"
- Wire lead about 10.75"
- Fully assembled. Confirm bore, pulley, rotation, and anti-rotation hardware before install.
Compatible Models
Use this clutch when the original clutch is marked 71410006 or Warner 5219-19.
- Wright small-frame Stander: 36" and 42" decks, 15 hp and 17 hp
- Wright Velke walk-behind: serial 20448 through 28214
Stens also lists this clutch for Wright 36" and 42" decks from serial 20303 until the number was superseded. If the serial is outside that window, match the number on the original clutch.
This is not the later Wright 71410009 clutch, and it is not the Great Dane GDA10017 or John Deere AM138234 path. Those use different pulley, torque, or wiring layouts.
See the Warner 5219 cross-reference guide before mixing 5219 suffix numbers.
Replaces OEM Part Numbers
- Wright: 71410006
- Warner: 5219-19, 521919
Cross-Reference Numbers
- Stens: 255-887
- Oregon: 33-190
- Xtreme: X0346
What’s Included
- Complete electric PTO clutch assembly
- 6" pulley
- Pre-installed bearing assembly
- Electromagnetic coil
- Mechanical brake assembly
- Fixed wiring lead
Why Buy From PTO Direct USA
- Fast USA shipping
- Fitment Guarantee
- 1-year warranty
- Fitment support before and after purchase
FAQ
What does Wright 71410006 replace?
71410006 is the Wright number for the Warner 5219-19 clutch used on select small-frame Stander and Velke mowers.
Does this fit every Wright Stander?
No. It fits small-frame Stander 36" and 42" decks in the 15 hp and 17 hp range, and Velke walk-behinds from serial 20448 through 28214, when the original clutch number matches. Later Standers use a different clutch.
What bore and pulley does Warner 5219-19 use?
1-inch bore and a 6-inch pulley. Rotation is CCW from the pulley side. Rated torque on the Warner sheet is 125 lb-ft.
Is 71410006 the same as 71410009?
No. 71410009 is a different Wright clutch and should not be substituted from the model name.
Can PTO Direct USA confirm fitment?
Yes. Email support@ptodirectusa.com with the mower model, serial number, original clutch number, and a clear photo of the old clutch. Fitment support before and after purchase.
Need installation help? Read the PTO clutch installation guide.
If the old clutch will not slide off the engine shaft, use the stuck crankshaft guide before hammering or prying.
