7029232 / 7029232SM / 7029232YP PTO Clutch for Snapper & Simplicity | MA-GT-SN11S

Overview

This 7029232 PTO clutch replacement is an aftermarket electric clutch for select Snapper and Simplicity mower applications. Replacement references include 7029232SM, 7029232YP, Ogura MA-GT-SN11 and MA-GT-SN11S.

Factory parts manuals identify 7029232 / Ogura MA-GT-SN11S on specific 33-inch Snapper 150Z and Scrambler models listed below. This replacement uses a 1-inch shaft bore, an approximately 5.3-inch pulley and CCW rotation. Match the original clutch number, shaft and mounting arrangement before ordering.

Key Features & Specifications

• Product Type: aftermarket electric PTO clutch assembly
• Lead Replacement Numbers: 7029232, 7029232SM, 7029232YP

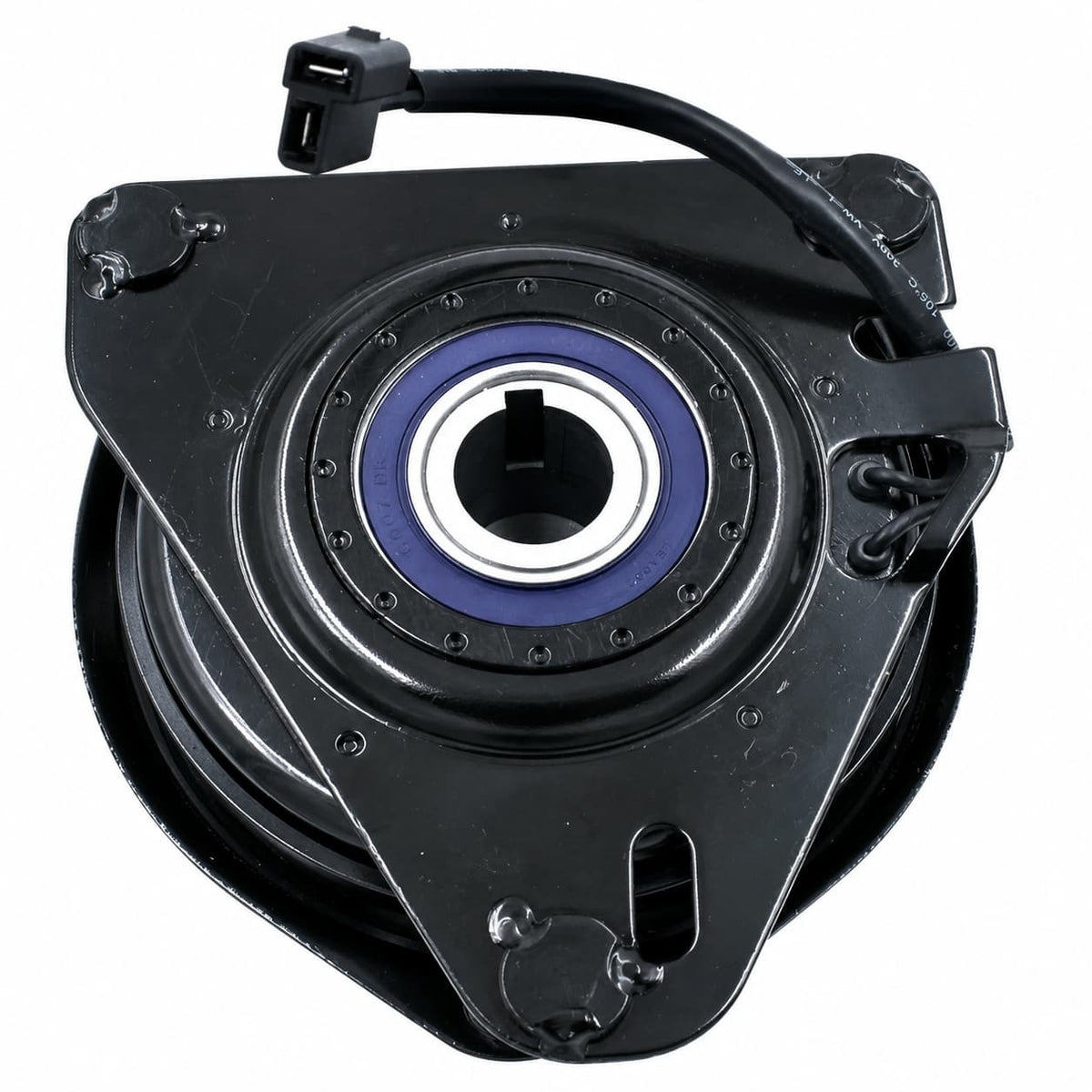

• Shaft Bore: 1 inch

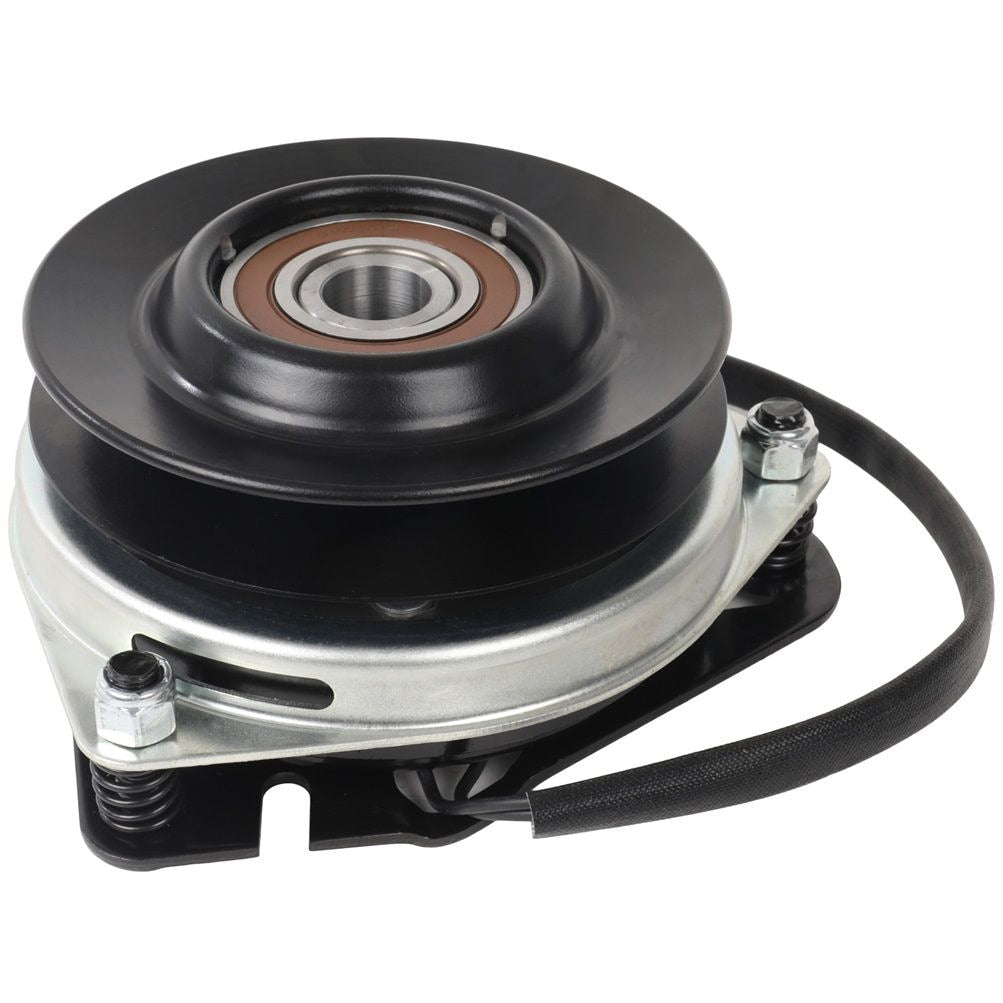

• Pulley Diameter: approximately 5.3 inches
• Belt Width: 1/2-inch or 5/8-inch applications; match the original belt and pulley
• Rotation: CCW, viewed from the pulley side
• Electrical System: 12V DC

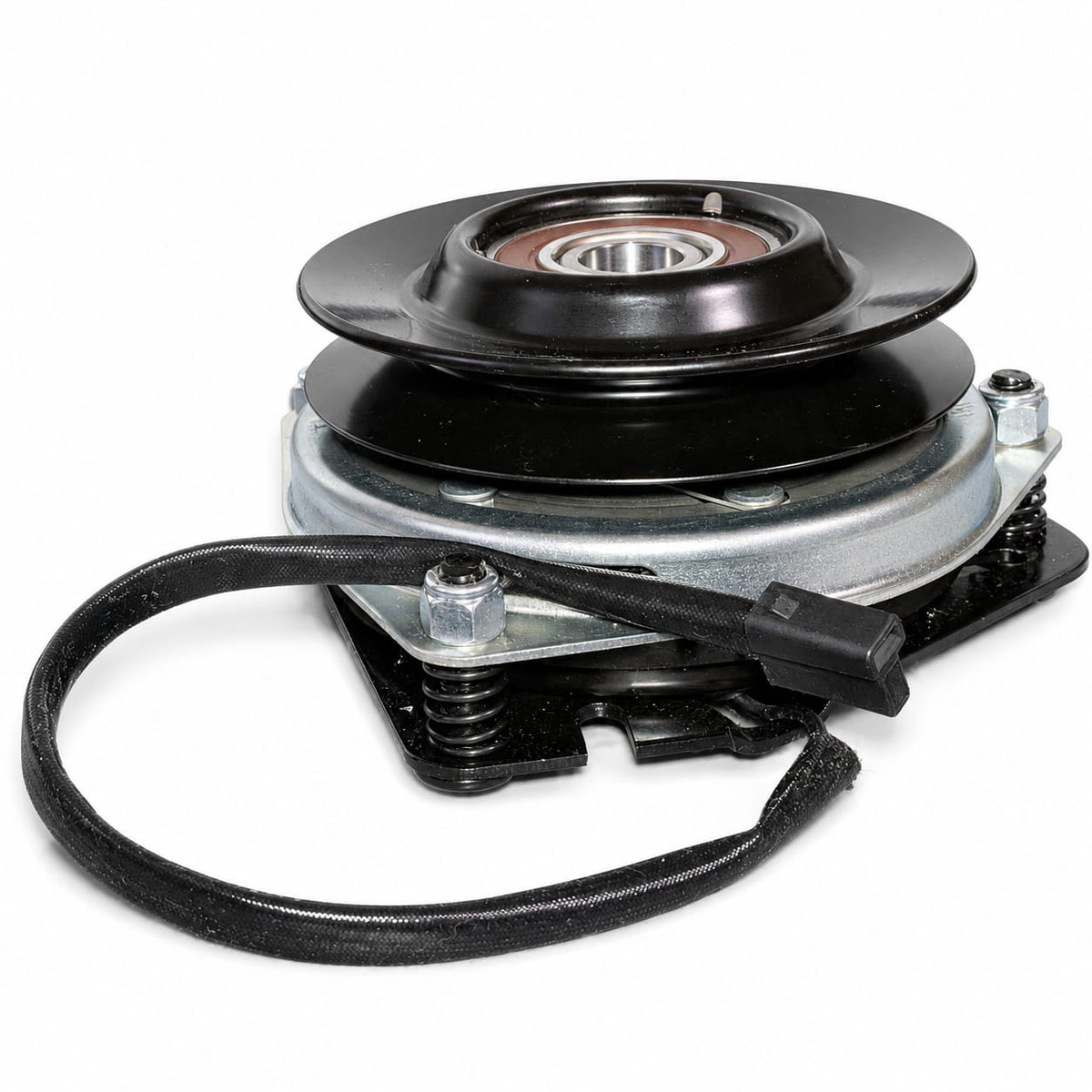

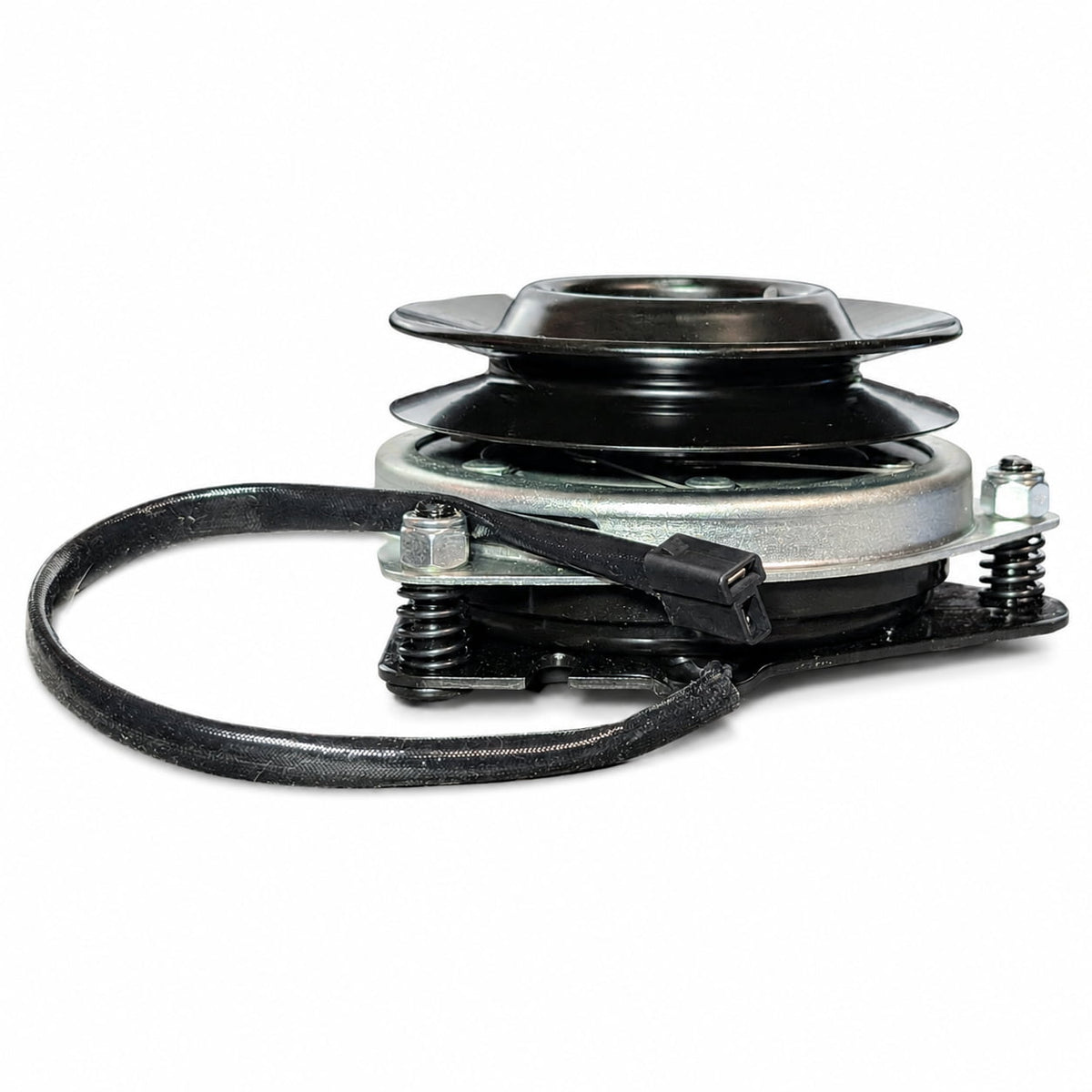

• Configuration: standard black pulley with wiring lead and connector as pictured
• Integrated clutch brake and pre-installed bearings

Compatible Snapper Models & Factory Diagrams

The following factory manuals list 7029232. Match the complete mower model or manufacturing number, rather than the series name alone.

Snapper 150Z — 33-Inch, 18.5 HP Applications

• SC18533, manufacturing number 7800269: factory engine diagram and parts list
• SC18533, manufacturing number 7800620: factory engine diagram and parts list
• CSC18533, manufacturing number 7800392: factory engine diagram and parts list

In these manuals, see the engine diagram on page 14 and the clutch entry on page 15, item 23.

Snapper Scrambler — 33-Inch Hydro Drive Applications

• YZ16335BVE: 33-inch, Series 5
• YZ18336BVE: 33-inch, Series 6

See the Scrambler factory clutch diagram, pages 26–27, item 13. These models mount the clutch on a jackshaft; retain the correct shaft key, spacers and anti-rotation arrangement.

Important model distinction: the same Scrambler manual specifies a different clutch for its 38-inch models. Other 150Z configurations also use different clutch numbers. A matching series name does not confirm fitment.

Simplicity & Additional Catalog Applications

Simplicity Axion manufacturing number 7800380 appears in the aftermarket Xtreme X0487 replacement catalog. That catalog groups 7029232 / 7029232SM / 7029232YP with 1757359 / 1757359YP. For these additional applications, confirm the original clutch number and physical configuration before ordering.

Replacement Part Numbers

• Snapper / Simplicity: 7029232, 7029232SM, 7029232YP
• Additional Catalog References: 1757359, 1757359YP

These are replacement references. The additional catalog numbers should be matched to your mower's own parts diagram and installed clutch.

Aftermarket Cross-References

• Ogura: MA-GT-SN11, MAGTSN11, MA-GT-SN11S, MAGTSN11S
• Additional Ogura Catalog Reference: MA-GT-JD11, MAGTJD11
• Xtreme: X0487

This is an aftermarket replacement, not an original Ogura or Xtreme-branded clutch.

What's Included

• One complete electric PTO clutch assembly
• Pulley, bearing and brake components assembled with the clutch
• Wiring lead and connector as shown in the product photos

Compare the connector, shaft key arrangement, pulley offset and anti-rotation mounting with your original unit. Use the mower's required spacers and mounting hardware during installation.

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment guarantee
• 1-year limited warranty
• Clear product photos for easier clutch identification
• Fitment support before and after purchase

FAQ

Does this replace 7029232SM and 7029232YP?

Yes. Those numbers are cataloged in the same aftermarket replacement family as 7029232. Confirm the installed clutch number and configuration before ordering.

Will this fit every Snapper 150Z or Scrambler?

No. The factory-supported examples above are specific 33-inch applications. Check your complete model and manufacturing number; other deck and engine configurations use different clutches.

Does this replace Ogura MA-GT-SN11S?

Yes. MA-GT-SN11S and MA-GT-SN11 are replacement references for this unit. Keep the complete number from your original label when checking fitment.

What shaft size does this clutch fit?

This clutch has a 1-inch bore. It will not fit a 1-1/8-inch shaft. On the listed Scrambler models, compare the jackshaft installation shown in the factory diagram.

Can you help confirm my clutch?

Yes. Email support@ptodirectusa.com with your mower model, manufacturing number, serial number and clear photos of the clutch label, connector, pulley and mounting arrangement.
