604713K PTO Clutch Replacement for Hustler Raptor SD & SDX | Replaces 604713, Warner 5219-164

Overview

This aftermarket 604713K PTO clutch replacement is designed for select Hustler Raptor SD and Raptor SDX zero-turn mowers using the 604713, 604713K, or Warner 5219-164 clutch path.

The multi-fit replacement system used in this listing also covers select Hustler Sport, FasTrak, TrimStar, and Big Dog applications using 601784, 601784K, or Warner 5219-107. These are separate OEM clutch-number paths that share the critical dimensions accommodated by this replacement system.

Both available configurations use a 1-inch crankshaft bore, 6-inch pulley, counter-clockwise rotation, and an A/B-section pulley compatible with the mower’s specified 1/2-inch or 5/8-inch belt.

The Standard Black Pulley version provides the most flexible wiring arrangement, with a flat side-by-side connection at the clutch and an included lead for T-style connector applications. The HD Upgrade adds a larger-bearing clutch construction and a short wire lead terminating in a T-style connector.

Key Features

• Aftermarket electric PTO clutch replacement for listed Hustler and Big Dog applications
• Available Configurations: Standard Black Pulley or HD Big Bearing T-Plug Upgrade
• Crankshaft Bore: 1 inch
• Pulley Diameter: approximately 6 inches
• Belt Groove: A/B-section pulley for the application-specified 1/2-inch or 5/8-inch belt
• Rotation: CCW from the pulley side
• Voltage: 12 VDC
• Standard Wiring: flat side-by-side clutch connection with included T-style connector lead
• HD Wiring: short wire lead terminating in a T-style connector
• HD Construction: upgraded large-bearing configuration
• Integrated brake assembly for controlled blade stopping
• Fixed-air-gap, non-adjustable replacement design
• Fully assembled and ready to install

Choose Your Clutch Configuration

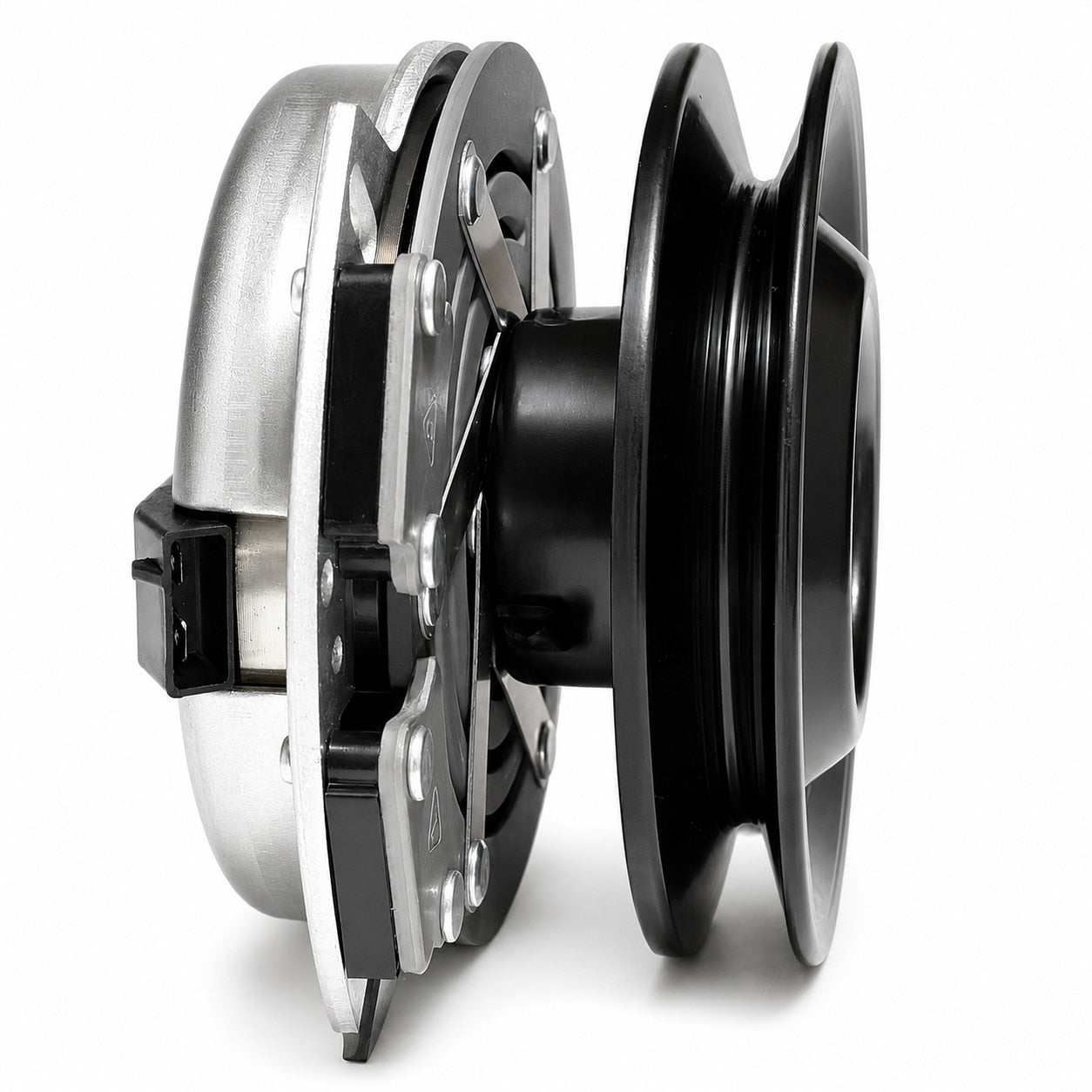

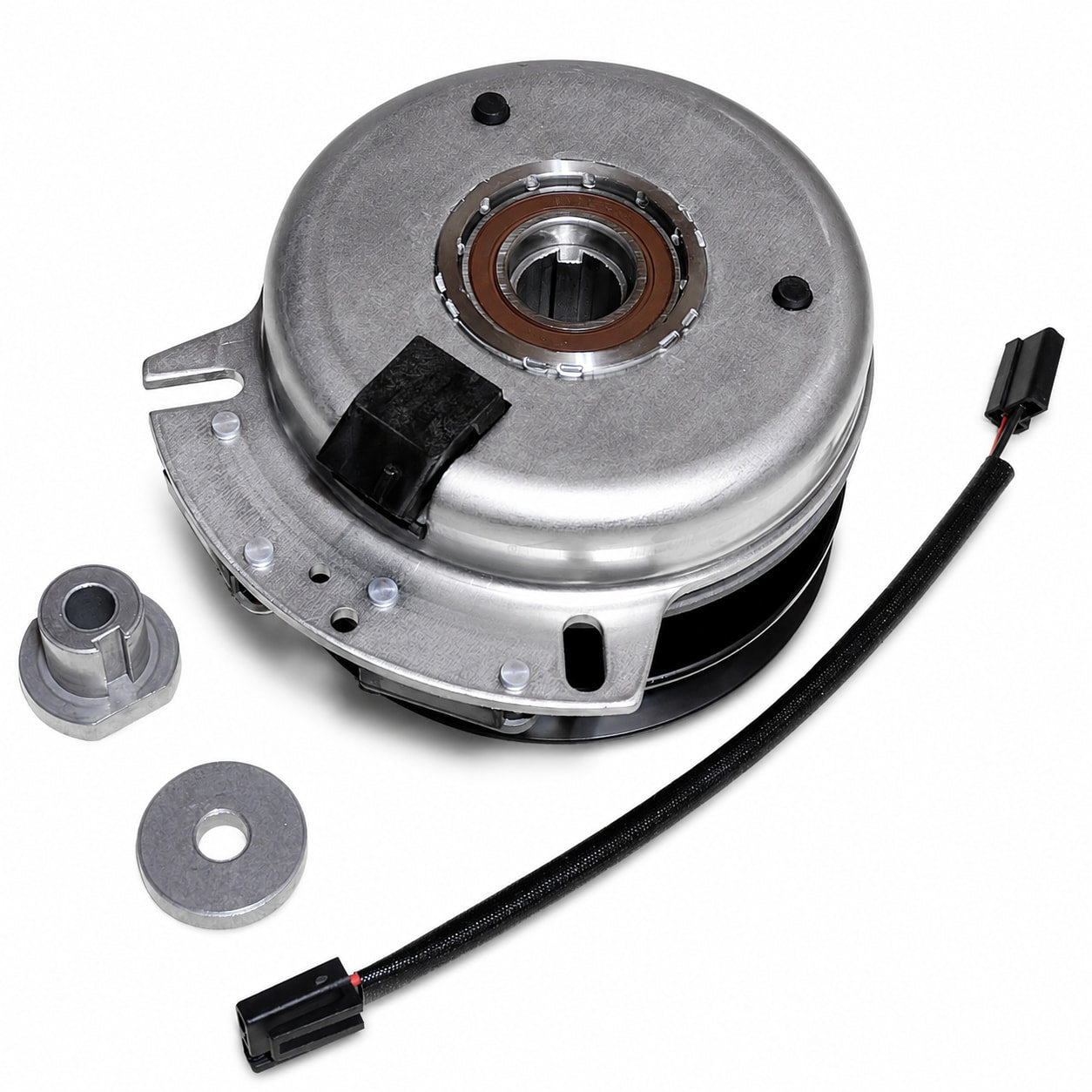

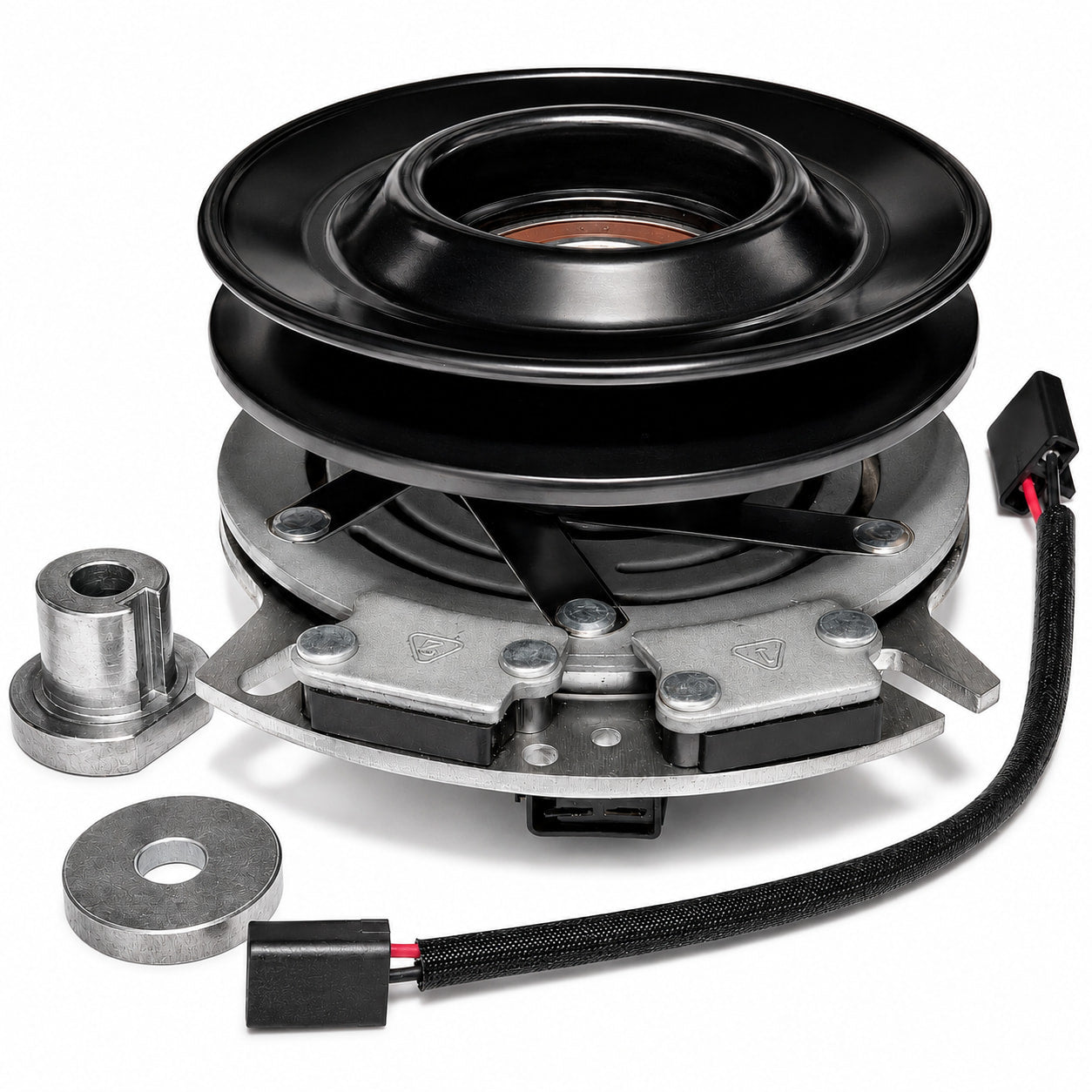

Standard Black Pulley

The Standard Black Pulley version provides the most flexible connector arrangement. A flat side-by-side mower connection can plug directly into the clutch, or the included wire lead can be used on compatible applications requiring a T-style connector.

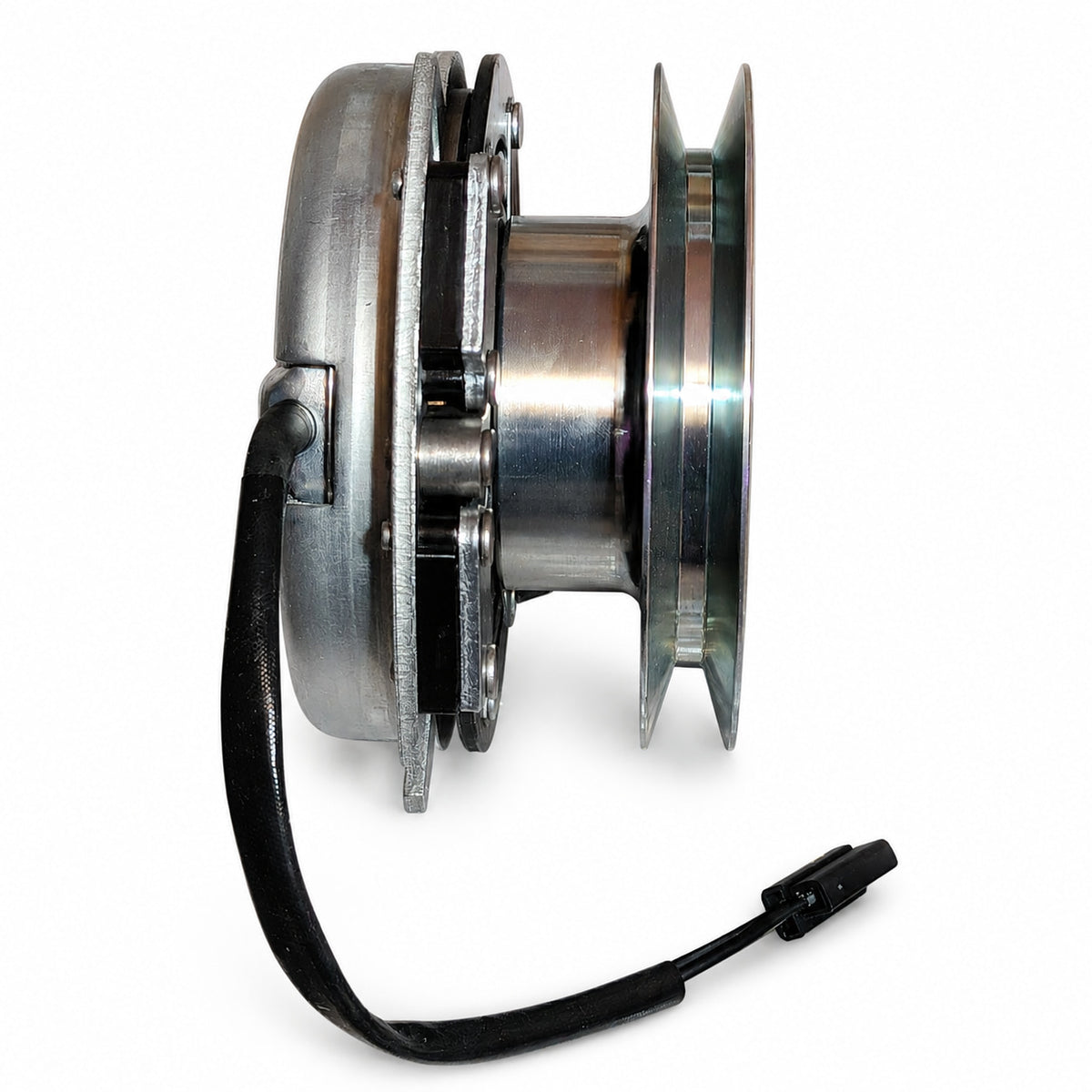

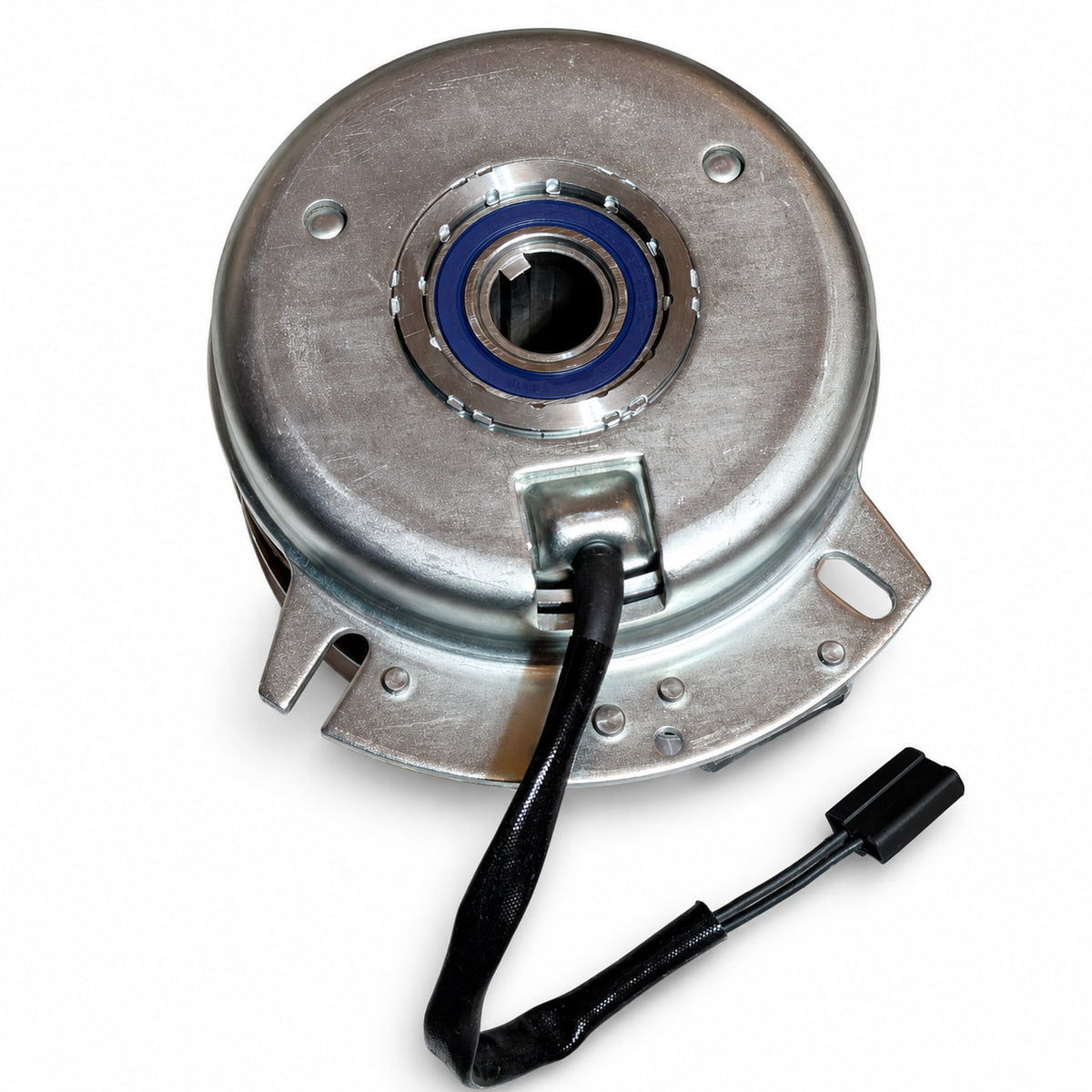

HD Big Bearing T-Plug Upgrade

The HD Upgrade uses a larger-bearing clutch construction plus an enhanced torque rating intended for demanding mowing conditions. Its short wire lead terminates in a T-style connector for compatible Hustler and Big Dog mower harnesses.

Connector note: Compare the selected variant’s connector with the mower-side harness before installation. Some Hustler configurations use a separate 791251 clutch pigtail. Do not cut or modify either harness until fitment has been confirmed.

Compatible Brands & Models

This clutch fits select mower applications using the confirmed 604713K / Warner 5219-164 or 601784 / Warner 5219-107 clutch paths. Model-family names alone do not establish fitment because Hustler used different clutches across engine packages and serial ranges.

Hustler Raptor SD & Raptor SDX Applications

The 604713K clutch path is documented for select Raptor SD and Raptor SDX mowers equipped with Kawasaki engines:

• 48-inch and 54-inch models: serial numbers through 15021838
• 60-inch models: serial numbers through 15020615

Documented model numbers include:

• 932541
• 932558
• 932566 and 932566US
• 933119
• 933127
• 936476
• 936484
• 937789
• 937797
• 937805
• 937870
• 937888
• 938654
• 938670
• 938696

Serial-range warning: Later 48-inch and 54-inch production beginning with serial 15021839, and later 60-inch production beginning with serial 15020616, commonly use the different 605777K clutch path. Confirm the complete model and serial range before ordering.

Hustler FasTrak Applications Using 601784

• FasTrak 48-inch: model 930107
• FasTrak 54-inch: model 930115
• FasTrak 60-inch: model 930784

Hustler Sport Applications Using 601784

• Kawasaki applications: select Hustler Sport models equipped with the Kawasaki FR651V engine
• Sport 42-inch with 26 HP Briggs: 929125, 929463, 929851, 929869, 930206
• Sport 48-inch with 26 HP Briggs: 929133, 929471, 930222
• Sport 54-inch with 26 HP Briggs: 929596

Hustler TrimStar Applications Using 601784

• TrimStar 36-inch: 930388 with Kawasaki FS691V
• TrimStar 48-inch: 929240 with select 17 or 19 HP Kawasaki engines
• TrimStar 48-inch: 930396 with Kawasaki FS691V
• TrimStar 54-inch: 929265 with select 17 or 19 HP Kawasaki engines
• TrimStar 54-inch: 930404 and 930412 with Kawasaki FS691V

Big Dog Applications Using 601784

• A-Series: select models using 601784 or 601784K
• C-Series: select models equipped with the 26 HP Briggs engine
• R-Series: select models other than Diablo configurations
• T-Series: select models equipped with the Kawasaki FS691V engine

Fitment note: An engine model such as Kawasaki FR651V does not confirm clutch fitment by itself. Match the original PTO clutch number or verify the clutch shown in the mower’s model-specific parts diagram. Also compare the 1-inch bore, 6-inch pulley, CCW rotation, connector, pulley offset, and anti-rotation arrangement.

Replaces Manufacturer Part Numbers

• Hustler / Excel: 604713, 604713K, 601784, 601784K
• Big Dog: 601784, 601784K

Aftermarket Cross-Reference Numbers

• Warner 604713K Path: 5219-164, 5219164
• Warner 601784 Path: 5219-107, 5219107
• Xtreme 604713K Path: X0741
• Xtreme 601784 Path: X0108
• Stens 604713K Path: 255-867, 255867
• Stens 601784 Path: 255-719, 255719
• Rotary 604713K Path: 15806

What’s Included

Standard Black Pulley

• Complete aftermarket electric PTO clutch assembly
• Approximately 6-inch black pulley
• Pre-installed bearing assembly
• Encapsulated electromagnetic coil
• Integrated brake assembly
• Flat side-by-side clutch connection
• Wire lead for compatible T-style connector applications

HD Big Bearing T-Plug Upgrade

• Complete HD electric PTO clutch assembly
• Approximately 6-inch pulley
• Upgraded large-bearing construction
• Encapsulated electromagnetic coil
• Integrated brake assembly
• Short wire lead with T-style connector

OEM kit-hardware note: The letter “K” identifies a Hustler kit number. The original 604713K kit may include supporting wiring and mounting hardware in addition to the clutch. This aftermarket listing includes only the clutch and accessories shown for the selected variant. Do not assume that the crankshaft bolt, key, retaining washer, engine drive pulley, spacer, mower-side pigtail, or anti-rotation hardware is included unless it is clearly pictured.

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment guarantee

• Fitment support before and after purchase
• Clear product images for connector and configuration comparison
• Support for homeowners, repair shops, and commercial mower operators

FAQ

Does this PTO clutch replace Hustler 604713K?

Yes. This aftermarket clutch replaces the 604713 and 604713K clutch path on compatible Hustler Raptor SD and Raptor SDX applications. Confirm the mower’s serial range because later production commonly uses 605777K instead.

What Warner clutch crosses to Hustler 604713K?

The primary Warner cross-reference for Hustler 604713 and 604713K is Warner 5219-164.

Does this clutch also replace Hustler 601784?

Yes. The multi-fit replacement sold on this page also accommodates select applications using Hustler 601784, 601784K, and Warner 5219-107. The 604713K and 601784 numbers remain separate OEM paths even though this aftermarket replacement covers both configurations.

Does this fit every Hustler mower with a Kawasaki FR651V engine?

No. It fits select Hustler Sport applications equipped with the FR651V and other specifically listed configurations. Confirm the six-digit Hustler model number, serial number, and original PTO clutch number before ordering.

Which variant should I choose for a T-style connector?

The Standard Black Pulley version includes a lead for compatible T-style applications and provides the most wiring flexibility. The HD Big Bearing Upgrade has a short lead terminating in a T-style connector. Compare the product images with the mower-side harness before selecting a variant.

Does 604713K include more than the clutch?

The original Hustler 604713K kit designation may include wiring and mounting hardware in addition to the clutch. This aftermarket listing includes only the clutch and accessories shown with the selected variant. Reuse or replace the mower-specific mounting hardware according to the Hustler parts diagram.

What are the primary clutch specifications?

This replacement uses a 1-inch crankshaft bore, an approximately 6-inch pulley, 12 VDC operation, and counter-clockwise rotation viewed from the pulley side.
