Overview
This aftermarket 539128711 electric PTO clutch is a replacement for select Husqvarna, Ariens, Gravely, Country Clipper, Dixon, Exmark, Toro, and related commercial mower applications using the 128711, 09225400, E-6247, or Warner 5218-223 clutch path.
Common documented application paths include select Ariens Hydro Pro 300, Ariens ZTR PM 200, Country Clipper Charger and Jazee, Dixon ZTR 6023, 7025, and 7225, and Gravely PM and Pro 300 Series mowers.

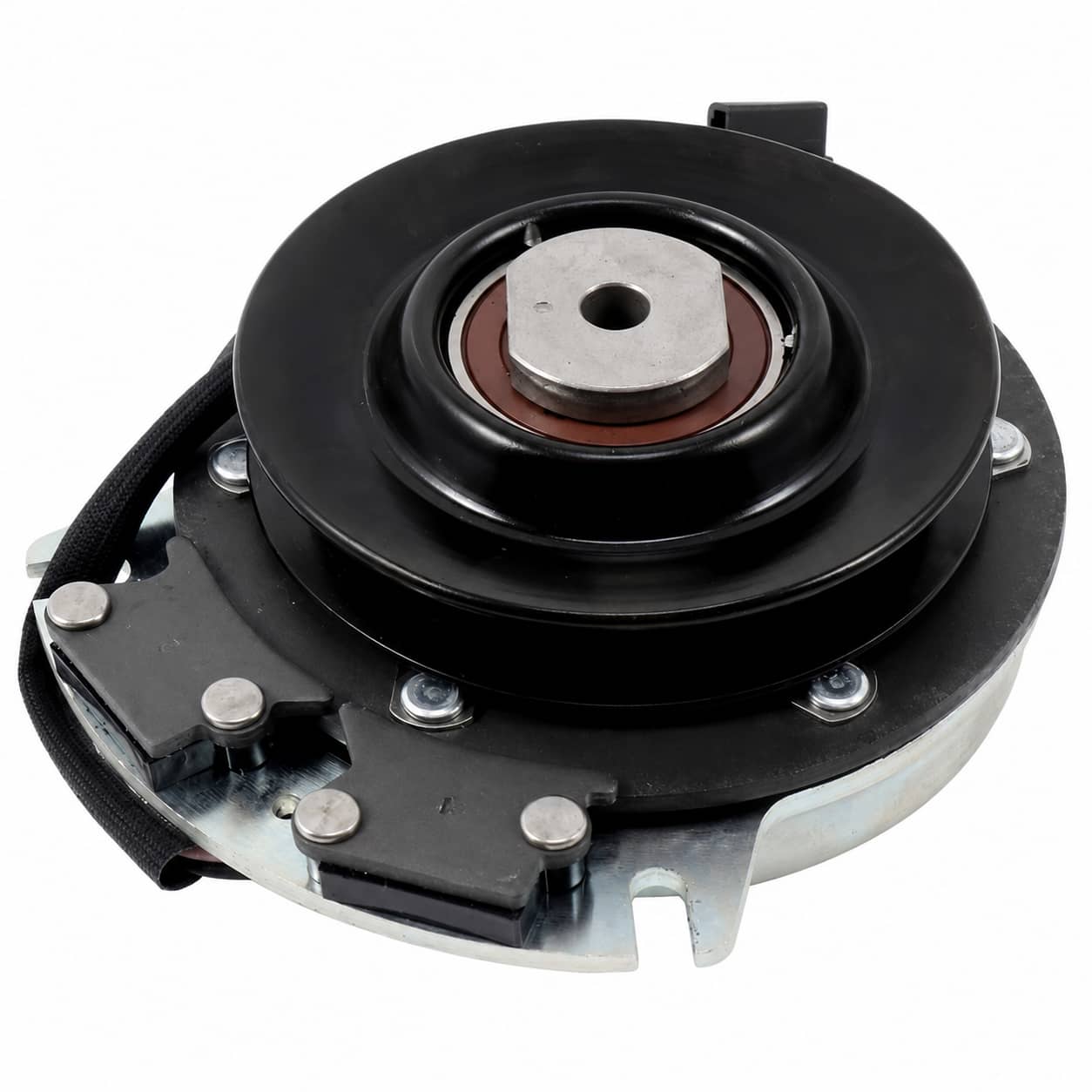

The Warner 5218-223 reference clutch uses a 1-1/8-inch crankshaft bore, approximately 5.35-inch pulley, CCW rotation, standard mounting, and a 12 VDC electrical system.
Important connector warning: Warner 5218-223 uses an integral electrical connection, while the related Warner 5218-10 path uses extended wire leads. This aftermarket clutch is cross-referenced to both paths, so compare the connector, wire length, and any required adapter harness before ordering.
Key Features
- Aftermarket electric PTO clutch assembly
- Primary Replacement Number: 539128711
- Short OEM Number: 128711
- Ariens / Gravely Path: 09225400
- Country Clipper Path: E-6247, E-6338
- Warner Cross-Reference: 5218-223, 5218223
- Voltage: 12 VDC
- Torque: 175 ft-lbs
- Crankshaft Bore: 1-1/8 inch / 1.125 inch
- Pulley Diameter: approximately 5.35 inch
- Rotation: CCW viewed from pulley side
- Mounting Style: standard mount
- Belt Groove: A/B combination replacement path
- Clutch Type: electric PTO clutch with integrated brake
- Complete assembled aftermarket clutch
Compatible Brands & Model Series
This PTO clutch should be treated as a part-number-first replacement. Confirm that the original clutch label or mower-specific parts diagram identifies 539128711, 128711, 09225400, E-6247, or Warner 5218-223.
Ariens Applications
- Ariens Hydro Pro 300: select configurations using the 09225400 clutch path
- Ariens ZTR PM 200: select configurations using the 09225400 clutch path
Country Clipper Charger Applications
- Country Clipper Charger SR1010
- Country Clipper Charger SR1015
- Country Clipper Charger SR1020
Use this clutch on Charger applications only when the original clutch or parts diagram identifies E-6247, E-6338, or another confirmed number from this replacement path.
Country Clipper Jazee Applications
- Jazee SR205: select 2007–2008 applications
- Jazee SR210: select 2009 applications with 21 hp Kawasaki or 27 hp Kohler engines
- Jazee SR215: select 2010 applications with 22 hp Kawasaki or 27 hp Kohler engines
- Jazee SR220: select 2011 applications with 24 hp Kohler engines
- Jazee SR355: select 2007–2008 applications
- Jazee SR360: select 2009 applications with 21 hp Kawasaki or 27 hp Kohler engines
- Jazee SR365: select 2010 applications with 22 hp Kawasaki or 27 hp Kohler engines
- Jazee SR370: select 2011 applications with 24 hp Kohler engines
Additional Country Clipper Applications
- Country Clipper Mid Mount Mower 04 Series: select configurations
- Country Clipper The Boss SR1200: select 2006 configurations
- Country Clipper Zeton: select configurations using the matching clutch path
Dixon Applications
- Dixon ZTR 6023: select configurations
- Dixon ZTR 7025: select configurations
- Dixon ZTR 7225: select configurations
- Additional Dixon mowers: only when the original clutch number matches 60473, 60499, 61516, 128711, or 539128711
Gravely Applications
- Gravely PM Series: select configurations using 09225400 or the related clutch path
- Gravely Pro 300 Series: select configurations using the matching clutch number
Additional Part-Number-Based Applications
- Husqvarna: select applications using 128711 or 539128711
- Yazoo/Kees: select applications using 128711 or 539128711
- Exmark: select applications using 94-6136
- Toro: select applications using 94-6136
- Craftsman / AYP-built mowers: select applications using 128711 or 539128711
Replaces OEM Part Numbers
- Ariens: 092254, 592003, 09225400, 59200300
- AYP: 128711, 539128711
- Country Clipper: E-6247, E-6338
- Craftsman: 128711, 539128711
- Dixon: 60473, 60499, 61516, 128711, 539128711, 539129864, 539129872
- Electrolux: 128711, 539128711
- Exmark: 94-6136
- Gravely: 092026, 092080, 092254, 592003, 09225400, 59200300
- Husqvarna: 128711, 539128711
- Kees / Yazoo Kees: 128711, 539128711
- Massey Ferguson: 128711, 539128711
- McCulloch: 128711, 539128711
- Poulan: 128711, 539128711
- Roper: 128711, 539128711
- Sears: 128711, 539128711
- Toro: 94-6136
Part-number warning: Use the original clutch number as the primary match. Secondary brand references should be confirmed against the mower-specific parts diagram and physical clutch specifications.
Aftermarket Cross-Reference Numbers
- Warner Electric: 5218-10, 5218-103, 5218-223, 5218-224
- Warner Electric: 521810, 5218103, 5218223, 5218224
- Xtreme: X0041
- Oregon: 33-119-1
- Prime Line: 7-06268
- Rotary: 11071
- Stens: 255-331
Primary cross-reference rule: Match 539128711, 09225400, E-6247, or Warner 5218-223 first. Treat the remaining numbers as supporting replacement references.
Important 5218-10 vs. 5218-223 Connector Check
Warner 5218-10 and 5218-223 share the same basic 1-1/8-inch bore, 5.35-inch pulley, CCW rotation, standard mounting, and 175 ft-lb reference specifications. The important difference is the original electrical connection.
- Warner 5218-10: original configuration uses approximately 10.75-inch wire leads
- Warner 5218-223: original configuration uses an integral electrical connection

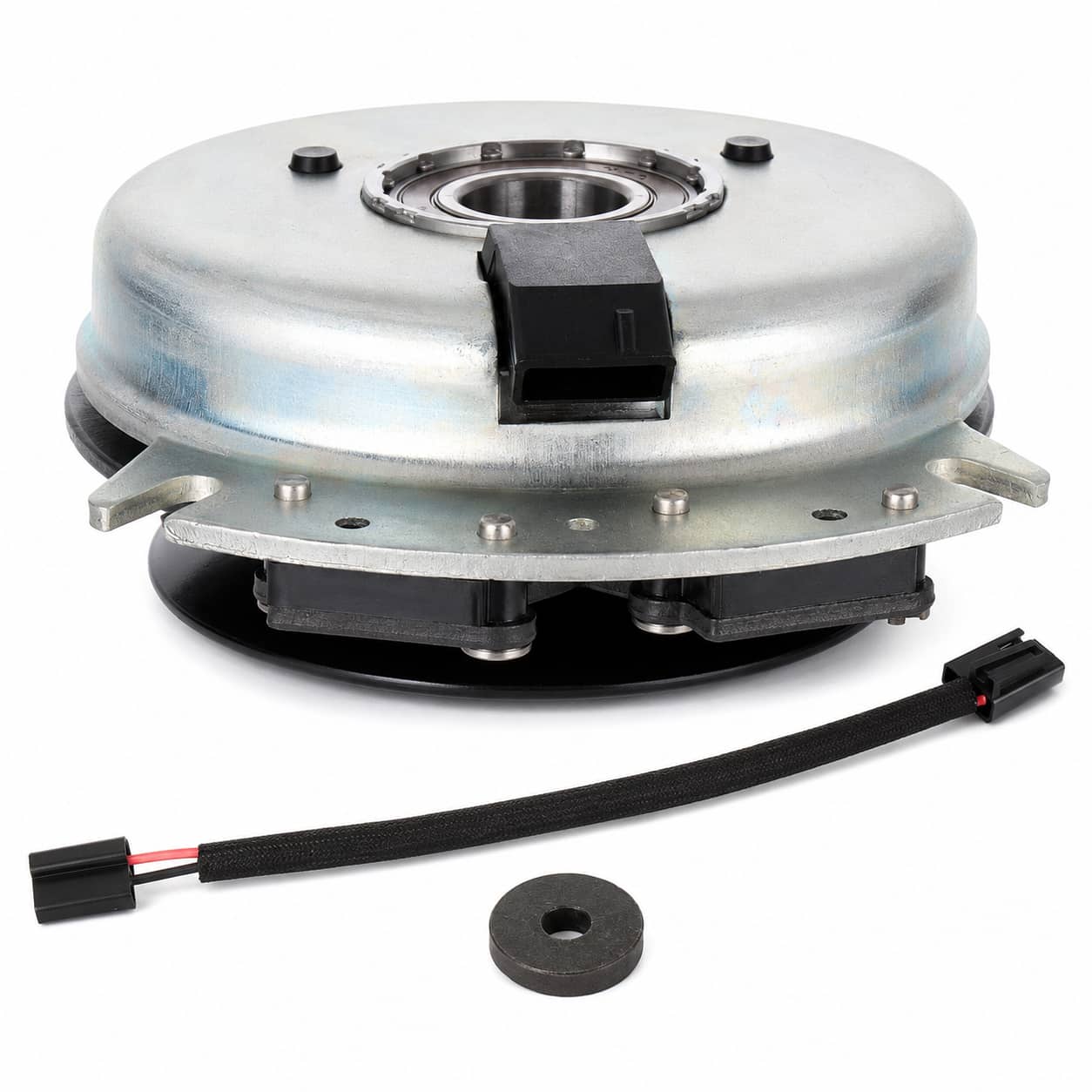

This aftermarket unit comes with a removeable wire lead so it will be compatible with both applications. Plug directly into the clutch if you have that type or use the included wire lead when necessary.
Common Symptoms of a Failing PTO Clutch
- Blades will not engage when the PTO switch is activated
- The clutch clicks but the mower deck does not begin turning
- Blades engage when cold but stop after the mower heats up
- The clutch slips during heavy or wet cutting conditions
- The deck belt squeals, smokes, or overheats during engagement
- Burning smell near the engine crankshaft or clutch
- Grinding, rumbling, or excessive pulley-bearing noise
- Intermittent blade engagement under load
- Visible heat damage around the coil, connector, or wire leads
- Excessive looseness or roughness at the pulley bearing
A weak battery, charging-system problem, faulty PTO switch, damaged wiring, poor ground, slipping deck belt, seized spindle, worn idler, or incorrect belt tension can create similar symptoms. Diagnose the complete PTO and deck-drive systems before replacing the clutch.
What’s Included
- 1 complete aftermarket electric PTO clutch assembly
- Electromagnetic coil and integrated brake assembly
- Pulley and center-bearing assembly
- Clutch-side electrical connection as supplied
Not included unless specifically stated: crankshaft mounting bolt, washer, key, spacer, wiring adapter, mower-side harness, anti-rotation bracket, deck belt, or mower-specific installation hardware.
Quick Ship Fulfillment
This item may ship directly from one of our trusted distribution partners to help reduce transit time. Packaging, labeling, connector appearance, or warehouse origin may vary, but the product must match the replacement path and physical specifications shown in this listing.
Tracking information will be provided when the order ships. Separate items placed in the same order may arrive in different packages.
Why Buy From PTO Direct USA?
- Part-number-first PTO clutch listings
- Clear physical specifications and cross-reference information
- Separate warnings for similar Warner electrical-connection paths
- Fitment guidance designed to reduce incorrect clutch orders
- Commercial and residential mower clutch coverage
- Support for mower owners, repair shops, and commercial operators
- Quick-ship fulfillment through trusted distribution partners
Need Help Confirming Fitment?
Send PTO Direct USA the mower brand, complete model number, serial number, deck size, engine model, and/or original clutch number.
FAQ
What does this PTO clutch replace?
This clutch replaces select applications using 539128711, 128711, 09225400, E-6247, E-6338, or Warner 5218-223.
What are the main clutch specifications?
The Warner 5218-223 reference path uses a 1-1/8-inch crankshaft bore, approximately 5.35-inch pulley, CCW rotation, standard mounting, 12 VDC electrical system, and a 175 ft-lb OEM torque rating.
Does this fit Ariens Hydro Pro 300?
It fits select Ariens Hydro Pro 300 applications using 09225400 or the matching Warner clutch path. Confirm the original clutch number before ordering.
Does this fit Ariens ZTR PM 200?
It fits select Ariens ZTR PM 200 configurations using the 09225400 clutch path. Verify the connector, bore, pulley, and complete mower configuration.
Does this fit Country Clipper Charger mowers?
It fits select Charger SR1010, SR1015, and SR1020 applications using E-6247 or E-6338. Match the original clutch number before ordering.
Does this fit Country Clipper Jazee mowers?
It is associated with select SR205, SR210, SR215, SR220, SR355, SR360, SR365, and SR370 configurations. Model year and engine differences apply.
Does this fit Dixon ZTR 6023, 7025, or 7225?
These Dixon model families appear in the X0041 replacement path. Confirm that the original clutch number is 60473, 60499, 61516, 128711, 539128711, or another supported number.
Is Ariens 09225400 the same replacement path as Husqvarna 539128711?
They are grouped within the same established aftermarket replacement family. Confirm the bore, pulley, rotation, connector, pulley offset, and anti-rotation setup before substituting across brands.
Is Warner 5218-10 the same as Warner 5218-223?
They share the same basic bore, pulley diameter, rotation, mounting, and torque specifications, but the original electrical connections differ. Warner 5218-10 uses wire leads, while 5218-223 uses an integral connection.
Does this also replace Warner 5218-103 or 5218-224?
Those numbers are included in the X0041 aftermarket replacement family. Confirm the connector, wiring arrangement, and complete physical configuration before ordering.
Is Xtreme X0041 the same replacement path?
Yes. Xtreme X0041 is an aftermarket replacement path associated with 128711, 539128711, 09225400, E-6247, E-6338, and several Warner 5218-series numbers.
Does this replace Exmark or Toro 94-6136?
Yes, 94-6136 is included in this aftermarket replacement family. Confirm the complete mower model, original clutch number, pulley, connector, and mounting configuration.
Is an adapter wiring harness included?
Do not assume an adapter harness is included. Compare the supplied clutch connection with the mower harness before installation.
Is the mounting hardware included?
Do not assume the crankshaft bolt, washer, key, spacer, wiring adapter, or anti-rotation bracket is included. Reuse or replace mower-specific hardware as required.
Can I order this clutch by appearance?
No. Match the original part number first, then confirm the 1-1/8-inch bore, pulley diameter, CCW rotation, standard mounting, connector, wire length, pulley offset, anti-rotation setup, mower model, and serial number.
