532160889 PTO Clutch Replacement for Craftsman, Husqvarna, Poulan | Replaces 160889, Warner 5217-35

Overview

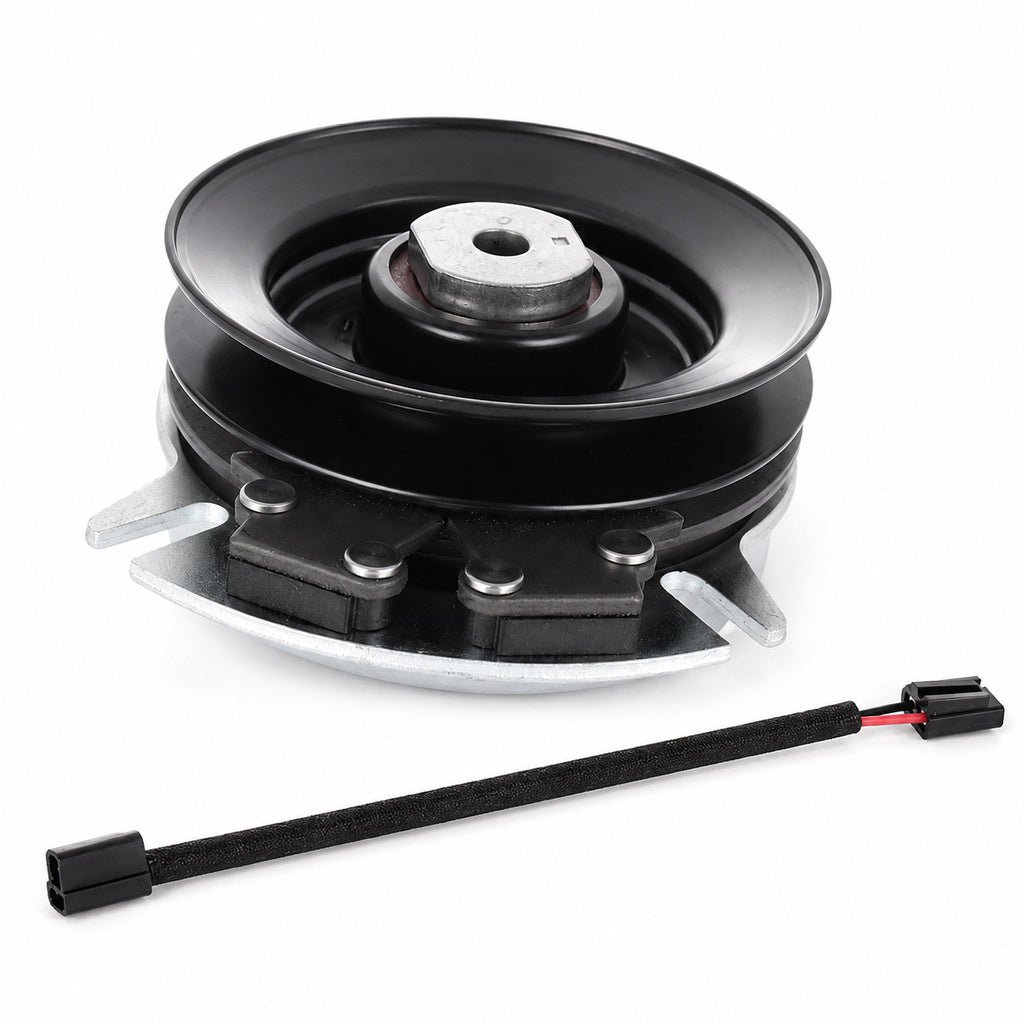

This 532160889 PTO clutch replacement is an aftermarket electric PTO clutch for select Craftsman, Husqvarna, AYP, and Poulan riding mower applications.

This clutch replaces Husqvarna / AYP / Craftsman 532160889 and 160889, and cross-references Warner 5217-35, Warner 5217-9, Warner 5217-6, Xtreme X0003, Stens 255-511, Oregon 33-112, Prime Line 7-06027, and Rotary 9911.

Built with a 1-inch crankshaft bore, 5.35 inch pulley diameter, and counter-clockwise rotation, this clutch is designed to restore reliable mower deck blade engagement when matched to the correct mower model, original clutch number, connector style, and physical specs.

Key Features

• Aftermarket electric PTO clutch replacement for listed Craftsman, Husqvarna, AYP, and Poulan applications
• Crankshaft Bore: 1"
• Pulley Diameter: 5.35" / commonly listed as 5-3/8"
• Rotation: CCW from pulley side
• Voltage: 12V DC
• Connector Style: connector style as shown in product photos
• Integrated brake assembly for controlled blade stopping
• Fully assembled and ready to install

Compatible Brands & Models

This PTO clutch fits select Craftsman, Husqvarna, AYP, and Poulan mower applications that use the 532160889, 160889, or Warner 5217-35 clutch path. Fitment depends on original clutch number, crankshaft bore, pulley diameter, rotation, connector style, and anti-rotation alignment.

Husqvarna Applications

• Husqvarna YTH1542XP
• Husqvarna YTH2046A
• Husqvarna YTH2046B

Craftsman Applications

• Craftsman 917.272030
• Craftsman 917.273640
• Craftsman 917.274630
• Craftsman 917.274640
• Craftsman 917.275630
• Craftsman 917.258940

Additional AYP / Poulan Applications

• AYP / Poulan riding mower applications using 532160889 or 160889: verify original clutch number before ordering

Fitment note: If your original clutch is marked 532160889, 160889, Warner 5217-35, Warner 5217-9, Warner 5217-6, Xtreme X0003, Stens 255-511, Oregon 33-112, or Rotary 9911, this is the correct replacement path. However, carefully match specs if relying on model information alone.

Replaces OEM Part Numbers

• Husqvarna / AYP: 532160889, 160889
• Craftsman: 532160889, 160889
• Poulan: 532160889, 160889

Cross-Reference Aftermarket Numbers

• Warner: 5217-35, 521735
• Warner: 5217-9, 52179
• Warner: 5217-6, 52176
• Xtreme: X0003
• Stens: 255-511
• Oregon: 33-112
• Prime Line: 7-06027
• Rotary: 9911

What’s Included

• Complete electric PTO clutch assembly
• Factory-balanced 5.35" pulley
• Pre-installed bearing assembly
• Encapsulated electromagnetic coil
• Integrated brake assembly
• Connector style as shown in product photos

Why Buy From PTO Direct USA?

• Fast USA shipping
• fitment guarantee
• 1-year warranty
• Fitment-first product support
• Clear product images for easier clutch identification
• Trusted replacement supplier for homeowners, repair shops, and mower service professionals

FAQ

Does this PTO clutch replace 532160889?

Yes, this clutch replaces 532160889 on compatible Craftsman, Husqvarna, AYP, and Poulan applications. Confirm your original clutch number, 1-inch bore, 5.35 inch pulley, counter-clockwise rotation, and connector style before ordering.

Is 160889 the same fitment as 532160889?

Yes. 160889 is the shorter legacy number commonly associated with the 532160889 clutch path.

Is Warner 5217-35 the same fitment?

Warner 5217-35 is the Warner reference associated with the 532160889 / 160889 clutch path.

Is Xtreme X0003 the same fitment?

Xtreme X0003 is an aftermarket cross-reference for the 532160889 / Warner 5217-35 PTO clutch family.

Does this clutch fit Craftsman 917-series tractors?

Yes, this clutch is listed for select Craftsman 917-series riding mower applications, including 917.272030, 917.273640, 917.274630, 917.274640, 917.275630, and 917.258940. Confirm your original clutch number before ordering.

Does this clutch fit Husqvarna YTH1542XP?

Yes, this clutch is listed for select Husqvarna YTH1542XP applications using the 532160889 / 160889 clutch path. Match your original clutch number and physical specs before ordering.

Is 532160889 the same as 532145028?

No. 532160889 and 532145028 are separate clutch paths. Do not use this clutch if your original clutch or parts diagram calls for 532145028, 145028, Warner 5217-2, Xtreme X0002, Stens 255-515, or Oregon 33-111.

Is this the same clutch as Ariens 03643100?

The 532160889 path may share the same physical clutch specs as the Ariens / Gravely 03643100 path, but this page is organized for Craftsman, Husqvarna, AYP, and Poulan buyers. Always match your original clutch number and physical specs before ordering.

What bore size does this clutch use?

This clutch uses a 1-inch bore. Confirm your crankshaft size before ordering.

What pulley diameter does this clutch use?

This clutch uses a 5.35 inch pulley diameter, commonly listed as 5-3/8 inches. Confirm against your original clutch and product photos before ordering.

What rotation does this clutch use?

This clutch uses counter-clockwise rotation, commonly written as CCW. Match rotation to your original clutch before installing a replacement.

What are common signs of a failing PTO clutch?

Common symptoms include mower blades not engaging, the PTO clutch clicking but the blades not spinning, slipping under load, intermittent blade engagement, a burning smell, or blades slowing down after the mower heats up. A worn coil can work cold, then weaken after 10 to 30 minutes of mowing.

Can PTO Direct USA help me confirm fitment?

Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, original clutch number, and clear photos of the old clutch. For the best fitment help, include photos of the clutch label or stamped number, wiring connector, pulley, anti-rotation bracket, and crankshaft area.
