5219-97 Warner Electric PTO Clutch Replacement fits Gravely & Ariens
5219-97 Warner Electric PTO Clutch Replacement fits Gravely & Ariens
Overview

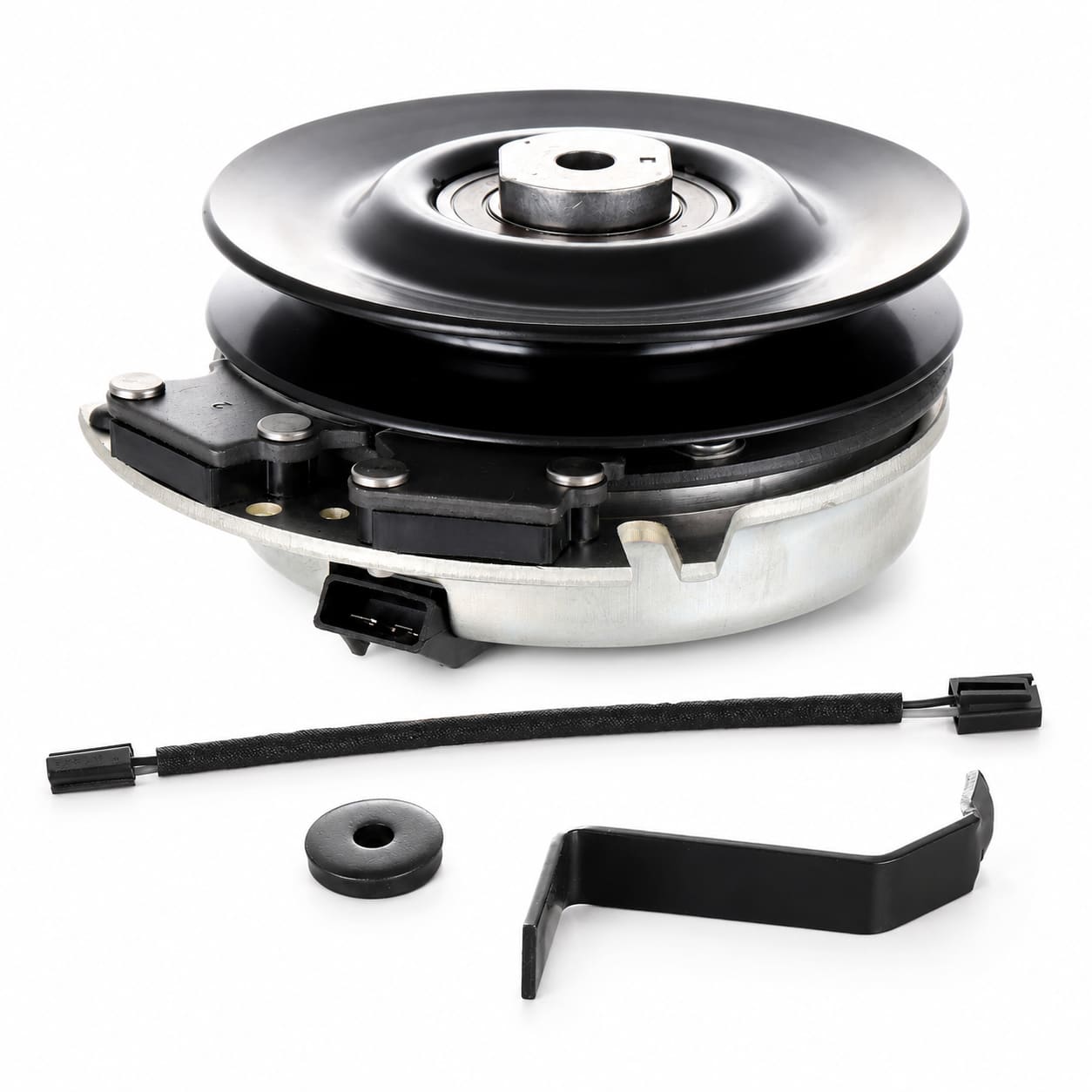

This aftermarket electric PTO clutch is a replacement for Warner 5219-97 and related Warner 5219-series clutch numbers used on select mower applications.
Supplier data lists this PTO clutch with a 1 inch crankshaft bore, 6.150-inch pulley, 5/8 inch belt groove, counter-clockwise rotation, and 105 lb-ft torque rating.
Important: Do not order by mower model or clutch appearance alone. Match your original clutch number first, then confirm bore size, pulley diameter, belt width, rotation, and connector style before ordering.
Key Features
- Primary replacement number: Warner 5219-97 / 521997
- Bore size: 1 inch crankshaft bore
- Pulley diameter: 6.150 inches
- Belt width: 5/8 inch
- Rotation: counter-clockwise as supplier listed
- Torque rating: 105 lb-ft
Compatible Brands & Model Series
This PTO clutch is intended for select mower applications using the listed Warner, Gravely, Ariens, and related OEM replacement numbers.
- Gravely: select applications using the listed Gravely OEM clutch numbers
- Ariens: select applications using the listed Ariens OEM clutch numbers
- Warner: select applications using Warner 5219-97 and related Warner 5219-series numbers listed below
This clutch may be used on select Gravely ZT 2660 HD applications when the original clutch matches Warner 5219-97 or one of the listed Gravely / Ariens OEM replacement numbers. Confirm your original clutch number and physical specs before ordering.
Replaces OEM Part Numbers
Primary Warner Replacement Number
- Warner: 5219-97 / 521997
Related Warner Cross-Reference Numbers
- Warner: 5219-20, 5219-55, 5219-73, 5219-91, 5219-162
Gravely / Ariens OEM Numbers
- Gravely: 00385500, 03368000, 03370600, 04678400
- Ariens: 00385500, 02975300, 03368000, 03370600, 04678400
Additional Cross-Reference Numbers
The supplier also lists this clutch as crossing to the following OEM and aftermarket numbers. Match the physical clutch specifications before treating any cross-reference as interchangeable.
John Deere / Scotts
- John Deere: GY20108, GY20652, GY20878, GY21340
- Scotts: GY20108, GY20652, GY20878, GY21340
Hustler / Big Dog
- Hustler: 601325, 603545, 601325K, 603545K
- Big Dog: 601325, 603545, 601325K, 603545K
- Warner Big Dog: 5219-90
Bad Boy
- Bad Boy: 070-2050-00
Other References
- EuroGarden: 230-9337
- Sears Craftsman: 03368000
Aftermarket Cross-Reference Numbers
- Xtreme: X0107, X0107-K, X0133, X0133-K, X0367, X0367-K, X0389, X0389-K, X0424, X0424-K, X0541, X0561, X0733
Important Fitment Check
Before ordering, compare your original clutch to these listed specifications:
- Original clutch number: Warner 5219-97 or another listed replacement number
- Crankshaft bore: 1 inch
- Pulley diameter: 6.150 inches
- Belt width: 5/8 inch
- Rotation: counter-clockwise from pulley side
- Torque rating: 105 lb-ft
- Connector: compare the included wiring harness to your original connector

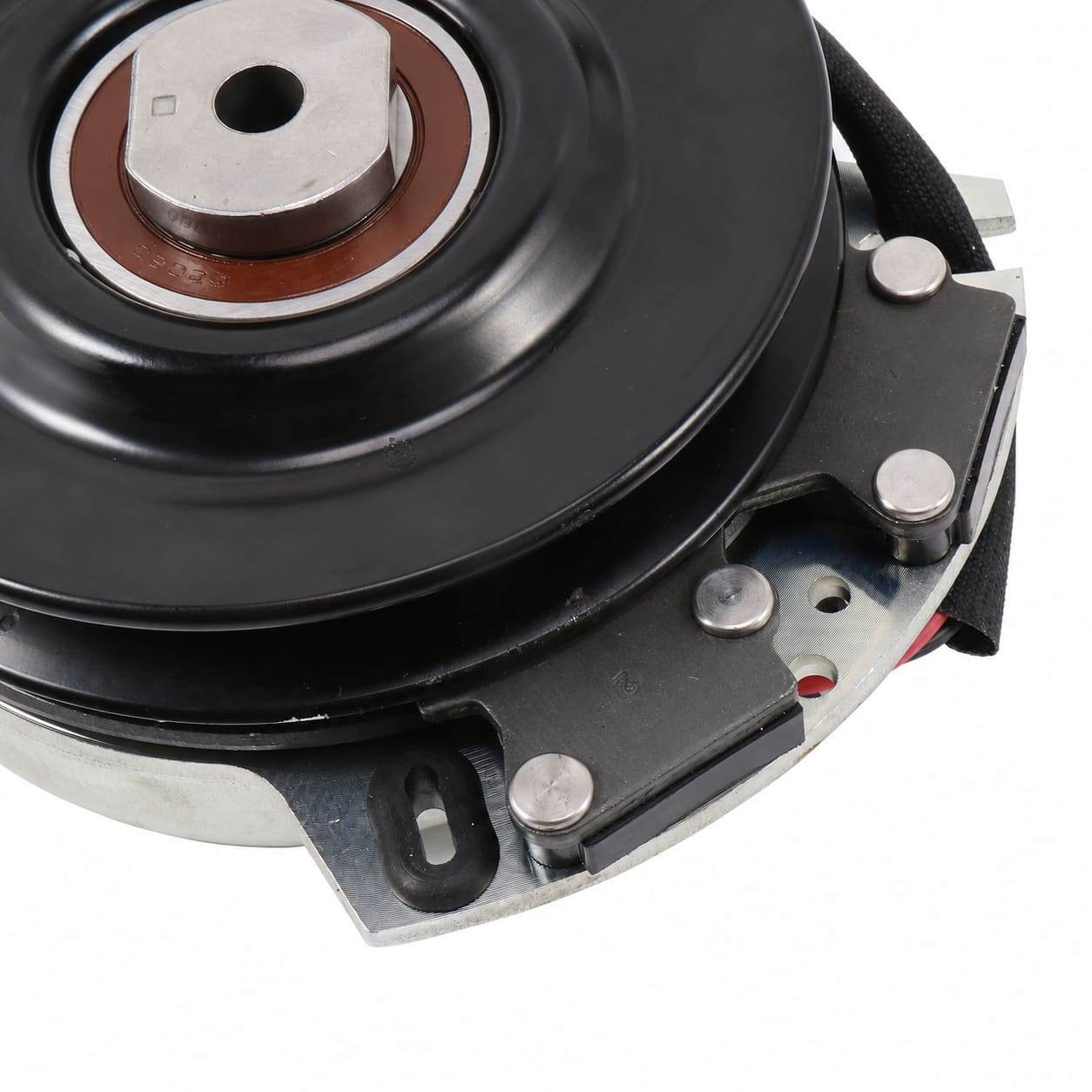

- Anti-rotation setup: confirm the clutch stop or anti-rotation bracket style matches your mower
Common Symptoms This Clutch Helps Fix
- Mower blades will not engage
- PTO clutch clicks but does not fully engage
- Clutch slips under load
- Burning smell from the PTO area
- Deck belt squeals or slips at engagement
- Clutch bearing noise
- Intermittent PTO engagement after the mower warms up
- Visible clutch damage, heat marks, or worn pulley groove
Why Buy From PTO Direct USA?
- Fitment-first PTO clutch listings
- Clear OEM and aftermarket cross-reference routing
- Practical fitment checks before you order
- Fast USA shipping
- Support for mower owners, repair shops, and small-engine dealers
Need Help Confirming Fitment?
If you are unsure whether this PTO clutch fits your mower, send us your mower model number, serial number, original clutch part number, crankshaft size, pulley diameter, belt width, connector photo, and a photo of the anti-rotation bracket or clutch stop before ordering.
FAQ
Does this replace Warner 5219-97?
Yes. This listing is built around the Warner 5219-97 replacement path. Confirm your original clutch specs before ordering.
Will this fit a 2014 Gravely ZT 2660 HD?
This clutch may fit select 2014 Gravely ZT 2660 HD applications when the original clutch matches Warner 5219-97 or the listed Gravely / Ariens OEM clutch numbers. Confirm your original clutch number, bore, pulley diameter, belt width, connector, and anti-rotation setup before ordering.
What Gravely OEM numbers does this replace?
Supplier data lists Gravely replacement numbers including 00385500, 03368000, 03370600, and 04678400.
What Ariens OEM numbers does this replace?
Supplier data lists Ariens replacement numbers including 00385500, 02975300, 03368000, 03370600, and 04678400.
What are the clutch specs?
Supplier data lists this clutch with a 1 inch bore, 6.150-inch pulley, 5/8 inch belt groove, counter-clockwise rotation, and 105 lb-ft torque rating.
Does this include the wiring harness?
Yes. Supplier data lists the clutch as including a wiring harness, spacer, and manual book. Compare the connector to your original harness before installation.
Is this the same as a 130 lb-ft HiTorque clutch?
No. This listing uses the supplier-listed 105 lb-ft torque specification. Do not compare it to 130 lb-ft upgrade listings unless the physical clutch being sold is the same upgraded model.
Can I order this PTO clutch by appearance?
No. PTO clutches can look similar but differ by bore, pulley size, belt width, rotation, connector, torque rating, and anti-rotation setup. Match your original clutch number and physical specifications before ordering.
Need more PTO clutch options? Browse the full electric PTO clutch collection.
