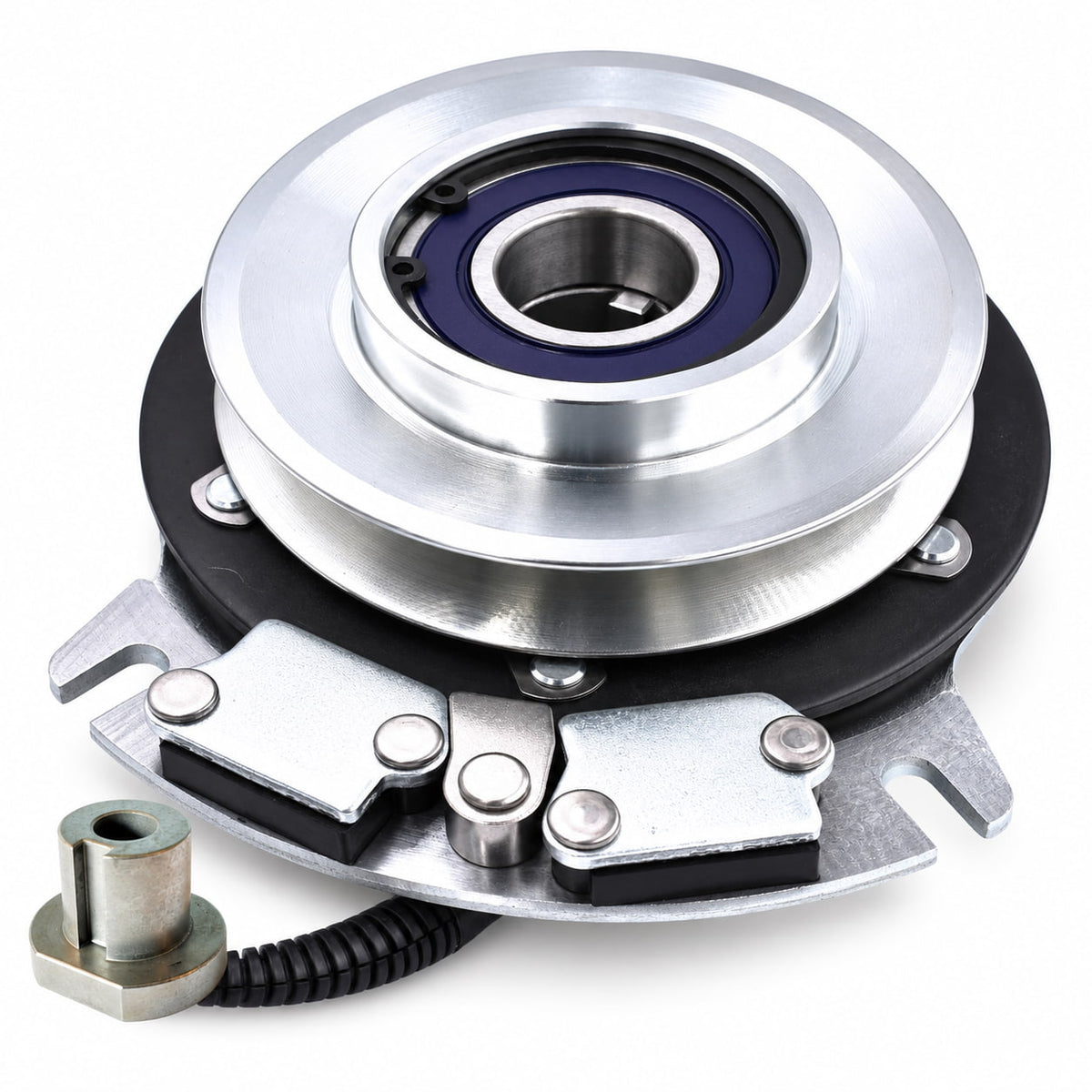

5218-290 PTO Clutch HD Upgrade | Replaces Warner 5218-152
$182.95
Skip to product information
5218-290 PTO Clutch HD Upgrade | Replaces Warner 5218-152
$182.95
This 5218-290 PTO clutch HD Upgrade is an electric PTO clutch for mowers using the Warner 5218-290 clutch path. Warner lists this number as the replacement for 5218-152.
Order this clutch by the number stamped on the original clutch. Warner’s record also lists manufacturer number X41112.
Built to the Warner 5218-290 spec: 1-1/8 inch crankshaft bore, 5-1/2 inch pulley, CCW rotation, 12V, and a 200 lb-ft rating. Connection is integral. Warner catalogs cable 5218-251-001 with this clutch.
Fitment support before and after purchase.
Key Features
- HD Upgrade electric PTO clutch for the Warner 5218-290 path
- Crankshaft bore: 1-1/8"
- Pulley diameter: 5-1/2"
- Rotation: CCW
- Voltage: 12V DC
- Rated torque: 200 lb-ft on the Warner 5218-290 sheet
- Connection: integral
- Mounting: standard
- Confirm bore, pulley, rotation, and connector before install.
Fitment
Use this clutch when the original clutch is stamped 5218-290 or the earlier 5218-152, and the bore, pulley, and connector match.
Warner lists X41112 as the manufacturer part number on the 5218-290 record. Send that number with a photo of the old clutch if you need the mower path confirmed.
Replaces
- Warner: 5218-290, 5218290
- Earlier Warner number: 5218-152, 5218152
- Manufacturer number on the Warner record: X41112
What’s Included
- Complete electric PTO clutch assembly
- 5-1/2" pulley
- Pre-installed bearing assembly
- Electromagnetic coil
- Integral connector
Why Buy From PTO Direct USA
- Fast USA shipping
- Fitment Guarantee
- 1-year warranty
- Fitment support before and after purchase
FAQ
What does Warner 5218-290 replace?
Warner lists 5218-290 as the replacement for 5218-152.
What bore and pulley does 5218-290 use?
1-1/8 inch bore and a 5-1/2 inch pulley. Rotation is CCW. Warner rates it at 200 lb-ft.
Is 5218-290 the same as 5218-29?
No. 5218-29 is the Cub Cadet 917-3446 clutch, with a 1-inch bore and a 6-inch pulley. Do not substitute one for the other.
Which mowers use 5218-290?
Match the stamp. The only manufacturer number on the Warner sheet is X41112, and that number is not tied to a confirmed model list here.
Can PTO Direct USA confirm fitment?
Yes. Email support@ptodirectusa.com with the mower model, serial number, original clutch number, and a clear photo of the old clutch. Fitment support before and after purchase.
Need installation help? Read the PTO clutch installation guide.
If the old clutch will not slide off the engine shaft, use the stuck crankshaft guide before hammering or prying.
Need another replacement? Browse the electric PTO clutch catalog.
