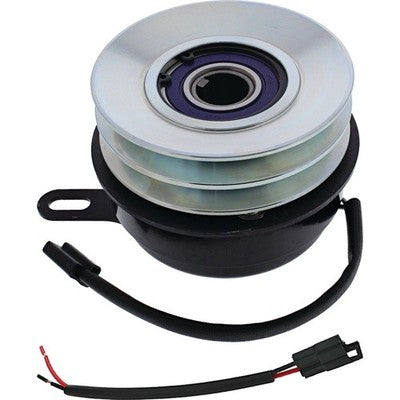

PTO clutch replacement for Warner 5215-77

Warner 5215-77 PTO Clutch Replacement | 1" Bore, Double A

eBay Ambassador link. PTO Direct USA may earn a commission from qualifying purchases. This item is sold and fulfilled by the seller on eBay. We provide this alternate purchasing option when a product is out of stock or unavailable through our distribution network, helping you locate the part you need without reaching an out-of-stock dead end.

Overview

Replace your original clutch with this Warner 5215-77 PTO clutch replacement. The Xtreme X0730 assembly features a 1-inch crankshaft bore, 4-7/8-inch pulley, Double A belt configuration and clockwise rotation.

A replaceable pulley bearing, high-temperature bearing upgrade and integrated wiring harness provide a complete replacement assembly for applications using the listed clutch number.

Specifications

Product Type: Aftermarket electric PTO clutch assembly
Crankshaft Bore: 1 inch / 1.000 inch
Pulley Diameter: 4-7/8 inches / 4.875 inches
Belt Configuration: Double A
Rotation: Clockwise (CW)
Pulley Bearing: Replaceable, high-temperature bearing
Electrical Connection: Integrated water-tight, impact-resistant wiring harness

Replacement Part Numbers

Warner: 5215-77 / 521577
Xtreme: X0730

This is an aftermarket replacement for Warner 5215-77. Manufacturer names and part numbers identify the replacement application.

Fitment

For equipment originally fitted with a Warner 5215-77 clutch. Match the original clutch number, 1-inch bore, 4-7/8-inch pulley, Double A belt arrangement and clockwise rotation. Compare the electrical connector and mounting arrangement with the product photos before ordering.

Clutch Features

Replaceable pulley bearing for serviceability
High-temperature bearing upgrade
Precision-machined pulley
Integrated water-tight, impact-resistant wiring harness

What's Included

One electric PTO clutch assembly with pulley and integrated wiring harness. Follow the instruction sheet included with the clutch and the equipment manufacturer's installation requirements.

FAQ

Does this replace Warner 5215-77?

Yes. This assembly is cross-referenced as a replacement for Warner 5215-77.

What size crankshaft does it fit?

The clutch has a 1-inch crankshaft bore.

What pulley and belt configuration does it use?

It has a 4-7/8-inch pulley for the specified Double A belt configuration.

Which direction does it rotate?

This clutch is specified for clockwise rotation.

Is the pulley bearing replaceable?

Yes. The assembly features a replaceable pulley bearing with a high-temperature bearing upgrade.

Installation information: Read our PTO clutch installation guide.

Browse more replacements: Visit our electric PTO clutch collection.
