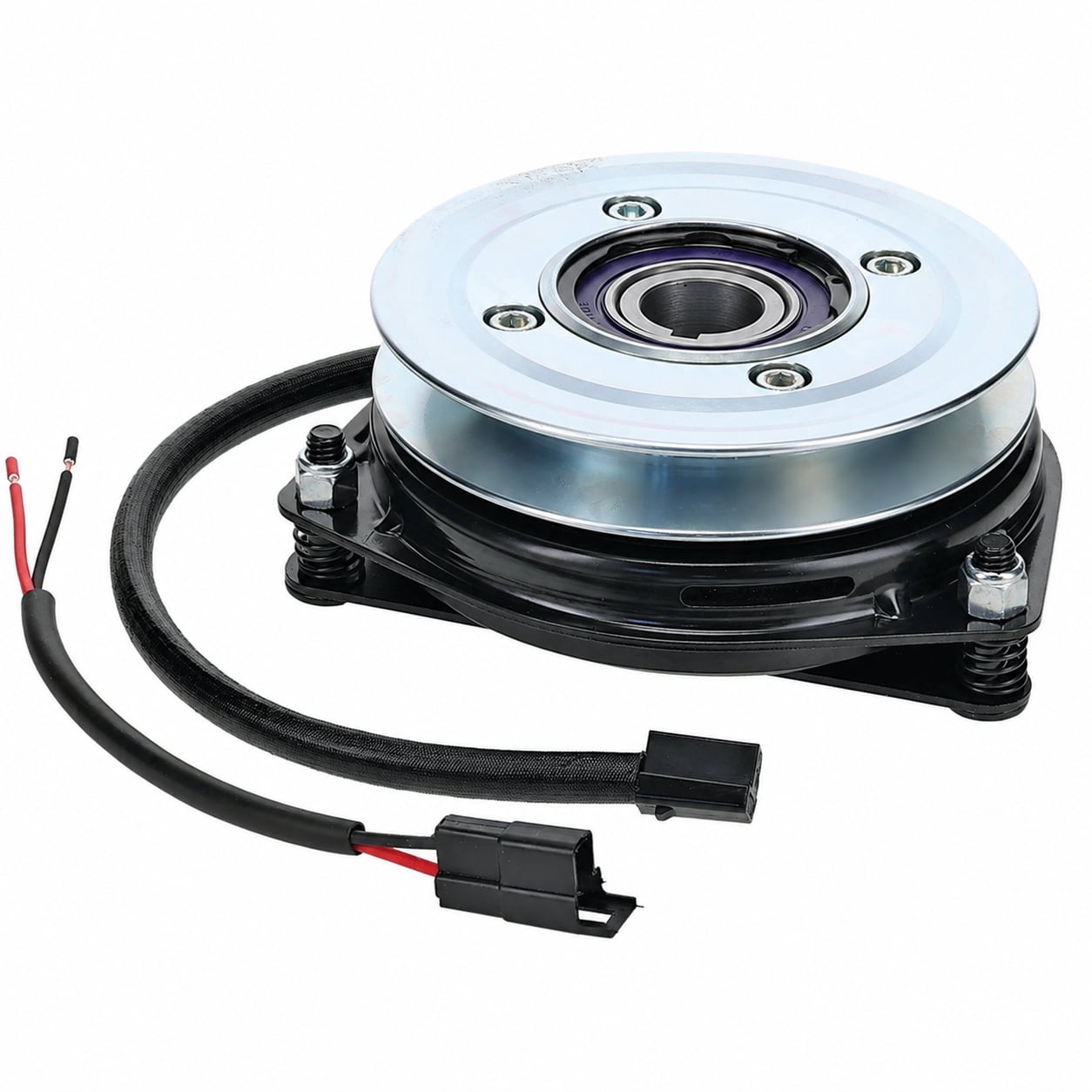

Ferris 5022334 / Ventrac 37.0048 PTO Clutch | Xtreme X0617
Overview
This page covers the Xtreme X0617 electric PTO clutch replacement for select Ferris, Simplicity, Snapper, and Ventrac applications using OEM part numbers 5022334, 5022334SM, or 37.0048.
The purchase button on this page links to a premium aftermarket Xtreme PTO clutch sold on eBay. It is not presented as a genuine Ferris, Simplicity, Snapper, or Ventrac OEM clutch.
Match the original clutch part number and physical specifications before ordering. Do not order using the mower brand, series name, or appearance alone.
Premium Xtreme Clutch Features
- Billet-machined pulley
- High-performance bearing system
- Replaceable pulley bearing
- Cool Coil technology
- Stainless-steel braking rivets
- Protected and replaceable wire lead
- Heavy-duty electric PTO clutch with integrated brake
Specifications
- Xtreme Part Number: X0617
- Crankshaft Bore: 1-1/8 inch
- Pulley Diameter: 6.06 inches
- Rotation: Clockwise
- Belt Type: A/B belt
- Xtreme Torque Rating: 150 ft-lbs
- Voltage: 12 VDC electric PTO clutch
Replaces OEM Part Numbers
- Ferris 5022334
- Ferris 5022334SM
- Simplicity 5022334
- Simplicity 5022334SM
- Snapper 5022334
- Snapper 5022334SM
- Ventrac 37.0048
Compatible Model Paths
| Brand | Model or Series | Clutch Path |
|---|---|---|
| Ferris | 5901078 | 5022334 / X0617 |
| Ferris | 5901079 | 5022334 / X0617 |
| Ferris | 5901081 | 5022334 / X0617 |
| Ferris | 5901082 | 5022334 / X0617 |
| Ferris | Select IS Z Series applications | 5022334 / X0617 |
| Simplicity | Stallion ZT2354 | 5022334SM / X0617 |
| Snapper | Select applications using 5022334 or 5022334SM | 5022334 / X0617 |
| Ventrac | Select applications using 37.0048 | 37.0048 / X0617 |
Optional Ventrac Clutch and PTO Switch Package
Ventrac owners replacing part number 37.0048 can also compare an HD Switch package that includes a heavy-duty BIGBearing PTO clutch and a 10-amp PTO switch. The package listing identifies Ventrac 3000, E-3100, LE3100, and LE3200 applications.
Check Ventrac 37.0048 Clutch and PTO Switch Package on eBay
Paid link. PTO Direct USA may earn a commission from qualifying purchases. This item is sold and fulfilled by the seller on eBay.
Important Fitment Check
This is a large, application-specific PTO clutch. Confirm the original part number and specifications before purchasing.
- Match OEM number 5022334, 5022334SM, or 37.0048
- Confirm the 1-1/8-inch crankshaft bore
- Confirm the approximately 6.06-inch pulley diameter
- Confirm clockwise rotation
- Confirm the A/B belt pulley profile
- Compare the wire lead and anti-rotation configuration
- Do not install or test-mount the clutch until fitment is confirmed
Common Symptoms of a Failing PTO Clutch
- Mower blades or attachment will not engage
- Clutch clicks but does not begin turning
- Clutch engages when cold but stops after warming up
- Slipping under heavy operating load
- Grinding or bearing noise near the clutch
- Damaged wire lead or intermittent electrical connection
- Burning smell or excessive heat around the clutch
Affiliate Purchase Information
The primary purchase button on this page directs you to a third-party eBay listing for the Xtreme X0617 clutch associated with this replacement path.
Before purchasing, review the seller's exact part numbers, product photos, specifications, shipping terms, return policy, and warranty. The item is sold and fulfilled by the seller on eBay.
FAQ
What PTO clutch replaces Ferris 5022334?
Xtreme X0617 is a premium aftermarket replacement for Ferris 5022334.
Does X0617 replace 5022334SM?
Yes. The Xtreme X0617 replacement path includes 5022334SM for compatible Ferris, Simplicity, and Snapper applications.
What PTO clutch replaces Ventrac 37.0048?
Xtreme X0617 cross-references Ventrac 37.0048. An HD Switch clutch-and-PTO-switch package is also available for select Ventrac applications using this clutch path.
What size bore does Xtreme X0617 use?
The Xtreme X0617 uses a 1-1/8-inch crankshaft bore.
What size pulley does Xtreme X0617 use?
The Xtreme X0617 is specified with an approximately 6.06-inch pulley for an A/B belt.
Does this clutch fit every Ferris IS Z mower?
No. Ferris used multiple PTO clutch paths across the IS Z family. Match the original clutch number or exact mower parts diagram before ordering.
Does the primary Xtreme clutch include a PTO switch?
The primary Xtreme X0617 listing is for the PTO clutch. The separate HD Switch Ventrac package includes both the clutch and a 10-amp PTO switch.
Need Help Confirming Fitment?
Use the PTO Clutch Fitment Help page before ordering. It explains which part numbers, mower details, measurements, and photos are needed to confirm the correct clutch path.
