Bush Hog 50028140 / 50049812 PTO Clutch Replacement | Xtreme X0305
Bush Hog 50028140 / 50049812 PTO Clutch Replacement | Xtreme X0305
Overview

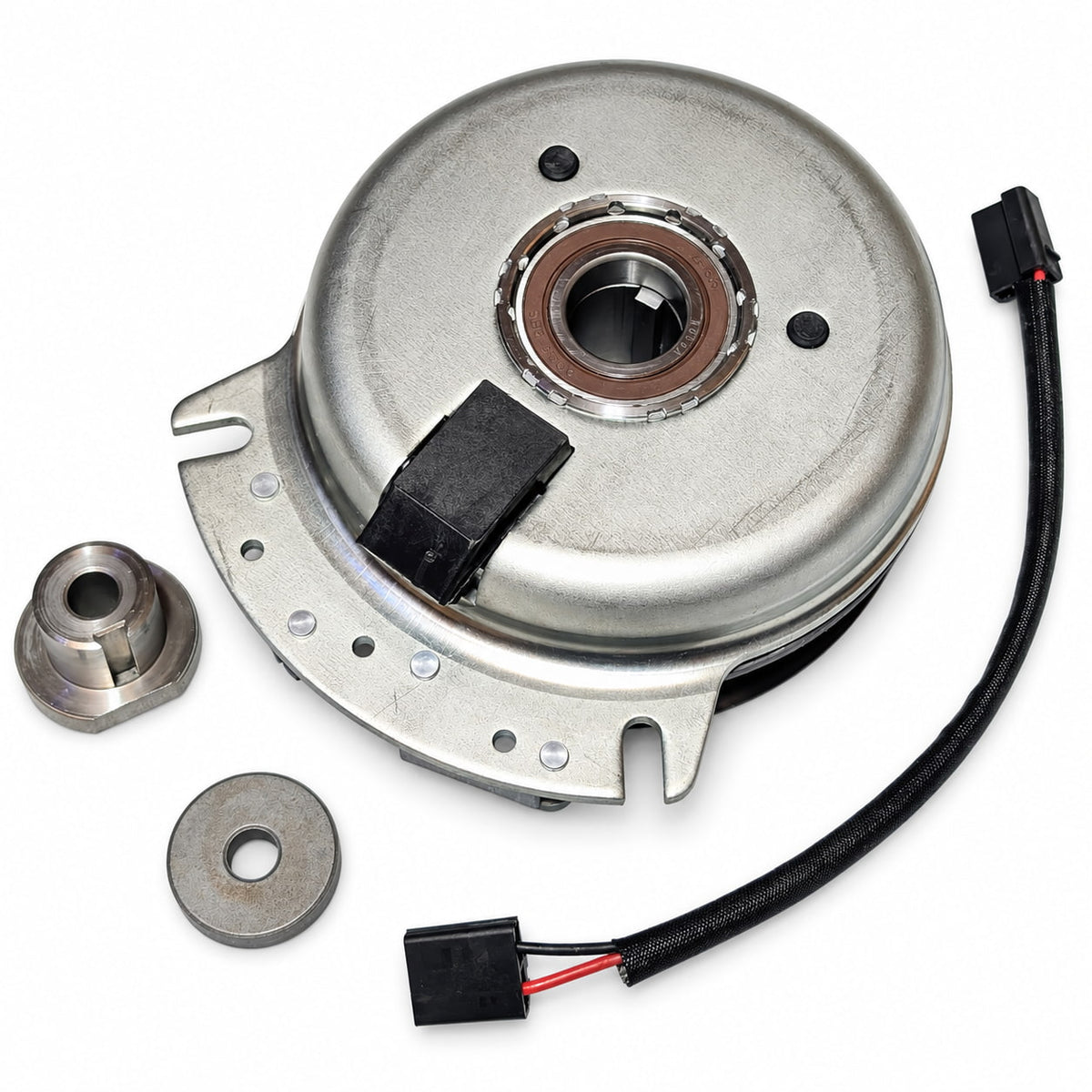

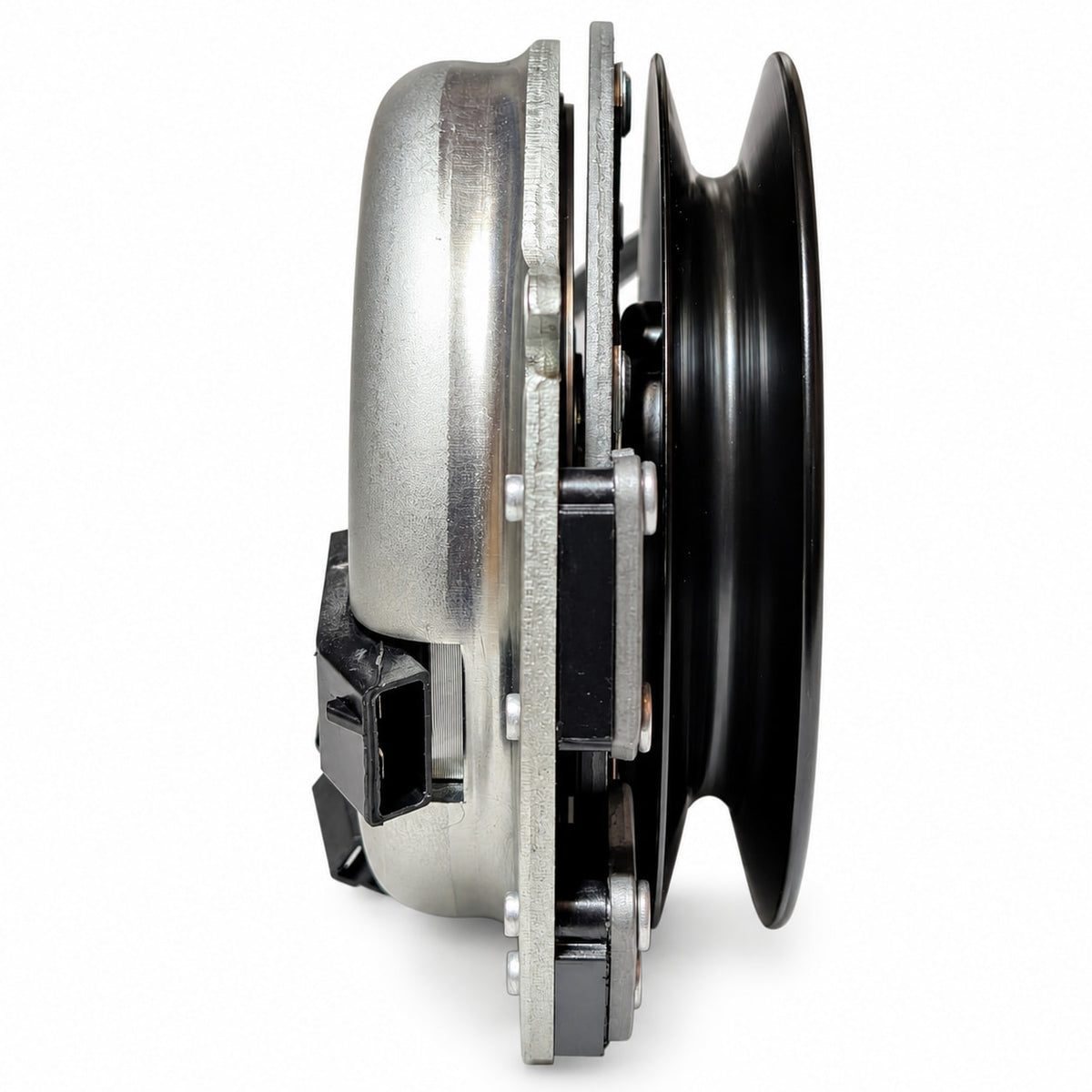

This electric PTO clutch replaces Bush Hog and Rhino 50028140 and 50049812 on compatible commercial and zero-turn mower applications.
It also cross-references Xtreme X0305, Ariens and Gravely 00274100, Lastec 019603, Howard Price 20002, and multiple Warner 5218 clutch numbers.
Match the original OEM clutch number before ordering. Bush Hog and Rhino used different PTO clutch paths across similar mower families, engines, and production configurations.
Replaces Part Numbers
- Bush Hog 50028140
- Bush Hog 50049812
- Rhino 50028140
- Rhino 50049812
- Ariens 00274100
- Gravely 00274100
- Howard Price 20002
- Lastec 019603
- Warner 5218-60 / 521860
- Warner 5218-86 / 521886
- Warner 5218-89 / 521889
- Warner 5218-105 / 5218105
- Warner 5218-117 / 5218117
- Warner 5218-127 / 5218127
- Warner 5218-232 / 5218232
- Warner 5218-299 / 5218299
- Xtreme X0305
Common Bush Hog and Rhino Applications
| Mower Family | Common Model References | Required Clutch Path |
|---|---|---|
| Commercial Series | CZ2149, CZ2349, CZ2355, CZ2555, CZ2561 | 50028140 / 50049812 |
| Estate Commercial | Select EC Series mowers | 50028140 / 50049812 |
| Land Maintenance | Select mid-mount zero-turn mowers | 50028140 / 50049812 |
| M Series | M2254, M2260, M2354, M2360, M2544 | 50028140 / 50049812 |
| M Series | M2255, M2261, M2355, M2361 | 50028140 / 50049812 |
| M Series | M2555, M2561, M2673, M2555K, M2561K | 50028140 / 50049812 |
| M Series | M2560, M2672, M2554K, M2260K | 50028140 / 50049812 |
| M Series | M2661K, M2355A, M2355K, M2661, M2761 | 50028140 / 50049812 |
Model references are provided as common application paths. Confirm that the original PTO clutch or model-specific parts diagram calls for 50028140, 50049812, or another listed cross-reference before ordering.
Before Ordering
- Match the original clutch number to 50028140, 50049812, or another listed cross-reference
- Confirm the complete mower model and serial information when available
- Compare the pulley, bore, connector, wire position, and anti-rotation configuration with the original clutch
- Check the crankshaft and mounting hardware for damage before installation
- Do not install or test-mount the clutch until fitment is confirmed
Common Symptoms of a Failing PTO Clutch
- Mower blades will not engage
- Clutch clicks but does not begin turning the deck belt
- Blades engage when cold but stop after the mower warms up
- Clutch slips under heavy mowing load
- Grinding, rattling, or bearing noise near the clutch
- Damaged wiring or an intermittent electrical connection
- Burning smell or excessive heat around the clutch
FAQ
What PTO clutch replaces Bush Hog 50028140?
This electric PTO clutch replaces Bush Hog and Rhino OEM part number 50028140 on compatible mower applications.
Does this clutch replace Bush Hog 50049812?
Yes. 50049812 is included in this replacement clutch path for compatible Bush Hog and Rhino applications.
Does this clutch replace Xtreme X0305?
Yes. Xtreme X0305 is included as an aftermarket cross-reference for this PTO clutch path.
What Ariens or Gravely number cross-references this clutch?
This clutch path cross-references Ariens and Gravely part number 00274100.
What Warner clutch numbers cross-reference this replacement?
Common Warner cross-references include 5218-60, 5218-86, 5218-89, 5218-105, 5218-117, 5218-127, 5218-232, and 5218-299.
Does this clutch fit every Bush Hog or Rhino mower?
No. Bush Hog and Rhino used multiple PTO clutch configurations. Match the original part number or confirm the clutch through the mower’s model-specific parts diagram before ordering.
Need Help Confirming Fitment?
Use the PTO Clutch Fitment Help page before ordering. It explains which part numbers, mower details, measurements, and photos are needed to confirm the correct clutch path.
