Scag 462228 PTO Clutch for Freedom Z | Xtreme X0627
Overview

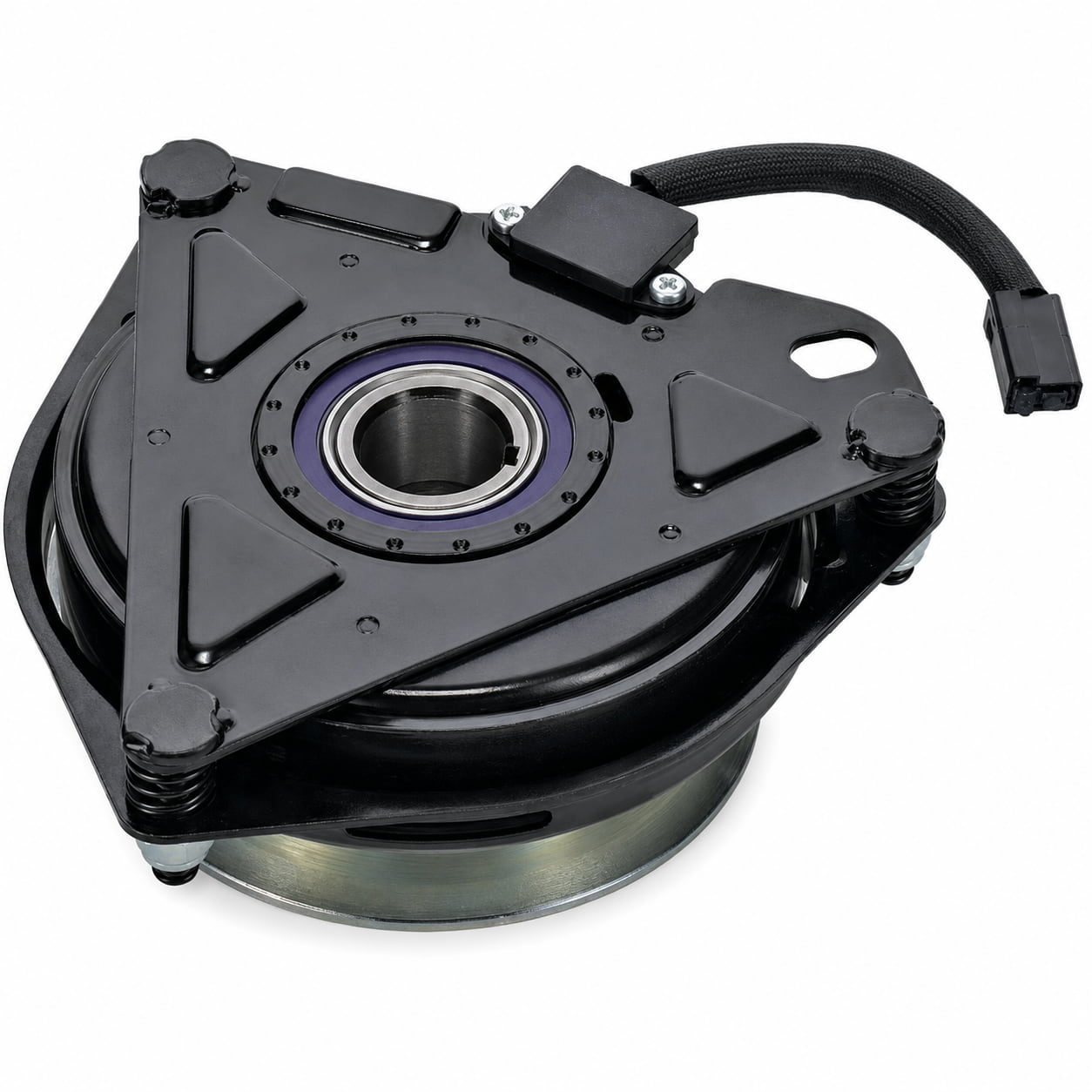

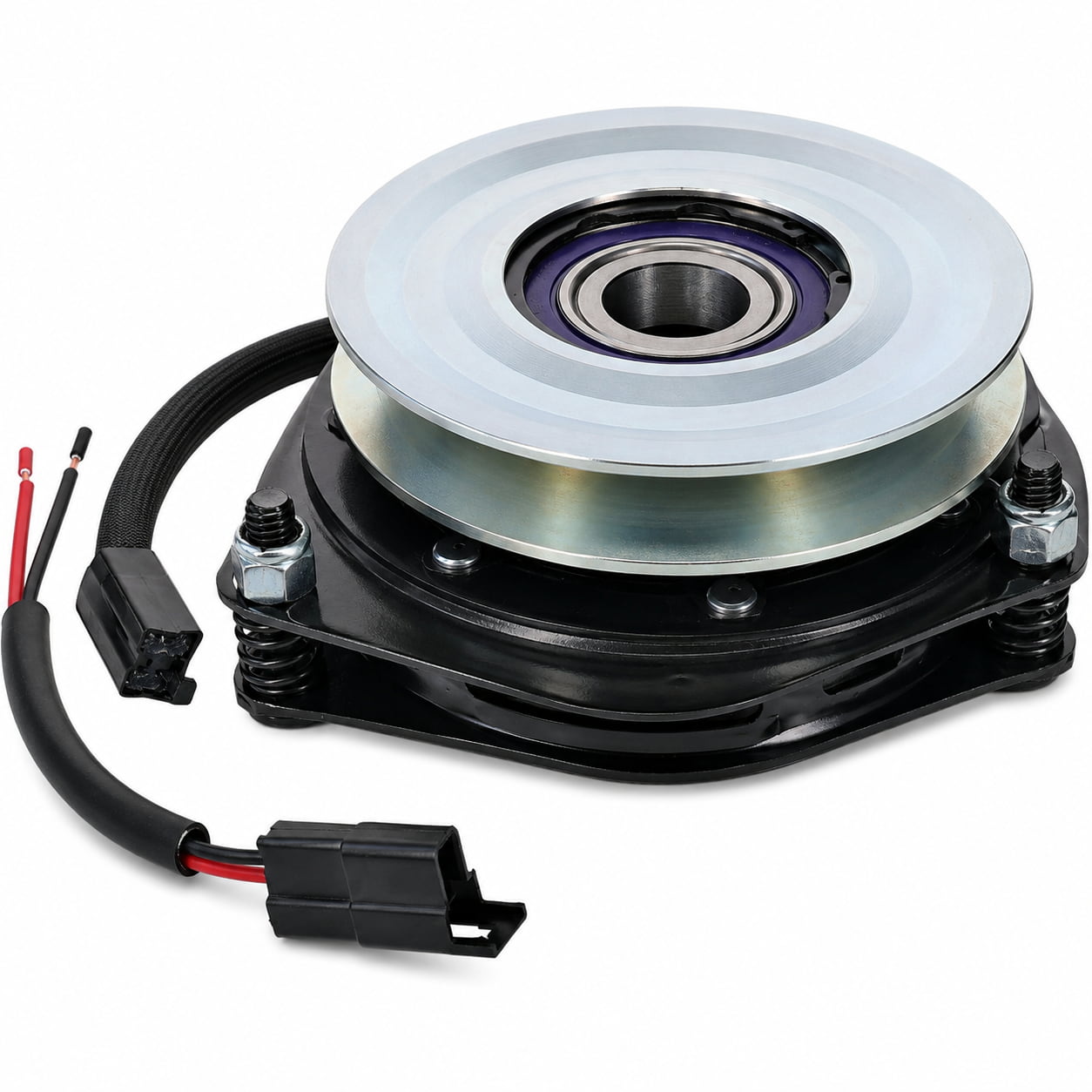

This page covers the Xtreme X0627 electric PTO clutch replacement for select Scag Freedom Z mower applications using OEM part number 462228.
The linked product is a premium aftermarket Xtreme PTO clutch sold on eBay. It is not presented as a genuine Scag OEM clutch.
Scag Freedom Z mowers can use different PTO clutch paths depending on the exact model and production configuration. Match the original clutch number or confirm 462228 through the mower’s model-specific parts manual before ordering.
Premium Xtreme Clutch Features
- Billet-machined pulley
- Replaceable pulley bearing
- High-performance bearing system
- Cool Coil technology
- Stainless-steel straps and braking rivets
- Protected wire-lead system
- Heavy-duty electric PTO clutch with integrated brake
- Individually tested by the manufacturer before shipment
Specifications
- Xtreme Part Number: X0627
- Crankshaft Bore: 1-1/8 inch
- Pulley Diameter: 5.30 inches
- Rotation: Counterclockwise
- Belt Compatibility: 1/2-inch or 5/8-inch belt
- Xtreme Torque Rating: 150 ft-lbs
- Clutch Type: Electric PTO clutch with brake
Replaces Part Numbers
- Scag 462228
- Ogura GT2-CT07
- Ogura GT2CT07
- Xtreme X0627
- Stens 255-658X
Compatible Mower Path
| Brand | Mower Series | Required Clutch Path |
|---|---|---|
| Scag | Select Freedom Z Series applications | 462228 / GT2-CT07 / X0627 |
Do not assume this clutch fits every Scag Freedom Z mower. Confirm the complete mower model and the original 462228 clutch path before purchasing.
Important Fitment Check
- Match OEM part number 462228 or Ogura GT2-CT07
- Confirm the 1-1/8-inch crankshaft bore
- Confirm the approximately 5.30-inch pulley diameter
- Confirm counterclockwise rotation
- Confirm the 1/2- or 5/8-inch belt pulley profile
- Compare the wire lead and electrical connection with the original
- Compare the anti-rotation setup and overall clutch height
- Do not install or test-mount the clutch until fitment is confirmed
Common Symptoms of a Failing PTO Clutch
- Mower blades will not engage
- Clutch clicks but does not turn the deck belt
- Blades engage when cold but stop after warming up
- Clutch slips under mowing load
- Grinding, rattling, or bearing noise near the clutch
- Damaged wiring or an intermittent electrical connection
- Burning smell or excessive heat around the clutch
FAQ
What PTO clutch replaces Scag 462228?
The Xtreme X0627 is a premium aftermarket electric PTO clutch replacement for Scag OEM part number 462228.
What Ogura clutch cross-references Scag 462228?
The Scag 462228 clutch path cross-references Ogura GT2-CT07, also written as GT2CT07.
Does Xtreme X0627 fit Scag Freedom Z mowers?
Xtreme lists X0627 for select Scag Freedom Z Series applications using OEM clutch number 462228. It does not necessarily fit every Freedom Z model or production configuration.
What size bore does Xtreme X0627 use?
The Xtreme X0627 uses a 1-1/8-inch crankshaft bore.
What size pulley does Xtreme X0627 use?
The Xtreme X0627 is specified with an approximately 5.30-inch pulley.
Which direction does Xtreme X0627 rotate?
Xtreme specifies the X0627 PTO clutch with counterclockwise rotation.
What belt size does this clutch accept?
The supplier lists the X0627 pulley for compatible 1/2-inch or 5/8-inch belts.
Does this clutch fit every Scag Freedom Z?
No. Confirm the mower’s complete model information and verify that its official parts path calls for Scag 462228 before ordering.
Need Help Confirming Fitment?
Use the PTO Clutch Fitment Help page before ordering. It explains which part numbers, mower details, measurements, and photos are needed to confirm the correct clutch path.
