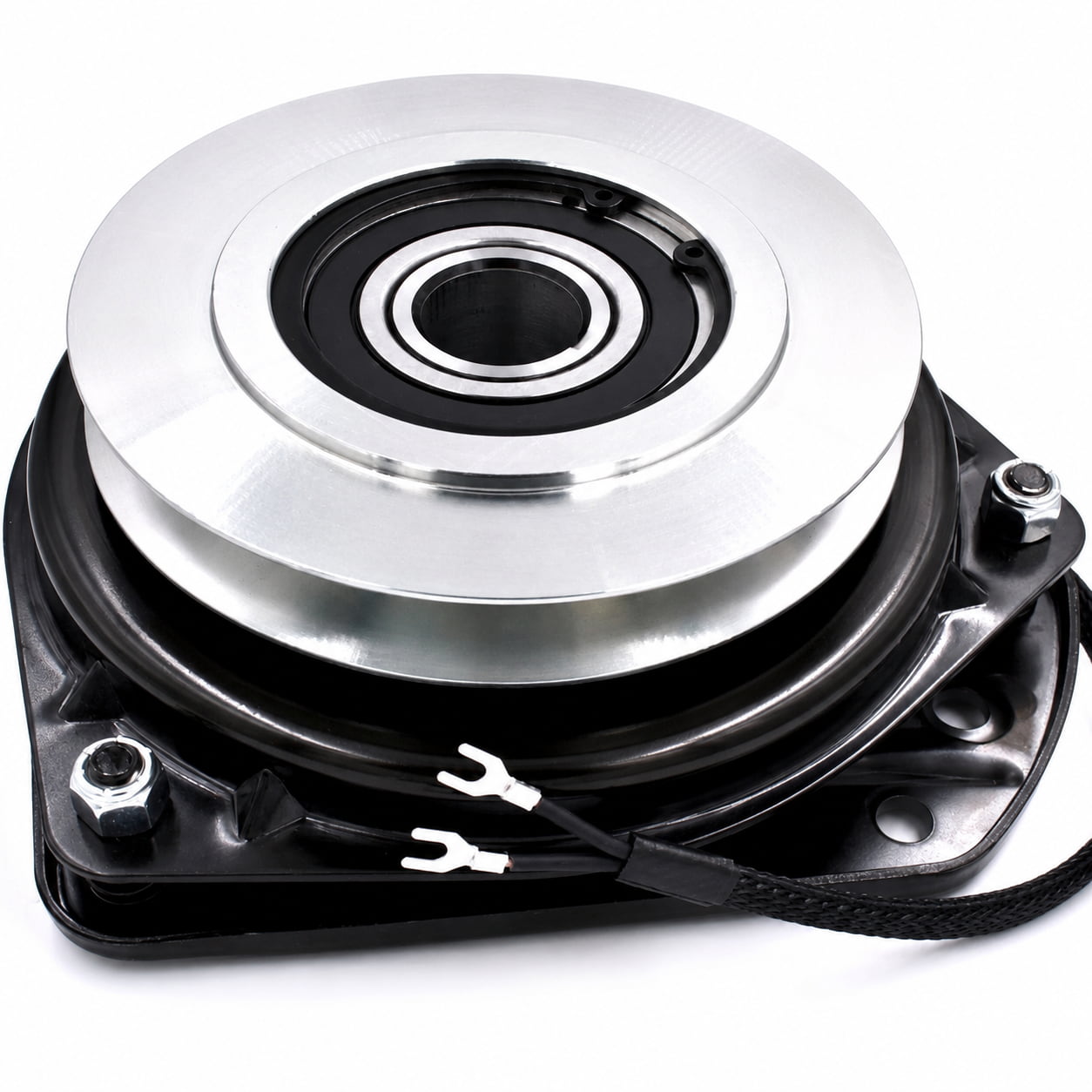

Scag 461826 / 461662 PTO Clutch | Ogura GT5-MC03 Replacement
Overview
This page covers an aftermarket replacement PTO clutch for select Scag commercial mower applications using the Scag 461826 / 461662 and Ogura GT5-MC03 / GT5MC03 clutch path.
The purchase button on this page links to a third-party aftermarket replacement sold on eBay. It is not presented as a genuine Scag OEM or genuine Ogura clutch unless the linked seller listing specifically states otherwise.
Scag 461826 is the current replacement path for the earlier 461662 PTO clutch. Common supported references for this clutch family include Ogura GT5-MC03 / GT5MC03 and Xtreme X0815.
Common applications include select Scag Turf Tiger, Turf Tiger II, and Cheetah configurations using the GT5 clutch path. Scag also used smaller GT3.5 clutches on similar mower families, so do not order by mower series, deck size, or appearance alone.
Match the original PTO clutch number before ordering. If your clutch is marked Scag 461662, Scag 461826, or Ogura GT5-MC03 / GT5MC03, this is the correct replacement path.
Key Features
- Heavy-duty electric PTO clutch with integrated brake
- Primary Scag OEM Part Number: 461826
- Supersedes: Scag 461662
- Ogura Cross-Reference: GT5-MC03, GT5MC03
- Xtreme Cross-Reference: X0815
- Clutch Family: Ogura GT5
- Crankshaft Bore: 1-1/8 inch
- Pulley Diameter: 6 inches
- Voltage: 12 VDC
- Belt Type: A/B belt
- Rotation: CW
- Original Ogura GT5-MC03 Torque: approximately 350 ft-lbs final nominal static clutch torque
- HD Switch HiTorque Rating: 400 ft-lbs
Compatible Scag Model Paths
This clutch is used on select Scag commercial mower applications using the 461662 / 461826 GT5 clutch path.
Confirmed and supported application paths include:
- Scag Turf Tiger STT-35BVAC: confirmed 461662 / Ogura GT5 clutch path, with 461662 superseding to 461826
- Scag Cheetah 72V configurations: select applications using the 461826 / GT5 clutch path
- Scag Cheetah II: current series uses the Ogura GT5 blade-engagement clutch family; confirm the exact OEM clutch number for the individual mower
- Scag Turf Tiger II: select Briggs-powered configurations use the GT5 clutch family; other Turf Tiger II configurations may use GT3.5
Important: This is not a universal clutch for every Turf Tiger, Turf Tiger II, or Cheetah. Scag used different PTO clutch families depending on the exact mower and engine configuration.
Replaces OEM Part Numbers
- Scag: 461662
- Scag: 461826
Scag 461662 supersedes to Scag 461826 in the confirmed OEM replacement path.
Aftermarket & Manufacturer Cross-Reference Numbers
- Ogura: GT5-MC03
- Ogura: GT5MC03
- Xtreme: X0815
Xtreme also lists X0815 as a replacement for Ogura GT5-MC04D / GT5MC04D. Ogura identifies GT5-MC04D as a separate diesel-engine-type GT5 configuration, so GT5-MC03 and GT5-MC04D should not be treated as the exact same original Ogura clutch model.
Important Fitment Check
Match the original PTO clutch number before ordering. This replacement is intended for the Scag 461662 / 461826 and Ogura GT5-MC03 / GT5MC03 clutch path.
Do not substitute this clutch for the smaller Scag 461661 / Ogura GT3.5 clutch based on mower appearance or deck size alone.
Do Not Confuse With Scag 461661 / Ogura GT3.5
Scag 461661 is a separate PTO clutch path associated with the smaller Ogura GT3.5 clutch family.
Confirmed GT3.5 paths include select:
- Scag Turf Tiger STT52V-27CH applications
- Scag Turf Tiger STT-29DFI-SS applications
- Scag Cheetah SCZ61V-31FX applications
- Scag Cheetah SCZ61V-32CV applications
Do not substitute 461826 / GT5 for 461661 / GT3.5 unless the exact mower parts diagram and physical clutch specifications confirm the change.
Scag Turf Tiger II Fitment Note
Scag Turf Tiger II applications can use different PTO clutch families depending on the engine configuration.
Select Briggs-powered Turf Tiger II configurations are associated with the Ogura GT5 clutch family, including model paths such as:
- STTII-61V-33BV
- STTII-61V-40BV-EFI
- STTII-72V-40BV-EFI
Other Turf Tiger II configurations may use the GT3.5 clutch family. Confirm the original clutch number before ordering.
Scag Cheetah Fitment Note
Do not assume every Scag Cheetah uses the same PTO clutch.
Confirmed legacy Cheetah diagram paths show:
- 61V configurations: commonly associated with the 461661 / GT3.5 clutch path
- 72V configurations: select applications associated with the 461826 / GT5 clutch path
Current Scag Cheetah II specifications use the Ogura GT5 blade-engagement clutch family, but the exact OEM part number should still be confirmed for the individual mower.
Does This Fit Scag Tiger Cat II?
Do not use this clutch as a general Tiger Cat II replacement.
Current Scag Tiger Cat II specifications use the Ogura GT3.5 clutch family rather than the GT5 family. Confirm the exact OEM clutch number before following any marketplace listing that claims broad Tiger Cat II compatibility.
Before Ordering
- Match the original clutch number first
- Confirm 461662 or 461826 when following the Scag OEM path
- Confirm GT5-MC03 / GT5MC03 when replacing the original Ogura clutch path
- Do not assume every Turf Tiger or Turf Tiger II uses GT5
- Do not assume every Cheetah uses GT5
- Do not use deck size alone to choose the clutch
- Do not order by appearance alone
Common Symptoms of a Failing PTO Clutch
- Blades will not engage when the PTO switch is activated
- PTO clutch clicks but the mower deck does not begin turning
- Blades engage when cold and stop after the mower heats up
- Intermittent blade engagement under heavy mowing load
- Deck belt slips, squeals, or smokes during engagement
- Burning smell or excessive heat near the PTO clutch
- Grinding, bearing noise, or visible clutch damage
Affiliate Purchase Information
The purchase button on this page directs you to a third-party eBay listing for the clutch associated with this product page.
Before purchasing, review the seller's exact part number, product photos, specifications, shipping terms, return policy, and warranty. The item is sold and fulfilled by the seller on eBay.
FAQ
What does Scag 461826 replace?
Scag 461826 is the current replacement path for the earlier Scag 461662 GT5 PTO clutch.
Is Scag 461662 replaced by 461826?
Yes. The confirmed Scag replacement path shows 461662 superseded to 461826.
What Ogura clutch cross-references to Scag 461826?
The confirmed GT5 replacement path includes Ogura GT5-MC03 / GT5MC03.
What Xtreme clutch replaces Scag 461826?
Xtreme X0815 is a confirmed aftermarket replacement reference for Scag 461826, Scag 461662, and Ogura GT5-MC03.
What size bore does this clutch use?
The GT5-MC03 and Xtreme X0815 replacement path uses a 1-1/8-inch crankshaft bore.
What size pulley does the Xtreme X0815 use?
The Xtreme X0815 replacement is specified with a 6-inch pulley.
Does Scag 461826 fit every Turf Tiger?
No. Scag used both GT3.5 and GT5 PTO clutch families across Turf Tiger applications. Match the original clutch number and exact mower configuration before ordering.
Does this fit Scag Turf Tiger II?
Select Turf Tiger II applications use the GT5 clutch family, particularly certain Briggs-powered configurations. Other Turf Tiger II models may use GT3.5. Confirm the original clutch number before ordering.
Does this fit Scag Cheetah?
Only select Cheetah configurations use the GT5 clutch path. Confirmed legacy 61V examples use GT3.5, while select 72V configurations use the 461826 / GT5 path.
Does this fit Scag Cheetah II?
Current Scag Cheetah II specifications use the Ogura GT5 blade-engagement clutch family. Confirm the exact OEM clutch number for the individual mower before purchasing.
Does this fit Scag Tiger Cat II?
Do not assume so. Current Scag Tiger Cat II specifications use the smaller Ogura GT3.5 clutch family rather than the GT5 family.
Is Scag 461661 the same as 461826?
No. 461661 is associated with the separate Ogura GT3.5 clutch path. 461826 is associated with the heavier-duty Ogura GT5 clutch path.
Are GT5-MC03 and GT5-MC04D the same clutch?
They are separate Ogura GT5 model designations. Xtreme lists X0815 as a replacement for both, but the original Ogura models should not be described as identical.
Need help confirming fitment? Send PTO Direct USA the part number from your original PTO clutch and your Scag mower model number before ordering.
Need a different clutch? Browse the full electric PTO clutch catalog.
