1772388 PTO Clutch for Troy-Bilt LTX | 917-1459, Warner 5217-9

Overview

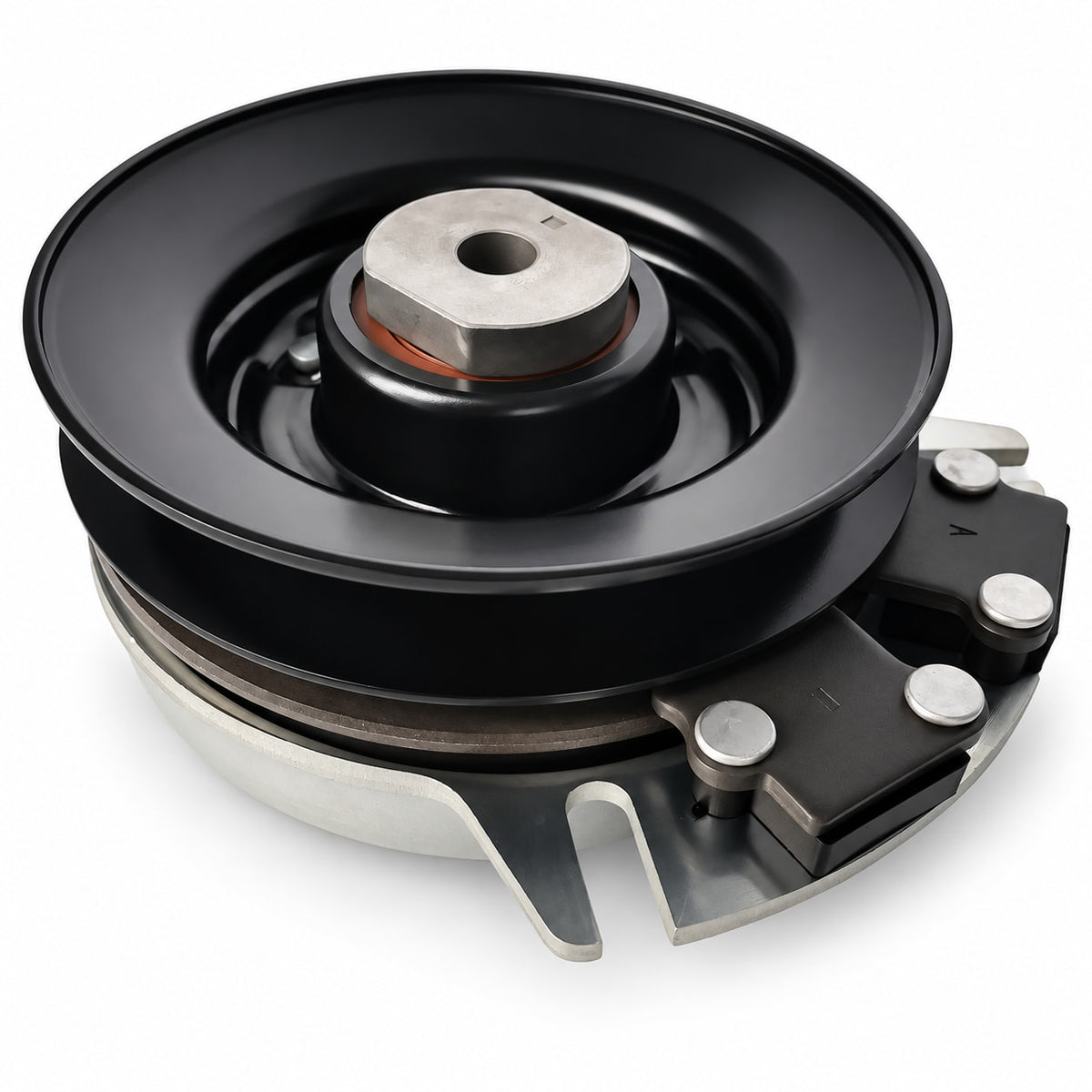

This Troy-Bilt 1772388 PTO clutch replacement is an aftermarket electric clutch for select LTX lawn tractors, including the 13095, 13102, 13103, 13104, 13105, and 13123 applications listed below.

It replaces 1772388, GW-1772388, 717-1459, and 917-1459 and cross-references Warner 5217-9 and 5217-35. If your original clutch label reads Warner MagStop MSS-80-HC 5217-9, use the complete 5217-9 number to identify the replacement.

This assembly uses a 1-inch crankshaft bore, 5.35-inch pulley, and counter-clockwise rotation. Match the original clutch number, mounting arrangement, and electrical connection before ordering.

Key Features

• Application: Electric mower-deck PTO clutch replacement
• Crankshaft bore: 1 inch
• Pulley diameter: 5.35 inches
• Rotation: CCW, viewed from the pulley side
• Voltage: 12V DC
• Belt compatibility: 1/2-inch or 5/8-inch belts on supported applications

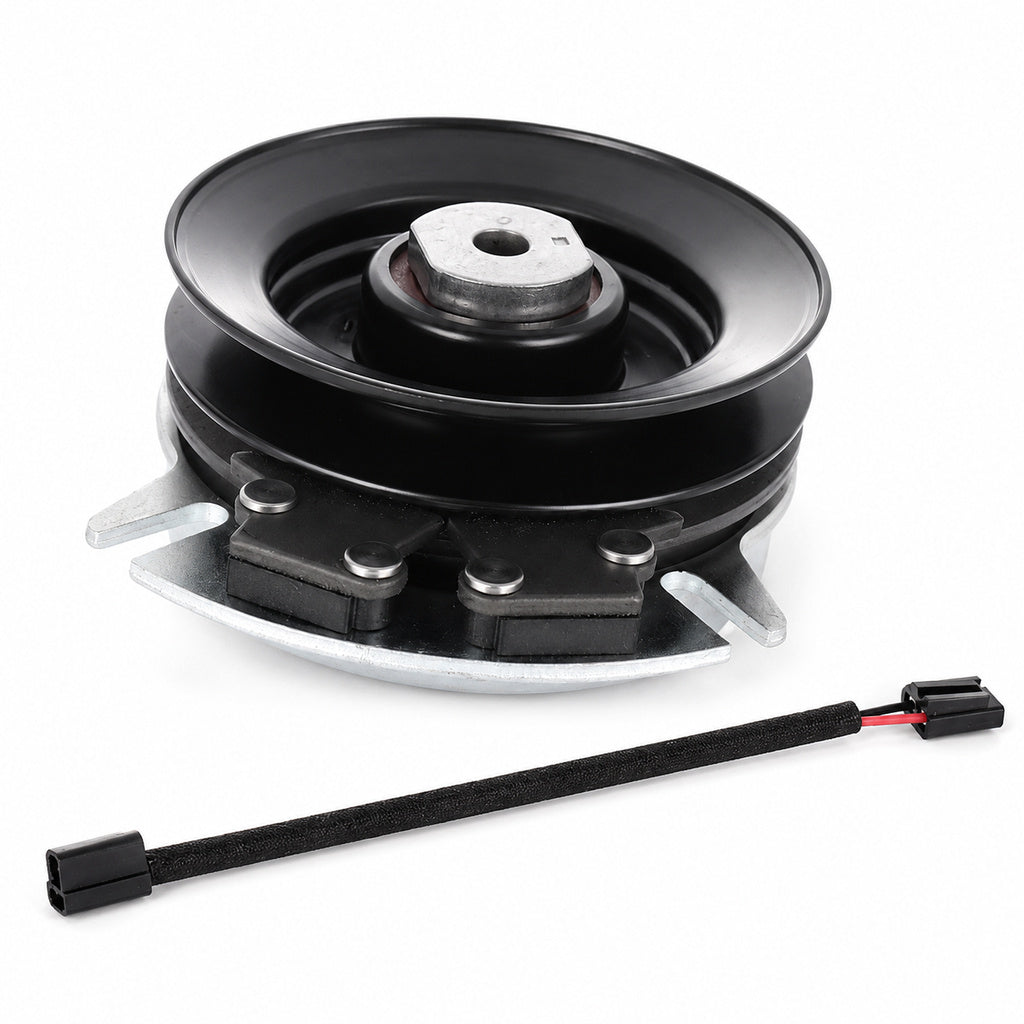

• Electrical connection: Flat side-by-side at clutch with optional harness to extend to T-plug


Troy-Bilt Model Fitment

The OEM engine diagrams for these applications identify 1772388 as the electric clutch, with 917-1459 listed as its service replacement.

• 13095 LTX: 13 HP gear-drive tractor; serial 130950100101 and above
• 13102 LTX: 13 HP gear-drive tractor; confirm the complete tractor serial number and original clutch reference
• 13103 LTX: Hydrostatic tractor; serial 131030100101 and above
• 13104 LTX: Hydrostatic tractor; serial 131041200101–131041299999
• 13105 LTX: 16 HP Briggs & Stratton hydrostatic tractor; serial 131050100101 and above
• 13123 LTX: Hydrostatic tractor; serial 131231300101–131231399999
• 13A-130F063: 1998 LTX lawn tractor, 13 HP application
• 13A-145F063: 1998 LTX lawn tractor

Fitment check: Match the full tractor model, serial number, and original clutch reference. An LTX name or deck model alone does not confirm compatibility. If the engine has been replaced, also verify crankshaft size, key arrangement, pulley alignment, and mounting clearance.

Replaces OEM Part Numbers

• Troy-Bilt / Garden Way: 1772388, GW-1772388
• Troy-Bilt / MTD: 717-1459, 917-1459

Manufacturer & Aftermarket Cross-References

• Warner Electric: 5217-9, 5217-35
• Earlier Warner references: 5217-6, 5217-18
• Xtreme: X0003

Warner identifies 5217-35 as the replacement for 5217-9. The clutch sold here is an aftermarket replacement, not a genuine Warner or Troy-Bilt assembly.

What’s Included

• Complete electric PTO clutch assembly
• 5.35-inch pulley

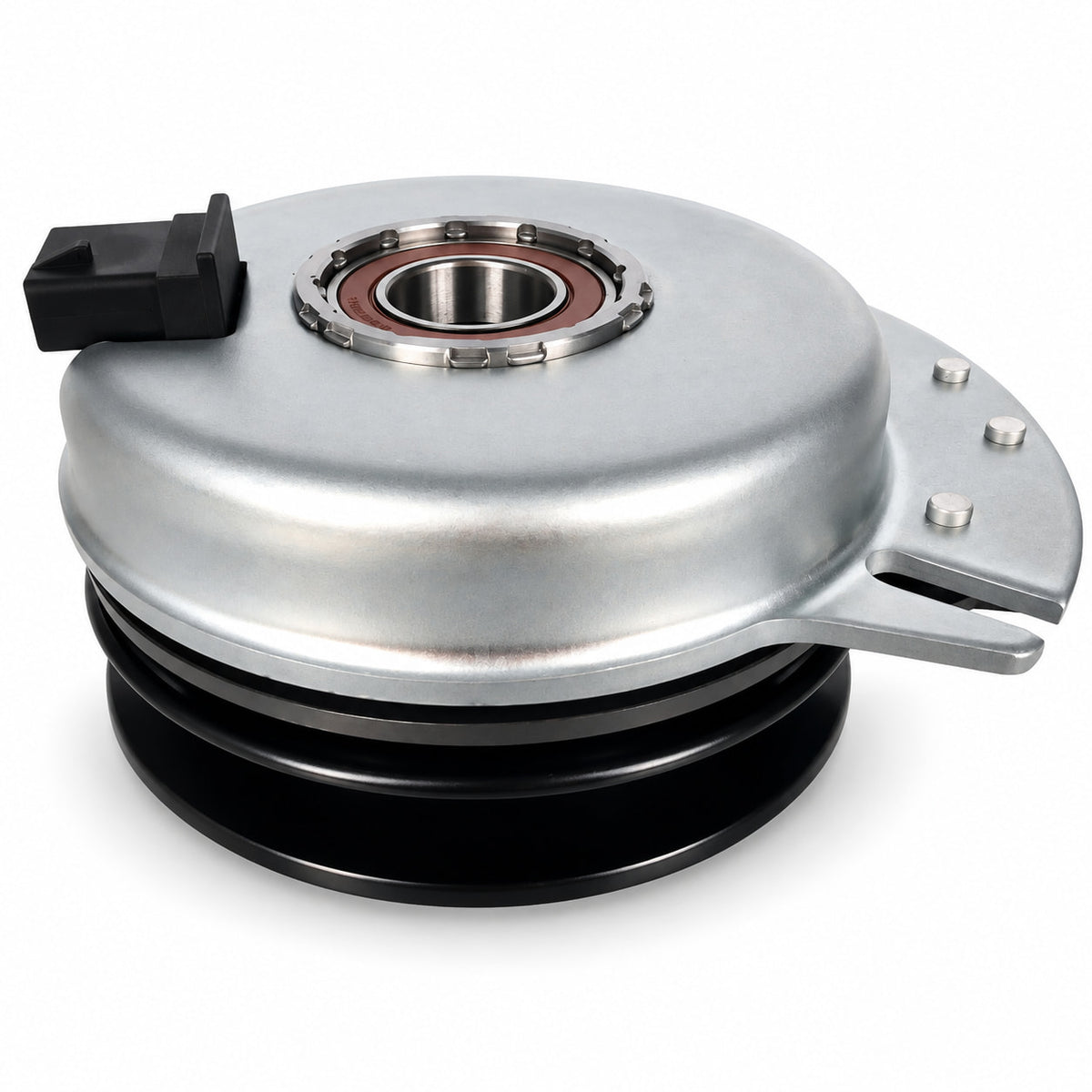

• Pre-installed bearings and electromagnetic coil
• T-plug electrical connection as shown in the product photos

Why Buy From PTO Direct USA?

• Fast USA shipping: Get the replacement parts you need to get back to mowing.
• Help matching your old clutch: We can compare OEM numbers, tractor tags, and clutch photos before you order.
• Text support and Parts Desk: Text 541-361-8778 or visit our Parts Desk for help identifying your replacement.
• Fitment Guarantee: Review our Fitment Guarantee for coverage and requirements.
• Support before and after purchase: Get help with fitment questions and access our installation resources.

Frequently Asked Questions

Does this replace the Warner 5217-9 on my Troy-Bilt?

Yes, this replacement covers the listed 5217-9 / 1772388 applications. Compare the 1-inch bore, 5.35-inch pulley, mounting arrangement, and connector with your original assembly.

Why does my parts diagram show 1772388 instead of 917-1459?

1772388 is the earlier clutch number in the listed LTX diagrams. The current service replacement is identified as 917-1459.

Should I use the tractor number or mower deck number?

Use the tractor model and serial number, along with the original clutch label. This PTO clutch is mounted at the engine. A deck number such as 14112 is useful for deck parts but does not identify the clutch by itself.

Will the wiring plug straight in?

Only if your mower harness has the matching T-plug connection. A flat, side-by-side connector requires an appropriate adapter or wiring modification. Send a connector photo to our Parts Desk if you need help checking it.

Need installation help? Read our PTO clutch installation guide.

Need a different replacement? Browse the Troy-Bilt PTO clutch collection or the full electric PTO clutch catalog.
