070-5040-00 High-Torque PTO Clutch for Bad Boy Diesel & Renegade | Warner 5228-5, 52285
Overview

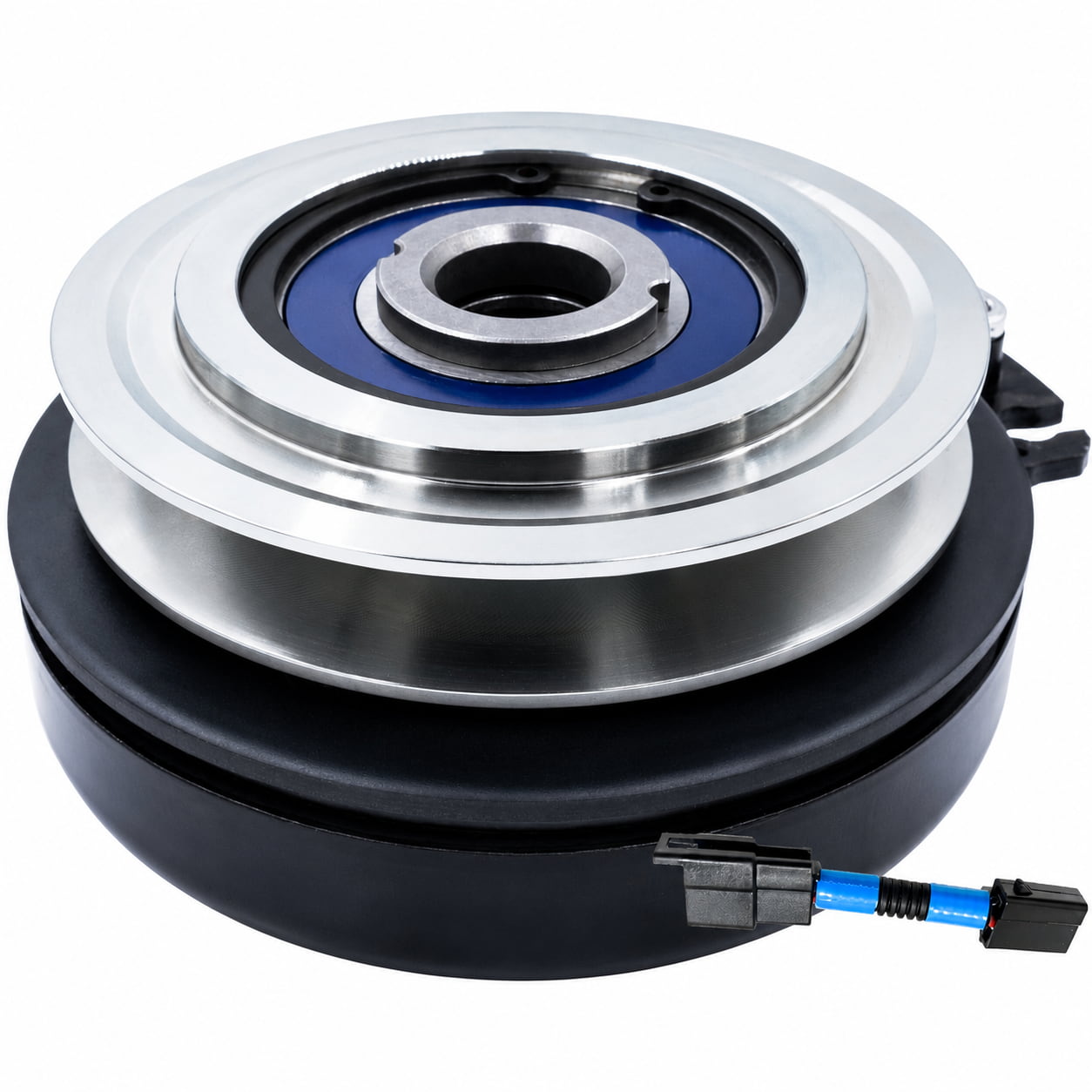

This aftermarket HD Switch 070-5040-00 electric PTO clutch is a high-torque replacement for select Bad Boy Diesel, Compact Diesel, AOS, and Renegade commercial zero-turn mowers using the 070-5040-00 or Warner 5228-5 clutch path.
Documented applications span older Caterpillar-powered Bad Boy Diesel models, later 1100cc and 1500cc Compact Diesel platforms, Renegade Diesel mowers, and select Renegade Gas models equipped with horizontal-shaft Briggs & Stratton Vanguard engines.
HD Switch markets this upgraded clutch with a 260 ft-lb torque rating, larger C3 pulley bearing, high-temperature bearing grease, solid-steel billet pulley, replaceable pulley-bearing design, and heat-dissipating coil construction.
Important fitment warning: Bad Boy uses several different PTO clutch paths across its diesel, Vanguard, Outlaw, Lightning, Renegade, MZ, Maverick, and ZT mower families. Match 070-5040-00 or Warner 5228-5 before relying on the mower name, engine brand, horsepower, or deck size.
This is an affiliate listing. The product is sold, shipped, and fulfilled by the third-party eBay seller. Price, inventory, delivery estimates, package contents, returns, and warranty terms are controlled by the seller and may change.
Key Features
- Aftermarket high-torque electric PTO clutch assembly
- Brand: HD Switch
- Primary Replacement Number: Bad Boy 070-5040-00
- Warner Cross-Reference: 5228-5, 52285
- Seller-Rated Torque: 260 ft-lbs
- Crankshaft Bore: 1-1/8 inch / 1.125 inch
- Pulley Diameter: approximately 6.20 inch
- Rotation: clockwise according to published replacement specifications
- Belt Path: B-section / 5/8-inch belt groove
- Clutch Type: electric PTO clutch with integrated brake
- Larger C3 pulley bearing intended for demanding commercial operation
- Premium high-temperature pulley-bearing grease
- Solid-steel billet pulley construction
- Replaceable pulley bearing retained by a snap ring
- High-torque electromagnetic coil design
- Composite coil material designed to help transfer heat
- Aftermarket replacement; not manufactured by Bad Boy or Warner Electric
Compatible Brands & Model Series
This clutch should be treated as a part-number-first replacement for Bad Boy mower configurations that specifically call for 070-5040-00.
Older Bad Boy Diesel and AOS Applications
- Bad Boy Diesel: select 2007–2014 commercial diesel mower applications
- Bad Boy AOS 6000: select Caterpillar diesel-powered configurations using 070-5040-00
- Bad Boy AOS 7200: select Caterpillar diesel-powered configurations using 070-5040-00
- Deck Paths: documented older diesel configurations include 60-inch and 72-inch deck systems
- Engine Paths: documented older manuals include select 28 hp and 35 hp Caterpillar diesel configurations
Compact Diesel Applications
- Bad Boy Compact Diesel: select 2015 applications
- Bad Boy Diesel 1100cc: select 2015–2018 applications
- Bad Boy Diesel 1500cc: select 2015–2018 applications
- Compact 6000 / Compact 6100: only when the original clutch or parts manual identifies 070-5040-00
Renegade Diesel Applications
- Bad Boy Renegade Diesel: select 2019-and-later mower configurations
- Bad Boy Outlaw Renegade Diesel: select parts-manual paths using the diesel/Vanguard clutch
- Documented Related Components: 070-2000-00 clutch pigtail and 057-5919-00 Renegade clutch bracket
Renegade Gas and Vanguard Applications
- Bad Boy Renegade Gas: select horizontal-shaft Vanguard-powered configurations
- Briggs & Stratton Vanguard: select 35 hp carbureted engine applications
- Briggs & Stratton Vanguard EFI: select 37 hp / 993cc EFI engine applications
- Later Renegade Gas: only when the serial-specific parts manual lists 070-5040-00
Fitment warning: Model names were reused across multiple years and engine configurations. A Bad Boy Diesel, AOS, Compact Diesel, or Renegade model may use a different clutch because of engine crankshaft size, stub-shaft arrangement, pulley location, belt profile, wiring, clutch bracket, or production revision.
Replaces OEM Part Numbers
- Bad Boy: 070-5040-00
- Bad Boy Search Format: 070504000
Use the complete Bad Boy part number. Do not confuse this clutch with 070-1000-00, 070-0050-00, 070-0056-00, or another Bad Boy clutch path.
Aftermarket Cross-Reference Numbers
- Warner Electric: 5228-5, 52285
- Xtreme: X0810
- Stens Replacement Path: 255-135
Cross-reference warning: Warner 5228 is a clutch family containing multiple configurations. Match the complete number 5228-5. Do not order using only “Warner 5228.”
Important Diesel & Vanguard Fitment Check
Do not order this clutch from mower appearance, engine horsepower, or deck size alone. The 070-5040-00 clutch is used across several distinct Bad Boy chassis and engine arrangements.
Before ordering, confirm:
- The original clutch or parts manual identifies Bad Boy 070-5040-00
- The original Warner number is 5228-5 when the Warner label is readable
- The crankshaft or clutch stub shaft measures 1-1/8 inch
- The pulley measures approximately 6.20 inches
- The pulley uses the correct B-section / 5/8-inch belt groove
- The published clockwise rotation path matches the original clutch
- The pulley offset aligns with the mower’s deck-drive belt
- The electrical connector matches the mower-side clutch pigtail
- The clutch body clears the pump plate, engine frame, bracket, and belt system
- The anti-rotation holder or clutch bracket matches the mower configuration
- The mounting bolt, key, spacers, and washers match the original arrangement
- The complete mower model, engine type, deck size, and serial number have been checked
Older AOS and Diesel mowers may use a pump-plate-mounted clutch arrangement and a PTO engager holder. Later Renegade models use a different frame and clutch-bracket layout. The shared clutch number does not mean the surrounding mounting hardware is identical.
Clutch Pigtail & Bracket Considerations
Bad Boy parts manuals document different supporting components around the 070-5040-00 clutch depending on the mower generation.
- 070-2000-00: documented clutch pigtail on select Renegade Diesel and Renegade Gas applications
- 057-5919-00: documented Outlaw Renegade clutch bracket
- 057-5906-00: documented PTO engager holder on select older diesel applications
These numbers are provided for identification and diagnostic purposes. They are not represented as included with the HD Switch clutch.
A damaged clutch pigtail, loose connector, poor ground, incorrect bracket position, or worn anti-rotation hardware can produce symptoms similar to a failed clutch or cause premature failure of a replacement clutch.
Common Symptoms of a Failing PTO Clutch
- Blades will not engage when the PTO switch is activated
- Clutch clicks but the mower deck does not begin turning
- Blades engage when cold but stop after the mower heats up
- Clutch slips during heavy or wet cutting conditions
- Deck belt squeals, smokes, or overheats during engagement
- Burning smell near the engine, pump plate, or clutch
- Grinding, rumbling, or excessive pulley-bearing noise
- Intermittent blade engagement under load
- Visible heat damage around the coil housing or connector
- Excessive movement or roughness at the pulley bearing
A weak battery, charging-system problem, damaged PTO switch, failed clutch pigtail, poor ground, slipping belt, seized spindle, dragging idler, or incorrect belt tension can create similar symptoms. Diagnose the complete PTO and deck-drive system before replacing the clutch.
What’s Included
- 1 complete aftermarket HD Switch electric PTO clutch assembly
- High-torque electromagnetic coil and integrated brake assembly
- Solid-steel billet pulley
- Larger replaceable C3 pulley bearing
- Electrical connection as represented in the seller’s product photos
Not included unless specifically shown or stated by the eBay seller: crankshaft or stub-shaft mounting bolt, key, spacers, washers, clutch pigtail, PTO engager holder, Renegade clutch bracket, anti-rotation hardware, deck belt, or mower-specific installation hardware.
Why Consider This HD Switch PTO Clutch?
- Designed around the Bad Boy 070-5040-00 replacement path
- 260 ft-lb seller-rated torque
- Larger C3 pulley bearing designed for commercial mower service
- High-temperature pulley-bearing grease
- Replaceable pulley-bearing design
- Solid-steel billet pulley construction
- Heat-dissipating clutch-coil design
- Supports older diesel and later Renegade buyer search paths
- Useful option when an original Warner 5228-5 clutch is no longer serviceable
Need Help Confirming Fitment?
Send PTO Direct USA the complete Bad Boy mower model, model year, serial number, deck size, engine manufacturer, engine model, original clutch number, and clear photos of the clutch label, pulley, connector, pump plate, clutch bracket, and mounting hardware.
For older diesel applications, include photos of the stub shaft and PTO engager holder. For Renegade applications, include photos of the 070-2000-00-style clutch pigtail and 057-5919-00-style bracket area.
FAQ
What does this HD Switch PTO clutch replace?
This clutch is marketed as a high-torque aftermarket replacement for Bad Boy 070-5040-00 and Warner 5228-5.
What are the main replacement-path specifications?
The documented replacement path uses a 1-1/8-inch bore, an approximately 6.20-inch pulley, clockwise rotation, and a B-section / 5/8-inch belt groove.
Does this fit Bad Boy AOS 6000?
It is marketed for select Bad Boy AOS 6000 diesel applications using 070-5040-00. Confirm the original clutch number, engine, stub-shaft size, pulley, belt, and pump-plate arrangement before ordering.
Does this fit Bad Boy AOS 7200?
It is marketed for select AOS 7200 diesel applications using 070-5040-00. Older Bad Boy diesel manuals document this clutch in mower systems using 60-inch and 72-inch deck paths.
Does this fit the Bad Boy Compact Diesel?
Yes, the 070-5040-00 path is associated with select Compact Diesel applications, including documented 1100cc configurations. Confirm the original clutch number and complete mower configuration.
Does this fit 2015–2018 Bad Boy Diesel mowers?
The X0810 / 070-5040-00 replacement path is listed for select 2015–2018 Bad Boy 1100cc and 1500cc diesel applications. Verify the serial-specific parts manual before ordering.
Does this fit the Bad Boy Renegade Diesel?
Yes, Bad Boy parts manuals document 070-5040-00 on select Renegade Diesel configurations. Production revisions apply, so confirm the complete serial number and original clutch.
Does this fit a Vanguard-powered Bad Boy Renegade?
Bad Boy manuals document 070-5040-00 on select Renegade Gas configurations with horizontal-shaft Briggs & Stratton Vanguard engines, including certain carbureted and EFI paths. Do not order by engine brand or horsepower alone.
Is 070-5040-00 the same as 070-1000-00?
No. 070-5040-00 and 070-1000-00 are separate Bad Boy clutch paths with different cross-references and application routing. Do not substitute them based on pulley appearance.
Is 070-5040-00 the same as 070-0056-00?
No. 070-0056-00 is a separate clutch path used on select newer Bad Boy ZT Elite, Maverick, and Revolt applications.
Is Warner 5228-5 a confirmed cross-reference?
Yes. Warner 5228-5 is the established cross-reference for Bad Boy 070-5040-00. Match the complete Warner number because other 5228-series clutches may be different.
Is Xtreme X0810 the same replacement path?
Yes. Xtreme X0810 is marketed for the 070-5040-00 and Warner 5228-5 replacement path. The HD Switch clutch and Xtreme clutch are separate aftermarket products and may use different torque ratings or construction details.
Why does HD Switch rate this clutch at 260 ft-lbs?
HD Switch markets this version as a high-torque upgrade using a larger bearing, billet pulley, and increased coil capacity. The 260 ft-lb figure is the seller’s published rating for the HD Switch product.
Are the clutch pigtail and mounting bracket included?
Do not assume they are included. Bad Boy 070-2000-00 clutch pigtails, 057-5919-00 Renegade brackets, older PTO engager holders, bolts, keys, and spacers are separate mower components unless the seller specifically states otherwise.
Can I order this clutch by appearance?
No. Match 070-5040-00 or Warner 5228-5 first, then confirm bore size, pulley diameter, rotation, belt groove, pulley offset, connector, bracket arrangement, mower model, engine, and serial number.
Who handles shipping, returns, and warranty?
The linked eBay seller handles payment, shipping, returns, and any seller-provided warranty. Review the current eBay listing terms before purchasing.
