Overview

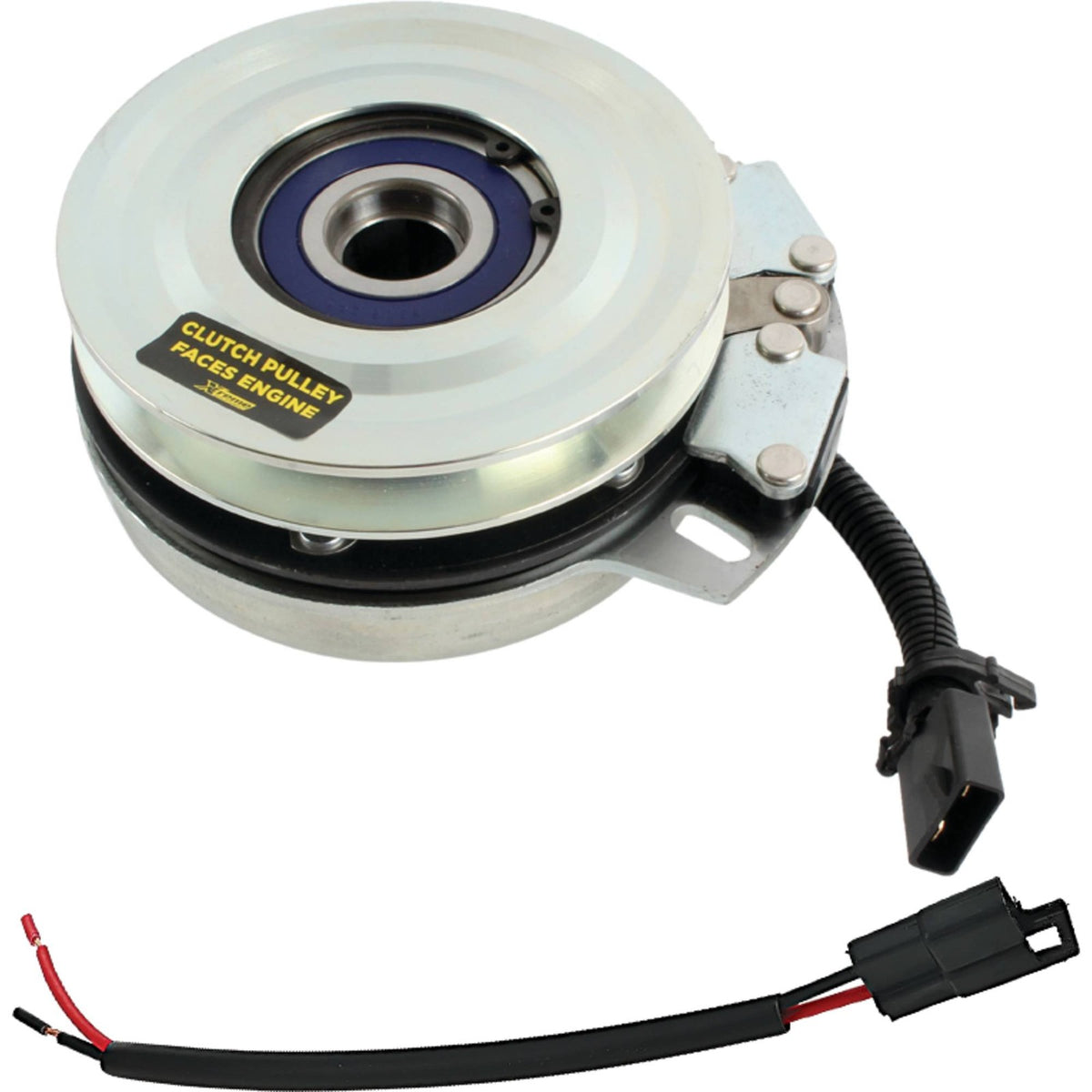

This Xtreme X0592 electric PTO clutch is an aftermarket replacement for applications using Ariens or Gravely 03972700, also written 3972700.

The Ariens parts diagram lists 03972700 for the Edge 52 Kawasaki FR, model 915285, beginning at serial number 000101. Confirm the number and physical details of your original clutch before ordering.

Key Specifications

Replacement numbers: Ariens / Gravely 03972700, 3972700
Xtreme part number: X0592
Crankshaft bore: 1 inch
Pulley diameter: 5.36 inches
Rotation: Counterclockwise, as specified by Xtreme
Belt: A/B profile
Xtreme torque rating: 125 ft-lb

Ariens describes its original 03972700 clutch as a 105 ft-lb monopole unit. The 125 ft-lb figure above is Xtreme’s rating for this aftermarket replacement.

Model Reference

Ariens Edge 52 KAW FR, model 915285: The mower parts diagram lists clutch 03972700 for serial number 000101 and above. Match the original clutch label, 1-inch bore, pulley, connector, and mounting arrangement before buying. Other Ariens and Gravely applications must be checked by their original clutch number and specifications.

Check Fitment Before Buying

Compare your old clutch’s complete part number, crankshaft bore, pulley diameter and belt profile, electrical connector, and anti-rotation mount. The mower model alone does not confirm every physical detail.

Buy From the Independent Seller

This clutch is sold and fulfilled by Xtreme Outdoor Power Equipment on eBay. Use the Buy button to review the seller’s current price, availability, shipping, returns, and warranty information.

Fitment support before and after purchase: Send your mower model and serial number, plus photos of the original clutch label and connector, to the PTO Direct USA Parts Desk.
