Ariens Gravely 03785000 PTO Clutch | Xtreme X0610
Overview
The Xtreme X0610 electric PTO clutch is an aftermarket replacement for Ariens / Gravely 03785000, 00192107, and 00192108, with additional EverRide references listed below. Applications include select Pro-Turn and Pro-Master Z commercial mower configurations.
Match your original clutch number and mower identification tag using the references below. The model cards include OEM-documented clutch numbers and serial coverage to help narrow your selection.
Key Features & Specifications
- Brand: Xtreme Outdoor Power Equipment
- Manufacturer Part Number: X0610
- Mounting Bore: 1-1/8 inch / 1.125 inches
- Pulley Diameter: 6 inches
- Rotation: CCW — counter-clockwise
- Belt Compatibility: A/B belt profile
- Published Torque Rating: 150 ft-lbs

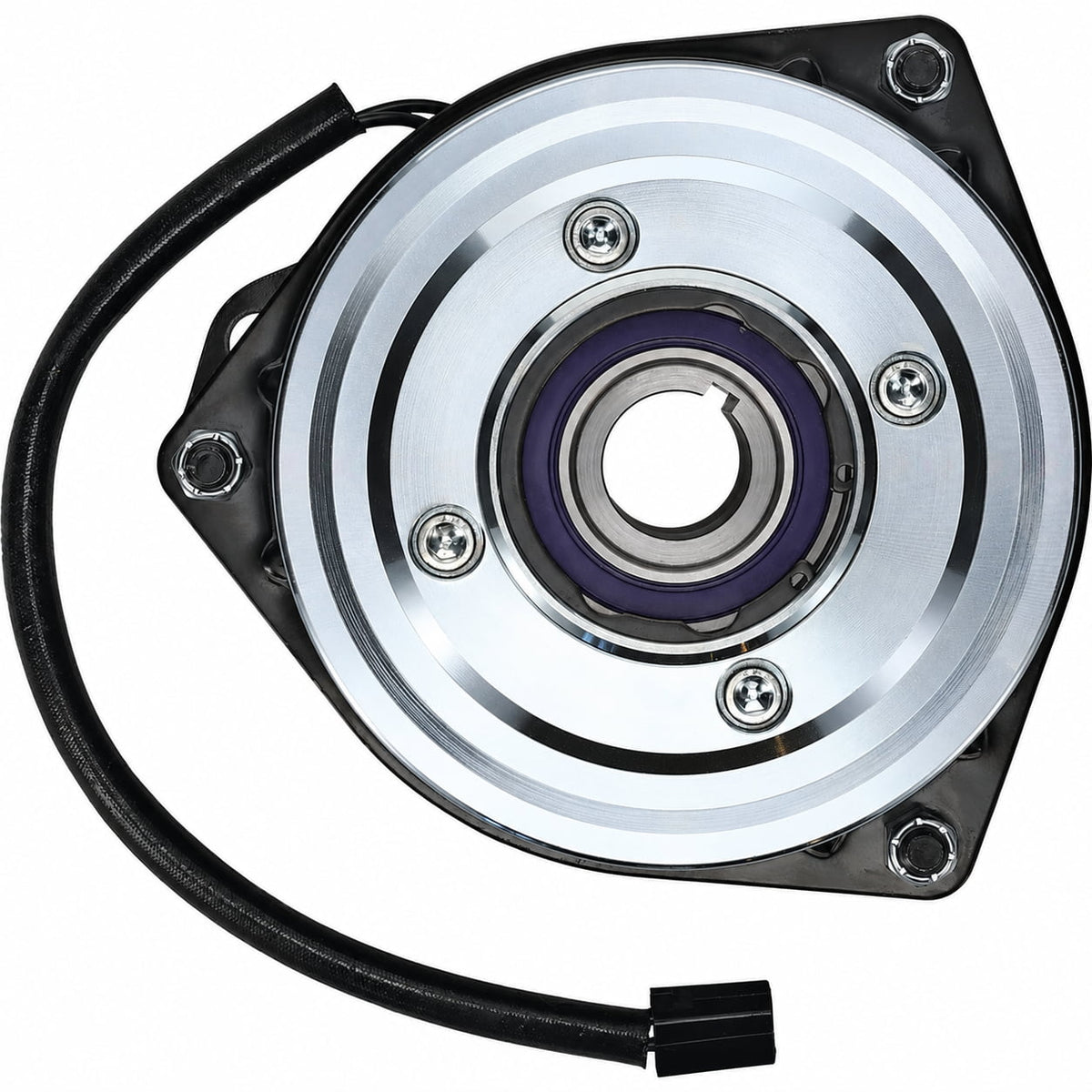

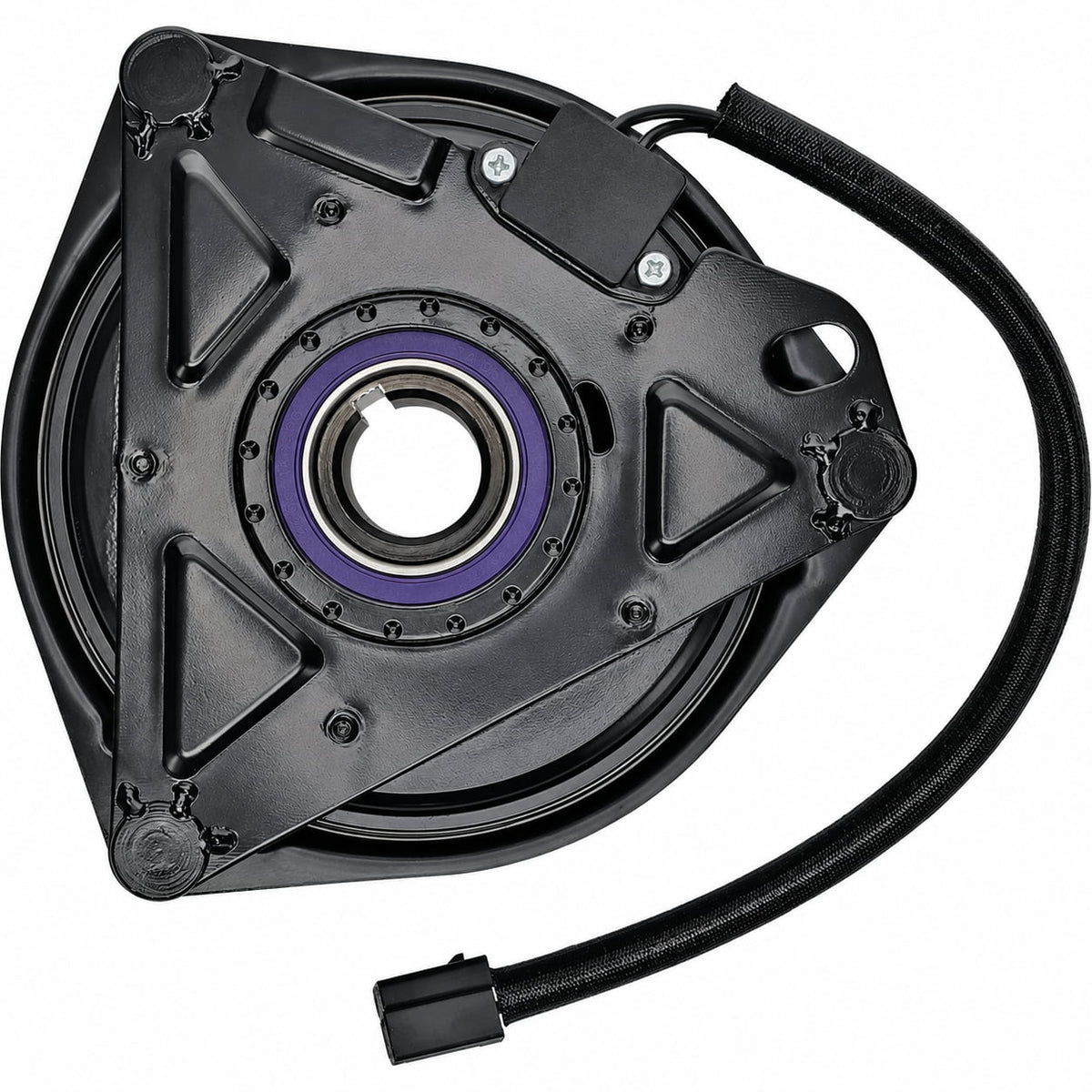

- Electrical Connection: compare the lead and connector shown in the product photos with your mower harness
Xtreme’s construction features include a machined pulley, Cool Coil technology, high-performance bearings, stainless steel straps and rivets, protected wiring, and a replaceable pulley bearing.
Replacement Part Numbers & Cross References
- Ariens / Gravely: 03785000, 00192107, 00192108
- EverRide: 03785000, 00192107, 00192108, 192108, EVR-03785000, EVR-192107, EVR-192108
- Xtreme: X0610
Original manufacturer reference: The OEM parts manuals identify 03785000 as Ogura GT2.5-FE02. This listing features Xtreme’s aftermarket replacement.
Compatible Models & Serial References
The following Gravely models are listed in OEM parts manual 04698900. Its engine diagrams identify 03785000 for both serial groups: 030000–039999 and 040000 and up.
Gravely Pro-Turn 148 CE
Models 991300 & 991303
48-inch deck
Kawasaki FX691 engine
Serial 030000 and up
OEM clutch: 03785000
Gravely Pro-Turn 152 CE
Model 991304
52-inch deck
Kawasaki FX691 engine
Serial 030000 and up
OEM clutch: 03785000
Gravely Pro-Turn 160 CE
Model 991305
60-inch deck
Kawasaki FX691 engine
Serial 030000 and up
OEM clutch: 03785000
OEM source: Gravely Pro-Turn 100 parts manual 04698900, model coverage on page 3 and clutch item 1 on pages 19–20.
Earlier Pro-Turn 148 References
OEM parts manual 04317200E also lists 03785000 / Ogura GT2.5-FE02 at engine item 5 on page 29. Its cover identifies 991300 Pro-Turn 148 RD, serial 010500 and up, and 991303 Pro-Turn 148 SD, serial 001000 and up. Select the applicable manual for your machine’s serial number.
Additional Manufacturer-Listed Applications
Xtreme also lists Gravely Pro-Master Z, broader Pro-Turn applications, and EverRide machines using the replacement numbers above. These family references do not establish fitment for every model or production year.
Confirm the installed configuration: Match the OEM clutch reference, mounting bore, pulley alignment, rotation, connector, and anti-rotation attachment. Engine replacements or previous modifications can change the required clutch.
What’s Included

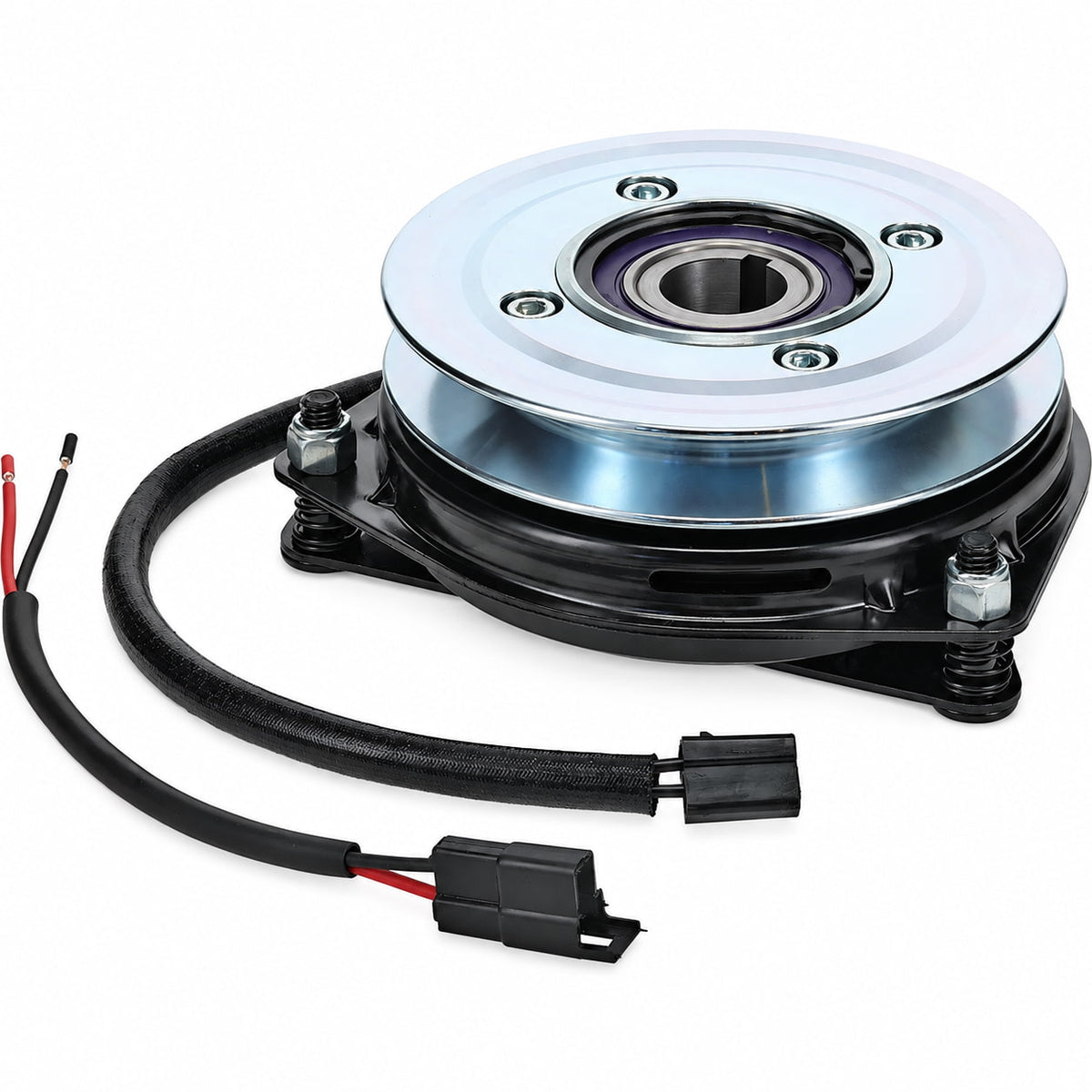

- One Xtreme X0610 electric PTO clutch assembly with pulley and installed bearings
- Clutch wiring connection as shown in the offer’s product photos
Check the selected offer for any separately supplied adapter lead or mounting hardware.
Before Ordering & Installing
- Identify your mower. Record the complete model and serial number from the frame tag.
- Match the clutch reference. Use the original label or the OEM parts diagram for that serial range.
- Compare the installation. Check the crankshaft, pulley position, belt profile, wiring, mounting arrangement, and clearance.
- Follow the installation instructions. Use the hardware arrangement and procedures specified by the mower manufacturer and Xtreme.
Read our PTO clutch installation guide for preparation and inspection guidance.
