Overview
This 00191700 PTO clutch replacement is an aftermarket electric clutch for select Ariens, Gravely, and EverRide / Yellow Jacket mower applications. It replaces 00191700 and 191700, with cross-references including Warner 5219-45 and Xtreme X0005.

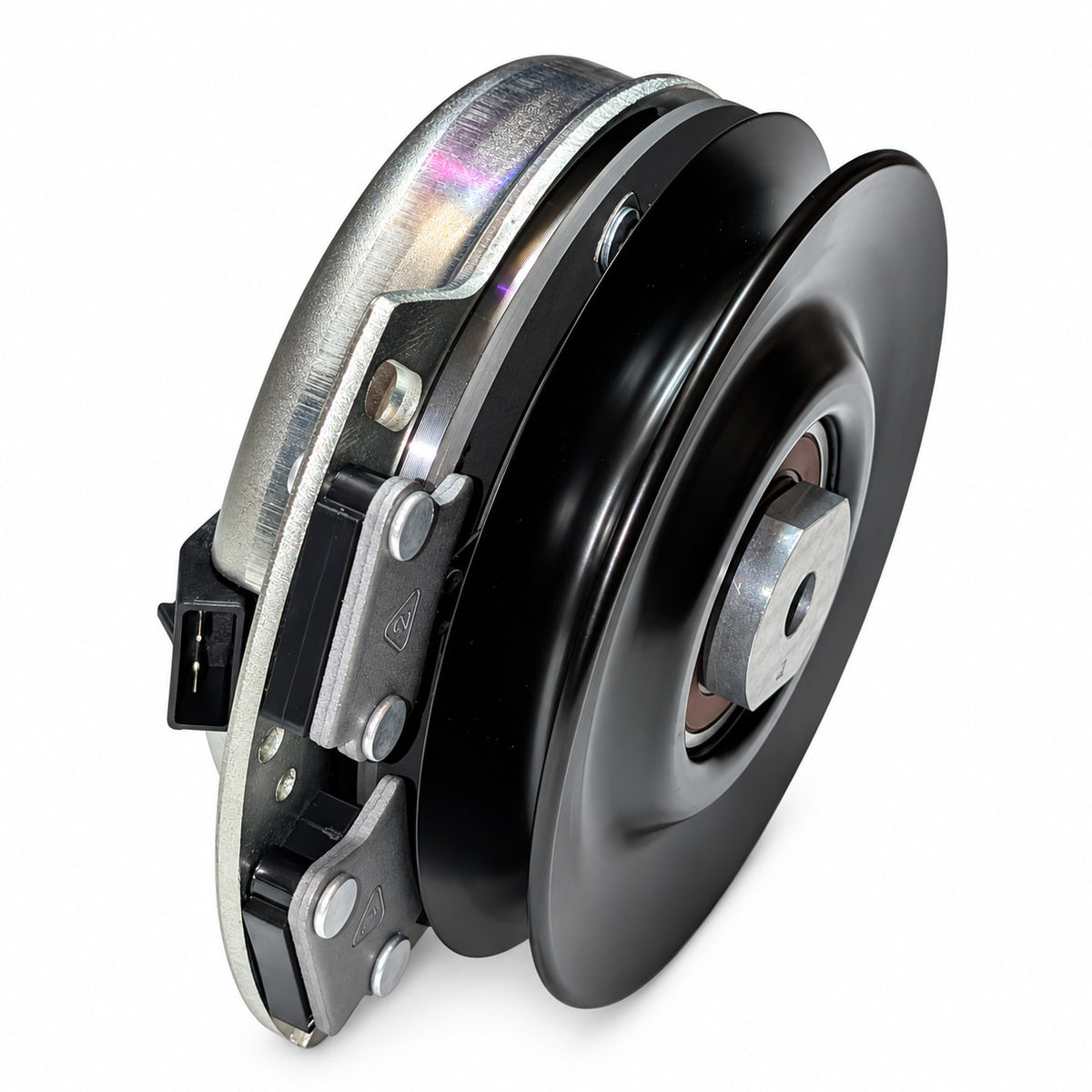

Built with a 1-inch crankshaft bore, 6-inch pulley, and counter-clockwise rotation viewed from the pulley side, this clutch transfers engine power to the mower deck on compatible installations. Use the original clutch number and your mower's model and serial information to confirm the correct replacement.
Application references include select Ariens Zoom and Zoom XL, Ariens Pro-Master, Gravely ZT and Pro-Master, and Yellow Jacket models listed below.
Key Features & Specifications
- Clutch Type: aftermarket electric PTO clutch assembly
- Pulley Diameter: 6 inches / 6.00"
- Crankshaft Bore: 1 inch / 1.000"
- Rotation: CCW — counter-clockwise, viewed from the pulley side
- Voltage: 12V DC
- Torque Rating: 125 ft-lbs
- Belt Compatibility: 1/2-inch or 5/8-inch A/B belt profile

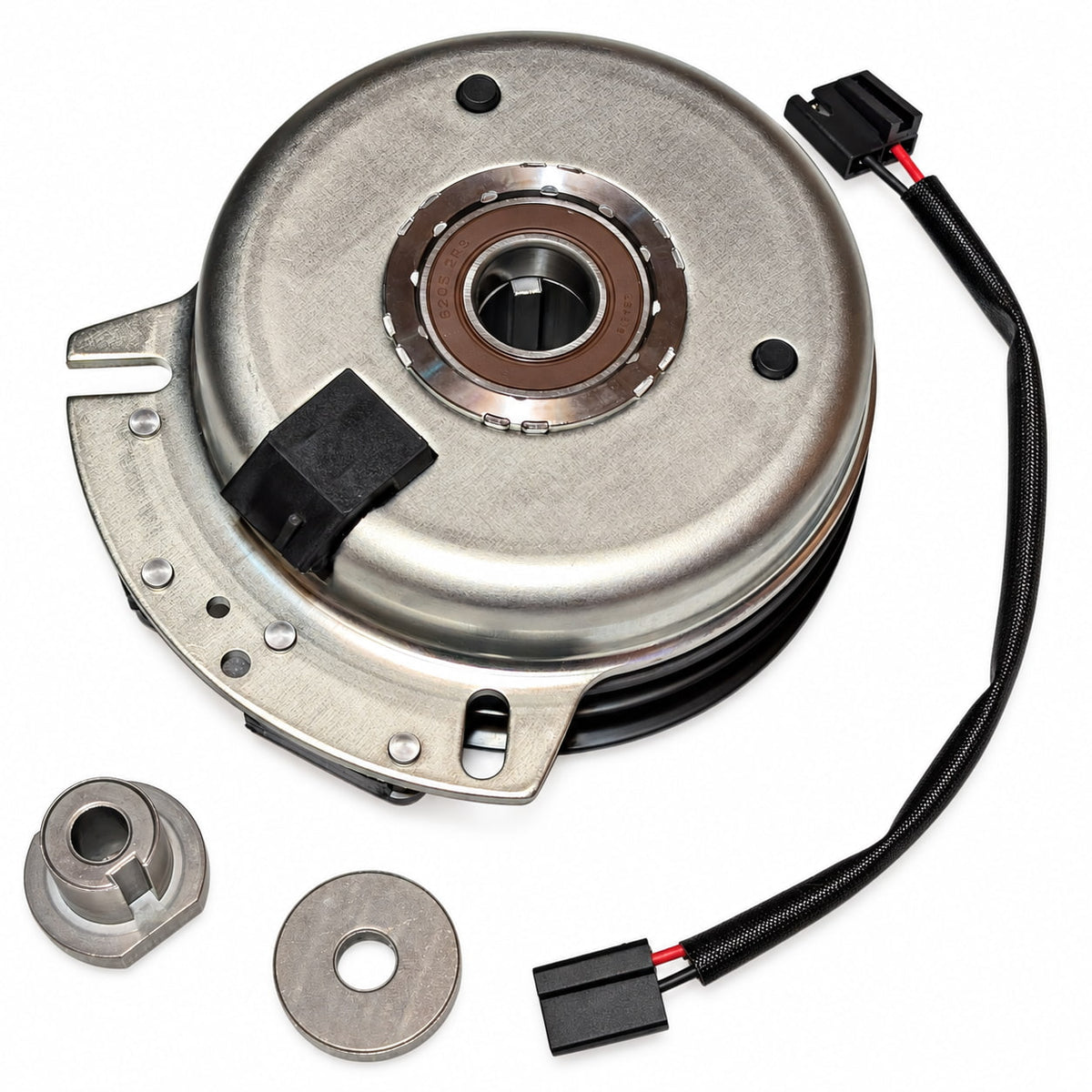

- Electrical Connection: integrated wiring harness; compare the connector and wire routing with your original clutch
- Fully assembled clutch for installation after fitment verification
Compatible Brands & Model Series
Use these model names as fitment references for machines using the 00191700 / 191700 clutch family. The complete model number, serial number, and original clutch reference determine the correct replacement.
- Ariens Zoom: 1540, 1640, 1740, 1744, 1840, 1944, 2044, 2148, 2348, 2352, and 2552
- Ariens Zoom XL: 2550XL, 2552XL, and 2560XL
- Ariens Pro-Master: PM34Z
- Gravely ZT: 1540, 1640, 1740, 1840, 1944, 2044, 2148, 2348, 2352, and 2552
- Gravely Pro-Master: 34Z, 44Z, and 144Z
- EverRide / Encore / World Lawn Yellow Jacket: YJ1840, YJ2044, and YJ2348
Model, Product Code & Serial References
Find the product code and serial number on your mower's identification tag, then compare them with the references below.
-
Ariens Zoom 1540
Product code 915317
Deck: 40 inches
Serial: Confirm in OEM diagram
-
Ariens Zoom 1640
Product code 915075
Deck: 40 inches
Serial: 025000 and up
-
Ariens Zoom 1740
Product code 915044
Deck: 40 inches
Serial: 005000 and up
-
Ariens Zoom 1744
Product code 915318
Deck: 44 inches
Serial: Confirm in OEM diagram
-
Ariens Zoom 1840
Product code 915077
Deck: 40 inches
Serial: 025000 and up
-
Ariens Zoom 1944
Product code 915046
Deck: 44 inches
Serial: 005000 and up
-
Ariens Zoom 2044
Product code 915079
Deck: 44 inches
Serial: 025000 and up
-
Ariens Zoom 2148
Product code 915048
Deck: 48 inches
Serial: 005000 and up
-
Ariens Zoom 2348
Product code 915081
Deck: 48 inches
Serial: 025000 and up
-
Ariens Zoom 2352
Product code 915050
Deck: 52 inches
Serial: 005000 and up
-
Ariens Zoom 2552
Product code 915083
Deck: 52 inches
Serial: 025000 and up
-
EverRide / Yellow Jacket YJ1840
Product code 915400
Deck: 40 inches
Serial: 000101 and up
-
EverRide / Yellow Jacket YJ2044
Product code 915401
Deck: 44 inches
Serial: 000101 and up
-
EverRide / Yellow Jacket YJ2348
Product code 915402
Deck: 48 inches
Serial: 000101 and up
Production changes matter: Some models changed clutch families during production. Check the OEM diagram for your complete product code and serial number, especially if the mower has a replacement engine or deck.
Replaces OEM Part Numbers
- Ariens / Gravely: 00191700, 191700
- EverRide / Encore / World Lawn: 00191700, 191700
Manufacturer & Aftermarket Cross References
- Warner Electric: 5219-45 / 521945
- Xtreme: X0005
- Stens: 255-825X / 255825X
- Oregon: 33-130
- 8TEN: 810-CPT2354O
Original equipment and aftermarket reference numbers are provided to help identify the replacement. This listing is for an aftermarket clutch.
How to Confirm Fitment
- Match the clutch number. Look for an OEM, Warner, or other manufacturer number on your original clutch.
- Check the mower identification tag. Use the complete model or product code and serial number to select the correct OEM parts diagram.
- Compare the installation details. Confirm the 1-inch bore, 6-inch pulley, belt profile, CCW rotation, connector, pulley offset, and anti-rotation mounting arrangement.
