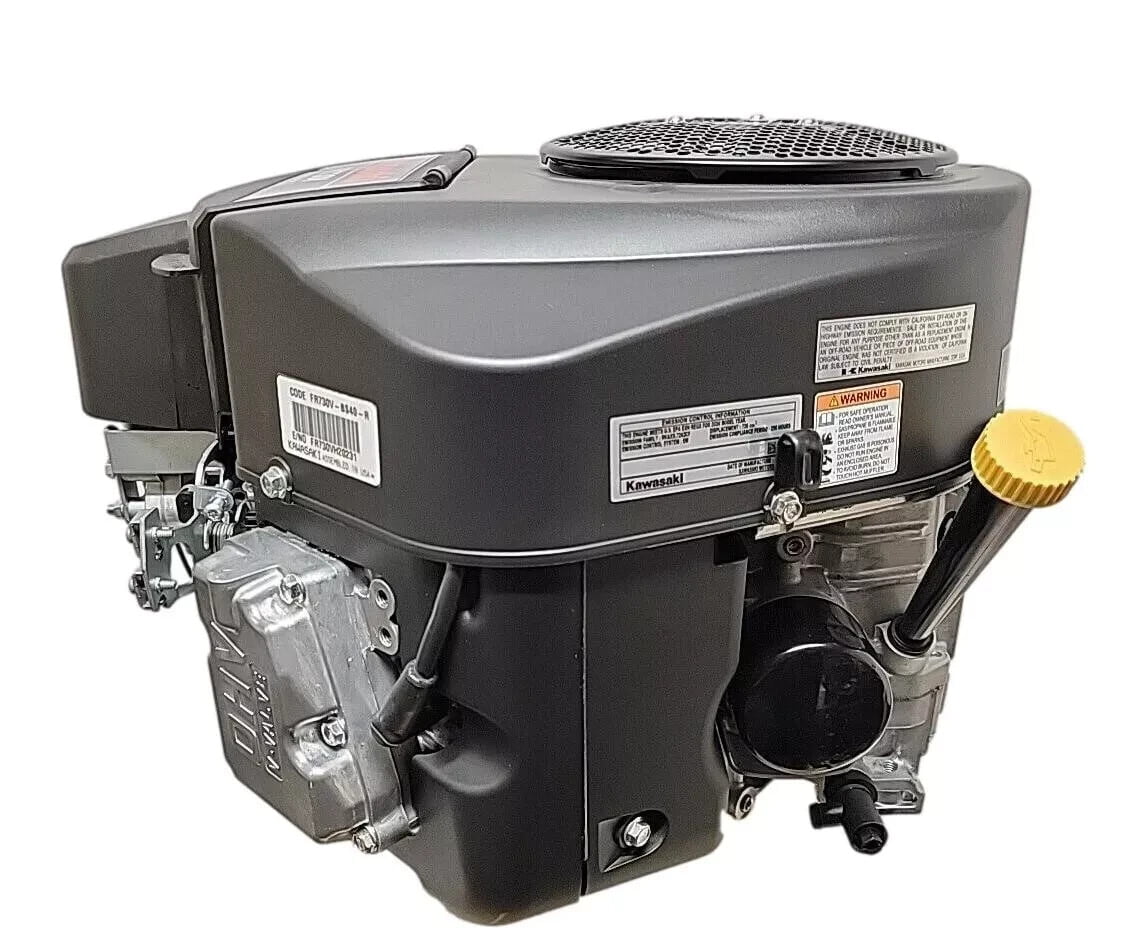

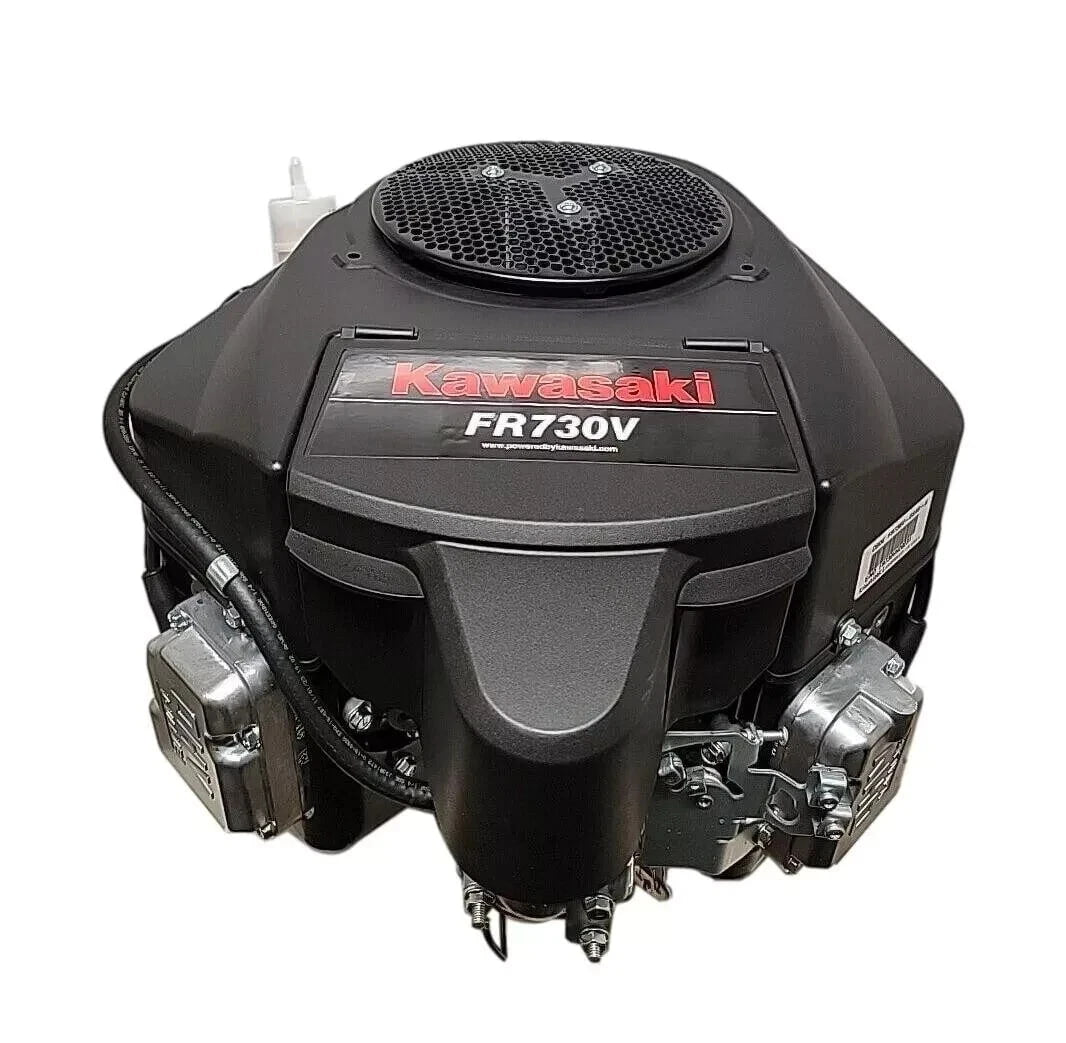

Kawasaki FR730V-AS40 Engine — 24 HP, 1-Inch Vertical Shaft
Overview
Restore your mower’s power with the Kawasaki FR730V-AS40 vertical-shaft engine. This 24 HP, 726cc V-twin is offered for riding mower and zero-turn repower applications requiring a 1-inch diameter × 3-5/32-inch crankshaft.
The engine features electric start, a 15-amp alternator, overhead valves and pressurized lubrication. Match the complete engine specification, shaft dimensions and mower configuration before ordering.
Key Features
- Engine specification: Kawasaki FR730V-AS40
- Power: 24 HP maximum at 3,600 RPM
- Displacement: 726cc
- Design: air-cooled, 4-stroke OHV V-twin
- Crankshaft: vertical, 1-inch diameter × 3-5/32-inch length
- Starting system: electric start
- Charging system: 15-amp alternator
- Lubrication: pressurized lubrication system
- Construction: cast-iron cylinder liners
- Ignition: electronic spark ignition with automatic compression release
Kawasaki FR730V-AS40 Specifications
| Manufacturer / Series | Kawasaki / FR Series |
|---|---|
| Engine Specification | FR730V-AS40 |
| Displacement | 726cc |
| Maximum Power | 24 HP at 3,600 RPM |
| Crankshaft Orientation | Vertical |
| Crankshaft Dimensions | 1-inch diameter × 3-5/32-inch length |
| Starting / Charging | Electric start / 15-amp alternator |
| Cooling | Forced-air cooling |
| Fuel Delivery | Carburetor with fuel shut-off solenoid |
| Condition | New |
Riding Mower & Zero-Turn Repower Applications
The FR730V-AS40 is offered for riding mower and zero-turn applications using the specified vertical crankshaft. Repower compatibility depends on the complete installation, including the engine mounting pattern, shaft geometry, pulley or PTO clutch position, electrical connections, controls and exhaust clearance.
Use the full engine specification code when comparing replacements. FR730V identifies the engine family; the AS40 specification identifies the configuration offered here. Engines sharing the FR730V name or horsepower rating can have different installation requirements.
Before Ordering
- Record your mower’s complete model and serial numbers and photograph the original engine identification label.
- Confirm the 1-inch crankshaft diameter, 3-5/32-inch shaft length, keyway and retaining-bolt requirements.
- Compare the mounting pattern, PTO clutch or pulley position and belt alignment.
- Check the wiring connections, charging requirements, throttle and choke controls.
- Confirm the muffler arrangement, exhaust clearance and which accessories are included or must be transferred.
- For a different original engine specification, confirm the repower application with the seller or an authorized Kawasaki Engines dealer.
Ordering Information
Use the buy button above to view the current seller offer, price, availability and shipping details. This engine is sold and fulfilled by an independent eBay seller. Review the current listing for included components, returns and warranty terms.
PTO Direct USA may earn a commission from qualifying purchases through our affiliate link.
Need Help Identifying Your Engine?
Send photographs of your engine identification label and mower model tag through our Parts Desk, or text 541-361-8778. You can also browse our replacement engine collection.
Fitment support before and after purchase.
