Overview

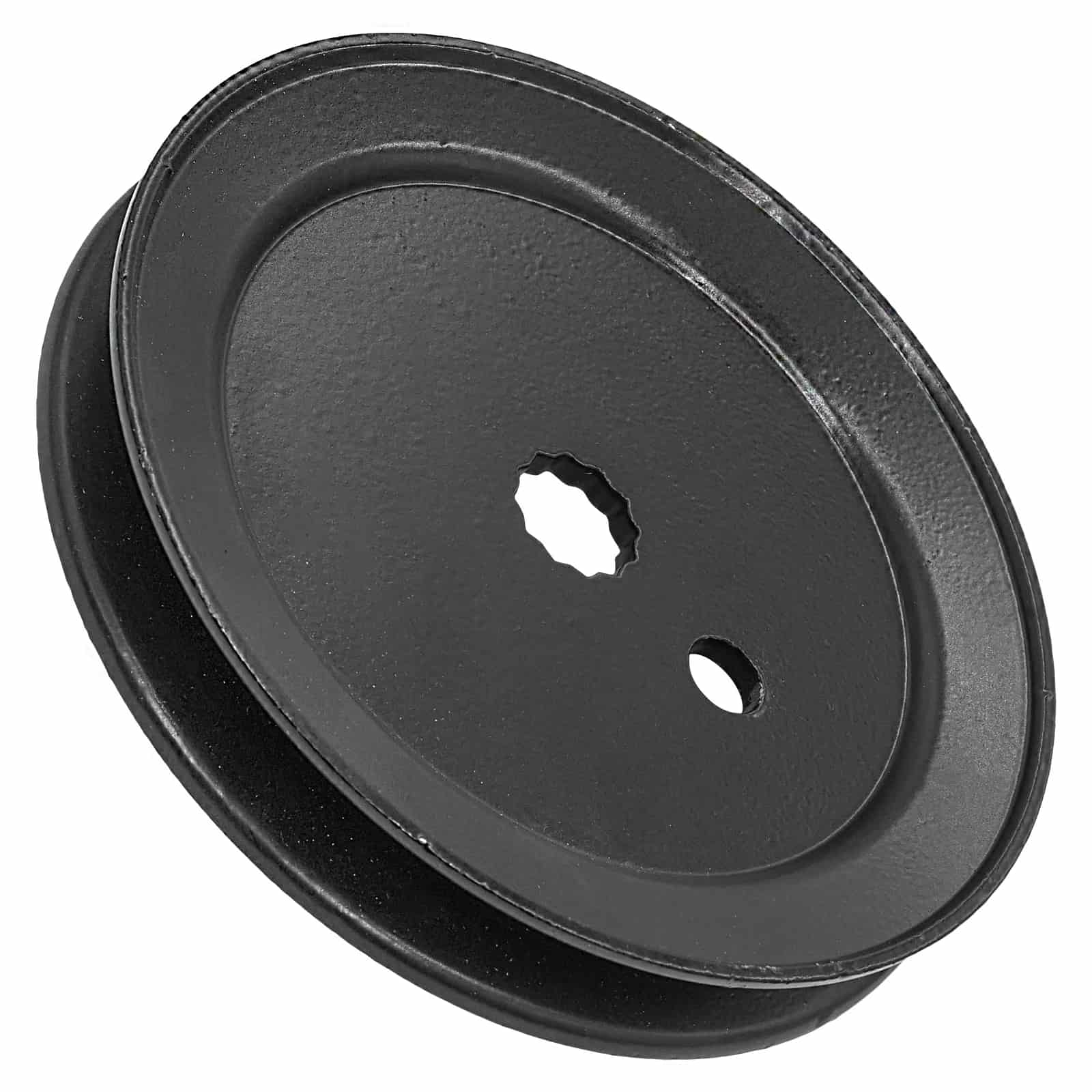

This aftermarket 603987 deck spindle pulley is a replacement mower deck pulley for compatible Hustler mower deck applications, including select 42-inch Dash, Raptor, Raptor Limited, and open-deck Raptor configurations.
Use this listing when your original pulley number matches 603987, 17136, or 13-17136. This pulley has a 4.80-inch outside diameter, 0.62-inch bore, 0.72-inch outer width, 0.39-inch inner width, and a 12-point mount hole.
Key Features
- Product Type: Deck Spindle Pulley
- Outside Diameter: 4.80 in - 122 mm
- Bore / Center Hole: 0.62 in - 16 mm
- Outer Width: 0.72 in - 18.5 mm
- Inner Width: 0.39 in - 10 mm
- Mount Hole Style: 12-point mount hole
- Aftermarket replacement pulley for mower deck belt-drive systems
- Use for compatible Hustler riding mower and zero-turn mower deck applications
Compatible Brands & Model Series
Common compatible Hustler model paths include:
- Hustler: Dash Briggs & Stratton Intek Series 10.5HP, 42-inch deck
- Hustler: Dash Briggs & Stratton Powerbuilt 10.5HP, 42-inch deck
- Hustler: Raptor Kawasaki FR600 18HP, 42-inch deck, serial numbers 19113179 and higher or prior to 19113179
- Hustler: Raptor Kohler 7000 Series HD with Smart Choke 22HP, 42-inch deck
- Hustler: Raptor with open deck, Kawasaki FR600 18HP, 42-inch deck, serial numbers 19113179 and higher or prior to 19113179
- Hustler: Raptor with open deck, Kohler 7000 Series HD with Smart Choke 22HP, 42-inch deck, serial numbers 19113179 and higher or prior to 19113179
- Hustler Dash: 938498 - HTDSHS042BAS21R707A
- Hustler Dash: 939249 - HTDSHS042BAS21R707M
- Hustler Raptor: 934505US - HTRTRS042KOHKT725U
- Hustler Raptor: 934786 - HTRTRS042KOHKT725M
- Hustler Raptor: 935742 - HTRTRS042KOHKT725A
- Hustler Raptor: 937748 - HTRTRS042KAWFR651V
- Hustler Raptor: 937847 - HTRTRS042KAWFR651VM
- Hustler Raptor: 938167 - HTRTRS042KOHKT725A
- Hustler Raptor: 938571 - HTRTRL042KOHKT725A
- Hustler Raptor: 938589 - HTRTRL042KAWFR600VA
- Hustler Raptor: 939215 - HTRTRL042KAWFR600VM
- Hustler Raptor Limited: 938977 - HTRTLL042KAWFR651VA
Replaces Part Numbers
- 603987
- 17136
- 13-17136
Related Spindle Assembly
This 603987 deck spindle pulley is commonly associated with the Hustler spindle path referenced as 604214 and 604214P. If you need the matching spindle assembly, see our 604214 / 604214P Hustler spindle assembly.
Common Symptoms of a Worn Deck Pulley
- Mower deck belt squealing, slipping, or jumping off track
- Visible pulley wobble or uneven belt tracking
- Grinding, rattling, or bearing noise near the deck pulley
- Reduced blade speed or inconsistent cut quality caused by poor belt tension
Why Buy From PTO Direct USA?
- Fast USA shipping
- Fitment-focused replacement parts support
- Clear part-number matching to help reduce wrong-part orders
- Replacement mower deck parts for homeowners, shops, and landscape crews
Need Help Confirming Fitment?
If you are not sure this is the correct pulley, send us your mower model number, deck size, and the part number from your original pulley. We can help compare the replacement path before you order.
FAQ
How do I confirm this pulley fits my mower?
Start by matching the OEM pulley number on your original part. Then compare the outside diameter, bore or center-hole size, pulley width, belt profile, deck layout, and mower model.
Can I order by appearance alone?
No. Similar-looking deck pulleys can have different bore sizes, offsets, belt profiles, and deck applications. Match the part number and dimensions first.
What causes a mower deck pulley to fail?
Common causes include worn bearings, belt misalignment, impact damage, seized hardware, or long-term wear from deck belt tension.
