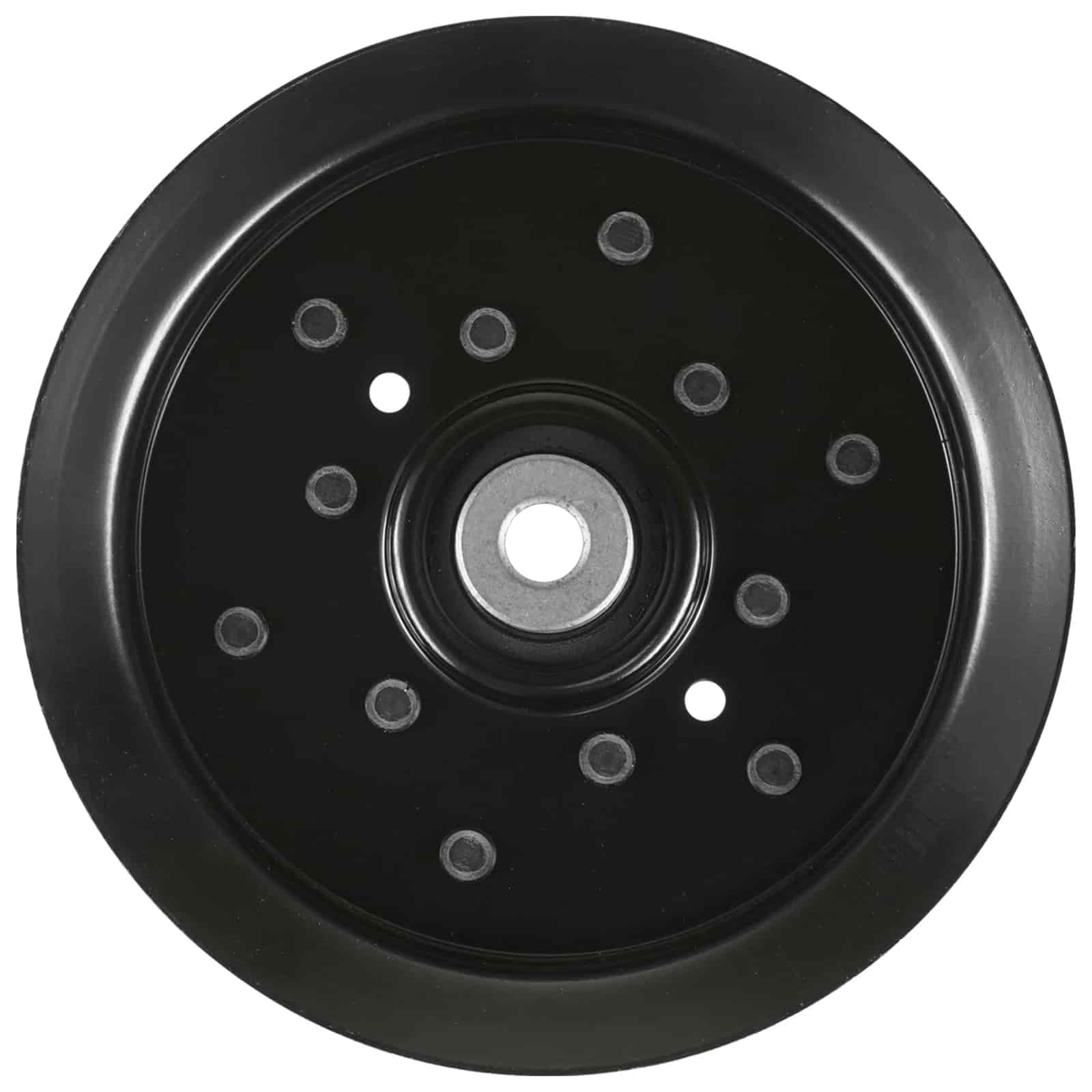

532196106 / 532197379 Flat Idler Pulley for Husqvarna RZ5424
532196106 / 532197379 Flat Idler Pulley for Husqvarna RZ5424
Overview
This aftermarket 532196106 flat idler pulley replaces Husqvarna 532197379, 196106, and 197379 on select Husqvarna, AYP-built, Craftsman, and Poulan mower deck applications.
This pulley is a confirmed deck component for select Husqvarna RZ5424 54-inch mower decks. It runs against the flat or back side of the mower deck belt and helps maintain proper belt routing through the idler system.
Do not order by mower model, deck width, or pulley appearance alone. Match the original pulley number or the pulley callout in the exact model-specific deck diagram.
Key Features
- Aftermarket flat mower deck idler pulley
- Primary Replacement Number: 532196106
- Additional Replacement Numbers: 532197379, 196106, 197379
- Pulley Type: flat idler pulley
- Outside Diameter: approximately 136 mm – 5.35 inches
- Overall Height: approximately 50.2 mm – 1.98 inches

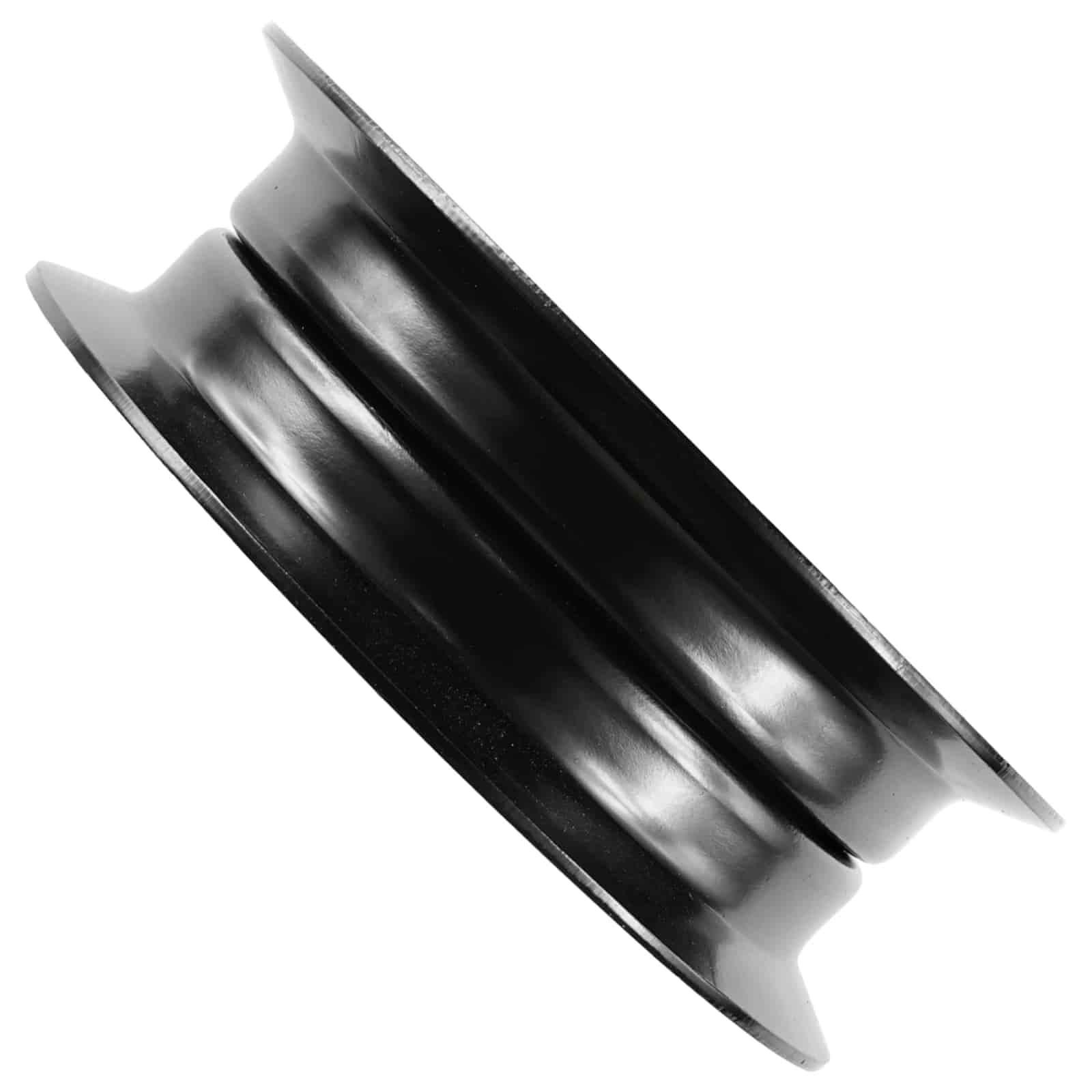

- Flat Belt-Contact Width: approximately 41.2 mm – 1.62 inches
- Mounting / Shaft Size: approximately 11.3 mm – 0.44 inch
- Material: aluminum
- Complete replacement pulley with center bearing
Measurement note: Pulley suppliers may measure the outside flange, belt-contact surface, overall height, or mounting opening differently. Match the 532196106 or 532197379 part number first.
Compatible Brands & Model Series
This pulley fits select mower deck configurations from:
- Husqvarna
- AYP
- Craftsman
- Poulan and Poulan Pro
Confirmed Husqvarna model path:
- Husqvarna RZ5424: select 54-inch mower deck configurations whose official parts diagram calls for 532196106
The RZ5424 deck uses two 532196106 flat idler pulleys. This product listing includes one pulley, so confirm how many pulleys are being replaced before ordering.
Fitment note: Additional mower families may use this pulley, but the exact mower product number, deck configuration, and OEM diagram must call for 532196106, 532197379, 196106, or 197379.
Replaces OEM Part Numbers
- Husqvarna 532196106
- Husqvarna 532197379
- AYP 196106
- AYP 197379
- 5321961-06
Aftermarket Cross-Reference Numbers
- Oregon: 34-901
- Rotary: 13175
- 8TEN: 810-CID2245L
Important Fitment Check
Match the original pulley number before ordering. This replacement is intended for mower deck positions calling for 532196106, 532197379, 196106, or 197379.
Do not confuse this flat idler with 532196104. Official Husqvarna RZ5424 deck diagrams show two 532196106 flat idlers and a separate 532196104 pulley. These pulleys occupy different positions and should not be interchanged.
Before Ordering
- Confirm the original pulley or parts diagram calls for 532196106 or 532197379
- Confirm the pulley position in the mower deck belt-routing diagram
- Compare the pulley diameter, height, mounting opening, and belt-contact surface
- Confirm whether one or two pulleys need replacement
- Inspect the mounting bolt, washers, spacer, and idler arm
- Check the deck belt, tension spring, spindle pulleys, and other idlers for wear
Common Symptoms of a Worn Idler Pulley
- Grinding, rattling, squealing, or chirping from the mower deck
- Deck belt repeatedly coming off the pulleys
- Visible pulley wobble or movement at the bearing
- Pulley that does not rotate smoothly by hand
- Uneven wear, fraying, or glazing along the deck belt
- Excessive heat around the idler bearing
- Reduced blade speed caused by poor belt tracking
- Burning smell caused by a seized pulley or slipping belt
A worn deck belt, weak tension spring, damaged idler arm, or dragging spindle can quickly damage a replacement pulley. Inspect the complete deck-drive system before installation.
What’s Included
- 1 aftermarket 532196106 flat idler pulley assembly
Quantity note: The confirmed Husqvarna RZ5424 54-inch deck path uses two of these pulleys. Order the quantity required for your repair.
Why Buy From PTO Direct USA?
- Fast USA shipping
- Fitment-first mower deck part descriptions
- Clear OEM part-number and diagram-position routing
- Related belts, blades, spindles, clutches, and pulleys available
- Support for homeowners, repair shops, and landscape crews
Need Help Confirming Fitment?
Still not sure which deck pulley fits your mower? Contact us for fitment help and send a clear picture of the mower identification tag or the original pulley part number.
FAQ
What does the 532196106 pulley replace?
This aftermarket flat idler pulley replaces Husqvarna 532196106, 532197379, 196106, and 197379 on compatible mower deck applications.
Is 532197379 the same replacement path as 532196106?
Yes. Aftermarket replacement catalogs commonly route 532197379 and 197379 to the 532196106 / 196106 flat-idler pulley path.
Does 532196106 fit the Husqvarna RZ5424?
Yes. Official Husqvarna diagrams identify 532196106 on select RZ5424 54-inch mower decks. Match the complete mower product number and model-specific diagram before ordering.
How many 532196106 pulleys does the RZ5424 use?
The confirmed RZ5424 54-inch deck diagrams show two 532196106 flat idler pulleys. This product listing includes one pulley.
Is 532196106 the same as 532196104?
No. 532196106 and 532196104 are separate pulley paths used in different deck positions. The 532196106 is the flat idler covered by this listing.
What are the approximate pulley dimensions?
This replacement measures approximately 5.35 inches in outside diameter, 1.98 inches in overall height, and 1.62 inches across the flat belt-contact surface. The mounting or shaft size is approximately 0.44 inch.
Which side of the belt contacts this pulley?
This is a flat idler pulley designed to run against the flat or back side of the mower deck belt.
Can I order this pulley by appearance?
No. Similar-looking mower deck pulleys can have different diameters, heights, mounting openings, offsets, and belt-contact surfaces. Match the original part number and diagram position first.
