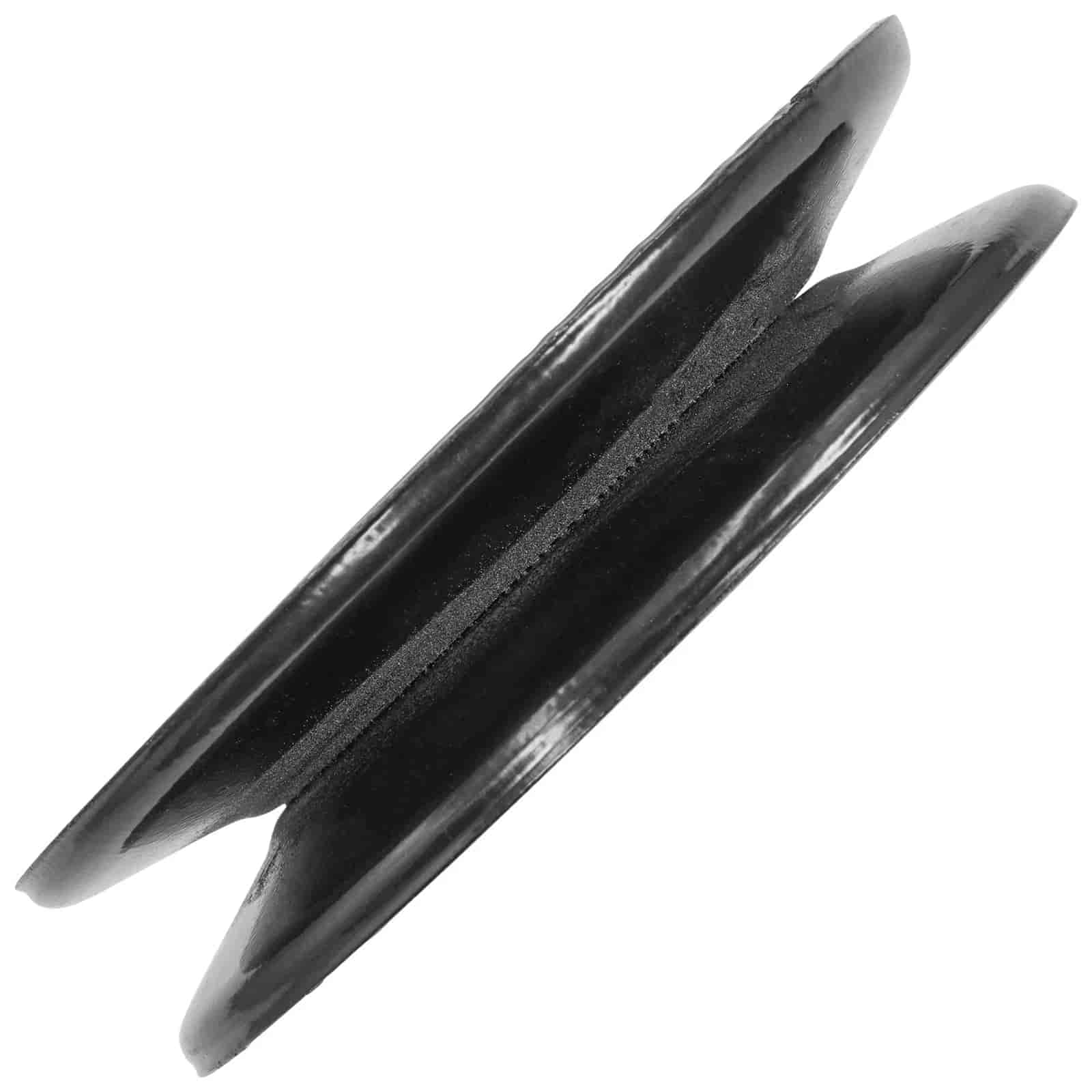

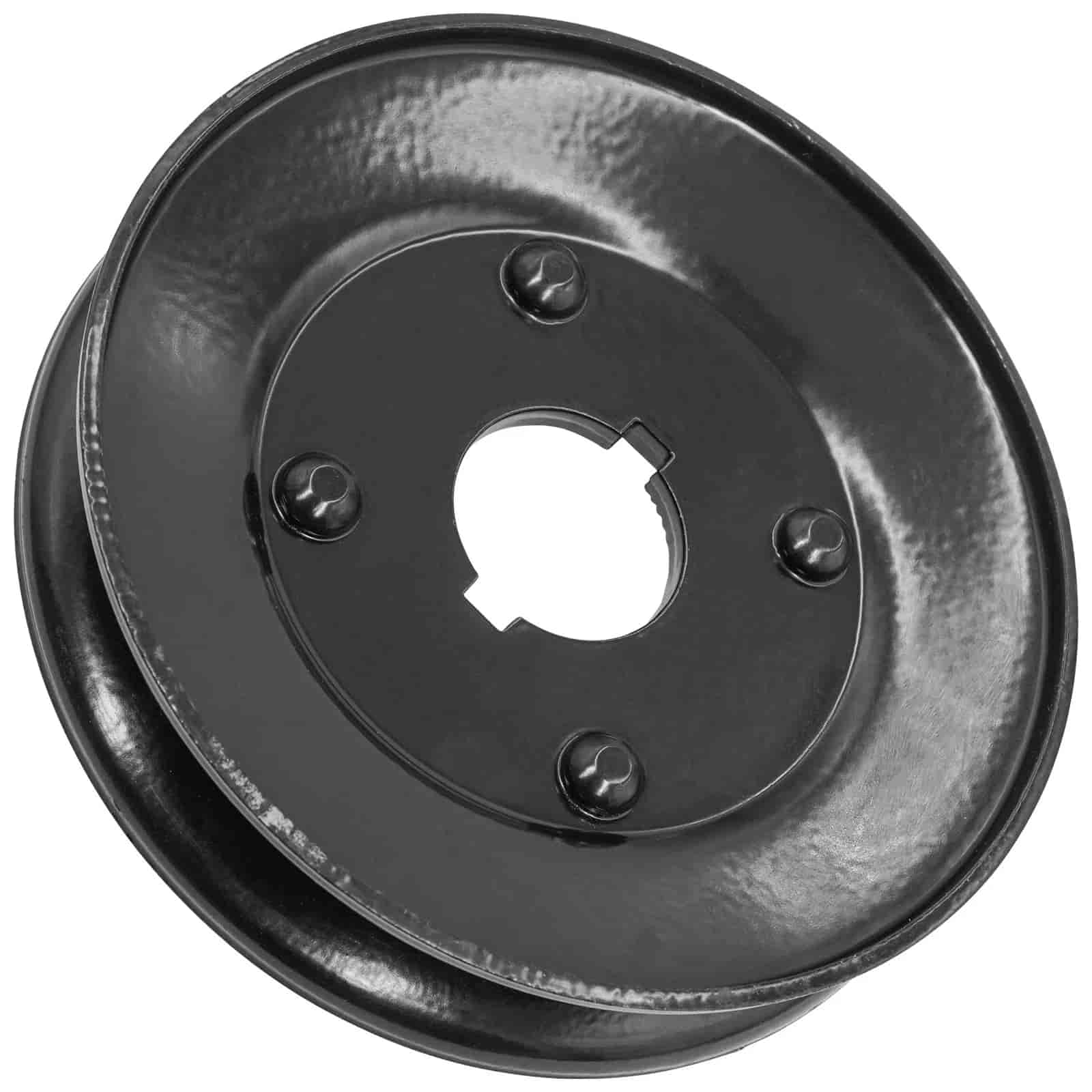

1713098SM Deck Spindle Pulley Replacement for Simplicity / Murray applications Mower Decks

Overview

This aftermarket 1713098SM deck spindle pulley is a replacement mower deck pulley for compatible Simplicity, Murray and Snapper mower deck applications.

Key Features

• Product Type: Deck Spindle Pulley
• Outside Diameter: 108 mm - 4.25 in
• Bore / Center Hole: 25 mm - 0.98 in
• Pulley Width: 23 mm - 0.9 in
• Aftermarket replacement pulley for mower deck belt-drive systems
• Use for compatible Simplicity, Murray and Snapper mower deck applications

Compatible Brands & Model Series

Common compatible model paths include:

• Snapper: Zero-Turn Mower
• Snapper: 150Z (ZT 2450) (2690647-00) 50-inch, 24hp
• Snapper: Lawn Tractor
• Snapper: LT1644 2690117 44-inch 16 HP Hydro Drive
• Snapper: LT2044 2690714 44-inch 20hp
• Snapper: LT2044 1694637 44-inch 20 HP LT300 Series
• Snapper: LT2044 2690442 44-inch 20 HP LT200 Series
• Snapper: LT2044 2690579 44-inch 20 HP LT200 Series
• Snapper: LT2044 2690761 44-inch 20 HP Hydro Drive ACS LT300 Series
• Snapper: LT2044 2690820 44-inch 20HP LT200
• Snapper: LT20440 2690283 44-inch 20 HP LT300 Series
• Snapper: Compatible with Yard Tractor
• Snapper: YT1644 1694368 & 2690067 44-inch 16 HP
• Snapper: YT1844 2690108 2690176 44-inch 18 HP Hydro Drive
• Snapper: YT2044 1694679 2690268 44-inch 20 HP YT400 Series
• Snapper: YT2144 1694907 44-inch 21 HP YT400 Series
• Snapper: YT21440 2690457 44-inch, 21 HP YT400 Series
• Snapper: YT2344 1694812 2690403 2690505 2690754 44-inch 23 HP YT400 Series
• Snapper: YT1850 1694369 & 2690068 50-inch 18 HP
• Snapper: YT2050 2690109 50-inch, 20 HP Hydro Drive
• Snapper: YT2250 1694627 50-inch, 22 HP YT400 Series
• Snapper: YT2350 1694817 2690765 2690806 50-inch, 23 HP YT400 Series
• Snapper: YT22500 2690269 50-inch, 22 HP Hydro Drive YT400 Series
• Snapper: YT23500 2690411 2690752 50-inch, 23 HP YT400 Series
• Snapper: Rotary Mower
• Snapper: 1695033, 1695401 44-inch
• Snapper: 1695418, 1695588 50-inch
• Snapper: 1695140 44-inch Rotary
• Snapper: 7800387 SC2650 50-inch 26HP Rider ZT Twin Stick 150Z Series
• Murray: Craftsman ZT7000 Series Zero-Turn Mower
• Murray: 107.277720 (2690428) 44-inch 20hp Koh. (2005)
• Murray: 107.277700 (2277700) 50-inch 18hp (2004)
• Murray: 107.277740 (2690429) 50-inch 22hp B&S(2005)
• Murray: Craftsman ZTS7500 Series Zero-Turn Mower
• Murray: 107.277721 (2690520) 44-inch 20hp Koh. (2005)
• Murray: 107.277880 (2690640) 44-inch 20hp Koh. (2007)
• Murray: 107.277741 (2690519) 50-inch 22hp B&S (2005)
• Murray: 107.277900 (2690641) 50-inch 24hp B&S (2007)
• Murray: 107.287900 (7800339) 50-inch 26hp B&S (2008)
• Murray: 107.287910 (7800340) 50-inch 26hp Koh. (2008)
• Murray: 107.607010 (2690713) 50-inch 24hp B&S (2007)
• Murray: 1694863 44-inch
• Murray: ZT 1644 E (2690431) 44-inch 16hp (2005)
• Simplicity: AGCO Lawn Tractor
• Simplicity: 1615 (1693616) 44-inch 16hp
• Simplicity: 1615 H (1692696) 44-inch 15hp
• Simplicity: 1615 H (1693209)(1693371) 44-inch 16hp
• Simplicity: 1615 HC (1693844) (1694057) 44-inch 16hp
• Simplicity: 1616 (1693619)(1694056) 44-inch 16hp
• Simplicity: 1616 H (1692697), (1692739)
• Simplicity: (1692879), (1693063), (1693370) 44-inch 16hp
• Simplicity: 1616 VH (1694167) 44-inch 16hp
• Simplicity: 1617 HC (1693699) 44-inch 17hp
• Simplicity: 1618 (1693603) (2690097) 50-inch 18hp
• Simplicity: 1618 H (1693278) 50-inch 18hp
• Simplicity: 1620 H (2690280) 50-inch 20hp
• Simplicity: 2616H 1692699, 1692728, 1693067 16HP 44-inch
• Simplicity: 1716G 1692703 16HP Gear 50-inch
• Simplicity: 1716H 1692704 16HP Hydro 44-inch
• Simplicity: 1718H 1692705 1692880 18HP Hydro 50-inch
• Simplicity: 2718H 1692706 18HP Hydro 50-inch
• Simplicity: 1717H 1692840 17HP LC Hydro 50-inch
• Simplicity: 2717H 1692855 17HP LC Hydro 50-inch
• Simplicity: 1682685, 1692684, 1692685, 1692914 44-inch
• Simplicity: 1692686, 1692687, 1692915 44-inch
• Simplicity: 1692688, 1692689 50-inch
• Simplicity: 1692881, 1692882 50-inch
• Simplicity: Broadmoor
• Simplicity: 1692692 15HP Hydro 44-inch
• Simplicity: 1692693 16HP V-Twin Hydro 44-inch
• Simplicity: 1692720 15HP Hydro 44-inch
• Simplicity: 1692721 16HP V-Twin Hydro 44-inch
• Simplicity: 1693057 16HP V-Twin Hydro 44-inch
• Simplicity: 1693073 16HP V-Twin Hydro 44-inch
• Simplicity: Landlord
• Simplicity: 1692700 16HP Gear 50-inch
• Simplicity: 1692701 16HP Hydro 44-inch
• Simplicity: 1692702 18HP Hydro 50-inch
• Simplicity: 1692724 16HP Hydro 44-inch
• Simplicity: 1692725 18HP Hydro 50-inch
• Simplicity: 1692787 17HP LC Hydro 50-inch
• Simplicity: 1692793 17HP LC Hydro 50-inch
• Simplicity: 1692897 18HP Hydro 44-inch
• Simplicity: 1693009 16HP Hydro 44-inch
• Simplicity: 1693011 16HP Hydro 44-inch
• Simplicity: 1693013 17HP LC Hydro 50-inch
• Simplicity: 1693015 17HP LC Hydro 50-inch
• Simplicity: 1693017 18HP Hydro 50-inch
• Simplicity: 1693019 18HP Hydro 50-inch
• Simplicity: 1692899, 1692901 16HP Hydro 44-inch

Replaces OEM Part Numbers

• 1713098SM
• 1713098

Common Symptoms of a Worn Deck Pulley

• Mower deck belt squealing, slipping, or jumping off track
• Visible pulley wobble or uneven belt tracking
• Grinding, rattling, or bearing noise near the deck pulley
• Reduced blade speed or inconsistent cut quality caused by poor belt tension

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-focused replacement parts support
• Clear part-number matching to help reduce wrong-part orders
• Replacement mower deck parts for homeowners, shops, and landscape crews

Need Help Confirming Fitment?

If you are not sure this is the correct pulley, send us your mower model number, deck size, and the part number from your original pulley. We can help compare the replacement path before you order.

FAQ

How do I confirm this pulley fits my mower?

Start by matching the OEM pulley number on your original part. Then compare the outside diameter, bore or center-hole size, pulley width, belt profile, deck layout, and mower model.

Can I order by appearance alone?

No. Similar-looking deck pulleys can have different bore sizes, offsets, belt profiles, and deck applications. Match the part number and dimensions first.

What causes a mower deck pulley to fail?

Common causes include worn bearings, belt misalignment, impact damage, seized hardware, or long-term wear from deck belt tension.

Need another pulley? Browse the full mower deck pulley collection for additional replacement options.
