Toro TimeCutter Z5040 74374 50-Inch Deck Rebuild Kit | 110-6892 Belt

Overview

This aftermarket 50-inch deck rebuild kit is designed for select Toro TimeCutter Z5040 zero-turn mowers, including model 74374 with the original three-blade deck assembly.

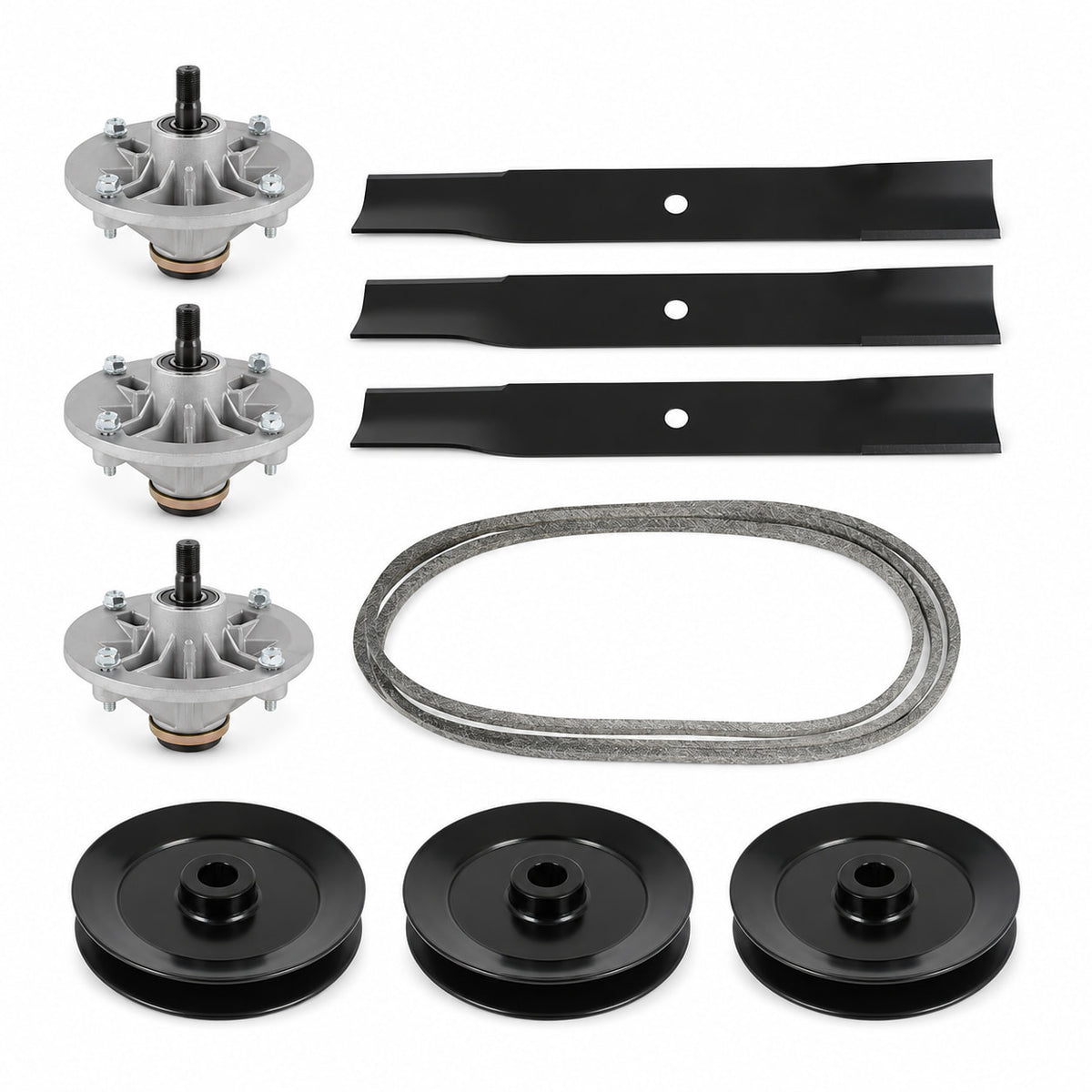

The standard kit includes three complete spindle assemblies, three spindle pulleys, three high-lift blades, and the 110-6892 deck belt. Choose the optional idler upgrade to receive all three flat deck idler pulleys used in this belt-drive system.

This kit follows the Toro 110-6790 deck assembly component path, including the 110-6866 / 117-1192 spindle-shaft configuration, 110-6865 spindle pulleys, and 110-6837-03 high-lift blades.

Confirm Your Deck Part Numbers

Carefully confirm that your mower’s parts diagram shows a matching part number for each component category below. A match on only one component, such as the blades or spindles, does not confirm complete kit fitment because Toro used some individual parts across decks with different belts and pulley arrangements.

• Deck Belt: 110-6892, 1106892


• Spindle Pulley: 110-6865, 1106865, 125-5575, 1255575


• Spindle Configuration: 110-6866, 1106866, 117-1192, 1171192 spindle-shaft path with 88-4510 / 884510 housing


• High-Lift Blades: 110-6837-03, 110683703, 112-9759-03, 112975903, 115-5059-03, 115505903


• Idler Pulleys with Upgraded Variant: 106-2175, 1062175, 132-9420, 1329420

If your mower model, serial number, or one of these component paths differs, contact us before ordering so we can check the correct deck configuration.

Choose Your Kit

Standard Rebuild Kit

• Three complete aftermarket spindle assemblies
• Three spindle pulleys
• Three 17-1/2-inch high-lift mower blades
• One 110-6892 replacement deck belt

Complete Kit + 3 Idler Pulleys

• Everything included with the Standard Rebuild Kit
• Three flat deck idler pulleys replacing Toro 106-2175 / 132-9420

Which option should I choose? Select the idler upgrade if the original idler bearings feel rough, noisy, loose, or difficult to turn. If the original idlers still rotate smoothly without bearing play, the Standard Rebuild Kit covers the primary deck wear components.

Key Features

• Matched aftermarket rebuild kit for select Toro 50-inch three-blade decks
• Deck Size: 50 inches
• Spindle Assemblies: quantity 3
• Spindle Pulleys: quantity 3
• Blades: quantity 3, high-lift design
• Blade Length: approximately 17-1/2 inches each
• Deck Belt: Toro 110-6892 replacement path
• Belt Profile: A-section deck belt; Toro lists a 140.1-inch effective length
• Optional Idler Upgrade: three flat idler pulleys
• Designed to restore the primary rotating and belt-drive components together

Confirmed Toro Application

• Toro TimeCutter Z5040 model 74374: serial 270000001 through 270999999
• Toro TimeCutter Z5040 model 74374: serial 280000001 and later applications using the same 110-6790 deck assembly

This component path is also used on select Toro TimeCutter Z5000, Z5020, Z5030, Z5035, and Z5060 50-inch mower decks. Confirm the complete mower model, serial number, and original deck part numbers before ordering for those applications.

Fitment note: Toro used different belts and deck configurations on later TimeCutter models even when individual blades, spindles, or pulleys appear similar. Match the complete kit by mower model, serial number, and deck diagram.

OEM Part Number References

• Toro Deck Assembly: 110-6790, 1106790
• Toro Deck Belt: 110-6892, 1106892
• Toro Spindle Pulley: 110-6865, 1106865, 125-5575, 1255575
• Toro Spindle Shaft: 110-6866, 1106866, 117-1192, 1171192
• Toro Spindle Housing: 88-4510, 884510
• Toro High-Lift Blade: 110-6837-03, 110683703
• Additional Blade References: 112-9759-03, 112975903, 115-5059-03, 115505903
• Optional Toro Idler Pulley: 106-2175, 1062175, 132-9420, 1329420

Before You Order

Confirm the following information before purchasing:

• Your mower has a 50-inch three-blade deck
• The mower model and serial number match a supported application
• The original deck belt follows the Toro 110-6892 part-number path
• The spindle pulleys match Toro 110-6865 / 125-5575
• The original blades match the 110-6837-03 replacement path
• You have selected the correct variant with or without the three idler pulleys

Retain the original fasteners, bearing shields, spacers, and mounting hardware until installation is complete. Only the components listed for the selected variant and shown in the product photos are included.

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment Guarantee
• Fitment support before and after purchase
• Matched deck components supplied together
• Clear product photos for easier part identification
• Support for homeowners and mower repair professionals

FAQ

Does this kit fit Toro TimeCutter Z5040 model 74374?

Yes. This kit is matched to the 50-inch three-blade deck used on supported Toro TimeCutter Z5040 model 74374 applications. Confirm the serial number and original deck configuration before ordering.

Are the spindle pulleys included?

Yes. Both variants include three replacement spindle pulleys in addition to the three complete spindle assemblies.

What does the idler pulley upgrade add?

The upgraded variant adds three flat deck idler pulleys replacing Toro 106-2175 and 132-9420. These are the three non-spindle pulleys that guide and tension the deck belt.

Should I replace the idler pulleys?

Replace the idlers if they make noise, feel rough while turning, wobble, bind, or have noticeable bearing play. Smooth idlers without looseness may be reused.

Is the deck tension spring included?

The deck tension spring is not included with either variant. The original 1-603414 extension spring may be reused when it remains undamaged and maintains proper belt tension.

Why is there no single Toro number for the complete spindle assembly?

Toro’s original model 74374 diagram identifies the complete unit as a Spindle ASM but does not provide a separately orderable assembly number. These aftermarket spindle assemblies are built around the Toro 110-6866 / 117-1192 spindle-shaft and 88-4510 housing configuration.

Does this kit fit newer Toro SS5000 or MX5000 mowers?

Do not order this complete kit based only on the 50-inch deck size. Some newer TimeCutter models share individual spindle, pulley, or blade references but use a different deck belt. Match the complete model, serial number, and deck diagram.

Can PTO Direct USA help confirm fitment?

Yes. Email support@ptodirectusa.com with the mower model number, serial number, and a clear photo of the identification tag. We can compare the mower information with the correct deck-parts path before ordering.

Need a different deck configuration? Browse the complete mower deck parts collection for additional belts, blades, spindles, pulleys, and rebuild kits.
