50-Inch Deck Rebuild Kit for Toro TimeCutter Z5000 & Z5040 | 110-6892 Belt

Overview

This 50-inch deck rebuild kit is built for select Toro TimeCutter Z5000, Z5040, and related 50-inch Toro TimeCutter mower deck applications using the listed belt, blade, and spindle replacement numbers.

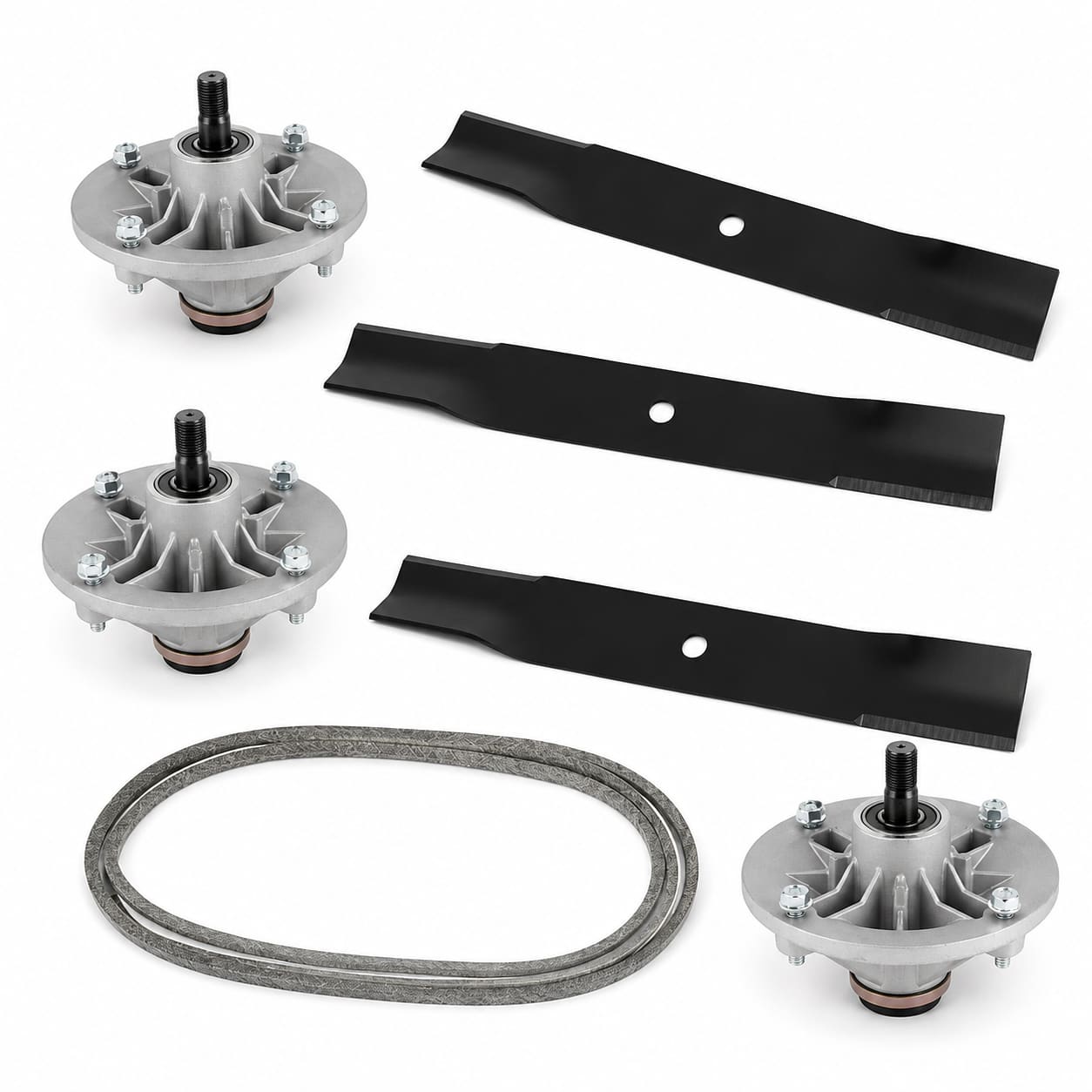

The kit includes the main wear parts commonly replaced during a mower deck refresh: 3 spindle assemblies, 3 mower blades, and 1 deck drive belt.

This is a good option when your Toro TimeCutter 50-inch deck has noisy spindle bearings, worn blades, a slipping belt, uneven cut quality, deck vibration, or multiple deck parts that need to be replaced at the same time.

Important: Match your mower model, deck size, blade count, and original deck part numbers before ordering. Some Toro 50-inch TimeCutter decks use the same blade path but different belts, spindle assemblies, and deck layouts.

Kit Includes

• 3 spindle assemblies
• 3 mower blades
• 1 deck drive belt

Compatible Brands & Model Series

This deck rebuild kit is intended for select 50-inch Toro TimeCutter Z-Series mower decks using the listed replacement part numbers.

• Toro TimeCutter Z-Series: select Z5000 through Z5040 50-inch deck applications
• Toro part-number path: select applications using the 110-6892 belt, 110-6837-03 blade, and 117-1192 spindle path

Fitment note: Model names are provided as fitment clues. Always confirm your original belt, blade, and spindle numbers before ordering.

Fits Select Toro Models

• Toro TimeCutter Z5000
• Toro TimeCutter Z5040
• Related Toro TimeCutter Z5000-Z5040 50-inch deck applications using the listed part-number path

Model note: Do not assume this kit fits every Toro TimeCutter 50-inch deck. Later MX, SS, and SW model paths may use different spindle and belt numbers.

Replaces Common Deck Belt Numbers

• Toro: 110-6892
• Additional Supplier References: 12672, 265-364, 15-795

Belt Size: 1/2 inch x 140-7/64 inches

Belt note: Match your original 110-6892 deck belt number and belt length before ordering. This is not the same belt path as Toro TimeCutter kits using 119-8820 or 120-3892.

Replaces Common Blade Numbers

• Toro: 110-6837-03, 112-9759-03, 115-5059-03
• Additional Reference: 12273

Blade Specs: 17-1/2 inch blade with 5/8 inch center hole.

Blade note: This kit uses three blades for select 50-inch Toro decks. Confirm your original blade number, blade length, center hole, and blade count before ordering.

Replaces Common Spindle Assembly Numbers

• Toro: 80-4510, 117-1192, 100-1048, 62-3661, 80-4380, 80-4360
• Additional Toro References: 74370, 74391

Spindle Component References: supplier data lists housing 107-9161 with short shaft 117-1192 / 110-6866.

Spindle note: This kit uses the 117-1192 / 80-4510 spindle path. Do not confuse it with similar Toro 50-inch TimeCutter kits using the 117-7267 / 117-7268 / 117-7439 spindle path.

Before Ordering

Before ordering this 50-inch deck rebuild kit, confirm:

• Your mower uses a 50-inch 3-blade deck
• Your mower is a Toro TimeCutter Z5000, Z5040, or related Z5000-Z5040 deck application
• Your original belt number matches 110-6892
• Your blade numbers match the 110-6837-03 / 112-9759-03 blade path
• Your spindle numbers match the 80-4510 / 117-1192 spindle path
• Your original belt length matches the listed 1/2 inch x 140-7/64 inches belt size
• Your deck shell, belt guides, spindle mounting holes, pulleys, and tension system are in usable condition

Do not install parts until fitment is confirmed. Installed deck parts may not be eligible for return.

Common Symptoms This Kit Helps Fix

• Noisy spindle bearings
• Deck vibration
• Uneven cut quality
• Dull, bent, cracked, or worn blades
• Deck belt slipping, squealing, or jumping off
• Blade wobble or bearing play
• Worn spindle assemblies
• Multiple deck parts worn at the same time

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck
• Take photos of the belt routing before removing old parts
• Inspect the deck shell for cracks, wallowed holes, rust damage, or bent mounting areas
• Check spindle mounting bolts, blade bolts, washers, belt guides, idler arms, pulleys, and tension springs
• Compare the new parts to your original parts before installation
• After installation, rotate the blades by hand with the mower off to confirm there is no contact or binding
• Test the mower at low speed first and listen for vibration, belt tracking issues, squealing, or unusual noise

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this kit fits your mower, send us your mower model number, deck size, blade count, and photos of your original belt, blades, spindle assemblies, mower deck, and mower ID tag before ordering.

FAQ

Does this fit Toro TimeCutter Z5000?

Yes, this kit is listed for select Toro TimeCutter Z5000 50-inch deck applications using the listed 110-6892 belt, 110-6837-03 blade, and 117-1192 spindle path. Confirm your original part numbers before ordering.

Does this fit Toro TimeCutter Z5040?

Yes, this kit is listed for select Toro TimeCutter Z5040 50-inch deck applications. Match your original belt, blade, and spindle numbers before ordering.

What belt comes in this kit?

This kit includes a deck belt replacing 110-6892. The listed belt size is 1/2 inch x 140-7/64 inches.

What blades come in this kit?

This kit includes three blades replacing the 110-6837-03 / 112-9759-03 / 115-5059-03 blade path. The blades are listed as 17-1/2 inches with a 5/8 inch center hole.

What spindle numbers does this kit replace?

This kit includes three spindle assemblies replacing the 80-4510 / 117-1192 spindle path, along with related numbers listed above.

Is this the same as the Toro TimeCutter MX5000 or SS5000 50-inch deck kit?

No. This kit may share the 110-6837-03 blade path with some Toro 50-inch kits, but it uses the 110-6892 belt path and the 117-1192 / 80-4510 spindle path. The MX and SS 50-inch kit uses different belt and spindle numbers.

How many blades and spindles are included?

This kit includes 3 mower blades, 3 spindle assemblies, and 1 deck belt.

Can I order this kit by mower appearance?

No. Do not order by appearance alone. Match your mower model, deck size, blade count, belt number, blade number, spindle number, and deck layout whenever possible.
