48-Inch Deck Rebuild Kit for John Deere L120 & L130 | GX20305 Belt

Overview

This 48-inch deck rebuild kit is built for select John Deere L120 and John Deere L130 mower decks using the listed belt, blade, spindle, and idler pulley replacement numbers.

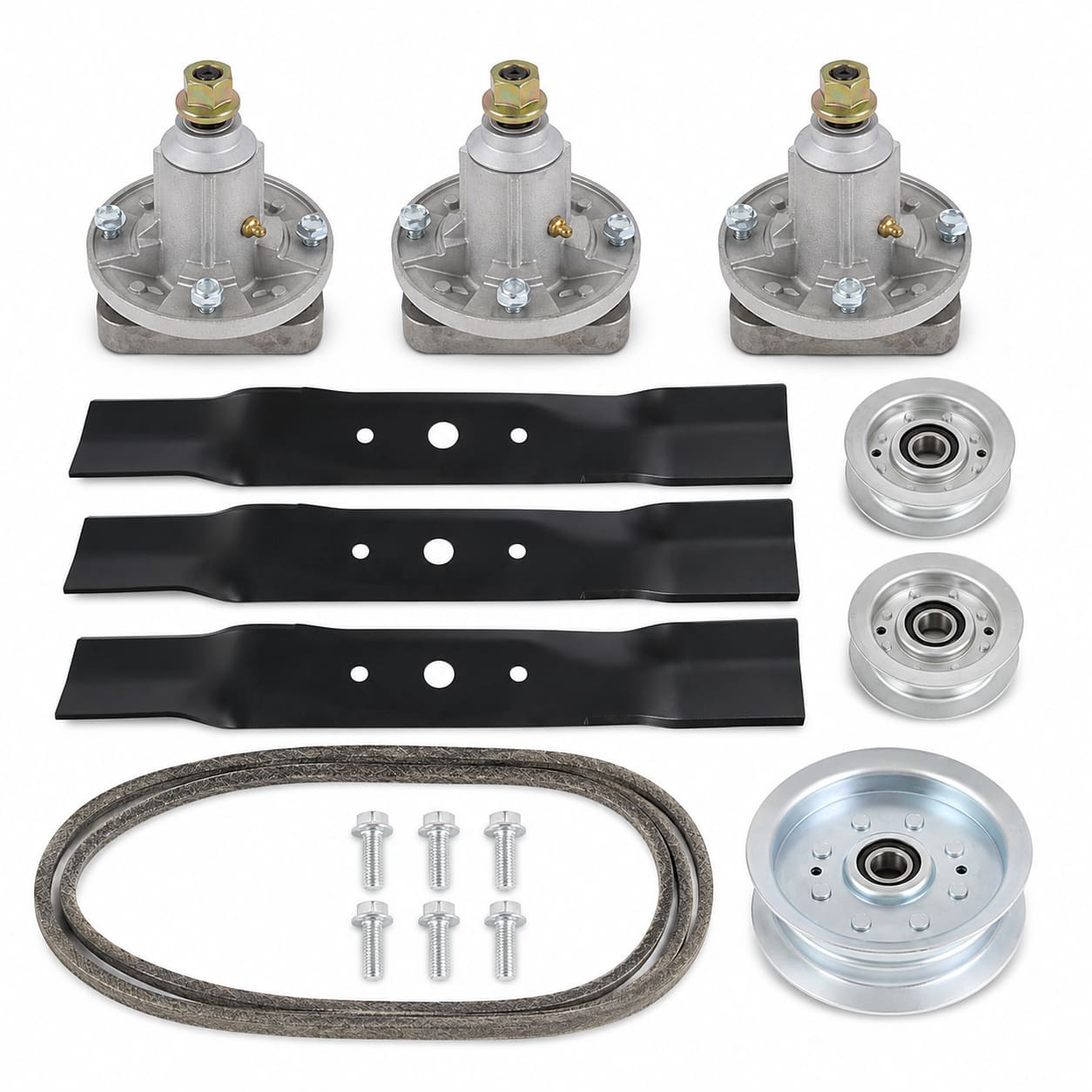

The kit includes the main wear parts commonly replaced during a mower deck refresh: 3 spindle assemblies, 3 mower blades, 3 idler pulleys, and 1 deck drive belt.

This is a good option when your John Deere 48-inch mower deck has noisy spindle bearings, worn blades, slipping belt issues, noisy idler pulleys, uneven cut quality, deck vibration, or multiple deck parts that need to be replaced at the same time.

Important: Match your mower model, serial range, deck size, blade count, and original deck part numbers before ordering. Several John Deere L-Series decks use similar spindle or idler numbers but different belts, blades, and deck layouts.

Kit Includes

• 3 spindle assemblies with grease fittings
• 3 mower blades
• 1 deck drive belt
• 1 large flat idler pulley
• 2 small flat idler pulleys

Compatible Brands & Model Series

This deck rebuild kit is intended for select John Deere 48-inch L-Series mower decks using the listed replacement part numbers.

• John Deere L120: serial number after 150001
• John Deere L130: serial number after A13001 and after B020001
• John Deere part-number path: select applications using the GY20050 spindle, GX20250 blade, GX20305 belt, and listed idler pulley numbers

Fitment note: Model names and serial ranges are fitment clues. Always confirm your original belt, blade, spindle, and idler pulley numbers before ordering.

Fits Select John Deere Models

• John Deere L120 — serial number after 150001
• John Deere L130 — serial number after A13001
• John Deere L130 — serial number after B020001

Serial range note: This kit is supplier-listed for later L120 and L130 serial ranges. Earlier serial ranges may use different deck parts. Match the original part numbers before ordering.

Replaces Common Deck Belt Numbers

• John Deere: GX20305, GY20571
• Additional Reference: 10437

Belt Size: 1/2 inch x 139 inches

Belt note: Supplier data lists this belt for the engine-to-deck drive path. Match your original belt number, belt width, belt length, and belt routing before ordering.

Replaces Common Blade Numbers

• John Deere: GX20250, GY20568
• Additional References: 10634, 50-2141

Blade Specs: 17-inch blade, 2-1/2 inch width, .164 inch thickness, 11/16 inch center hole, 3/8 inch outer holes, 3-11/16 inch center-to-center outer hole spacing.

Blade note: This kit uses three blades for select 48-inch L-Series decks. Confirm your original blade number, blade length, center hole style, and blade count before ordering.

Replaces Common Spindle Assembly Numbers

• John Deere: GY20050, GY20785

Spindle Specs: 6-3/8 inch overall height with grease fitting.

Spindle note: This kit uses the GY20050 / GY20785 spindle path. Do not confuse it with similar John Deere 48-inch kits using the GY20454 / GY20867 / GY20962 spindle path.

Replaces Common Idler Pulley Numbers

Large Flat Idler Pulley

• John Deere: GY22082, GY20629
• Additional Reference: 756-05034

Large Idler Specs: 5-1/8 inch OD, 11/16 inch ID, 1-3/4 inch height.

Small Flat Idler Pulley

• John Deere: GY22172, GY20067

Small Idler Specs: 3-5/8 inch OD, 11/16 inch ID, 1-3/16 inch height.

Idler note: This kit includes three idler pulleys: one large idler pulley and two smaller idler pulleys. Confirm pulley locations, pulley sizes, and belt routing before ordering.

Before Ordering

Before ordering this 48-inch deck rebuild kit, confirm:

• Your mower uses a 48-inch 3-blade deck
• Your mower is a John Deere L120 or L130 within the listed serial range
• Your original belt number matches GX20305 or GY20571
• Your blade numbers match the GX20250 / GY20568 blade path
• Your spindle numbers match the GY20050 / GY20785 spindle path
• Your idler pulleys match the listed GY20629 / GY22082 and GY20067 / GY22172 idler pulley paths
• Your deck shell, belt guides, idler arms, spindle mounting holes, and tension system are in usable condition

Do not install parts until fitment is confirmed. Installed deck parts may not be eligible for return.

Common Symptoms This Kit Helps Fix

• Noisy spindle bearings
• Deck vibration
• Uneven cut quality
• Dull, bent, cracked, or worn blades
• Deck belt slipping, squealing, or jumping off
• Noisy or loose idler pulleys
• Blade wobble or bearing play
• Multiple deck parts worn at the same time

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck
• Take photos of the belt routing before removing old parts
• Inspect the deck shell for cracks, wallowed holes, rust damage, or bent mounting areas
• Check spindle mounting bolts, blade bolts, washers, belt guides, idler arms, pulleys, and tension springs
• Compare the new parts to your original parts before installation
• Confirm all three idler pulleys are installed in the correct locations before routing the belt
• After installation, rotate the blades by hand with the mower off to confirm there is no contact or binding
• Test the mower at low speed first and listen for vibration, belt tracking issues, squealing, or unusual noise

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this kit fits your mower, send us your mower model number, serial number, deck size, blade count, and photos of your original belt, blades, spindle assemblies, idler pulleys, mower deck, and mower ID tag before ordering.

FAQ

Does this fit John Deere L120?

Yes, this kit is listed for select John Deere L120 48-inch deck applications with serial number after 150001. Confirm your original belt, blade, spindle, and idler pulley numbers before ordering.

Does this fit John Deere L130?

Yes, this kit is listed for select John Deere L130 48-inch deck applications with serial number after A13001 and after B020001. Match your original part numbers before ordering.

What belt comes in this kit?

This kit includes a deck drive belt replacing GX20305 and GY20571. The listed belt size is 1/2 inch x 139 inches.

What blades come in this kit?

This kit includes three blades replacing the GX20250 / GY20568 blade path. The blades are listed as 17 inches long with an 11/16 inch center hole.

What spindle numbers does this kit replace?

This kit includes three spindle assemblies replacing GY20050 and GY20785. Supplier data lists the spindle height as 6-3/8 inches overall with a grease fitting.

What idler pulleys are included?

This kit includes one large flat idler pulley replacing GY22082 / GY20629 and two smaller flat idler pulleys replacing GY22172 / GY20067.

Is this the same as the John Deere L100 42-inch deck kit?

No. This kit shares the GY20050 / GY20785 spindle path with some older L-Series kits, but it uses a 48-inch 3-blade deck layout, the GX20305 / GY20571 belt path, and the GX20250 / GY20568 blade path.

Is this the same as the John Deere D140 48-inch deck kit?

No. This kit uses the older GY20050 / GY20785 spindle path and is listed for L120 and L130 serial ranges. Later D-Series and 100-Series 48-inch decks may use different spindle, blade, and belt numbers.

How many blades and spindles are included?

This kit includes 3 mower blades, 3 spindle assemblies, 3 idler pulleys, and 1 deck drive belt.

Can I order this kit by mower appearance?

No. Do not order by appearance alone. Match your mower model, serial number, deck size, blade count, belt number, blade number, spindle number, idler pulley numbers, and deck layout whenever possible.
