52-Inch Deck Rebuild Kit for Hustler Raptor | 604214 Spindles & 791988 Belt

Overview

This 52-inch deck rebuild kit is built for select Hustler Raptor 52-inch mower decks using the listed spindle, blade, pulley, and belt part-number path.

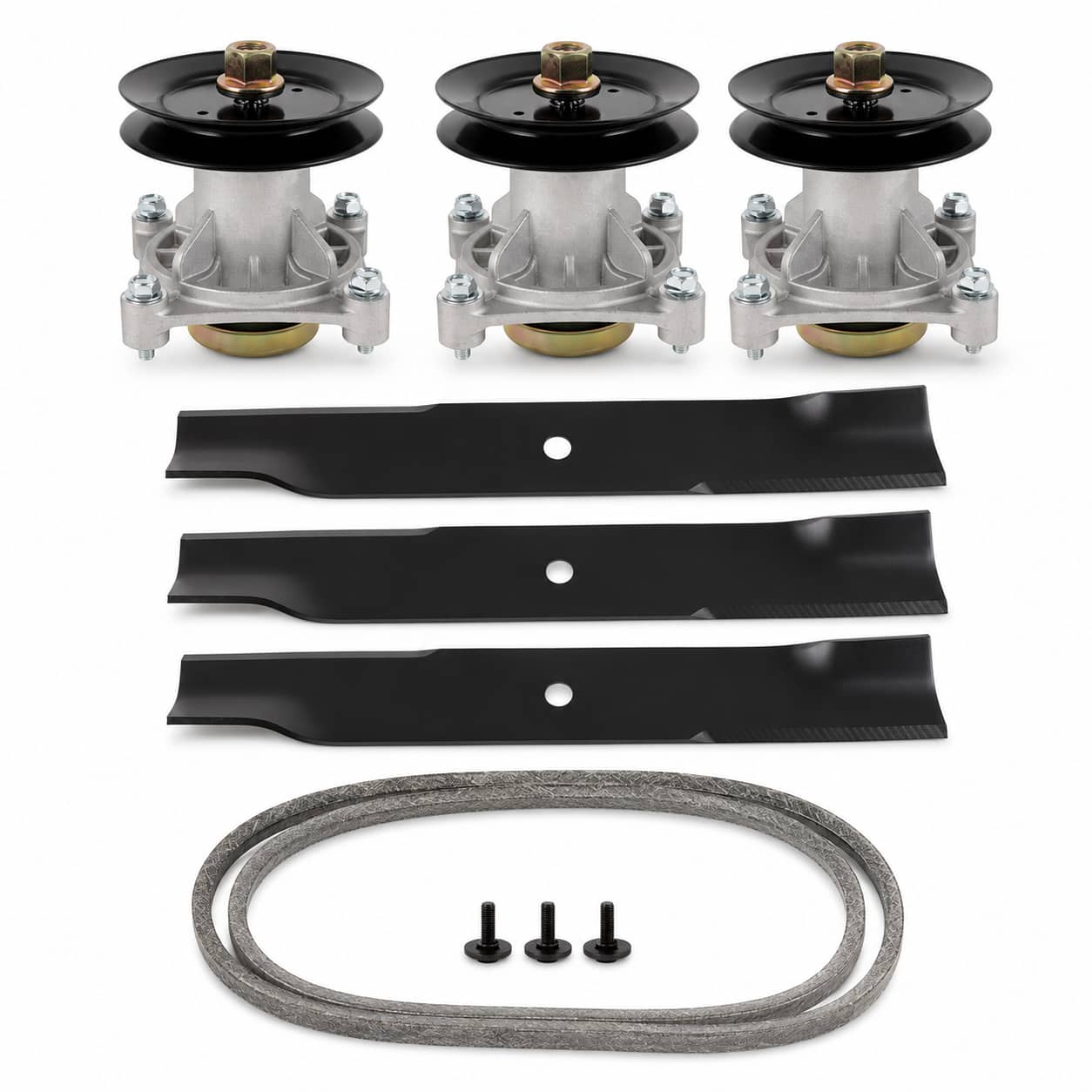

The kit includes the main wear parts commonly replaced during a mower deck refresh: 3 spindle assemblies with attached spindle pulleys, 3 mower blades, and 1 deck drive belt.

This is a good option when your Hustler Raptor 52-inch deck has noisy spindle bearings, worn blades, a slipping belt, uneven cut quality, deck vibration, or multiple deck parts that need to be replaced at the same time.

Important: Match your mower model, deck size, blade count, and original deck part numbers before ordering. Many Hustler decks look similar but use different belts, blades, spindle assemblies, pulleys, and deck layouts.

Kit Includes

• 3 spindle assemblies with attached spindle pulleys
• 3 mower blades
• 1 deck drive belt

Pulley note: The spindle pulleys are shown installed on the spindle assemblies. Supplier data lists the associated pulley number as 603988 with a 4-13/16 inch outside diameter.

Compatible Brands & Model Series

This deck rebuild kit is intended for select Hustler Raptor 52-inch mower decks using the listed replacement part numbers.

• Hustler Raptor: select 52-inch deck applications
• Excel / Hustler: select applications using the 604214 spindle, 795526 blade, and 791988 belt path

Fitment note: Model names are provided as fitment clues. Always confirm your 52-inch deck and original deck part numbers before ordering.

Replaces Common Deck Belt Numbers

• Hustler: 791988

Belt Size: 5/8 inch x 140-1/2 inches

Replaces Common Blade Numbers

• Hustler / Excel: 603995, 783753, 795526
• Oregon: 92-044

Blade Specs: 17-7/8 inch blade, 2-1/2 inch width, .204 inch thickness, 5/8 inch center hole.

Replaces Common Spindle Assembly Numbers

• Excel / Hustler: 604214

Spindle Specs: 5-1/2 inch height, 4-point mounting hole pattern, hardware included.

Spindle note: Confirm your original spindle number, mounting hole pattern, pulley setup, blade mount, and deck shell condition before installation.

Attached Spindle Pulley Reference

• Hustler / Excel: 603988

Pulley Specs: 4-13/16 inch outside diameter.

Pulley note: The spindle pulleys are included as part of the spindle assemblies shown in the product image. Match your original pulley number, pulley diameter, belt groove, and deck layout before ordering.

Before Ordering

Before ordering this 52-inch deck rebuild kit, confirm:

• Your mower uses a 52-inch 3-blade deck
• Your mower is a compatible Hustler Raptor 52-inch deck application
• Your original belt number matches 791988
• Your blade numbers match the 603995 / 783753 / 795526 blade path
• Your spindle numbers match the 604214 spindle path
• Your spindle pulley setup matches the listed 603988 pulley reference
• Your deck shell, belt guides, spindle mounting holes, pulleys, and tension system are in usable condition

Do not install parts until fitment is confirmed. Installed deck parts may not be eligible for return.

Common Symptoms This Kit Helps Fix

• Noisy spindle bearings
• Deck vibration
• Uneven cut quality
• Dull, bent, cracked, or worn blades
• Deck belt slipping, squealing, or jumping off
• Blade wobble or bearing play
• Worn spindle assemblies or spindle pulleys
• Multiple deck parts worn at the same time

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck
• Take photos of the belt routing before removing old parts
• Inspect the deck shell for cracks, wallowed holes, rust damage, or bent mounting areas
• Check spindle mounting bolts, blade bolts, washers, belt guides, idler arms, pulleys, and tension springs
• Compare the new parts to your original parts before installation
• After installation, rotate the blades by hand with the mower off to confirm there is no contact or binding
• Test the mower at low speed first and listen for vibration, belt tracking issues, squealing, or unusual noise

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this kit fits your mower, send us your mower model number, deck size, blade count, and photos of your original belt, blades, spindle assemblies, pulleys, mower deck, and mower ID tag before ordering.

FAQ

Does this fit a Hustler Raptor 52-inch deck?

Yes, this kit is listed for select Hustler Raptor 52-inch deck applications using the listed 604214 spindle, 795526 blade, and 791988 belt path. Confirm your original part numbers before ordering.

What belt comes in this kit?

This kit includes a deck belt replacing 791988. The listed belt size is 5/8 inch x 140-1/2 inches.

What blades come in this kit?

This kit includes three blades replacing the 603995 / 783753 / 795526 blade path. The blades are listed as 17-7/8 inches long with a 5/8 inch center hole.

What spindle number does this kit replace?

This kit includes three spindle assemblies replacing 604214. Supplier data lists the spindle height as 5-1/2 inches with a 4-point mounting hole pattern.

Are pulleys included?

Yes. The spindle pulleys are shown attached to the spindle assemblies in the product image. Supplier data lists the associated pulley number as 603988.

How many blades and spindles are included?

This kit includes 3 mower blades, 3 spindle assemblies with attached pulleys, and 1 deck belt.

Can I order this kit by mower appearance?

No. Do not order by appearance alone. Match your mower model, deck size, blade count, belt number, blade number, spindle number, pulley setup, and deck layout whenever possible.

Need individual deck parts instead? Browse mower deck belts, mower blades, spindle assemblies, and deck pulleys and idlers.

Need a different deck setup? Browse the full mower deck parts catalog.
