46-Inch Deck Rebuild Kit for Husqvarna RZ4623, RZ4619 & Z246 | 539117245 Belt

Overview

This 46-inch deck rebuild kit is built for select Husqvarna RZ4623, RZ4619, RZ4620, RZ4621, RZ46i, Z246, Z246i, and related 46-inch Husqvarna zero-turn mower decks using the listed belt, blade, spindle, pulley, and idler pulley part numbers.

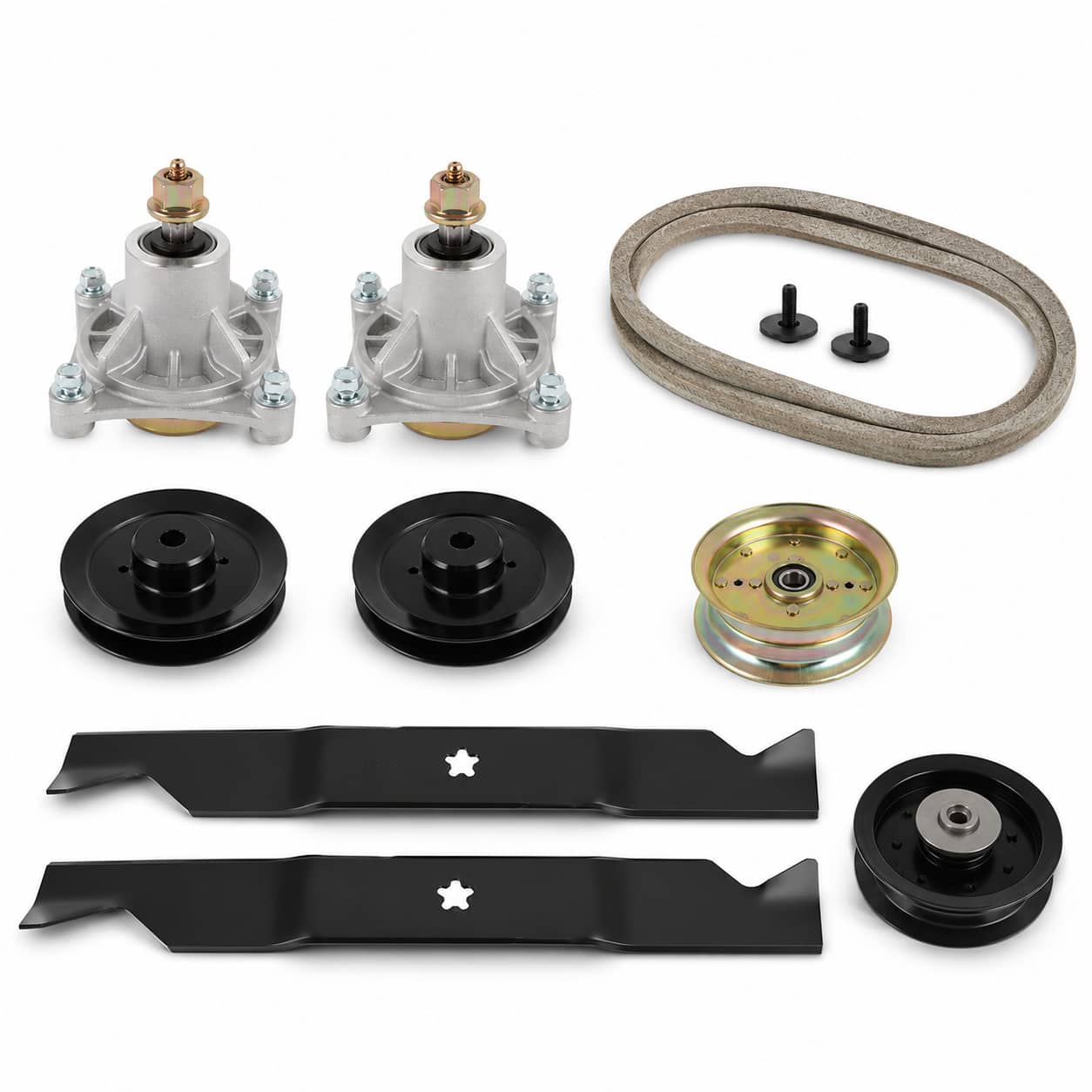

The kit includes the main wear parts commonly replaced during a mower deck refresh: 2 spindle assemblies, 2 mower blades, 2 spindle pulleys, 2 idler pulleys, and 1 deck drive belt.

This is a good option when your 46-inch Husqvarna zero-turn deck has noisy spindle bearings, worn blades, worn pulleys, slipping belts, noisy idlers, uneven cut quality, deck vibration, or multiple deck parts that need to be replaced at the same time.

Important: Match your mower model, deck size, blade count, and original deck part numbers before ordering. Many Husqvarna 46-inch decks look similar but use different belts, blades, spindles, pulleys, idlers, and deck layouts.

Kit Includes

• 2 complete spindle assemblies with hardware and grease fittings
• 2 standard lift mower blades
• 2 concave spindle pulleys
• 2 idler pulleys
• 1 deck drive belt

Compatible Brands & Model Series

This deck rebuild kit is intended for select 46-inch Husqvarna zero-turn mower decks using the listed replacement part numbers.

• Husqvarna RZ Series: select RZ4619, RZ4620, RZ4621, RZ4622T BF, RZ4623, and RZ46i 46-inch deck applications
• Husqvarna Z Series: select Z246 and Z246i 46-inch deck applications
• Husqvarna LSZ Series: select LSZ4622 46-inch deck applications

Fitment note: Model numbers are provided as fitment clues. Always confirm your 46-inch deck and original deck part numbers before ordering.

Fits Select Husqvarna Models

• LSZ4622 — 965880801
• RZ4619 — 965921501
• RZ4619 CA — 966503401
• RZ4620 — 965881201
• RZ4621 BF — 966582301
• RZ4621 — 967009803, 967009805
• RZ4622T BF — 967176201
• RZ4623 — 966764501, 967009801, 967009802, 967009804
• RZ46i — 967277604
• Z246 — 967323902, 967323903, 967324001, 967324002
• Z246i — 967323901

Model note: Husqvarna model families can have serial and production differences. Match the original belt, blade, spindle, pulley, and idler numbers before ordering.

Replaces Common Deck Belt Numbers

• Husqvarna: 539117245

Belt Size: 5/8 inch x 123 inches

Replaces Common Blade Numbers

• Husqvarna: 405380, 532405380
• Additional Reference: 12242

Blade Specs: 23-inch standard lift blade.

Blade note: This kit uses two 23-inch blades for select 46-inch decks. Confirm your original blade number, blade length, center hole style, and blade count before ordering.

Replaces Common Spindle Assembly Numbers

• Husqvarna: 174356, 174358, 532174356, 532174358, 539107515, 587125201

Spindle note: This kit includes complete spindle assemblies with hardware and grease fittings. Confirm your spindle mounting pattern, pulley setup, blade mount, and deck shell condition before installation.

Replaces Common Spindle Pulley Numbers

• Husqvarna: 539113962, 588586601

Pulley note: Supplier data references 39113962 in one field, which appears to follow the 539113962 pulley path. Match your original pulley number and pulley shape before ordering.

Replaces Common Idler Pulley Numbers

Idler Pulley Path 1

• Husqvarna: 539132728, 539112196, 539131148, 589766101, 589766102

Idler Pulley Path 2

• Husqvarna / AYP: 196104, 197380, 532196104, 532197380

Idler note: This kit includes two idler pulleys. Confirm the pulley locations, belt routing, pulley size, and original pulley numbers before ordering.

Before Ordering

Before ordering this 46-inch deck rebuild kit, confirm:

• Your mower uses a 46-inch 2-blade deck
• Your mower is in the listed Husqvarna RZ, LSZ, Z246, or Z246i model family
• Your original belt number matches 539117245
• Your blade numbers match the 405380 / 532405380 blade path
• Your spindle numbers match the 532174356 / 539107515 spindle path
• Your spindle pulleys match the 539113962 / 588586601 pulley path
• Your idler pulleys match the listed 539132728 and 532196104 idler pulley paths
• Your deck shell, belt guides, idler arms, spindle mounting holes, and tension system are in usable condition

Do not install parts until fitment is confirmed. Installed deck parts may not be eligible for return.

Common Symptoms This Kit Helps Fix

• Noisy spindle bearings
• Deck vibration
• Uneven cut quality
• Dull, bent, cracked, or worn blades
• Deck belt slipping, squealing, or jumping off
• Worn spindle pulleys
• Noisy or loose idler pulleys
• Blade wobble or bearing play
• Multiple deck parts worn at the same time

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck
• Take photos of the belt routing before removing old parts
• Inspect the deck shell for cracks, wallowed holes, rust damage, or bent mounting areas
• Check spindle mounting bolts, blade bolts, washers, belt guides, idler arms, and tension springs
• Compare the new parts to your original parts before installation
• Confirm both idler pulleys are installed in the correct locations before routing the belt
• After installation, rotate the blades by hand with the mower off to confirm there is no contact or binding
• Test the mower at low speed first and listen for vibration, belt tracking issues, squealing, or unusual noise

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this kit fits your mower, send us your mower model number, deck size, blade count, and photos of your original belt, blades, spindle assemblies, spindle pulleys, idler pulleys, mower deck, and mower ID tag before ordering.

FAQ

Does this fit Husqvarna RZ4623?

Yes, this kit is listed for select Husqvarna RZ4623 46-inch deck applications using the listed belt, blade, spindle, pulley, and idler pulley numbers. Confirm your original part numbers before ordering.

Does this fit Husqvarna Z246?

Yes, this kit is listed for select Husqvarna Z246 46-inch deck applications, including the listed model-number paths. Match your original deck part numbers before ordering.

Does this fit Husqvarna RZ4619?

Yes, this kit is listed for select Husqvarna RZ4619 46-inch mower decks. Confirm your original 539117245 belt path and deck part numbers before ordering.

What belt comes in this kit?

This kit includes a deck belt replacing 539117245. The listed belt size is 5/8 inch x 123 inches.

What blades come in this kit?

This kit includes two 23-inch standard lift blades replacing the 405380 / 532405380 blade path.

What spindle numbers does this kit replace?

This kit includes two spindle assemblies replacing the 532174356 / 539107515 spindle path, along with related numbers listed above.

What idler pulley numbers does this kit replace?

This kit includes two idler pulleys covering the listed 539132728 and 532196104 idler pulley paths. Confirm pulley location and belt routing before ordering.

How many blades and spindles are included?

This kit includes 2 mower blades, 2 spindle assemblies, 2 spindle pulleys, 2 idler pulleys, and 1 deck belt.

Is this the same as the Craftsman YT3000 46-inch deck kit?

No. This kit shares the 405380 / 532405380 blade path with some 46-inch tractor deck kits, but it uses a different belt, spindle, pulley, idler, and zero-turn deck layout.

Can I order this kit by mower appearance?

No. Do not order by appearance alone. Match your mower model, deck size, blade count, belt number, blade number, spindle number, pulley numbers, idler pulley numbers, and deck layout whenever possible.
