M154960 / M143923 Deck Belt for John Deere 54-Inch Deck
M154960 / M143923 Deck Belt for John Deere 54-Inch Deck
Overview

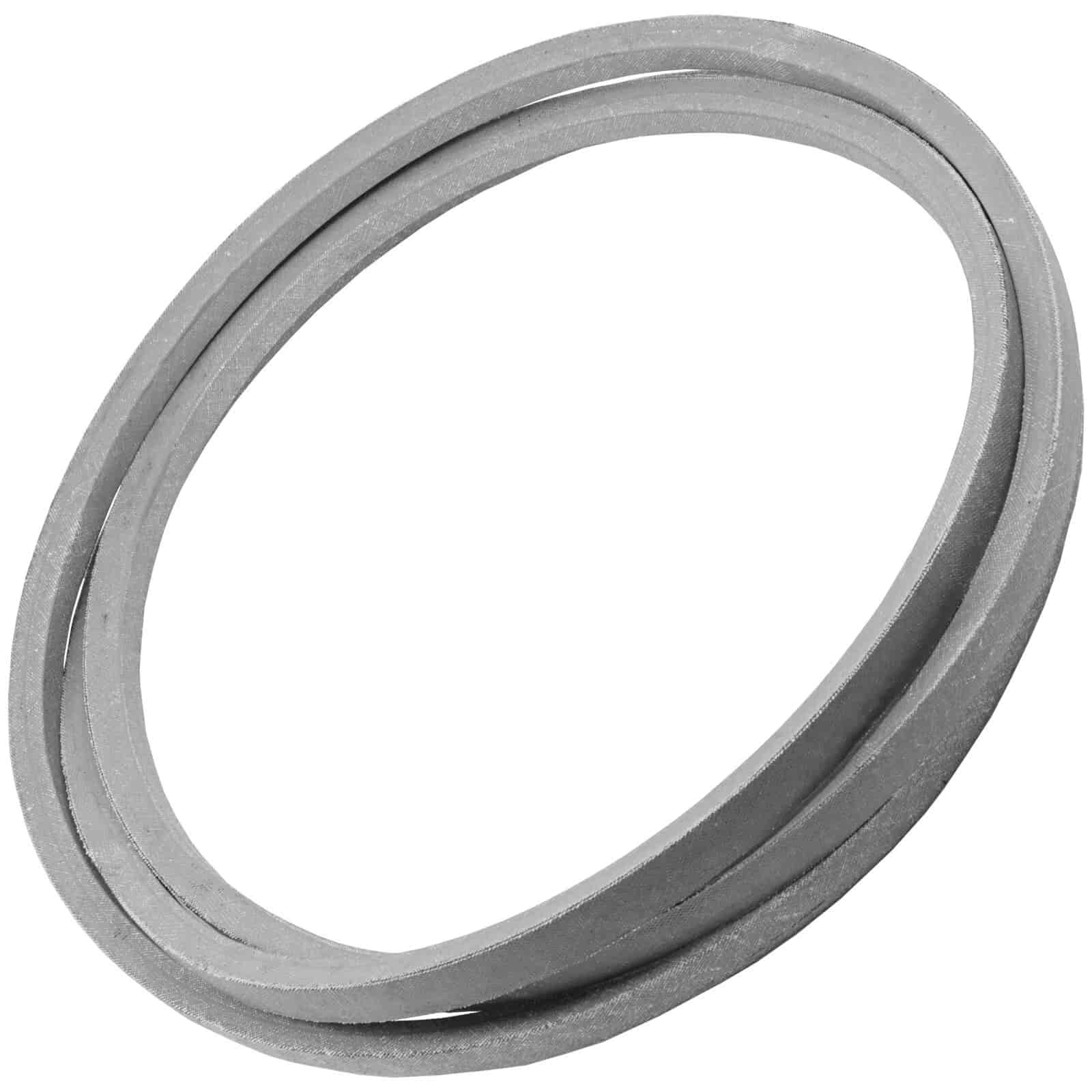

This aftermarket M154960 / M143923 mower deck belt fits select John Deere tractors equipped with compatible 54-inch mower decks using the listed replacement belt-number path.
The supplier lists this replacement belt at approximately 120.7 inches long by 0.60 inch wide.
On compatible two-belt mower decks, M154960 / M143923 is commonly used as the secondary spindle-drive belt that routes through the mower-deck spindle and idler pulley system. A separate primary belt may transfer power from the PTO clutch to the mower deck.
Key Features
- Aftermarket mower-deck drive belt
- Primary Replacement Number: M154960
- Additional Replacement Number: M143923
- Supplier Reference: BT434A1004
- Supplier-Listed Length: 3065.7 mm / approximately 120.7 inches
- Supplier-Listed Width: 15.25 mm / approximately 0.60 inch
- Material: Polyester
- Cover Style: Dry cover
- Color: Gray
- Quantity Included: One belt
- Used on select John Deere 54-inch mower-deck configurations
Replaces These Belt Numbers
- M143923
- M154960
Supplier Reference Number
- BT434A1004
Search-Friendly Number Formats
- M143923
- 143923
- M154960
- 154960
- BT434A1004
Belt Specifications
- Component: Mower-deck drive belt
- Length: 3065.7 mm / approximately 120.7 inches
- Width: 15.25 mm / approximately 0.60 inch
- Material: Polyester
- Cover: Dry cover
- Color: Gray
- Quantity: One belt
Published belt measurements can vary depending on how the belt is measured. Use the original M154960 or M143923 number as the primary fitment check rather than relying on a tape measurement alone.
Compatible John Deere Model Paths
The supplier associates the M154960 / M143923 belt with select 54-inch mower-deck configurations in the following John Deere model families:
- John Deere X320
- John Deere X340
- John Deere X590
- John Deere GX325
- John Deere GX355
Fitment note: These are supplier-provided model examples. The belt fits only the mower-deck configurations that use M154960 or M143923. Confirm the original belt number and installed deck before ordering.
John Deere X320 Fitment Note
The M154960 / M143923 belt is used on select John Deere X320 tractors equipped with a compatible 54-inch mower deck.
On the compatible two-belt deck path:
- The short primary belt transfers power from the PTO clutch to the mower deck.
- The M154960 / M143923 secondary belt routes through the spindle and idler pulley system.
This listing includes the M154960 / M143923 belt only. It does not include the separate primary mower-deck belt.
John Deere X340 Fitment Note
The supplier associates this belt with select John Deere X340 tractors equipped with compatible 54-inch mower decks.
John Deere X340 tractors may be found with more than one mower-deck configuration. Confirm that the original belt is marked M154960 or M143923.
John Deere X590 Fitment Note
The supplier lists select John Deere X590 54-inch mower-deck configurations among the compatible applications.
Confirm the mower-deck configuration, original belt number, and belt routing before ordering. Do not select the belt from the X590 model name alone.
John Deere GX325 and GX355 Fitment Note
The supplier associates M154960 / M143923 with select John Deere GX325 and GX355 tractors using compatible 54-inch mower decks.
These tractor families were available with different mower-deck sizes and configurations. Match the original belt number and installed deck before ordering.
Primary Belt vs. Secondary Belt
Many compatible John Deere 54-inch mower decks use two separate belts:
- The primary deck belt transfers power from the engine-mounted PTO clutch to the mower deck.
- The secondary deck belt routes through the mower-deck spindle and idler pulleys.
M154960 / M143923 is commonly used in the secondary spindle-drive position on compatible two-belt deck systems.
Common Symptoms of a Worn Secondary Deck Belt
- The primary belt turns but the mower blades do not rotate correctly
- One or more blades turn slowly under mowing load
- The belt squeals when the PTO clutch engages
- The belt repeatedly jumps off a spindle or idler pulley
- Visible cracking, glazing, fraying, or burned belt surfaces
- Loose belt tension with the tension arm engaged
- Uneven blade speed across the mower deck
- Reduced grass-discharge or bagging performance
- Burning-rubber smell near the mower deck
Installation Notes
- Park the mower on a level surface and remove the ignition key.
- Disconnect the spark-plug leads before working near the mower deck.
- Photograph or sketch the original belt routing before removal.
- Identify the primary and secondary mower-deck belts before disassembly.
- Inspect each spindle pulley and idler pulley for bearing wear.
- Inspect the tension arm, tension spring, and belt guides.
- Confirm the flat and V-shaped sides of the belt contact the correct pulleys.
- Make sure the belt is seated completely inside every pulley groove.
- Rotate the mower-deck pulley system manually before starting the engine.
- Replace seized pulleys or damaged tension components before operating the new belt.
Quick Ship Fulfillment
This item may ship directly from one of our trusted U.S. distribution partners to help reduce transit time. Packaging, labeling, or warehouse origin may vary, but the part will match the replacement numbers, fitment notes, and supplier specifications shown in this listing.
Why Buy From PTO Direct USA
- Part-number-first listings to help reduce fitment mistakes
- Focused mower-deck and PTO replacement parts
- Clear primary and secondary belt-position notes
- Practical support when you need help checking compatibility
FAQ
What does the M154960 belt replace?
The supplier cross-references this aftermarket belt to John Deere numbers M154960 and M143923.
Is M154960 the same replacement path as M143923?
Yes. This supplier belt is listed as a replacement for both M154960 and M143923 when the mower-deck configuration and dimensions match.
How long is the supplier-listed M154960 belt?
The supplier lists the belt at 3065.7 mm long, approximately 120.7 inches.
How wide is the supplier-listed M154960 belt?
The supplier lists the belt at 15.25 mm wide, approximately 0.60 inch.
What material is the belt made from?
The supplier describes the belt as a polyester replacement belt with a dry cover.
How many belts are included?
This listing includes one M154960 / M143923 mower-deck belt.
Is M154960 a primary or secondary deck belt?
On compatible two-belt John Deere 54-inch mower decks, M154960 / M143923 is commonly used as the secondary spindle-drive belt.
Does this listing include the primary mower-deck belt?
No. This listing includes one M154960 / M143923 belt only. A separate primary belt may be required.
Does M154960 fit the John Deere X320?
The supplier associates this belt with select John Deere X320 tractors equipped with compatible 54-inch mower decks. Confirm the original belt number before ordering.
Does M154960 fit the John Deere X340?
The supplier lists select X340 54-inch mower-deck applications. Match the original M154960 or M143923 number and deck routing.
Does M154960 fit the John Deere X590?
The supplier associates the belt with select X590 54-inch mower-deck configurations. Not every X590 deck uses this belt.
Does M154960 fit the John Deere GX325?
The supplier lists select GX325 tractors with compatible 54-inch mower decks. Confirm the original belt number and installed deck.
Does M154960 fit the John Deere GX355?
The supplier lists select GX355 tractors with compatible 54-inch mower decks. Match the original belt number before ordering.
Is this the tractor traction-drive belt?
No. This listing is for a mower-deck drive belt. The traction-drive belt that moves the tractor is a separate part.
Can I order this belt using only the mower model?
No. Confirm the original belt number, mower-deck size, belt position, supplier-listed dimensions, and pulley routing before ordering.
