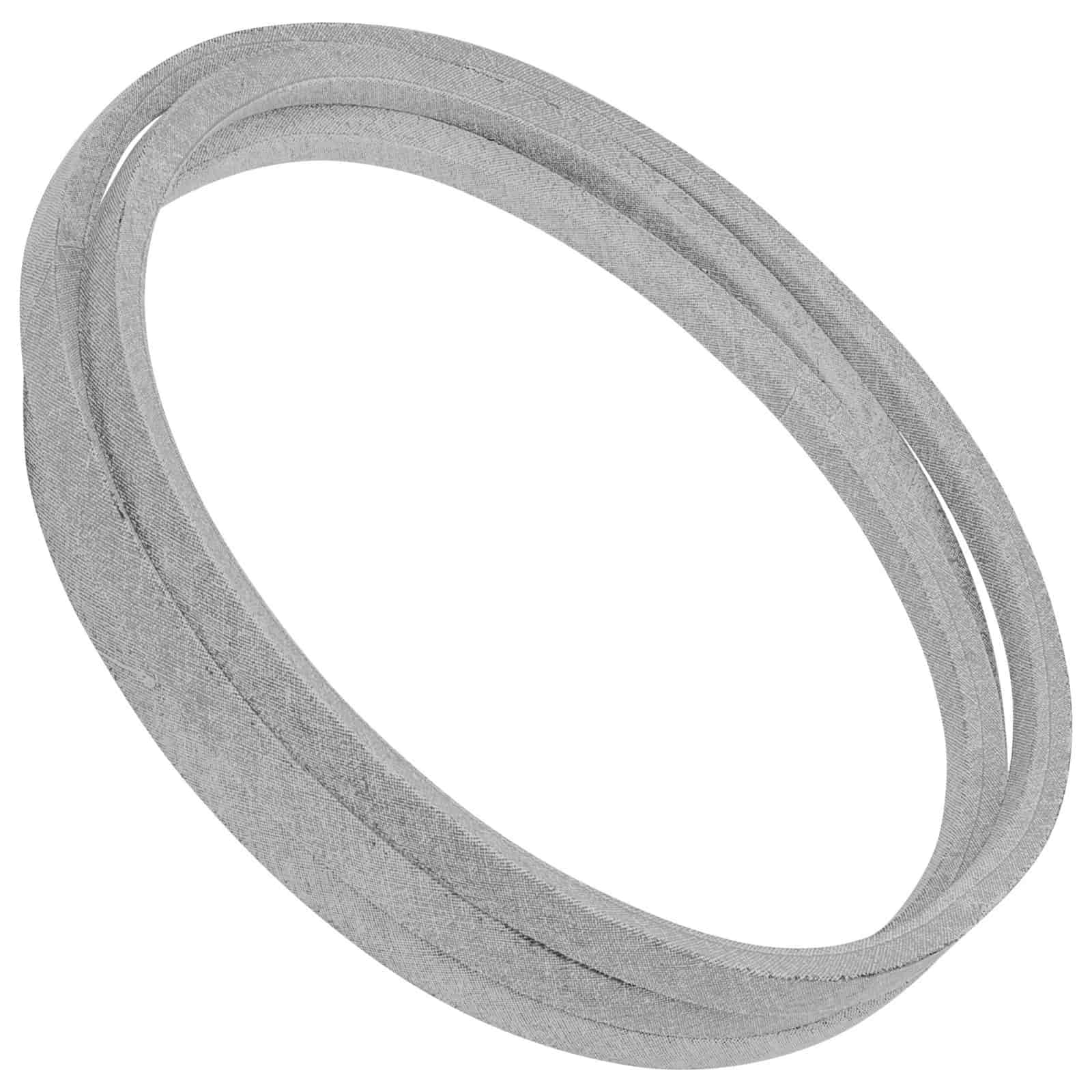

M154958 / M110313 Deck Belt for John Deere 48-Inch Deck | 5/8 x 111 Inch

Overview

This aftermarket M154958 / M110313 mower deck belt fits select John Deere, Sabre, and Scotts mower-deck applications using the listed replacement belt-number path.

The supplier lists this wrapped polyester replacement belt at approximately 5/8 inch wide by 111 inches long.

On select John Deere X320 and X324 tractors with the compatible 48X deck and rotatable gauge wheels, M154958 is used as the secondary spindle-drive belt. Those deck configurations use a separate primary belt between the PTO clutch and mower deck.

Key Features

• Aftermarket mower-deck drive belt
• Primary Replacement Number: M154958
• Additional Replacement Number: M110313
• Supplier Reference: BT381A1002
• Supplier-Listed Width: Approximately 5/8 inch
• Supplier-Listed Length: Approximately 111 inches
• Supplier Metric Length: 2825.8 mm
• Supplier Metric Width: 15.9 mm
• Supplier-Listed Thickness: 11 mm
• Material: Polyester
• Construction: Wrapped belt
• Color: Black
• Quantity Included: One belt

Replaces These Belt Numbers

• M110313
• M154958

Supplier Reference Number

• BT381A1002

Search-Friendly Number Formats

• M110313
• 110313
• M154958
• 154958
• BT381A1002

Belt Specifications

• Component: Mower-deck drive belt
• Nominal Width: Approximately 5/8 inch
• Nominal Length: Approximately 111 inches
• Metric Length: 2825.8 mm
• Metric Width: 15.9 mm
• Thickness: 11 mm
• Material: Polyester
• Construction: Wrapped
• Quantity: One belt

Use the original M154958 or M110313 belt number as the primary fitment check rather than relying on a tape measurement alone.

Compatible John Deere Model Families

Supplier fitment data associates the M154958 / M110313 belt path with select 48-inch mower-deck configurations in the following John Deere families.

John Deere Lawn and Garden Tractors

• 180
• 240
• 245
• 260
• 265
• 285
• 320
• 325
• 335
• 345
• 355D

John Deere GT Series

• GT225
• GT235
• GT235E
• GT242
• GT245
• GT262
• GT275

John Deere GX Series

• GX255
• GX325
• GX335
• GX345
• GX355

John Deere LX Series

• LX172
• LX173
• LX176
• LX178
• LX186
• LX188
• LX200
• LX255
• LX266
• LX277
• LX279
• LX280
• LX289

John Deere X300 Series

• X300
• X304
• X310
• X320
• X324
• X340
• X360

John Deere X500 Series

• X500
• X520
• X530
• X534
• X540
• X590

Additional John Deere Models

• LT170
• SST18

Fitment note: These are supplier-provided model-family examples. The belt fits only the compatible mower-deck and belt-routing configurations using M154958 or M110313.

John Deere X320 and X324 Fitment

On select John Deere X320 and X324 tractors equipped with a 48X mower deck with rotatable gauge wheels, the mower deck uses a two-belt system:

• M154897: Primary PTO-clutch-to-deck belt
• M154958: Secondary spindle-drive belt

This listing is for the M154958 secondary belt only. It does not include the separate M154897 primary belt.

Do not use M154958 on the X320 or X324 48X deck configuration that calls for the single long M155368 belt. Confirm the gauge-wheel configuration and original belt number before ordering.

John Deere X300, X304, X310, X340 and X360 Note

The supplier associates M154958 with select mower-deck configurations across these X300 Series models. These tractors were offered with multiple deck sizes and belt-routing arrangements.

Do not select this belt from the tractor model alone. Confirm that the original secondary deck belt is marked M154958 or M110313.

John Deere X500 Series Note

The supplier also associates this belt path with select X500, X520, X530, X534, X540, and X590 mower-deck configurations.

Not every X500 Series deck uses M154958. Match the installed mower deck, original belt number, and two-belt routing system before ordering.

Compatible Sabre and Scotts Model Families

Sabre Yard and Garden Tractors

• 1842GV
• 1842HV
• 1848GV
• 1848HV
• 1948GV
• 1948HV
• 2048HV
• 2148HV

Scotts Tractors

• S2048
• S2348

Confirm the original M110313 or M154958 number before ordering for a Sabre or Scotts mower.

Primary Belt vs. Secondary Belt

Many compatible John Deere 48-inch mower decks use two separate belts:

• The primary belt transfers power from the engine-mounted PTO clutch to the mower deck.
• The secondary belt routes through the mower-deck spindle and idler pulleys.

M154958 and M110313 are commonly used in the secondary spindle-drive position. The primary belt is a separate part and is not included with this listing.

Before ordering, trace the original belt routing and confirm which belt is being replaced.

Before Ordering

Confirm all of the following before ordering:

• The original belt number is M154958 or M110313.
• The replacement is for the mower-deck drive system.
• The supplier-listed belt size of approximately 5/8 inch by 111 inches matches the required path.
• The mower has a compatible deck configuration.
• The original belt routes through the same spindle and idler pulley arrangement.
• The belt is not being confused with the tractor traction-drive belt.
• On two-belt decks, the required belt is the secondary spindle-drive belt.
• For an X320 or X324, the deck has the compatible 48X rotatable-gauge-wheel configuration.
• The spindle pulleys, idlers, tension spring, and belt guides are in usable condition.

Do not install the belt until the replacement number, dimensions, routing position, and mower-deck configuration have been confirmed.

Common Symptoms of a Worn Secondary Deck Belt

• Primary belt moves but the mower blades do not turn correctly
• One or more blades turn slowly under mowing load
• Belt squeals when the PTO clutch engages
• Belt repeatedly jumps off an idler or spindle pulley
• Visible cracking, fraying, glazing, or burned belt surfaces
• Loose belt tension with the tension arm engaged
• Uneven blade speed across the mower deck
• Reduced grass-discharge or bagging performance
• Burning-rubber smell near the mower deck

Installation Notes

• Park the mower on a level surface and remove the ignition key.
• Disconnect the spark-plug leads before working near the mower deck.
• Photograph or sketch the existing belt routing before removal.
• Identify the primary and secondary belts before disassembly.
• Inspect all spindle pulleys and idler pulleys for bearing wear.
• Inspect the tension arm, tension spring, and belt guides.
• Confirm the V side and flat side of the belt contact the correct pulleys.
• Make sure the belt is seated completely inside every pulley groove.
• Rotate the deck pulley system manually before starting the mower.

Quick Ship Fulfillment

This item may ship directly from one of our trusted U.S. distribution partners to help reduce transit time. Packaging, labeling, or warehouse origin may vary, but the part will match the replacement numbers, fitment notes, and supplier specifications shown in this listing.

Why Buy From PTO Direct USA

• Part-number-first listings to help reduce fitment mistakes
• Focused mower-deck and PTO replacement parts
• Clear belt-position and deck-configuration notes
• Practical support when you need help checking compatibility

FAQ

What does the M154958 belt replace?

This aftermarket belt replaces John Deere belt numbers M154958 and M110313 when the mower-deck configuration and belt routing match.

How long is the supplier-listed M154958 belt?

The supplier lists the belt nominally at approximately 111 inches long.

How wide is the supplier-listed M154958 belt?

The supplier lists the belt at approximately 5/8 inch wide, or 15.9 mm.

How thick is the belt?

The supplier lists the belt thickness at approximately 11 mm.

What material is the belt made from?

The supplier describes the belt as a wrapped polyester replacement belt.

Is M154958 the same replacement path as M110313?

Yes. The supplier cross-references this aftermarket belt to both M154958 and M110313.

Is this a primary or secondary mower-deck belt?

On many compatible John Deere 48-inch two-belt decks, M154958 or M110313 is used as the secondary spindle-drive belt. Confirm the mower-specific diagram and original belt number.

Does this include the primary PTO belt?

No. This listing includes one M154958 / M110313 belt only. A separate primary belt may be required on two-belt mower decks.

Does M154958 fit a John Deere X320?

It fits select X320 tractors equipped with the compatible 48X mower deck with rotatable gauge wheels. On that configuration, M154958 is the secondary spindle-drive belt.

Does M154958 fit a John Deere X324?

It fits select X324 tractors with the compatible 48X rotatable-gauge-wheel deck path. Confirm the original M154958 number before ordering.

Does this fit every John Deere X300 Series mower?

No. The X300 Series includes multiple deck sizes and belt configurations. Match the original belt number and installed mower deck.

Does this fit the John Deere X500 Series?

The supplier associates the belt with select X500, X520, X530, X534, X540, and X590 mower-deck configurations. Not every deck in those model families uses M154958.

Does this belt fit Scotts S2048 or S2348?

The supplier includes Scotts S2048 and S2348 among the compatible model examples. Confirm the original M110313 or M154958 number before ordering.

Is this the tractor traction-drive belt?

No. This listing is for a mower-deck drive belt. The traction-drive belt that moves the tractor is a separate part.

Can I order using only the mower model?

No. Confirm the original belt number, mower-deck type, belt position, dimensions, and pulley routing before ordering.
